Newest Products

🚀 PRE-ORDER NOW at SPECIAL PRICE!
Available in Summer 2026

Required additional hardware

1Home Touch works as an extension to the following devices:

• 1Home Server KNX Pro
• 1Home Server KNX
• 1Home Server KNX Bridge
• 1Home Server CH
• 1Home Voice & Visu

1Home Touch — Smart Touch Panel for KNX Homes

• 4” smart touchscreen for KNX homes
• Automatic configuration via 1Home Server
• Customizable interface and themes
• Scene, lighting, and device control
• Built-in SIP intercom
• Proximity sensor for screen activation

Support：

• Input Signal：DALI-2

• Input Voltage：100-240V

• Input Current：Max.6.4A

• Output Voltage：4×(100-240)V

• Output Current：4CH×1.6A,Max6.4A

• Output Power：4CH×(0-160...384)W Max. 1536W

• Working Temp.：-25℃-50℃

• Waterproof Rating：IP67

• Protection：Short-circuit protection, over-temperature protection, over-current protection, self-recoverable

• Warraty： 5 years

• Certification： UL,BIS,FCC EMC,TUV,CE EMC,RoHS

Parameter Settings:

1.NFC configures full DALI command parameters such as DALI address, dimming curve, brightness range, dimming fade time, power-on state, system failure state, group, and scene. It also supports product fault diagnosis and parameter restoration/replacement.

2.Button configures DALI address

3.Third-party standard DALI system configuration

Support：

• Input Signal：DALI 2

• Input Voltage：12-48V

• Input Current：Max.20.5A

• Output Voltage：4×(12-48)V

• Output Current：2×(4CH×2.5A) Max.20A

• Output Power：4CH×(0-60...240)W Max. 960W

• Working Temp.：-20℃-50℃

• Waterproof Rating：IP67

• Protection：Short-circuit protection, over-temperature protection, over-current protection, self-recoverable

• Warraty： 5 years

• Certification： UL,BIS,FCC EMC,TUV,CE EMC,RoHS

Parameter Settings:

1.NFC configures full DALI command parameters such as DALI address, dimming curve, brightness range, dimming fade time, power-on state, system failure state, group, and scene. It also supports product fault diagnosis and parameter restoration/replacement.

2.Button configures DALI address

3.Third-party standard DALI system configuration

Support：

• Dimming Interface: DALI-2, Push DIM

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac,

• PF>0.9/277Vac (at full load)

• Efficiency: 90%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 5A

• Output Power: 0-60W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：293×43×30mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Communication Methods: Bluetooth BLE, NFC protocol

• Operating Voltage: 5Vdc

• Operating Current: 500mA

• Operating Temperature: 0℃~40℃

• It supports standalone operation or connection to a mobile app via Bluetooth, with built-in all debugging functions of a DALI host.

• No power supply is required for operation, enabling convenient and efficient batch reading/writing of power current as well as programming and setting of numerous parameter configurations, featuring powerful functionality.

• Product Size：69×104×12.5mm

• Product Weight：55g

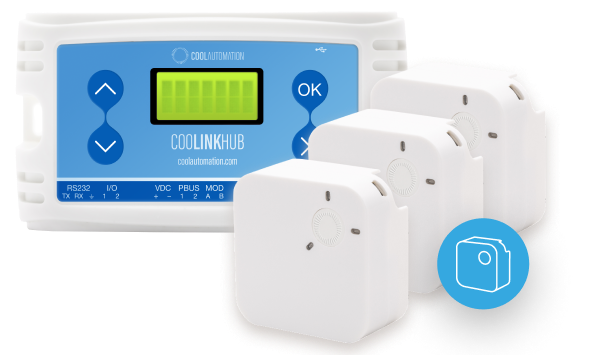

This gateway offers a cloud-based solution for remote control of air conditioning units with an infrared receiver.

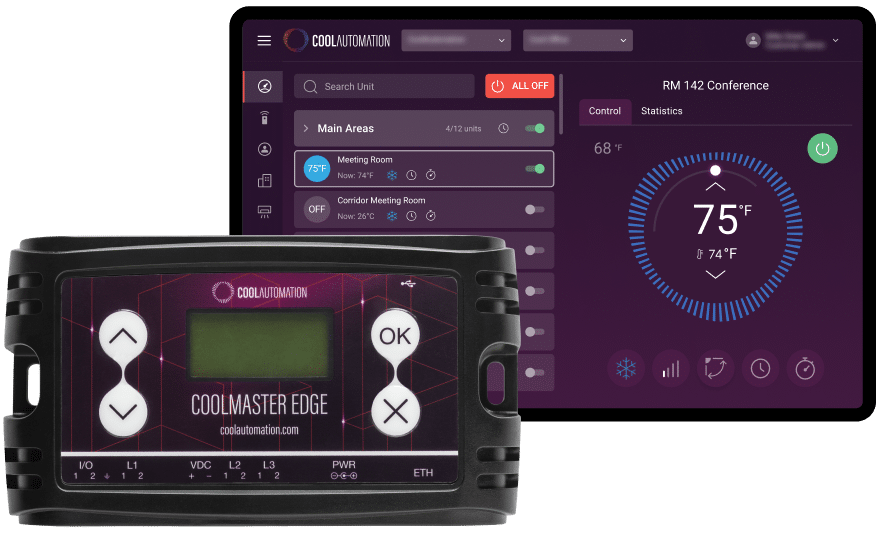

AC Cloud Control is a mobile/web application for professional control of multibrand and multisite projects from one single dashboard,

enhancing the user experience and optimizing the building's energy usage.

Support：

• Dimming Interface: DALI-2 DT6/DT8, Push DIM/CCT

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, • PF>0.9/277Vac (at full load)

• Efficiency: 93%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 4.17A

• Output Power: 0-100W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：352×43×30mm

• Warranty: 5 years （Rubycon capacitor）

Support：

• Dimming Interface: DALI-2, Push DIM

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, • PF>0.9/277Vac (at full load)

• Efficiency: 93%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 4.17A

• Output Power: 0-100W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：352×43×30mm

• Warranty: 5 years（Rubycon capacitor）

Support：

• Dimming Interface: DALI-2, Push DIM

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac,

• PF>0.9/277Vac (at full load)

• Efficiency: 90%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 12Vdc

• Output Current: Max. 5A

• Output Power: 0-60W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：293×43×30mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 88%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 300-1050mA

• Output Power: 2.7W-40W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 87%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 200-800mA

• Output Power: 1.8W-30W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI-2 DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 86%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-700mA

• Output Power: 0.9W~20.4W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,FCC,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：127×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI-2 DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 84%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-500mA

• Output Power: 0.9W~12.15W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,FCC,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 88%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 300-1050mA

• Output Power: 2.7W-40W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 87%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 200-800mA

• Output Power: 1.8W-30W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 86%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-700mA

• Output Power: 0.9W~20.4W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,FCC,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：127×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 84%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-500mA

• Output Power: 0.9W~12.15W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,FCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：111×35×20mm

• Warranty: 5 years（Rubycon capacitor）

The KNX TP Multi IO 570.1 secure is a universal binary interface for building control.

It provides 48 I/O lines.

Each line can be used as binary input as well as binary output.

The peripherals can be fed by an external voltage of 24 V⎓.

Channels which are configured as inputs can be used to control lights or blinds via the KNX network.

They also can be used to count impulses, e.g. as interface for energy meters.

Channels which are configured as outputs can directly drive signal LEDs, external coupling relays (e.g. 590) or jalousie relays (592).

The KNX IO 532.1 secure is a compact combined dimming/switching actuator with 1 PWM dimming output for LEDs and 1 bistable relay output.

The dimming actuator can be used e.g. for LED panels or stripes.

Besides controlling the dimmer by switching, rel. dimming and dimming value, several optional functions are integrated, including scenes, automatic, slumber function or staircase light.

The KNX IP LineMaster 762.1 secure combines the essential functions of a KNX bus line: KNX power supply with choke, KNX IP router and KNX IP interface.

In addition to the bus voltage the power supply offers an auxiliary voltage.

The KNX IP router in the KNX IP LineMaster 762.1 secure allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.

.
