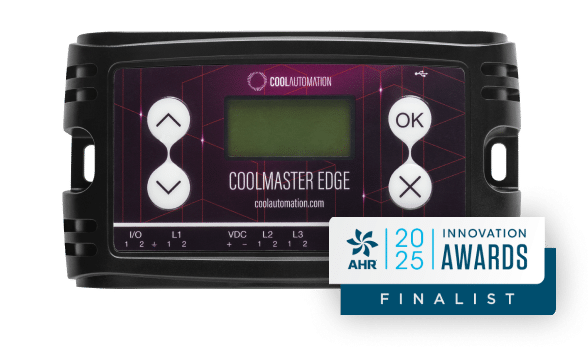

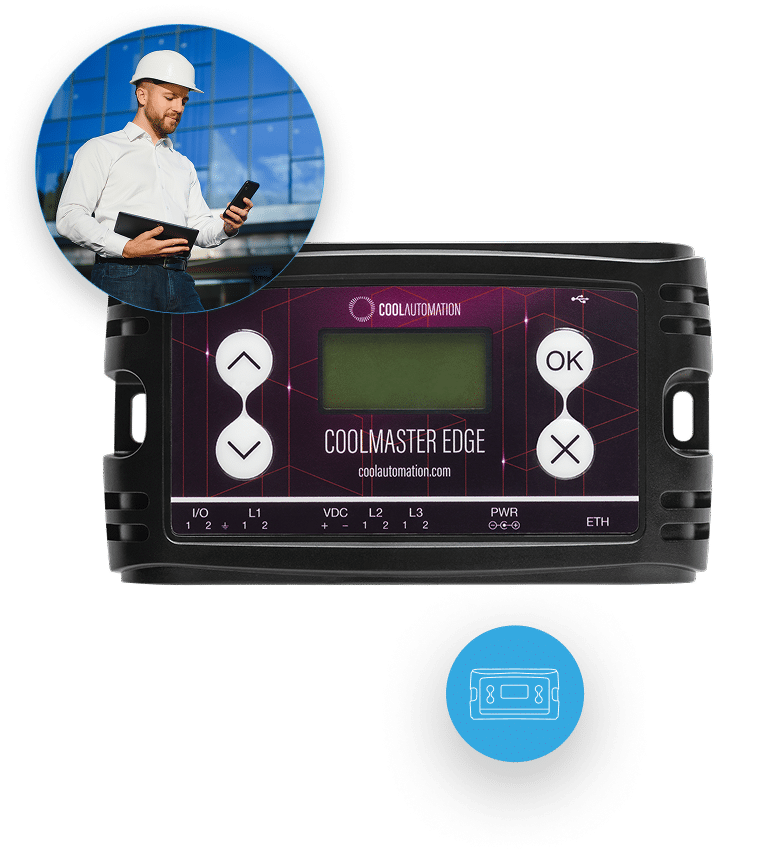

CoolAutomation CoolMaster EDGE HVAC gateway with edge processing, BACnet and Modbus
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$3,555.00 USD
Regular price
-10%
$3,950.00 USD
Sale price
$3,555.00 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The CoolAutomation CoolMaster EDGE is a universal HVAC control and monitoring gateway with on-board data processing. It integrates VRF/VRV systems from all major brands, plus other HVAC equipment and sensors with a BACnet or Modbus interface, and runs schedules, interlocks and control restrictions locally, so the site keeps working even when the internet connection drops.
A microSD slot buffers data on site for cloud continuity, a local web app handles commissioning, and setup wizards make adding BACnet and Modbus devices straightforward. Standard BACnet and Modbus interfaces feed the building management system. Local integration and control work out of the box; advanced cloud features (remote management, analytics, predictive maintenance) require a CoolAutomation subscription.
Key Features
- Native integration of VRF/VRV systems from all major brands
- Integration of third-party HVAC equipment and sensors with BACnet or Modbus interfaces, with setup wizards
- Edge processing: local interlocks, scheduling and control restrictions, resilient to internet outages
- microSD card slot for local data buffering
- BACnet MS/TP, BACnet IP and Modbus interfaces for BMS integration

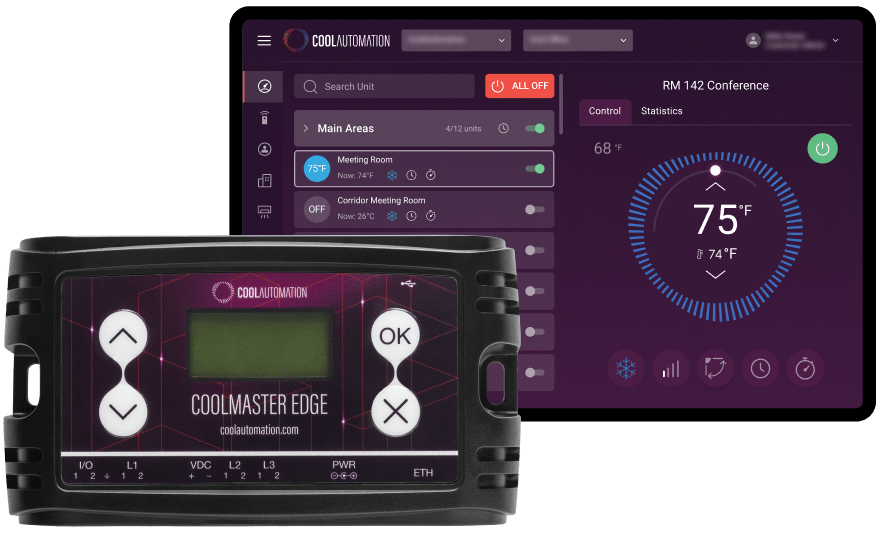

- Local web app for on-site commissioning and control; remote control from desktop, tablet or smartphone
- LCD screen and buttons on the device; dry-contact GPIO
- Up to 8 GS-SMT-HOA underfloor heating controllers (64 zones)
Compatible HVAC Systems
Daikin VRV (including VRV 6 and R32 via D4 adapter), Mitsubishi Electric VRF and splits, Fujitsu, Midea, Toshiba, Gree GMV5/6, Samsung and LG VRF, plus any HVAC device or sensor with a BACnet MS/TP, BACnet IP or Modbus interface. Send us your equipment list and we will confirm compatibility before you order.
Typical Applications
Multi-site portfolios, light commercial buildings and hotels that need local HVAC logic, energy restrictions and reliable remote management without a full BMS.
Technical Specifications
| Power supply | 12 V DC via included adapter, or direct DC up to 24 V DC |
| HVAC lines | L1, L2, L3 (brand dependent; e.g. Daikin VRV up to 64 indoor units and 10 systems per line) |

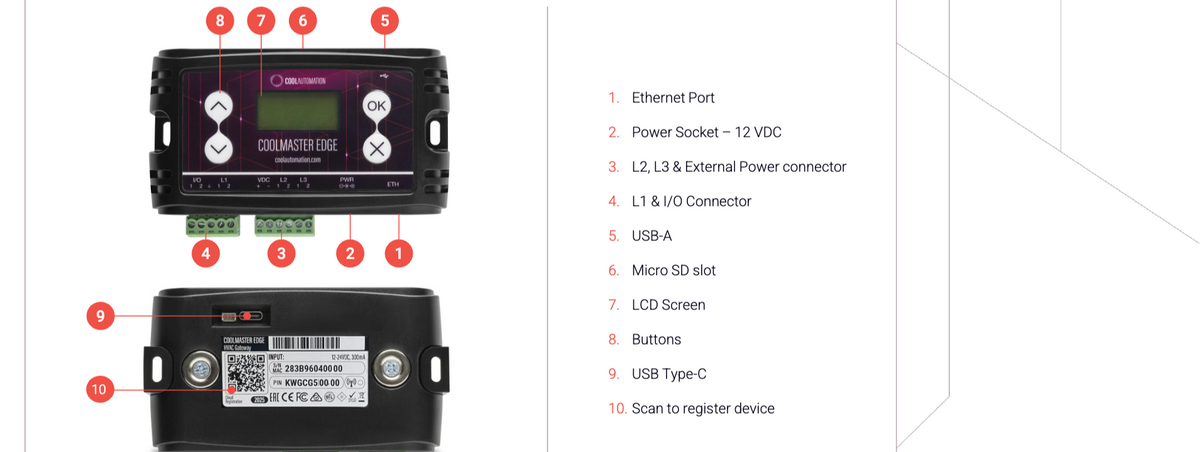

| Interfaces | Ethernet, USB-C, USB-A, microSD, HVAC lines, I/O (dry contact) |
| Protocols | BACnet MS/TP, BACnet IP, Modbus |
| Display | LCD with navigation buttons |
| Mounting | Wall, with magnetic back |

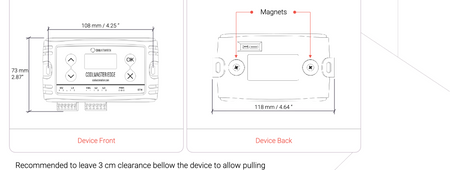

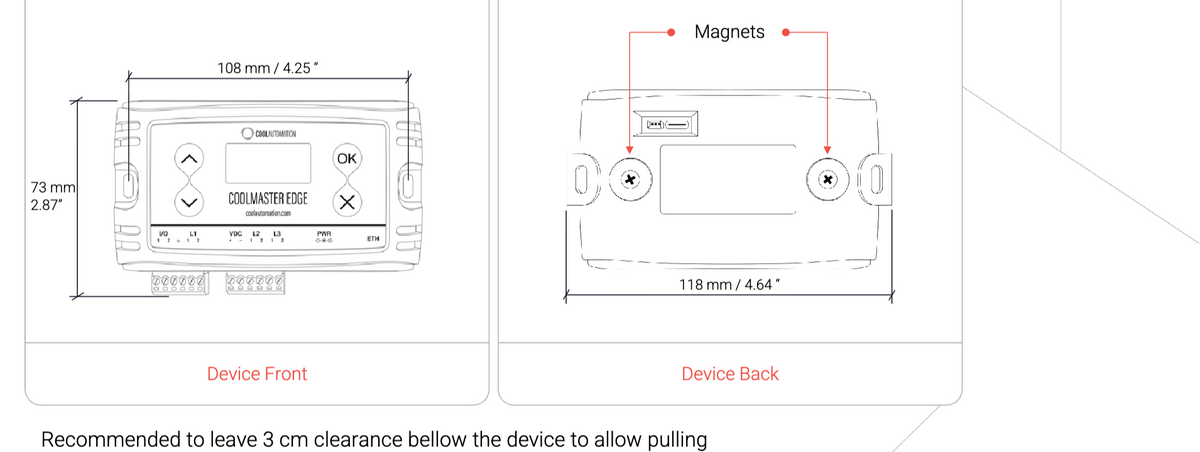

| Dimensions | approx. 118 × 108 mm (4.64 × 4.25 in) |
| In the box | Device, power supply, Ethernet cable, USB-C to USB-C cable, USB-C to USB-A adapter |
| Cloud features | Require an active CoolAutomation subscription |
| Certifications | Not UL/NRTL listed |
Related Products
CoolMaster and CoolMasterPro for classic gateway integration; CoolMaster KNX and CoolMasterPro KNX for direct KNX TP. GS-SMT-HOA underfloor heating controller.
Not UL/NRTL listed — verify local code requirements before specifying in US installations.
Installation guide (PDF) · Available to order.
