Products

Overview

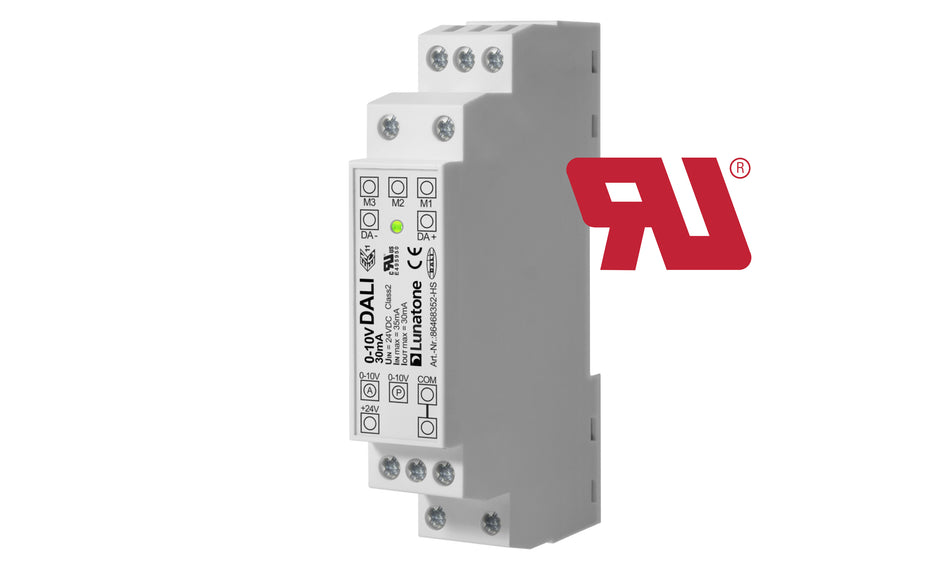

• Compact interface module for the conversion of 0-10V control signals to DALI dim levels
• The interface module provides a 30mA DALI power supply for up to 10 standard DALI ballasts, up to 64 ballasts controllable with the help of a DALI-Expander
• Passive and active 0-10V input
• The converted value is sent broadcast on the DALI subnet
• A change in the 0-10V input voltage signal (>1%) is used as trigger event.

Support：

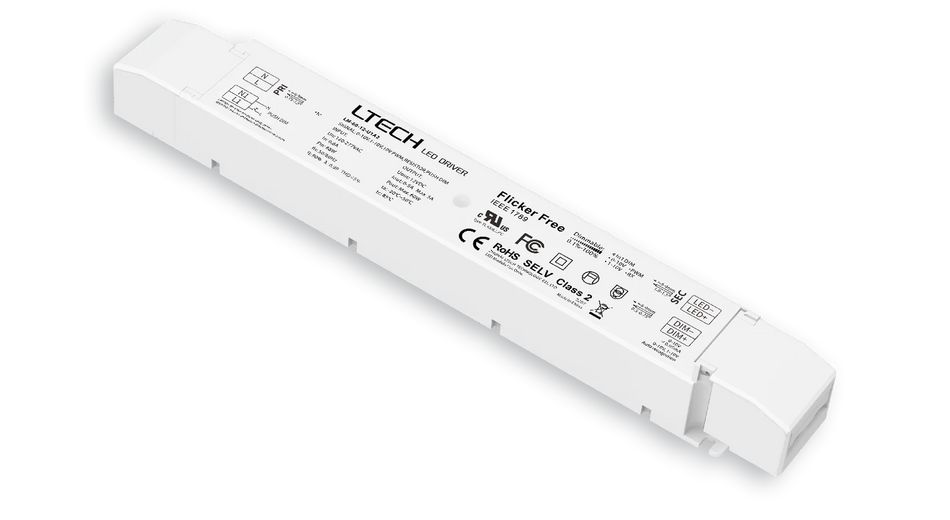

• Dimming Interface: DALI-2, Push DIM

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, • PF>0.9/277Vac (at full load)

• Efficiency: 93%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 4.17A

• Output Power: 0-100W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：352×43×30mm

• Warranty: 5 years（Rubycon capacitor）

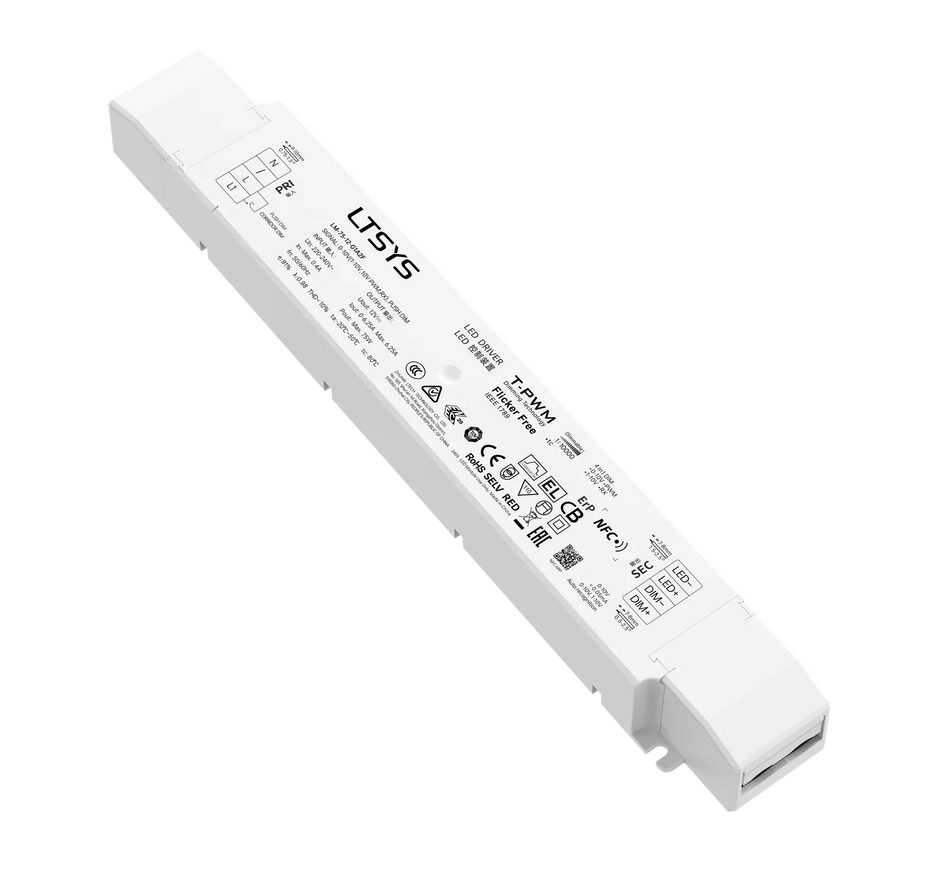

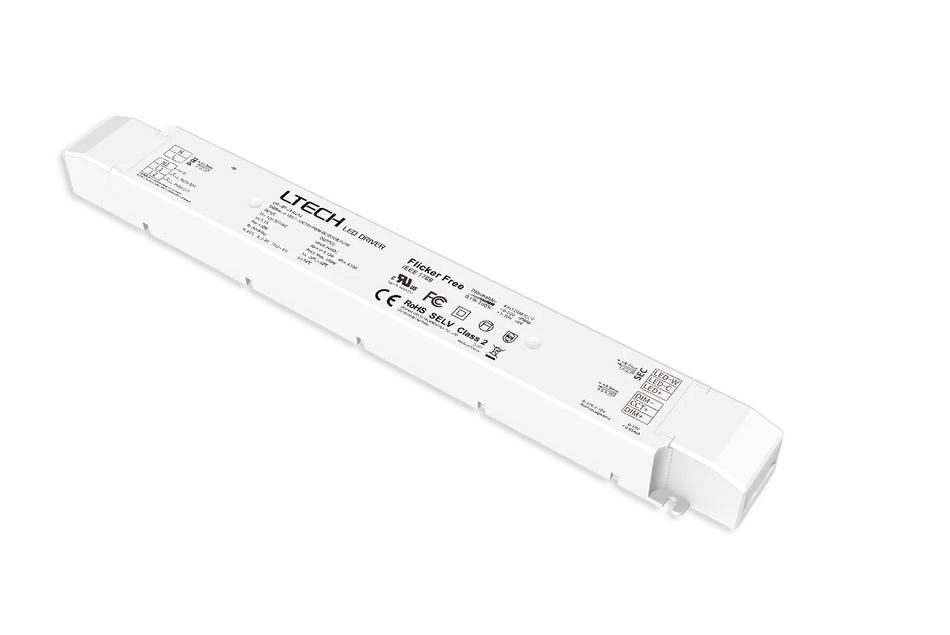

Support：

• Dimming Interface: DALI-2 DT6/DT8, Push DIM/CCT

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, • PF>0.9/277Vac (at full load)

• Efficiency: 93%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 4.17A

• Output Power: 0-100W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：352×43×30mm

• Warranty: 5 years （Rubycon capacitor）

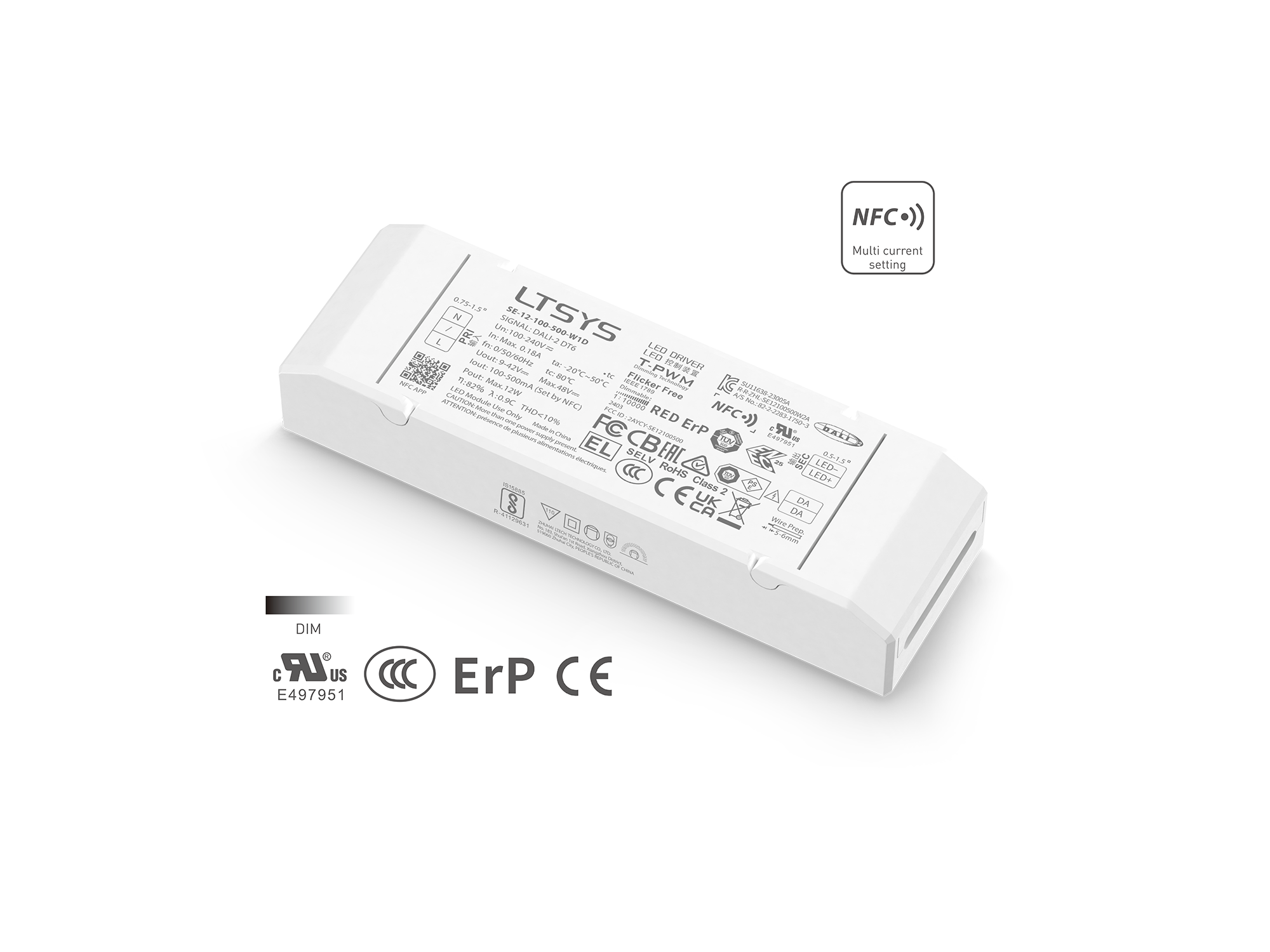

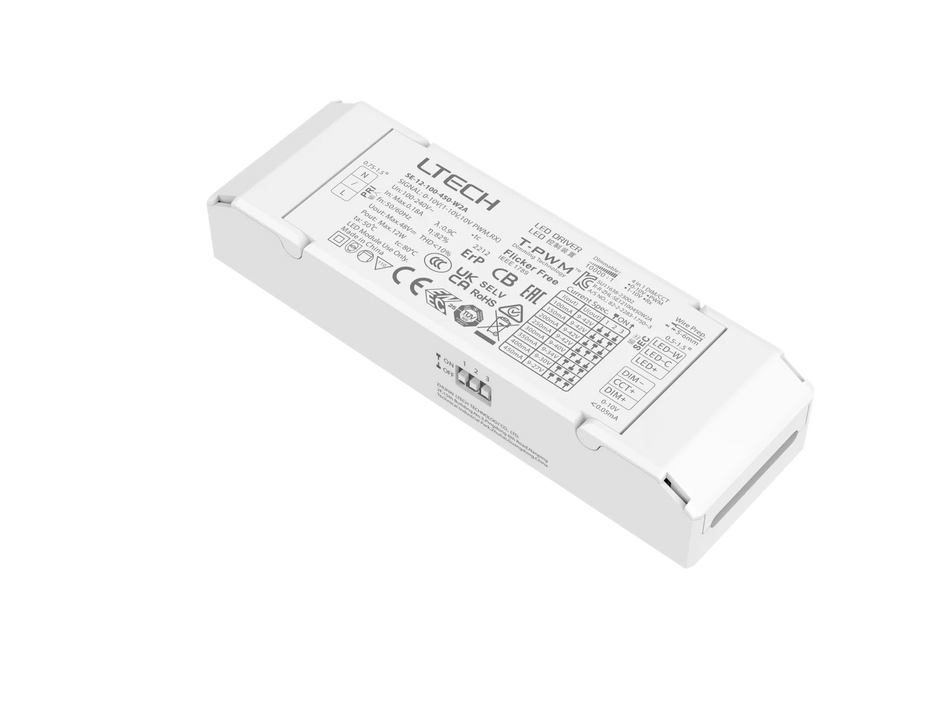

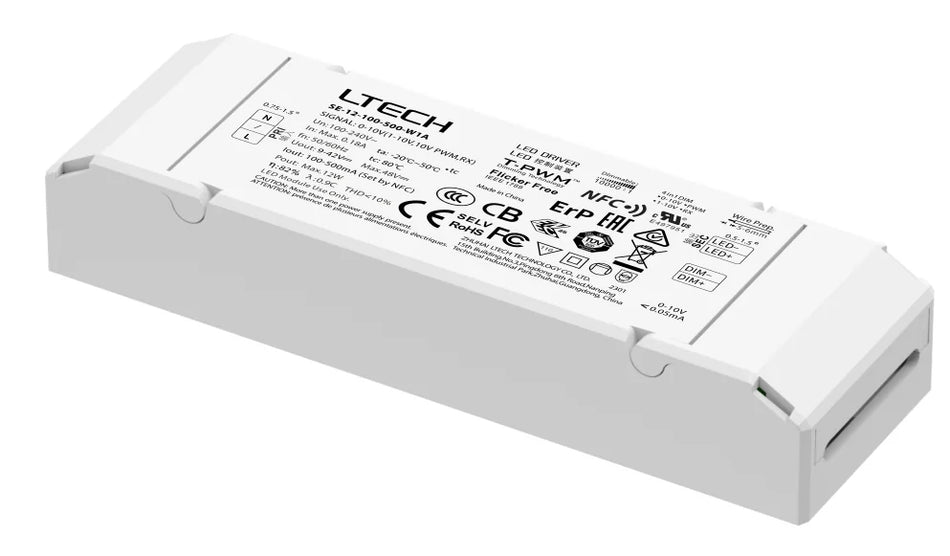

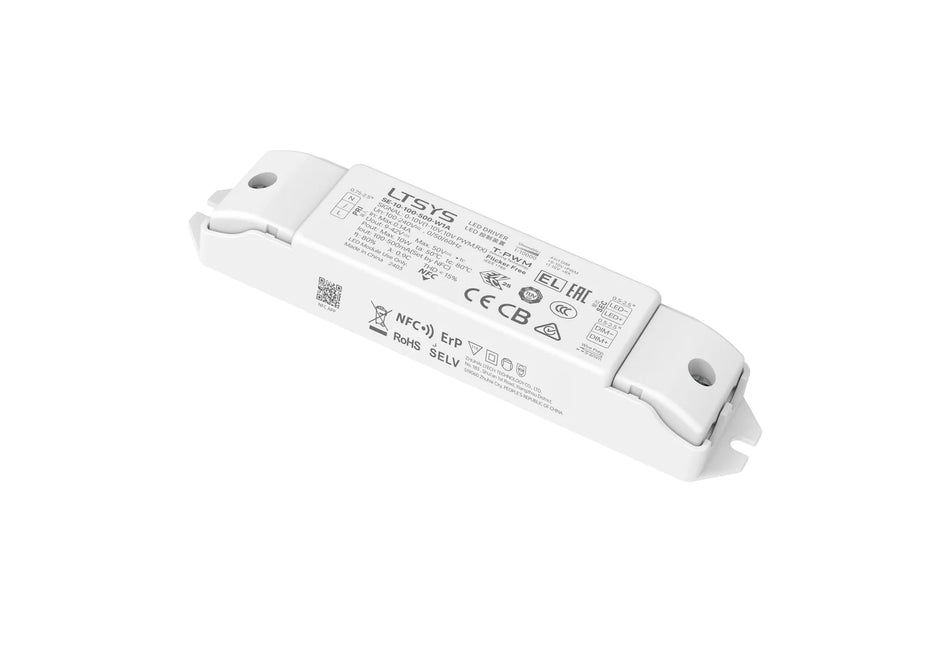

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 84%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-500mA

• Output Power: 0.9W~12.15W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,FCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：111×35×20mm

• Warranty: 5 years（Rubycon capacitor）

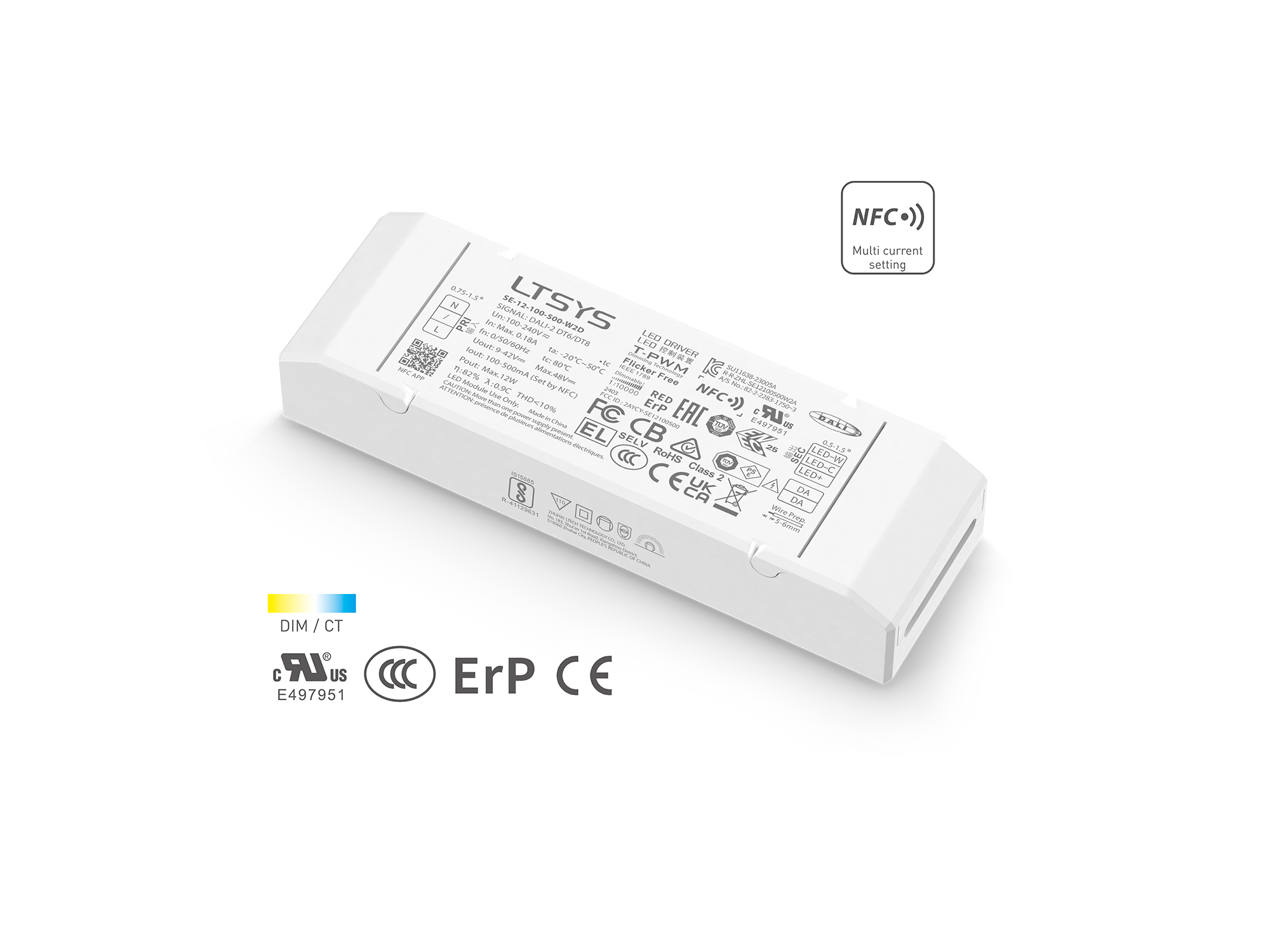

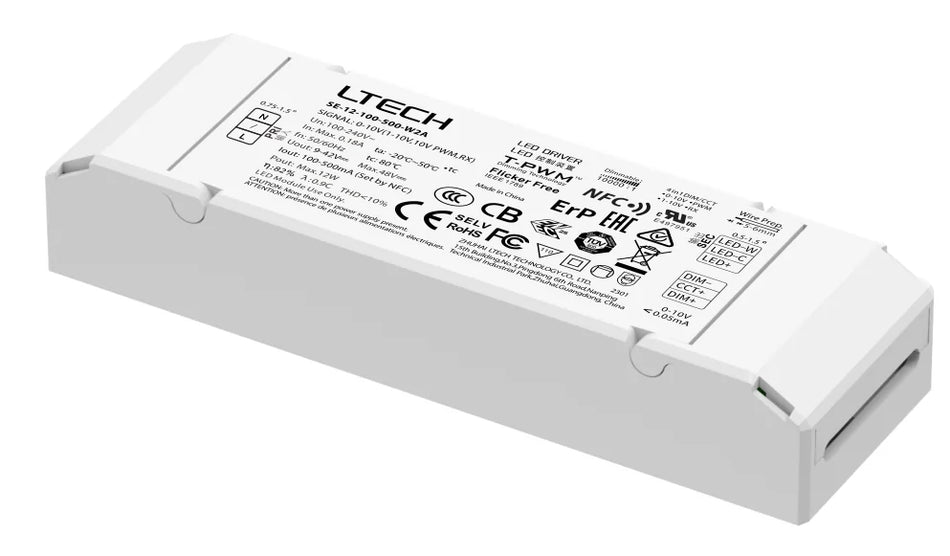

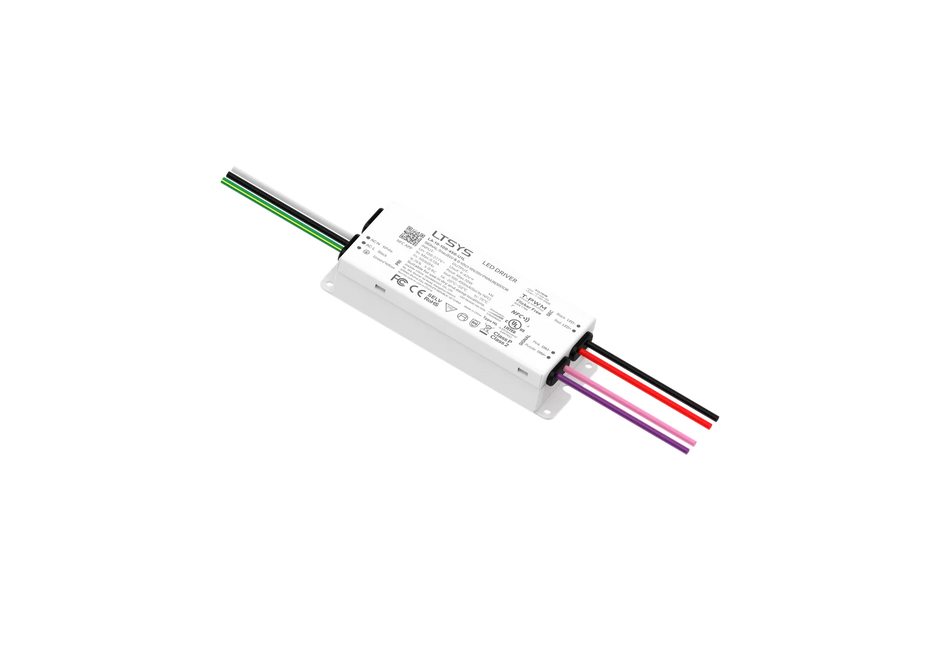

Support:

• Dimming Interface: DALI-2 DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 84%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-500mA

• Output Power: 0.9W~12.15W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,FCC,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Warranty: 5 years（Rubycon capacitor）

It connects professional smart home systems such as KNX and Loxone to Apple Home, Google Home, Samsung SmartThings and other smart assistants and voice interfaces via a new open standard Matter (what is the Matter standard?).

• Matter Bridge - Bring KNX to Apple Home, Google Home, Samsung SmartThings and other Matter compatible apps
• KNX integration over KNX TP Bus and KNXnet/IP Tunneling
• Incredibly quick setup with automatic device detection from ETS project file and automatic configuration validation
• KNX IP interface with KNXnet/IP Tunnelling support
• KNX (ETS) remote programming
• Remote access
• Logic module (coming in Q1 2024)
• Matter accessories integration (coming later in 2024)

For detailed KNX integration related documentation, please see the KNX integration page.

Overview

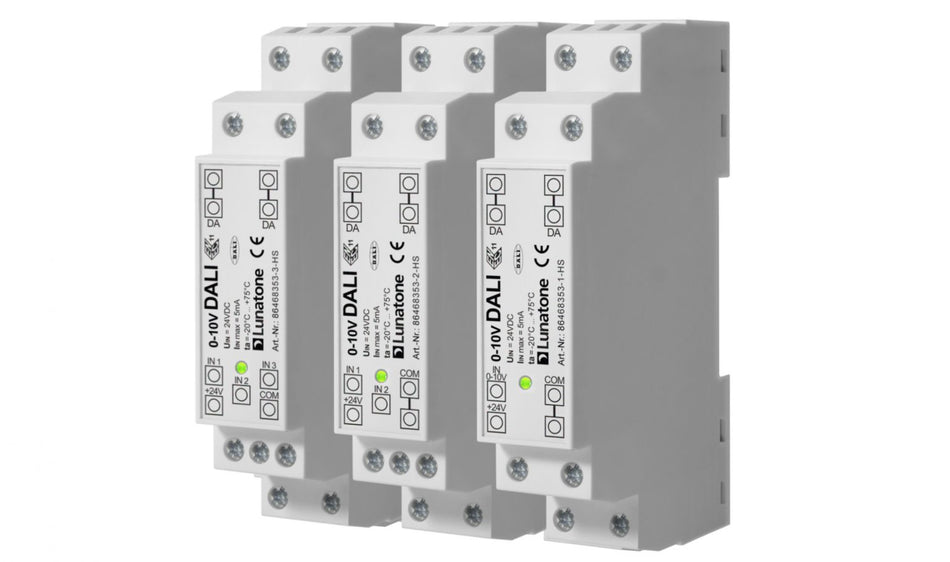

• Small interface module for the conversion of 0-10V control signals to DALI dim levels
• Devices with 1, 2 and 3 channels available
• The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
• A change on the 0-10V input voltage (<1%) is used as event trigger
• Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
• Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface

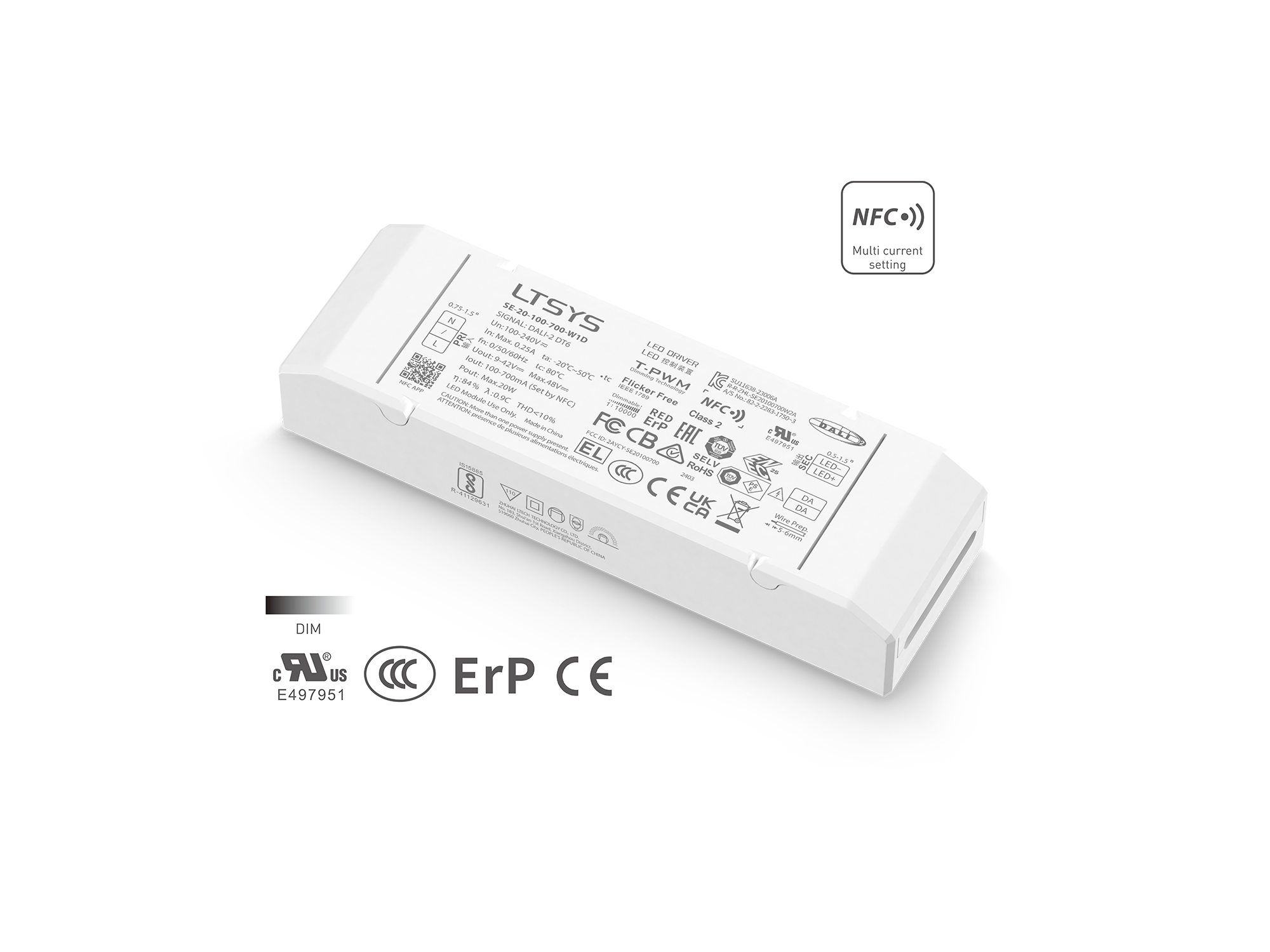

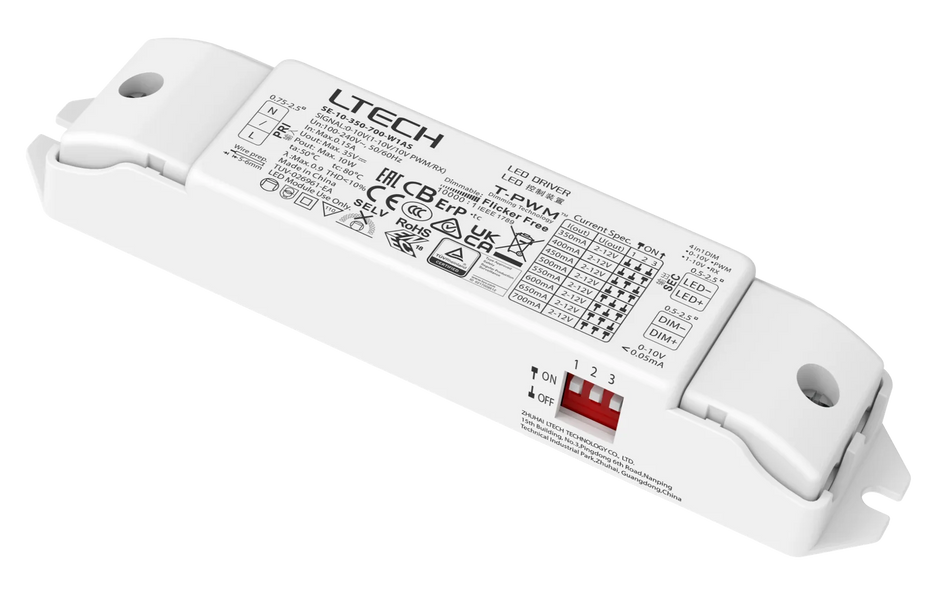

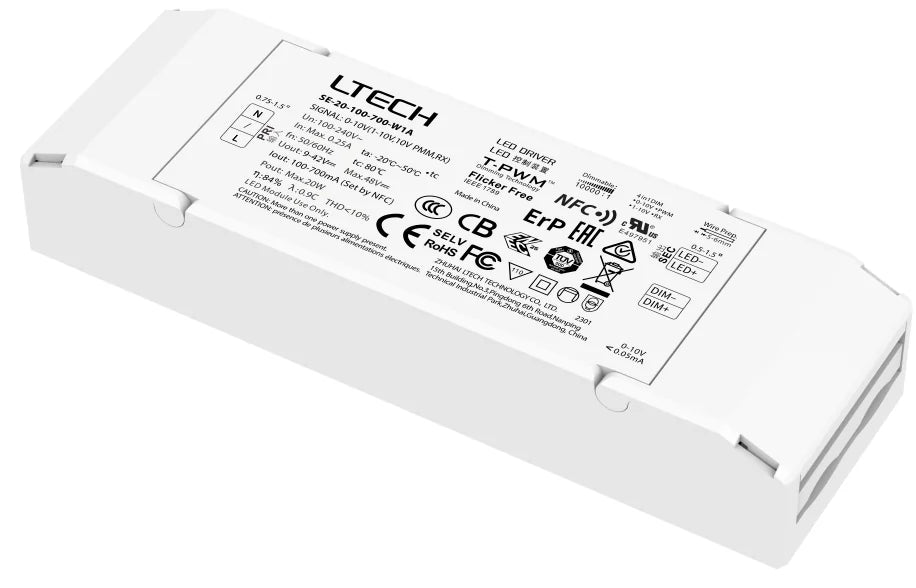

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 86%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-700mA

• Output Power: 0.9W~20.4W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,FCC,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：127×40×23mm

• Warranty: 5 years（Rubycon capacitor）

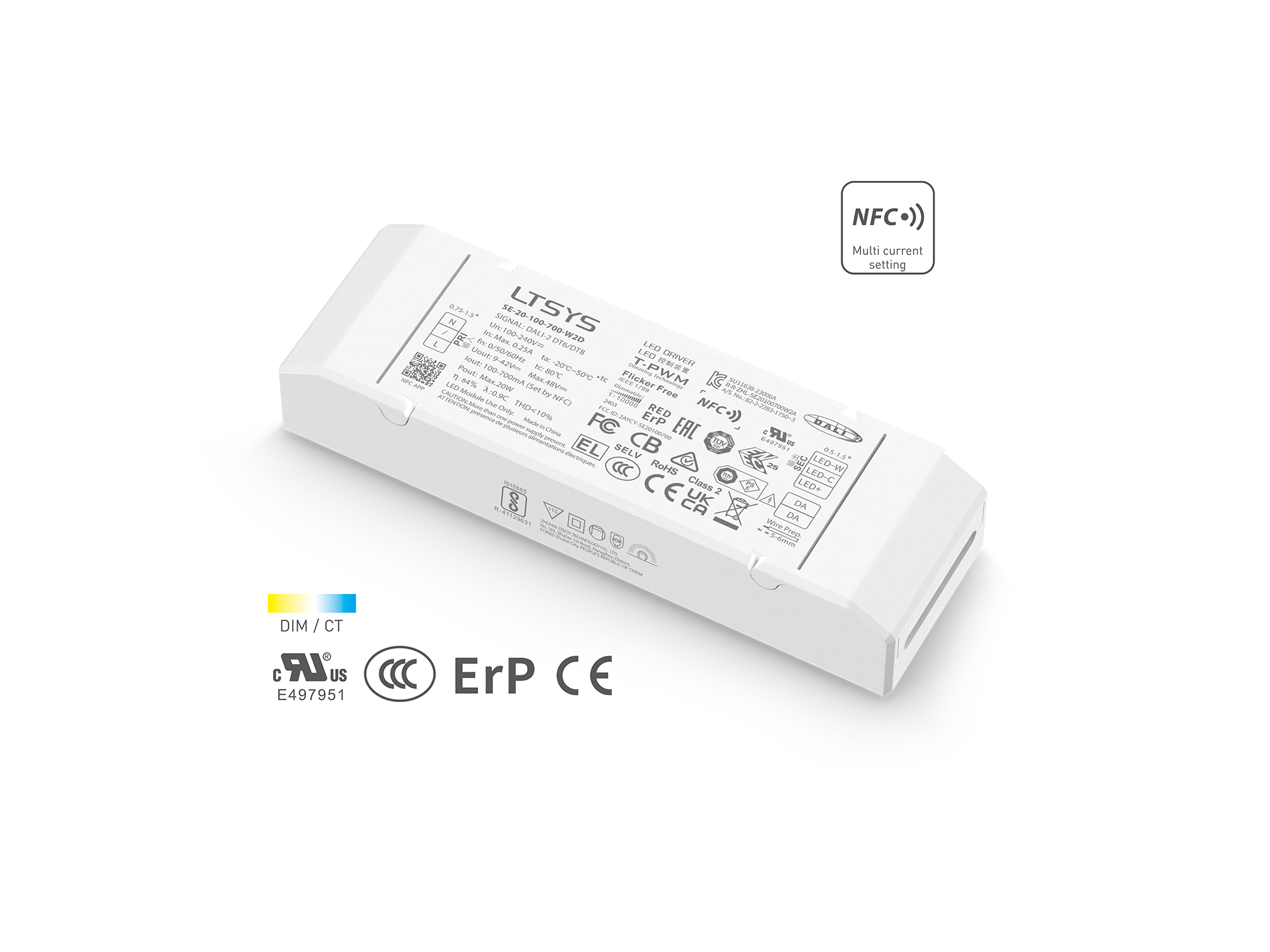

Support:

• Dimming Interface: DALI-2 DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 86%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-700mA

• Output Power: 0.9W~20.4W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,FCC,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：127×40×23mm

• Warranty: 5 years（Rubycon capacitor）

•  24V DC Power Supply
• maximum output current 300mA
• DIN Rail Module
• with Status LED

Overview

• Small interface module for the conversion of 0-10V control signals to DALI dim levels
• Devices with 1, 2 and 3 channels available
• The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
• A change on the 0-10V input voltage (<1%) is used as event trigger
• Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
• Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface

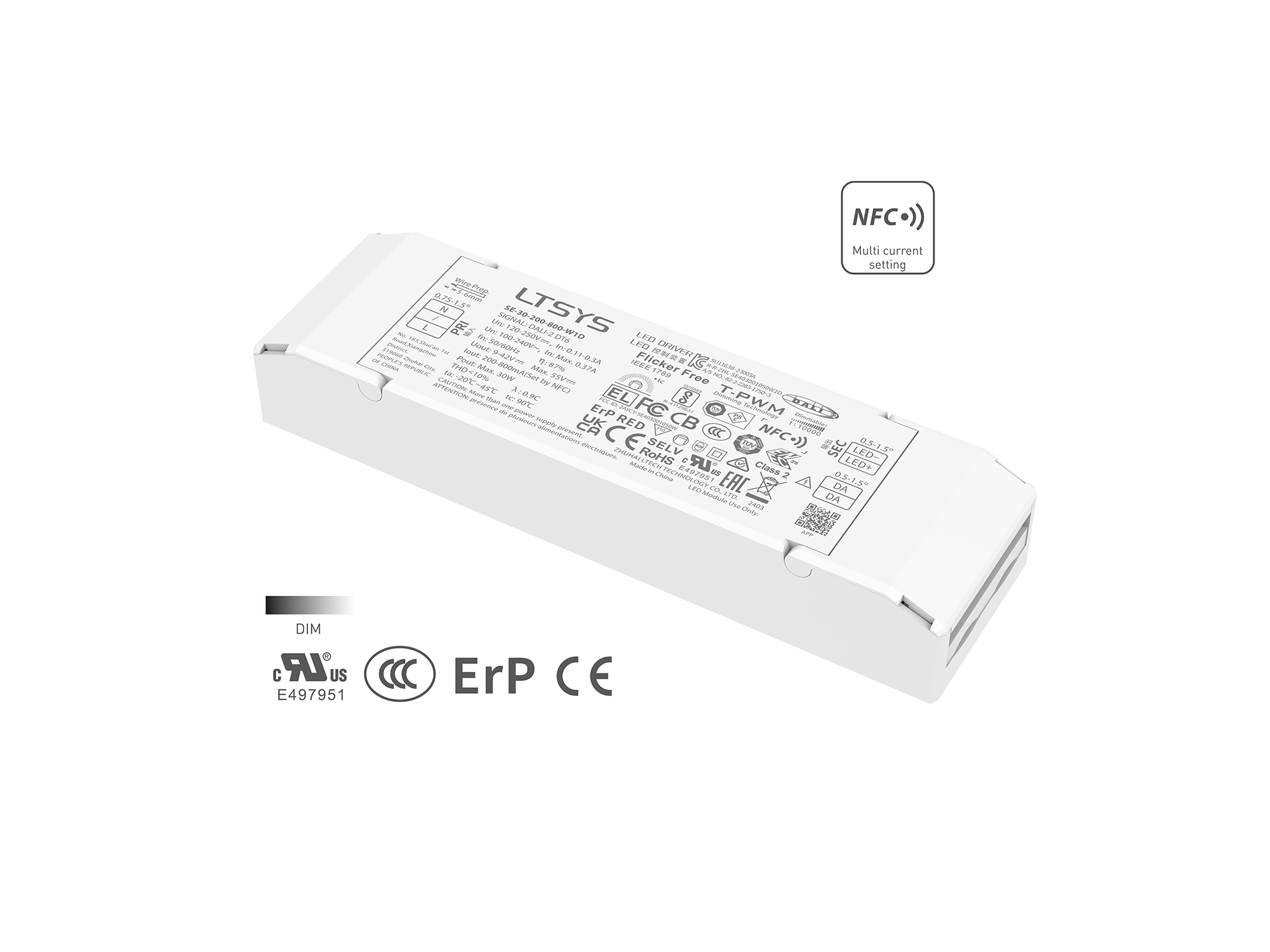

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 87%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 200-800mA

• Output Power: 1.8W-30W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

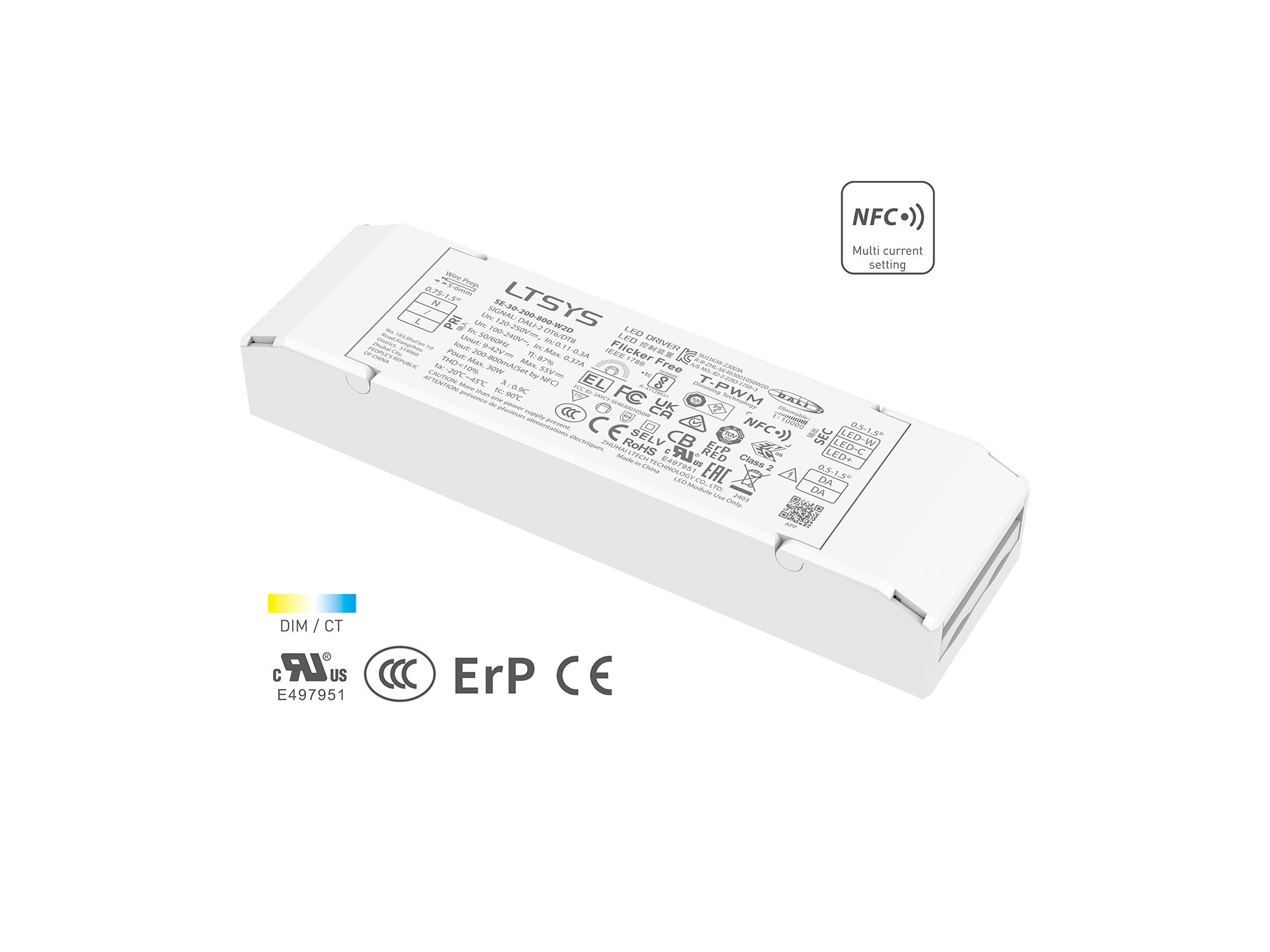

Support:

• Dimming Interface: DALI DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 87%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 200-800mA

• Output Power: 1.8W-30W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Overview

• Small interface module for the conversion of 0-10V control signals to DALI dim levels
• Devices with 1, 2 and 3 channels available
• The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
• A change on the 0-10V input voltage (<1%) is used as event trigger
• Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
• Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface

High-performance DALI-2 DT8 4-channel constant-voltage dimmer with built-in DALI master and OLED display.

Supports:

• 12–36 V DC input

• 4 × 5 A outputs (240-720 W)

• DT8 colour types (Tc, XY, RGBWA)

• Manual config via OLED screen

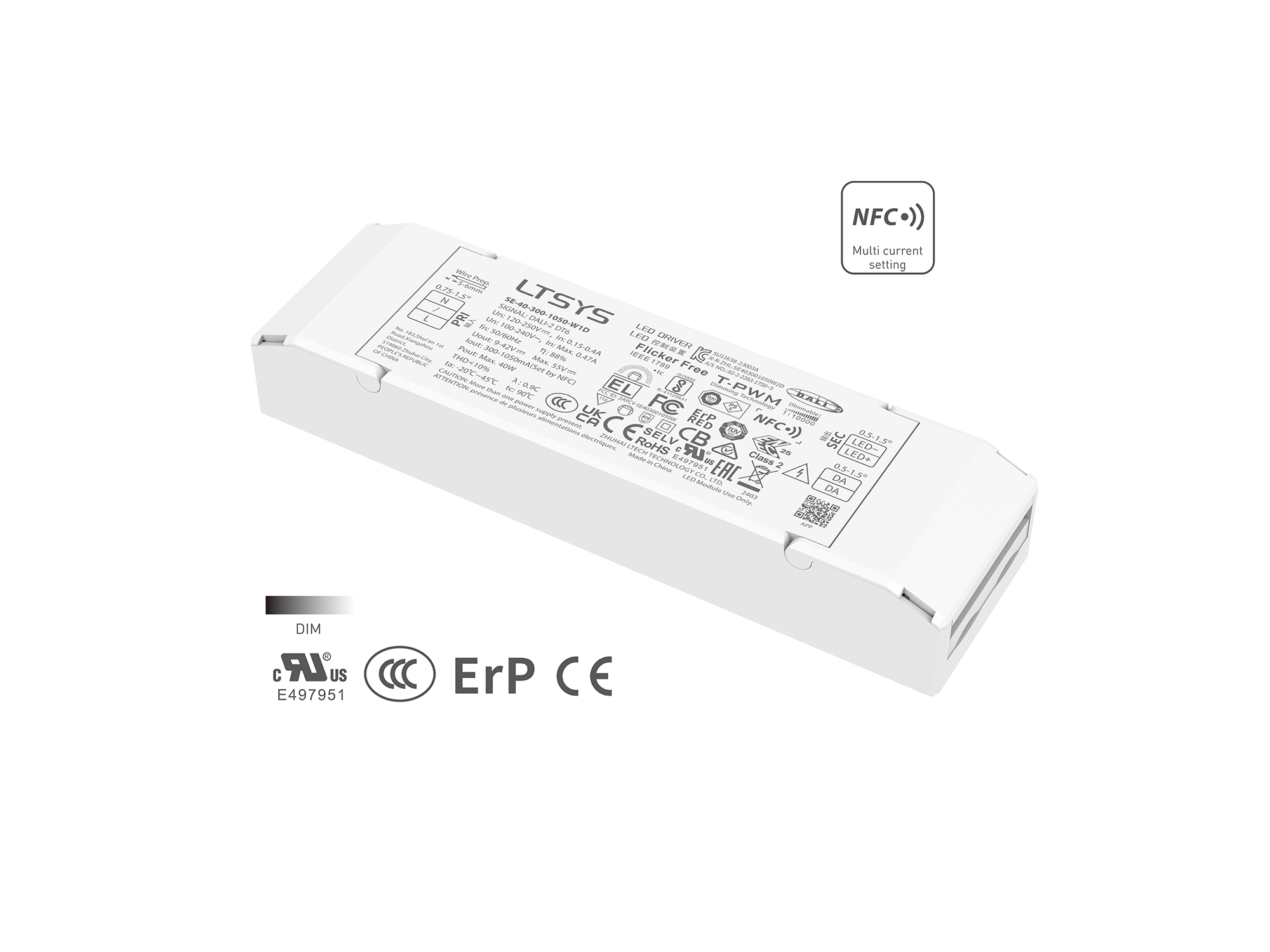

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 88%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 300-1050mA

• Output Power: 2.7W-40W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

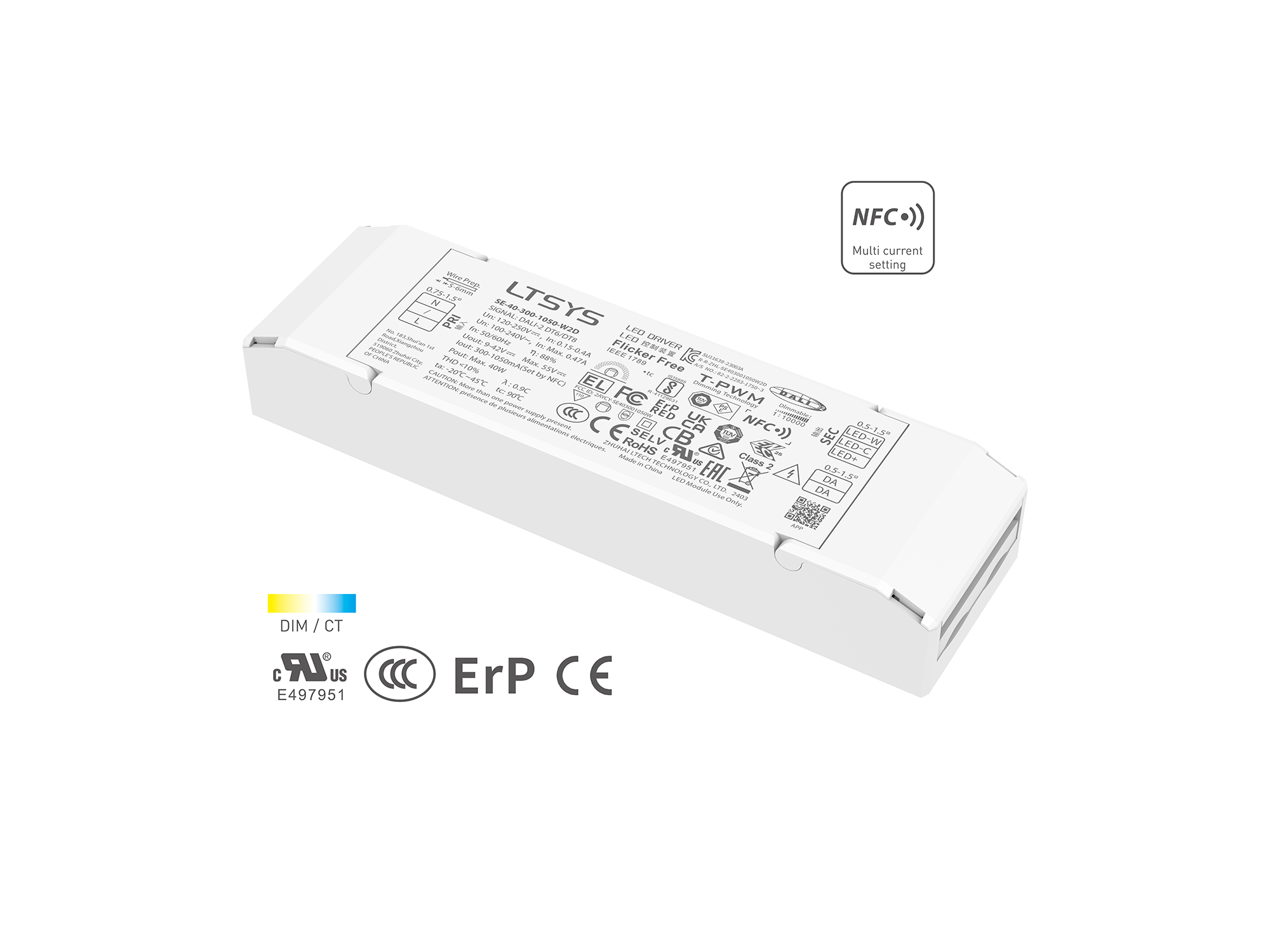

Support:

• Dimming Interface: DALI DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 88%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 300-1050mA

• Output Power: 2.7W-40W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Installation Height: 2~3.2 M

Detection Angle: 360° Detection Range: When installed at a height of 2.7M

Diameter of micro/motion detection ≤3.0 M*4.0 M

Detection Sensitivity: 0~100%

Illuminance Sensor: 0~32000 Lux Product Dimensions: 43mm x 25mm

Cut-out Size: 35mm x 25mm

Power Input: KNX-BUS with auxiliary power supply (12-24VDC)
