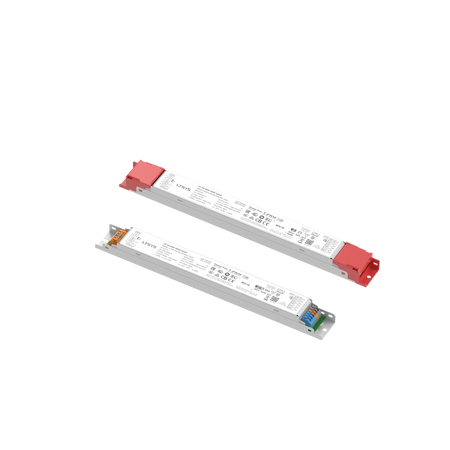

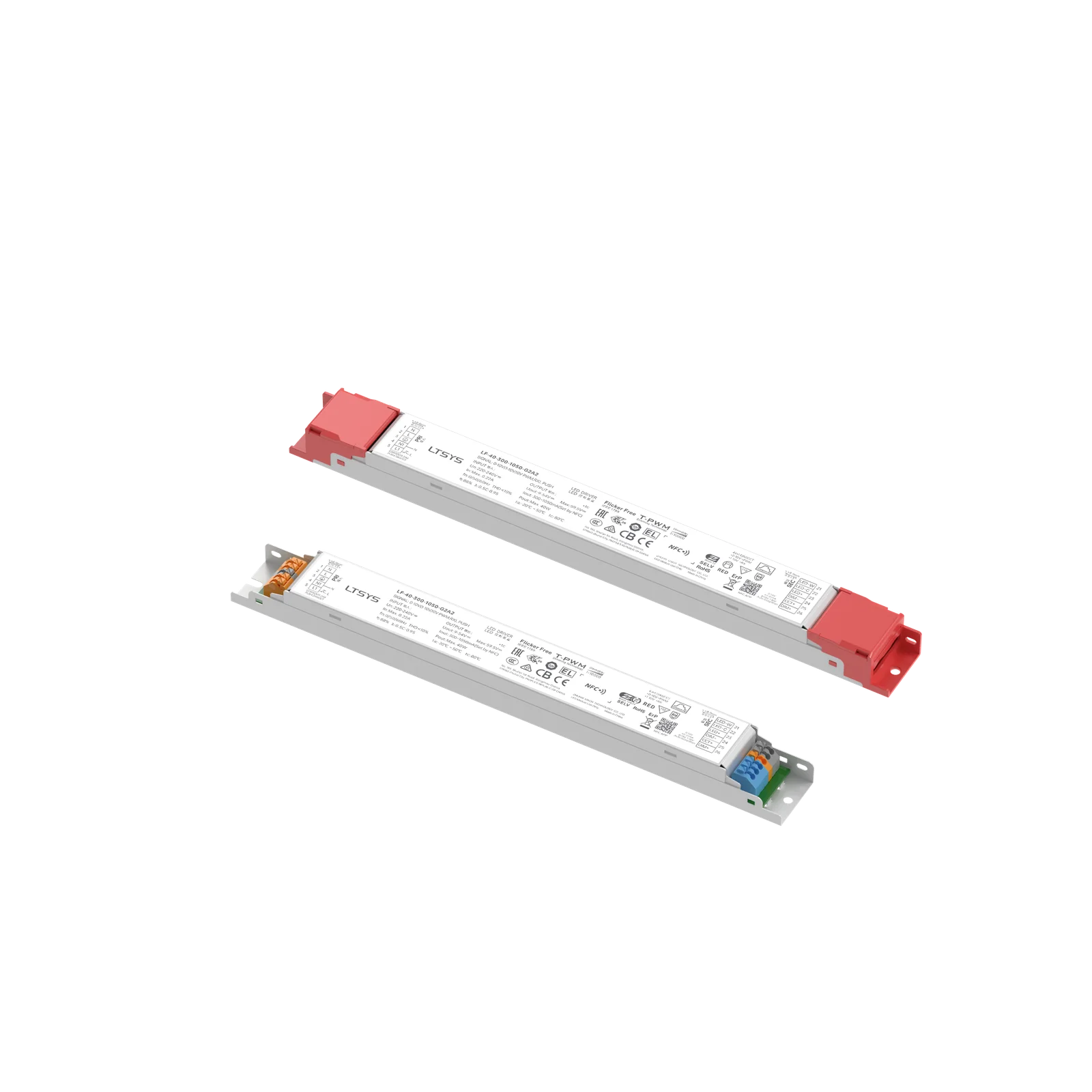

0-10V Tunable White CC Linear LED Driver 40–80W, NFC
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$30.80 USD
Regular price
-33%
$46.20 USD
Sale price
$30.80 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
LTECH 0-10V CC Driver — intelligent LED driver family for professional lighting control installations.
- NFC programmable — set output current, addresses, dimming curve and advanced parameters via the NFC programmer or app
- Built with Rubycon capacitors — 5-year warranty
- T-PWM™ super-depth dimming technology, flicker-free (IEEE 1789 high-frequency exemption)
Models
| Model | Output Power | Output Current | Output Voltage |
|---|---|---|---|
| LF-40-300-1050-G2A2 | 2.7-40W | 300-1050mA | 9-54V |
| LF-60-500-1500-G2A2 | 4.5-60W | 500-1050mA | 9-54V |

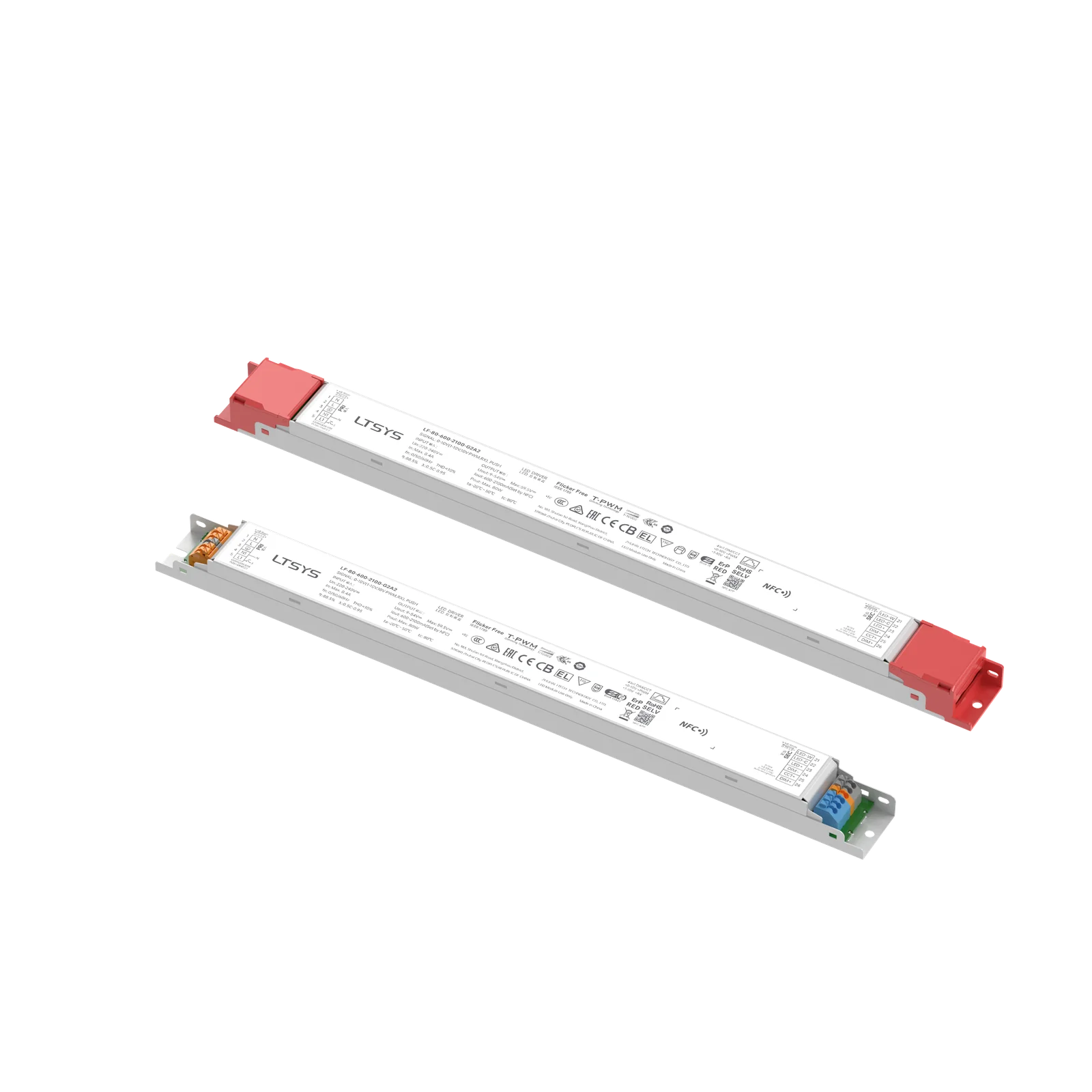

| LF-80-600-2100-G2A2 | 5.4-80W | 600-2100mA | 9-54V |
Specifications
- Dimming interface: 5 in 1 / 0-10V / 1-10V / 10V PWM / RX / Push Dim/CCT
- Dimming range: 1：10000 （0.01%）
- Input voltage: 220-240V
- Power factor: >0.95
- Output channels: 2CH
- Certifications: 5 year, CCC,CB,TUV,ENEC,TUV-CE,, ROHS,RED,RCM,,EAC,EL,zhaga,EU ERP
- Warranty: 5 years
