LTECH

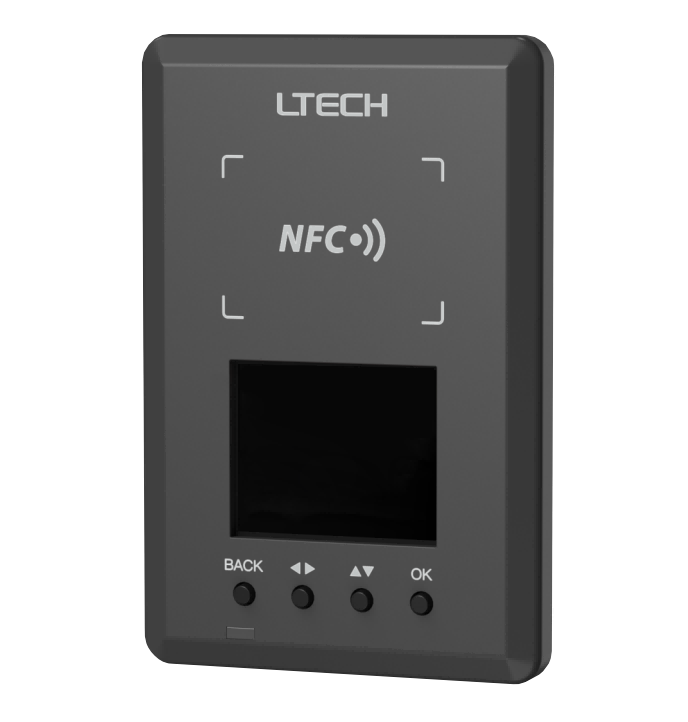

Support:

• Communication Methods: Bluetooth BLE, NFC protocol

• Operating Voltage: 5Vdc

• Operating Current: 500mA

• Operating Temperature: 0℃~40℃

• It supports standalone operation or connection to a mobile app via Bluetooth, with built-in all debugging functions of a DALI host.

• No power supply is required for operation, enabling convenient and efficient batch reading/writing of power current as well as programming and setting of numerous parameter configurations, featuring powerful functionality.

• Product Size：69×104×12.5mm

• Product Weight：55g

Support：

• Dimming Interface: DALI-2, Push DIM

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, • PF>0.9/277Vac (at full load)

• Efficiency: 93%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 4.17A

• Output Power: 0-100W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：352×43×30mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 87%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 200-800mA

• Output Power: 1.8W-30W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

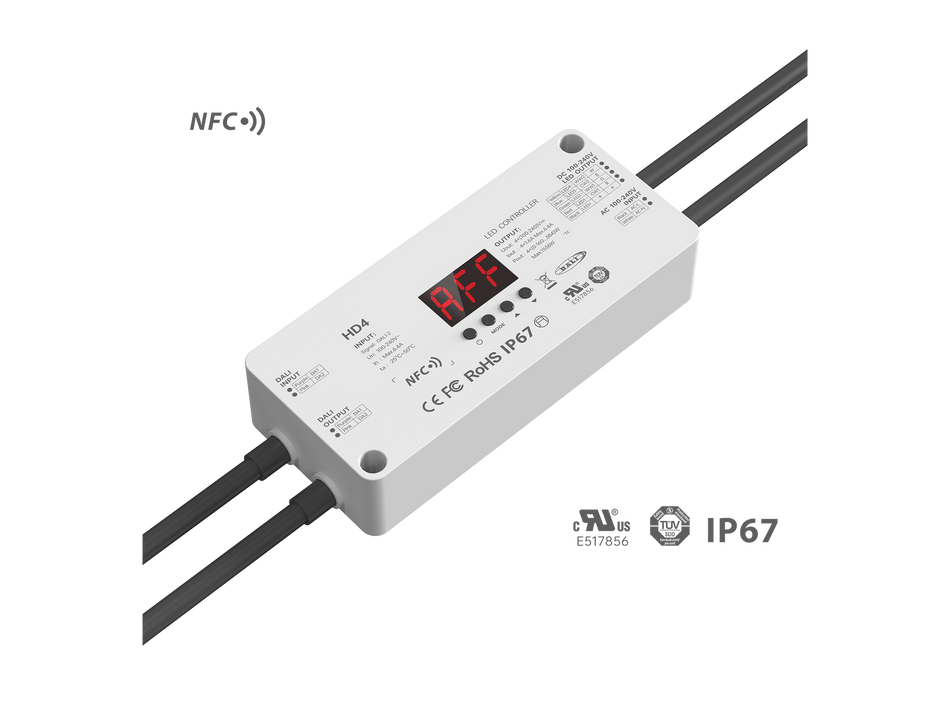

Support：

• Input Signal：DALI-2

• Input Voltage：100-240V

• Input Current：Max.6.4A

• Output Voltage：4×(100-240)V

• Output Current：4CH×1.6A,Max6.4A

• Output Power：4CH×(0-160...384)W Max. 1536W

• Working Temp.：-25℃-50℃

• Waterproof Rating：IP67

• Protection：Short-circuit protection, over-temperature protection, over-current protection, self-recoverable

• Warraty： 5 years

• Certification： UL,BIS,FCC EMC,TUV,CE EMC,RoHS

Parameter Settings:

1.NFC configures full DALI command parameters such as DALI address, dimming curve, brightness range, dimming fade time, power-on state, system failure state, group, and scene. It also supports product fault diagnosis and parameter restoration/replacement.

2.Button configures DALI address

3.Third-party standard DALI system configuration

Support：

• Input Signal：DALI 2

• Input Voltage：12-48V

• Input Current：Max.20.5A

• Output Voltage：4×(12-48)V

• Output Current：2×(4CH×2.5A) Max.20A

• Output Power：4CH×(0-60...240)W Max. 960W

• Working Temp.：-20℃-50℃

• Waterproof Rating：IP67

• Protection：Short-circuit protection, over-temperature protection, over-current protection, self-recoverable

• Warraty： 5 years

• Certification： UL,BIS,FCC EMC,TUV,CE EMC,RoHS

Parameter Settings:

1.NFC configures full DALI command parameters such as DALI address, dimming curve, brightness range, dimming fade time, power-on state, system failure state, group, and scene. It also supports product fault diagnosis and parameter restoration/replacement.

2.Button configures DALI address

3.Third-party standard DALI system configuration

Support：

• Dimming Interface: DALI-2, Push DIM

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac,

• PF>0.9/277Vac (at full load)

• Efficiency: 90%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 5A

• Output Power: 0-60W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：293×43×30mm

• Warranty: 5 years（Rubycon capacitor）

Support：

• Dimming Interface: DALI-2 DT6/DT8, Push DIM/CCT

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, • PF>0.9/277Vac (at full load)

• Efficiency: 93%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 24Vdc

• Output Current: Max. 4.17A

• Output Power: 0-100W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：352×43×30mm

• Warranty: 5 years （Rubycon capacitor）

Support：

• Dimming Interface: DALI-2, Push DIM

• Input Voltage: 120-277Vac

• Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac,

• PF>0.9/277Vac (at full load)

• Efficiency: 90%

• Fluctuation Level: High frequency exemption level.

• Output Voltage: 12Vdc

• Output Current: Max. 5A

• Output Power: 0-60W

• Dimming Range: 0~100%, down to 0.1%

• Certification: FCC,CE,ROHS,UL

• Product Size：293×43×30mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 88%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 300-1050mA

• Output Power: 2.7W-40W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI-2 DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 86%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-700mA

• Output Power: 0.9W~20.4W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,FCC,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：127×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI-2 DT6/DT8

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 84%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-500mA

• Output Power: 0.9W~12.15W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,FCC,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 88%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 300-1050mA

• Output Power: 2.7W-40W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.9/230Vac, at full load

• Efficiency: 87%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 200-800mA

• Output Power: 1.8W-30W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

• Product Size：142×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 86%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-700mA

• Output Power: 0.9W~20.4W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,TUV,CB,CE,FCC,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：127×40×23mm

• Warranty: 5 years（Rubycon capacitor）

Support:

• Dimming Interface: DALI DT6

• DC Voltage Range: 120-300Vdc

• AC Voltage Range: 100-240Vac

• Input Voltage: 115Vac/230Vac

• Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

• Efficiency: 84%

• Fluctuation Level: No visible flicker/High frequency exemption level

• Output Voltage: 9-42Vdc

• Output Current: 100-500mA

• Output Power: 0.9W~12.15W

• Dimming Range: 0~100%, down to 0.01%

• Certification: CCC,FCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,PSE,ROHS

• Product Size：111×35×20mm

• Warranty: 5 years（Rubycon capacitor）
