LTECH

DALI to Relay Signal Converter, 5A (CE Version)

SKU: KDS-C
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$19.37 USD
-33% $29.05 USD $19.37 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

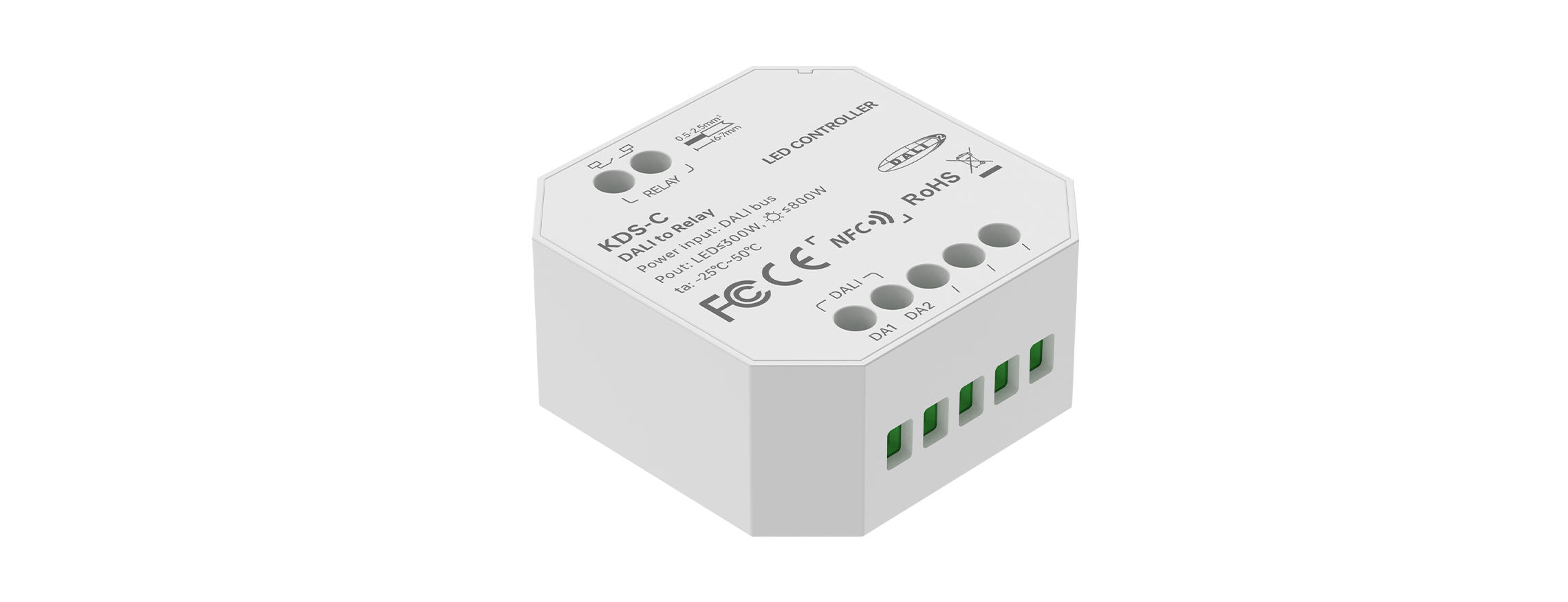

The LTECH KDS-C is the CE version of the KDS: a DALI-2 bus-powered module with a built-in 5A relay for on/off control of non-dimmable loads up to 250VAC or 48VDC. NFC programming covers DALI address, power-on state and advanced DALI templates, and addresses can be assigned from any DALI master. It hides inside a standard switch back box.

  • Input: DALI-2, bus powered · Output: relay on/off
  • Relay: 5A, 250VAC / 48VDC max., 70A@10ms surge; resistive load up to 800W@230Vac
  • Certifications: CE, FCC, RoHS, DALI-2
  • Size: L45×W45.5×H20.5mm · -25°C to 50°C
