DALI to 0/1-10V Signal Converter, 2 Channels, Built-in Relay (CE Version)

SKU: KDA-C
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$22.87 USD
-33% $34.30 USD $22.87 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

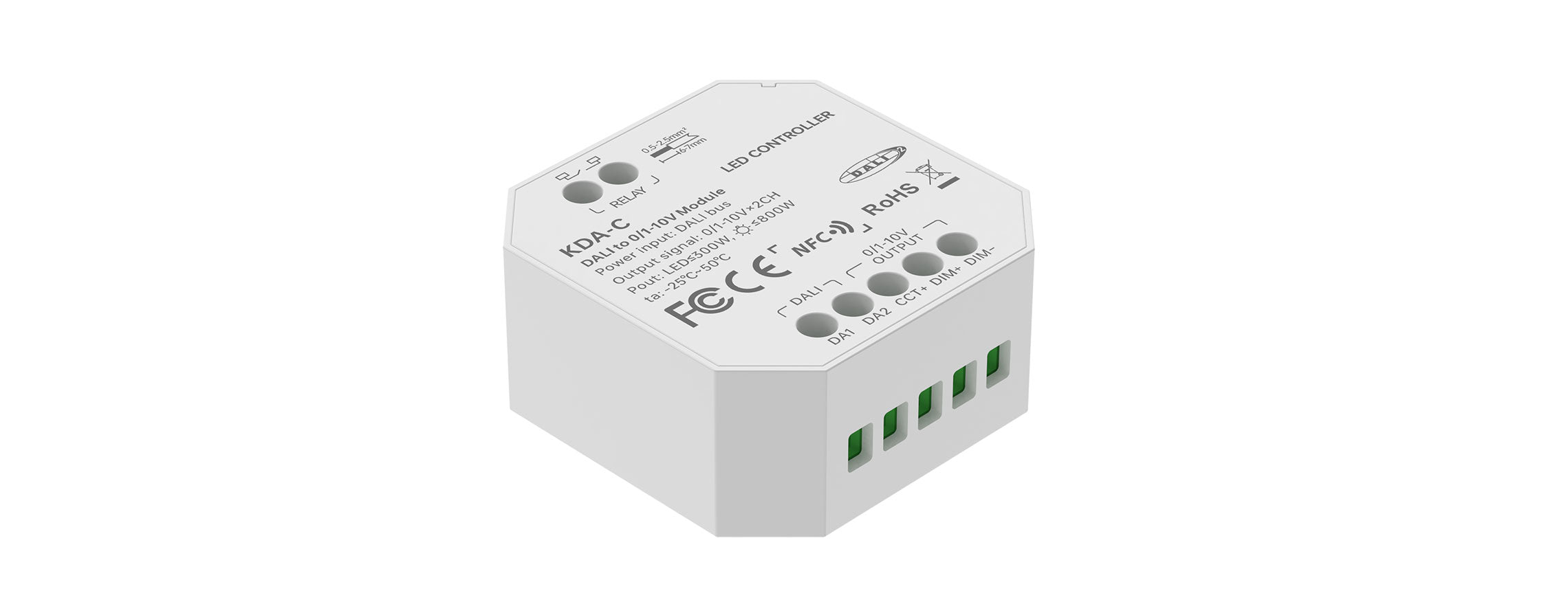

The LTECH KDA-C is the CE version of the KDA: it converts DALI-2 signals into 0/1-10V control with two independent output channels and a built-in relay that fully disconnects the load when off. Powered directly from the DALI bus, it hides inside a standard switch back box and is configured via NFC — DALI address, dimming interface (DT6/DT8), curves, fade times, groups and scenes.

  • Input: DALI-2 DT6/DT8, bus powered · Output: 0/1-10V × 2CH, max. 15mA
  • Relay: 5A, 250VAC / 48VDC max., 70A@10ms surge; resistive load up to 800W@230Vac
  • Control modes: switching, synchronous dimming, 2-address independent dimming, DT8 tunable white
  • Certifications: CE, FCC, RoHS, DALI-2
  • Size: L45×W45.5×H20.5mm · -25°C to 50°C
