KDS-H
KDS-H

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

LTECH

DALI to Relay Signal Converter, 8A, Mains Powered

SKU: KDS-H
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$22.63 USD
-33% $33.95 USD $22.63 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

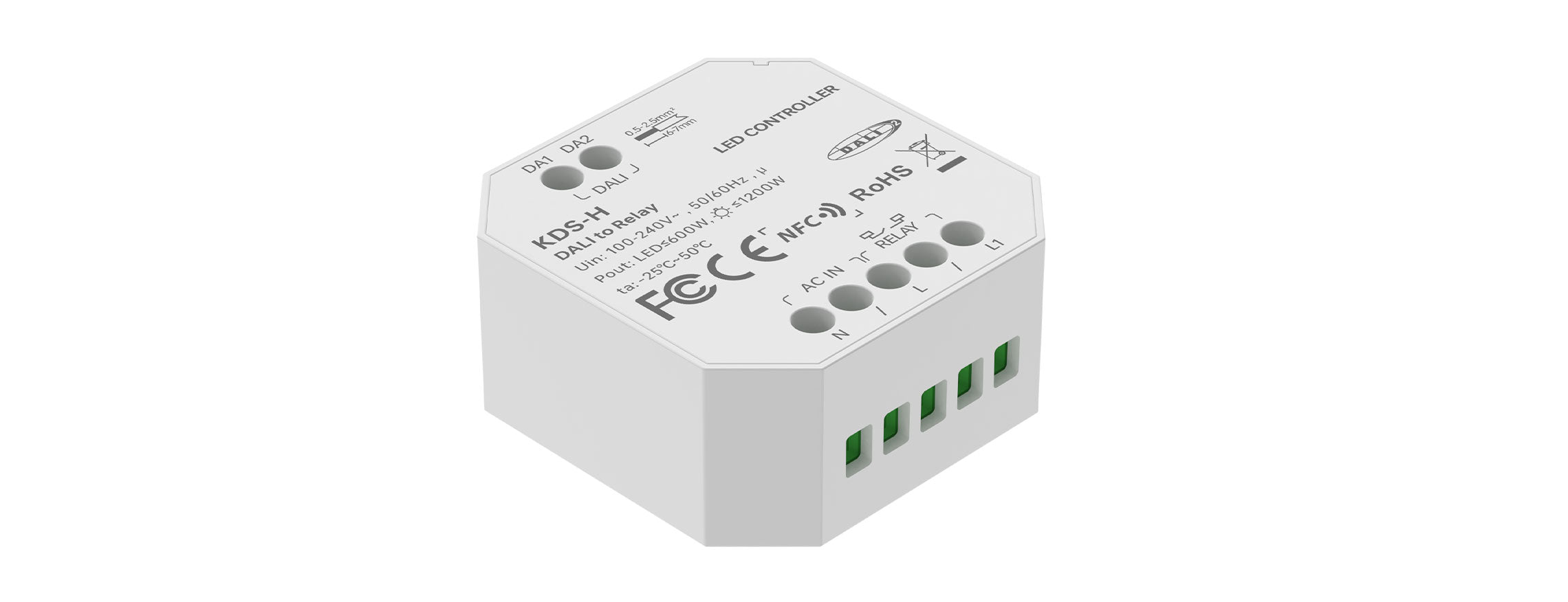

The LTECH KDS-H is the high-power variant of the KDS relay family: an 8A relay module powered directly from 100-240VAC mains (it does not draw from the DALI bus), ideal for larger switched loads controlled from a DALI-2 system. NFC programming covers DALI address, power-on state and advanced DALI templates.

  • Input: DALI-2 · Operating voltage: 100-240VAC · Output: relay on/off
  • Relay: 8A; resistive load up to 600W@110Vac; capacitive load up to 600W@230Vac
  • Certifications: CE, FCC, RoHS, DALI-2
  • Size: L45×W45.5×H20.5mm · fits inside a switch back box
