LTECH

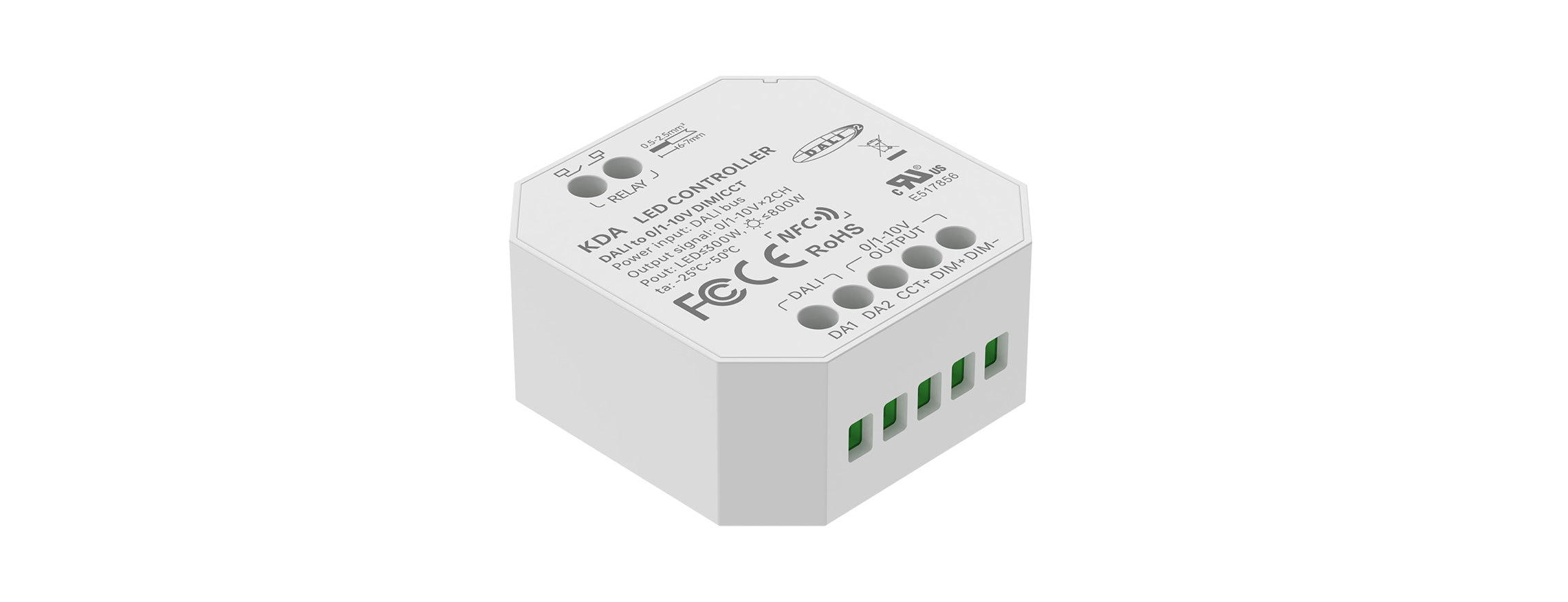

DALI to 0/1-10V Signal Converter, 2 Channels, Built-in Relay

SKU: KDA
(0)
✓ UL Listed
This product is certified by a Nationally Recognized Testing Laboratory (NRTL) — such as UL, ETL, or CSA — for direct installation in USA projects. Meets NEC requirements without additional AHJ approval.
$28.93 USD
-33% $43.40 USD $28.93 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The LTECH KDA converts DALI-2 signals into 0/1-10V control, bringing dimming and tunable-white capability to any 0-10V fixture from your DALI installation. Two independent 0/1-10V output channels (max. 15mA) can be configured via NFC for single-channel dimming, dual-channel independent dimming, or dual-channel tunable white on a single DALI address.

A built-in Omron relay (5A, up to 250VAC / 48VDC) completely disconnects the load when off — no standby glow, no phantom power on the 0-10V drivers. The module is powered directly from the DALI bus (≤8mA @ 16V), so no auxiliary supply is needed, and its compact 45×45.5×20.5mm format fits US, EU and CN junction boxes.

  • Input: DALI-2 (IEC 62386-101/102/206), bus powered, ≤8mA @ 16V
  • Output: 0/1-10V × 2CH, max. 15mA
  • Relay: 5A Omron, 250VAC / 48VDC max., 70A@10ms surge; resistive load up to 800W@230Vac / 400W@110Vac
  • NFC programming via LTECH NFC Lighting App: DALI address, dimming interface (DT8 CT, DT6 CT, DT6 DIM), ramp time
  • Certifications: UL 8750, EN 61347-1, EN 61347-2-13
  • Working temperature: -25°C to 50°C · Size: L45×W45.5×H20.5mm
