LTECH

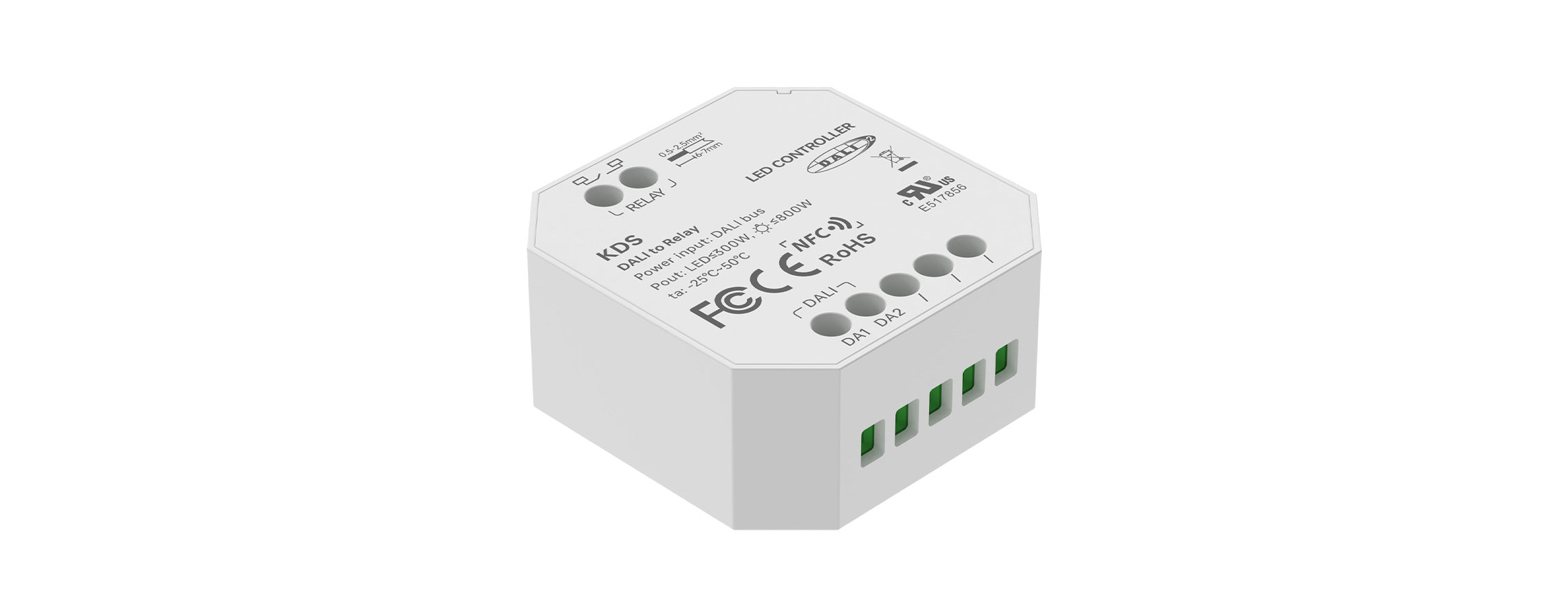

DALI to Relay Signal Converter, 5A Switching Module

SKU: KDS
(0)
✓ UL Listed
This product is certified by a Nationally Recognized Testing Laboratory (NRTL) — such as UL, ETL, or CSA — for direct installation in USA projects. Meets NEC requirements without additional AHJ approval.
$28.93 USD
-33% $43.40 USD $28.93 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The LTECH KDS adds switched loads to a DALI-2 system: a bus-powered module with a built-in 5A Omron relay for reliable on/off control of non-dimmable lighting or other loads up to 250VAC or 48VDC. Powered entirely from the DALI bus (≤3mA @ 16V) — no auxiliary supply required.

NFC programming sets the DALI address, power-on status and advanced DALI templates, and addresses can also be assigned from any DALI master. At 45×45.5×20.5mm it hides inside a standard switch box (≥50mm depth) in US, EU and CN formats.

  • Input: DALI-2 (IEC 62386-101/102/208), bus powered, ≤3mA @ 16V
  • Relay: 5A Omron, 250VAC / 48VDC max., 70A@10ms surge; resistive load up to 800W@230Vac / 400W@110Vac
  • NFC programming: DALI address, power-on status, advanced DALI templates
  • Certifications: UL 8750, EN 61347-1, EN 61347-2-13
  • Working temperature: -25°C to 50°C · Size: L45×W45.5×H20.5mm
