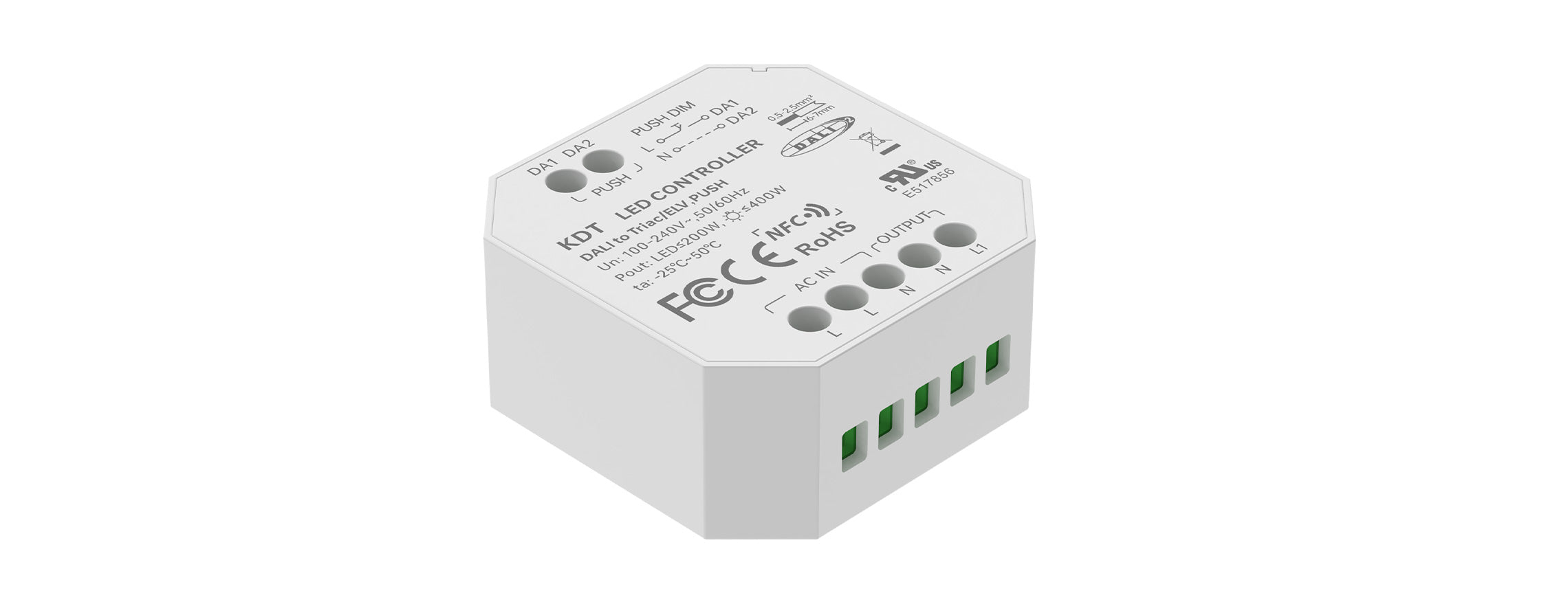

DALI to Triac/ELV Signal Converter, Phase Dimming Output

The LTECH KDT brings legacy phase-cut dimming loads into a modern DALI-2 system. It converts DALI DT6 commands into leading-edge (Triac) or trailing-edge (ELV) output — selectable via NFC — so incandescent, halogen and phase-dimmable LED loads can be controlled from any DALI master.

It also supports PUSH DIM: wire one or several standard push switches and get on/off with a short press, brightness adjustment with a long press — ideal for retrofits where wall control must stay. Compact 45×45.5×20.5mm format fits US, EU and CN junction boxes.

• Input: DALI-2 DT6 or PUSH DIM · Operating voltage: 100-240VAC, 50/60Hz
• Output: Triac (leading edge) or ELV (trailing edge), NFC selectable
• Load: dimmable LED max. 100W@110Vac; incandescent/halogen max. 200W@110Vac · inrush max. 60A
• NFC programming: DALI address, dimming curve, brightness range, ramp time, power-on status
• Working temperature: -25°C to 50°C · Size: L45×W45.5×H20.5mm
