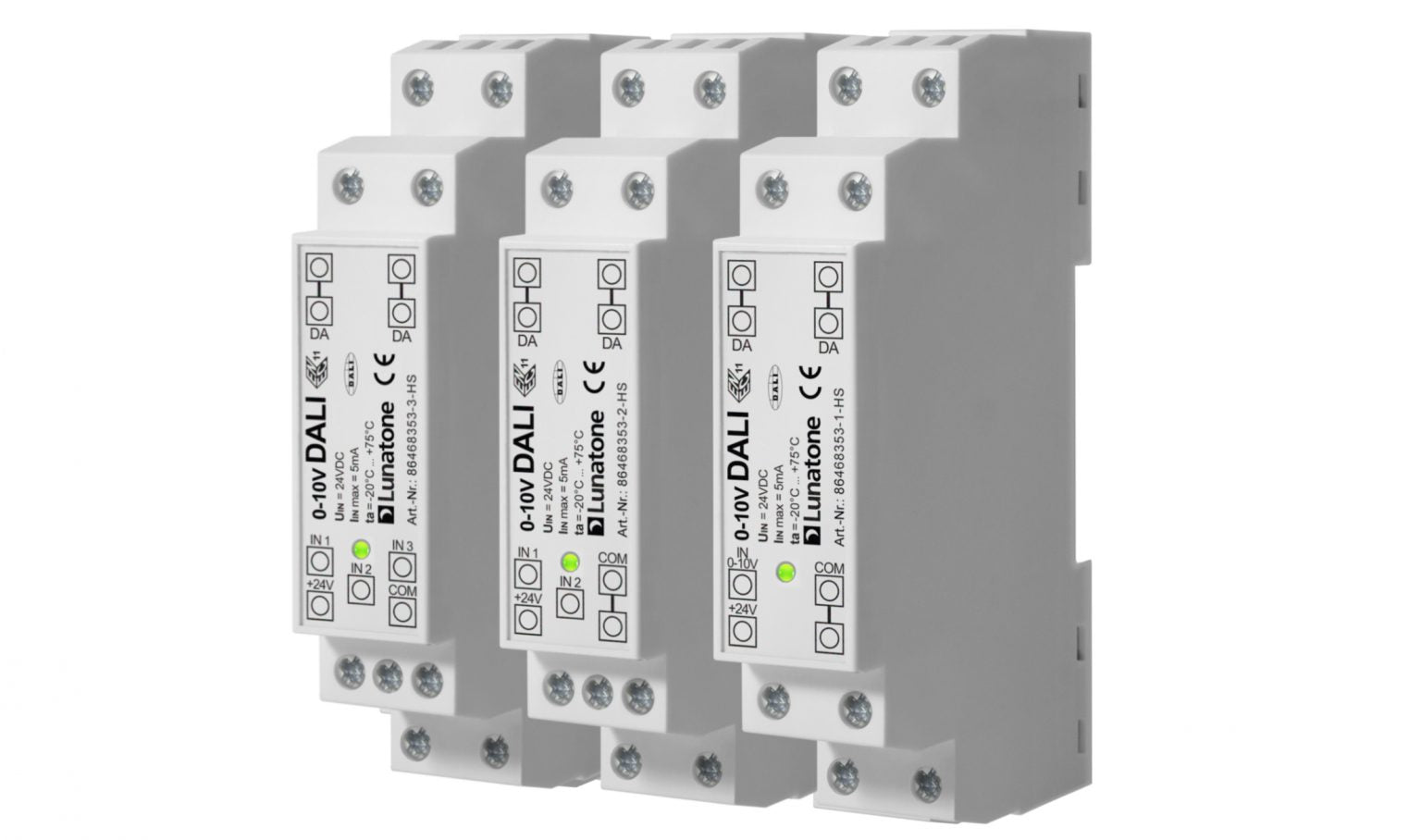

0-10V to DALI Converter DIN Rail – Multi-Channel DT6

Converter 1x 0-10V to DALI, configurable 0.1%-100%, 1%-100%, 10%-100%, configurable <1V, 12-24V supply

• Supply: 12V-24V DC (e.g.. 24V/300mA Art.Nr.: 24166012-24HS)

• Galvanic isolation between DALI and 0-10V input / supply

• The 0-10V input voltage has same potential as the supply voltage

• The connection to the DALI-line is polarity free, the DALI-line is powered by an external DALI power supply

Conversion Characteristic

• The input voltage in the range of 1V-10V i converted into DALI dimming levels.

• The figure above shows the characteristics for the different dimming levels (0.1% - 100%, 1% -100%, 3% -100%, 10% -100%).

• The light values in % are to be seen in connection with a DALI control gear.
