LTECH

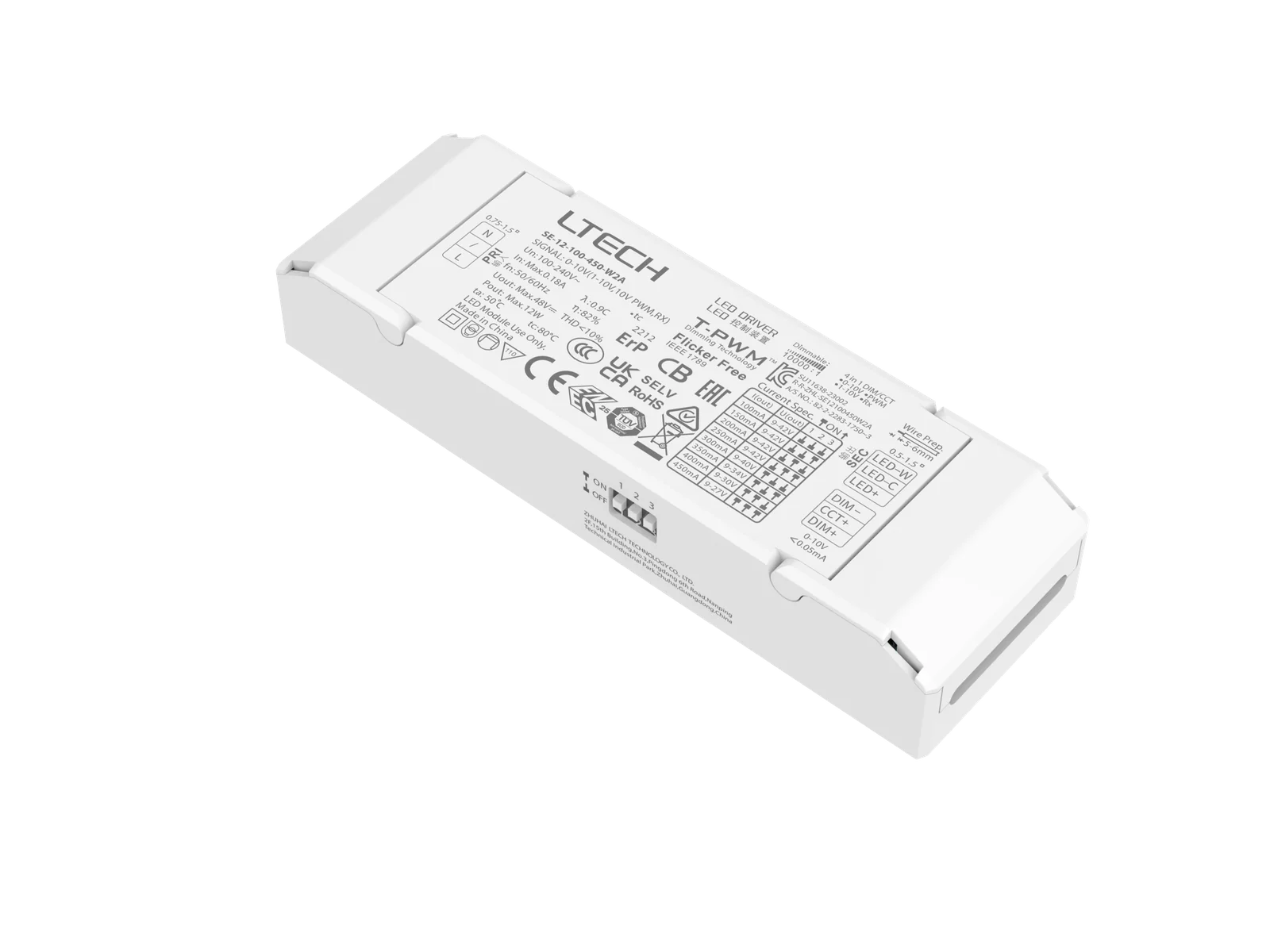

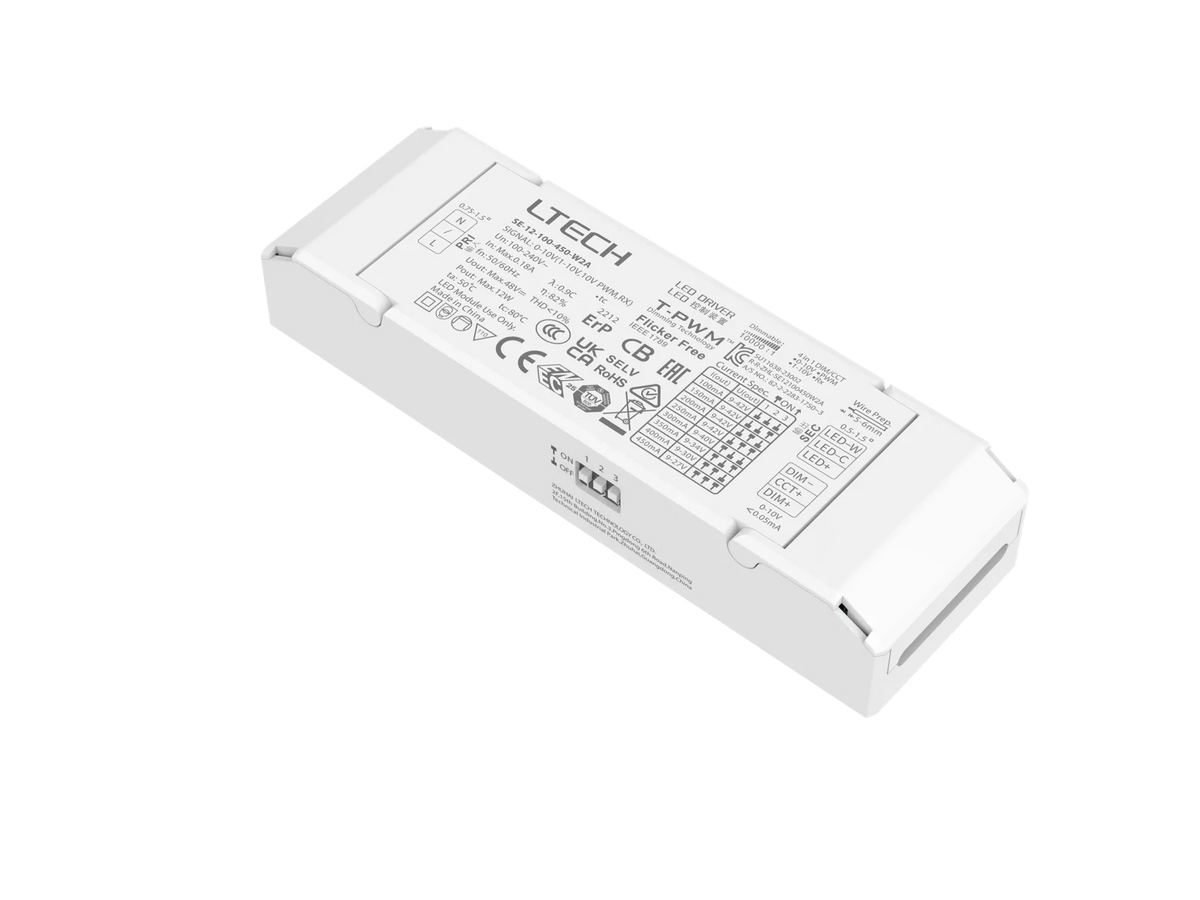

0-10V Tunable White CC LED Driver 12W

SKU: SE-12-100-450-W2A
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$23.80 USD
-33% $35.70 USD $23.80 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

LTECH 0-10V CC Driver — intelligent LED driver family for professional lighting control installations.

  • Built with Rubycon capacitors — 5-year warranty
  • T-PWM™ super-depth dimming technology, flicker-free (IEEE 1789 high-frequency exemption)

Models

Model Output Power Output Current Output Voltage
SE-12-100-450-W2A 0.9-12W 100-450mA 9-42V

Specifications

  • Dimming interface: 4 in 1 / 0-10V/1-10V / 10V PWM/RX
  • Dimming range: 1：10000 （0.01%）
  • Input voltage: 100-240V
  • Power factor: ＞0.95/115Vac ＞0.9C/230Vac (Full Load)
  • Output channels: 2CH
  • Certifications: 5 year, CCC,ENEC,RCM,EAC,UKCA,CB,TUV,CE,KC,SELV,RoHS,BIS,EU ERP
  • Warranty: 5 years
