SN-150-24-G2A
SN-150-24-G2A

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

LTECH

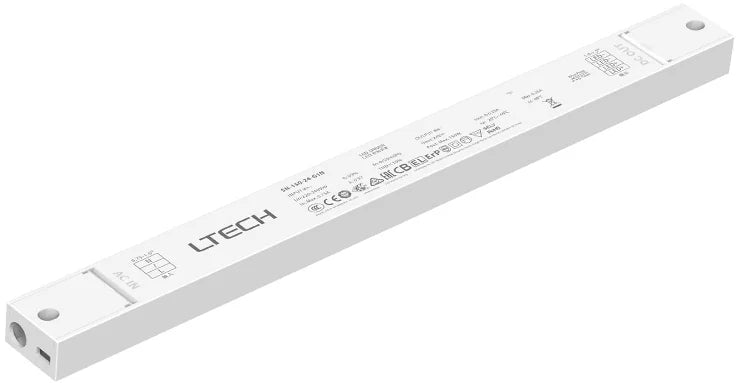

0-10V Tunable White CV LED Driver 150W 24V

SKU: SN-150-24-G2A
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$65.10 USD
-33% $97.65 USD $65.10 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

LTECH 0-10V CV Driver — intelligent LED driver family for professional lighting control installations.

  • T-PWM™ super-depth dimming technology, flicker-free (IEEE 1789 high-frequency exemption)

Models

Model Output Power Output Current Output Voltage
SN-150-24-G2A 0-150W Max 6.25A 24V

Specifications

  • Dimming interface: 4 in 1 / 0-10V/1-10V / 10V PWM/RX
  • Dimming range: 1：10000 （0.01%）
  • Input voltage: 220-240V
  • Power factor: >0.97/230Vac (Full Load)
  • Output channels: 2CH
  • Certifications: 5 year, CCC,TUV,ENEC,RCM,KC,EAC,BIS,CB,ROHS,CE,EL,EU ERP
  • Warranty: 5 years
