LUNATONE

0-10V DALI Din Rail, 30mA DALI PS

SKU: 86468352-HS
(0)
✓ UL Listed
This product is certified by a Nationally Recognized Testing Laboratory (NRTL) — such as UL, ETL, or CSA — for direct installation in USA projects. Meets NEC requirements without additional AHJ approval.
$86.40 USD
-20% $108.00 USD $86.40 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

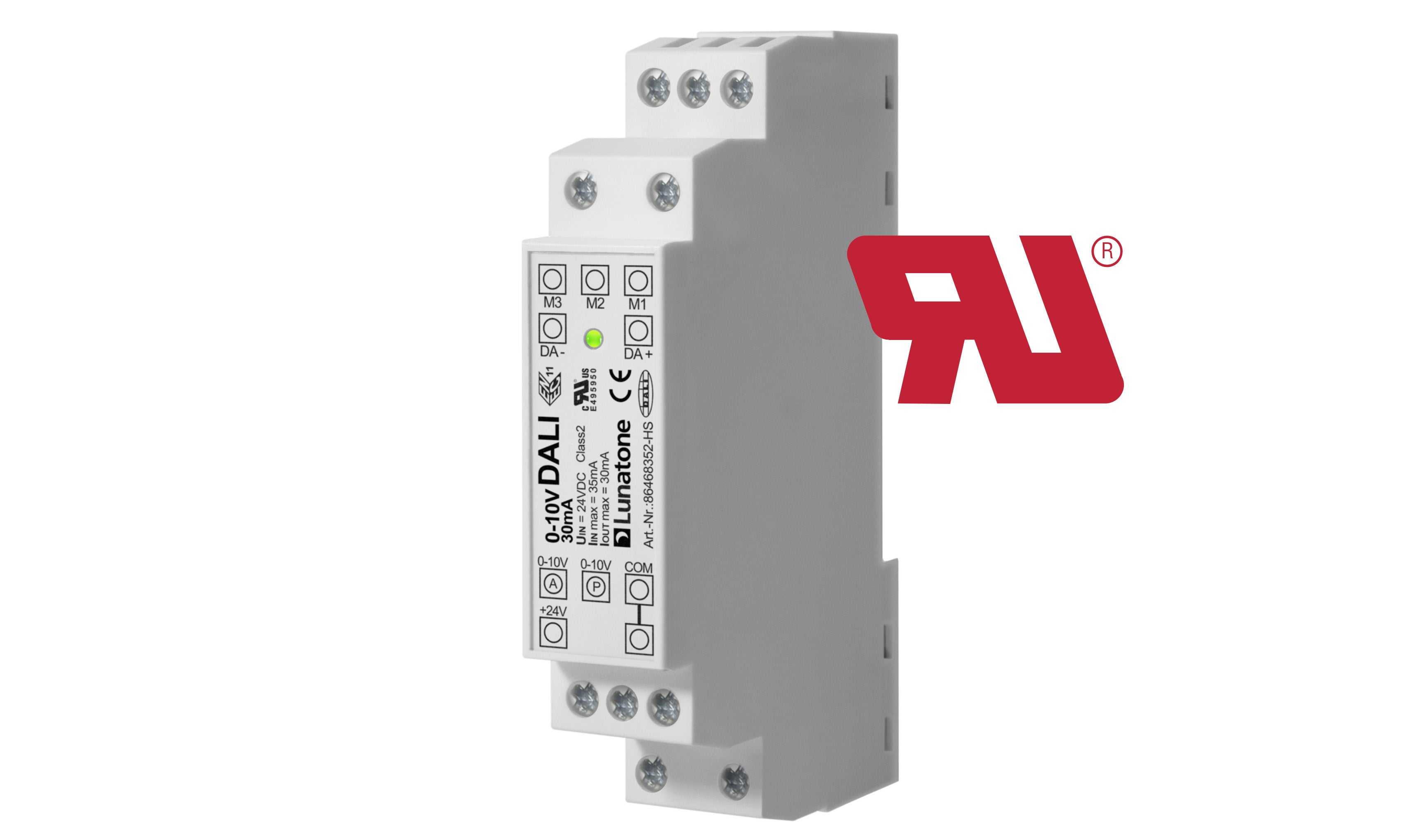

Converter 0-10V (active/passive)to DALI (30mA), configurable 0.1%-100%/1%-100%/10%-100%/<1V, 12-24V supply, DIN rail, with DALI PS 30mA

  • The input voltage range of 1V-10V is converted to the light level range of the connected DALI ballast.
  • The input voltage is converted to either 1%-100% or 10% -100% light level
  • For a better visualisation only the characteristics of the 10% types are shown on the left.
ON/OFF
  • As behaviour below 1V the device can either switch OFF (red) or send the minimum level (blue).
