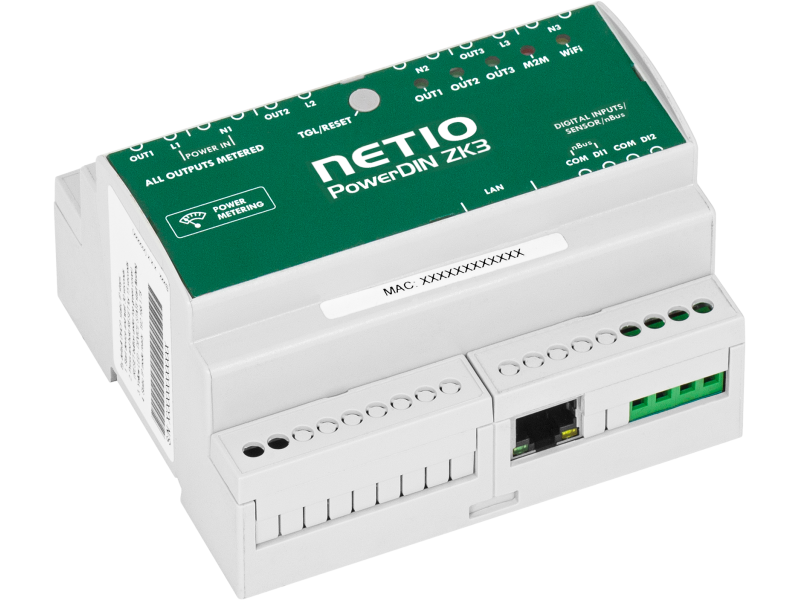

NETIO PowerDIN ZK3 3-phase metered DIN-rail controller

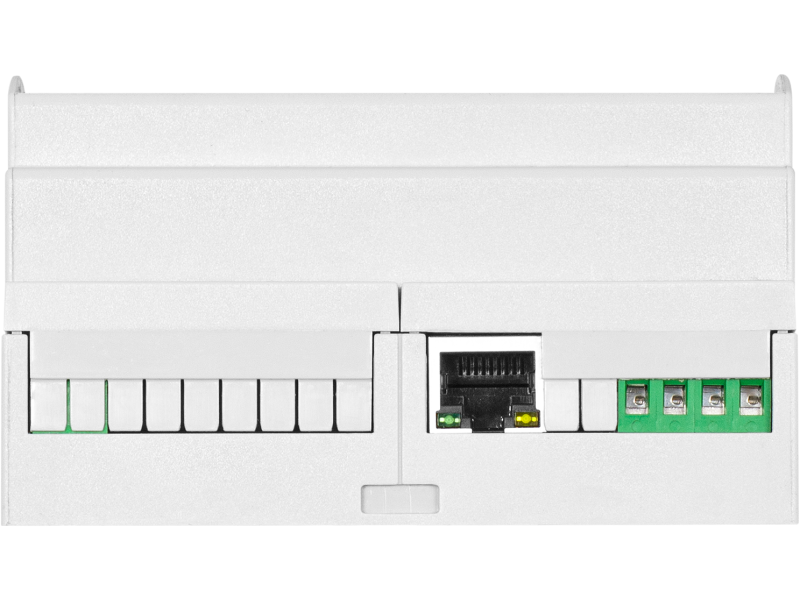

NETIO PowerDIN ZK3 side view, terminals
NETIO PowerDIN ZK3 3-phase metered DIN-rail controller
NETIO PowerDIN ZK3 side view, terminals

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NETIO

NETIO PowerDIN ZK3 – 3-Channel Metered DIN-Rail Power Controller, 3-Phase, LAN & WiFi

SKU: PowerDIN ZK3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$650.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The NETIO PowerDIN ZK3 combines a 3-channel energy meter and a 3-output power controller in one 6-module DIN-rail device. Meter and switch a 3-phase load — or three independent circuits — from the distribution board, and send the data to KNX, BMS or energy-management platforms over LAN or WiFi.

Key Features

  • 3 switched and metered outputs, max 16 A each, with Zero Current Switching (ZCS)
  • Works as a 3-phase 400 V (3 × 16 A) controller or as 3 independent 230 V / 16 A channels
  • Per-channel metering: A, W, Wh, True PF, phase shift, energy in/out, reverse energy, plus V and Hz — accuracy better than 1%
  • 2 digital inputs with S0 counters and 12 V supply; NETIO T1/TH1 sensors supported
  • LAN (RJ45) and 2.4 GHz WiFi
  • Scheduler, Ping & Power WatchDog and Conditions & Rules
  • Open API: JSON, XML, MQTT-flex, SNMP v1/v3, Modbus/TCP, Telnet, URL API, HTTP(S) Push

Technical Specifications

Model PowerDIN ZK3
Outputs 3 × SPST-NO relay with ZCS, max 16 A each, 2.5 mm² (14 AWG) terminals
Modes 3-phase 400 V, 3 × 16 A, or 3 independent 230 V / 16 A channels
Supply 100–240 V AC, 50/60 Hz
Energy metering 3 channels: A, W, Wh, True PF, phase shift, energy in/out, reverse energy + V, Hz; better than 1%
Digital inputs 2 × dry contact with S0 counter, 12 V supply
Network RJ45 Ethernet + WiFi 2.4 GHz
Internal consumption Max 2 W
Operating temperature −20 to +50 °C (−4 to +122 °F)
Dimensions 108 × 91 × 62 mm (4.3 × 3.6 × 2.4 in), 6 DIN modules
Protection IP20; Type 3 surge protection
Mounting 35 mm DIN rail

Integration & Control

Read measurements and control outputs from the built-in HTTPS web interface, the NETIO Mobile 2 app (iOS/Android) or the optional NETIO Cloud service (subscription). Feed energy data to KNX, BMS and energy dashboards over Modbus/TCP, MQTT, SNMP or HTTP/JSON.

Typical Applications

  • Sub-metering and control of 3-phase equipment
  • Energy monitoring of three separate circuits from one DIN device
  • Load shedding and peak-demand control in commercial panels
  • Adding energy data to KNX and BMS projects over Modbus/TCP

Certifications

No UL/NRTL listing stated by NETIO — verify local code requirements before specifying in US installations. Installation by a qualified electrician only.

FAQ

What is the difference between the ZK3 and the ZP3?
The ZK3 meters each channel with better than 1% accuracy and uses ZCS; the ZP3 switches only.

Can it integrate with KNX?
Yes — through a KNX gateway, logic module or visualization server that supports Modbus/TCP or MQTT.
