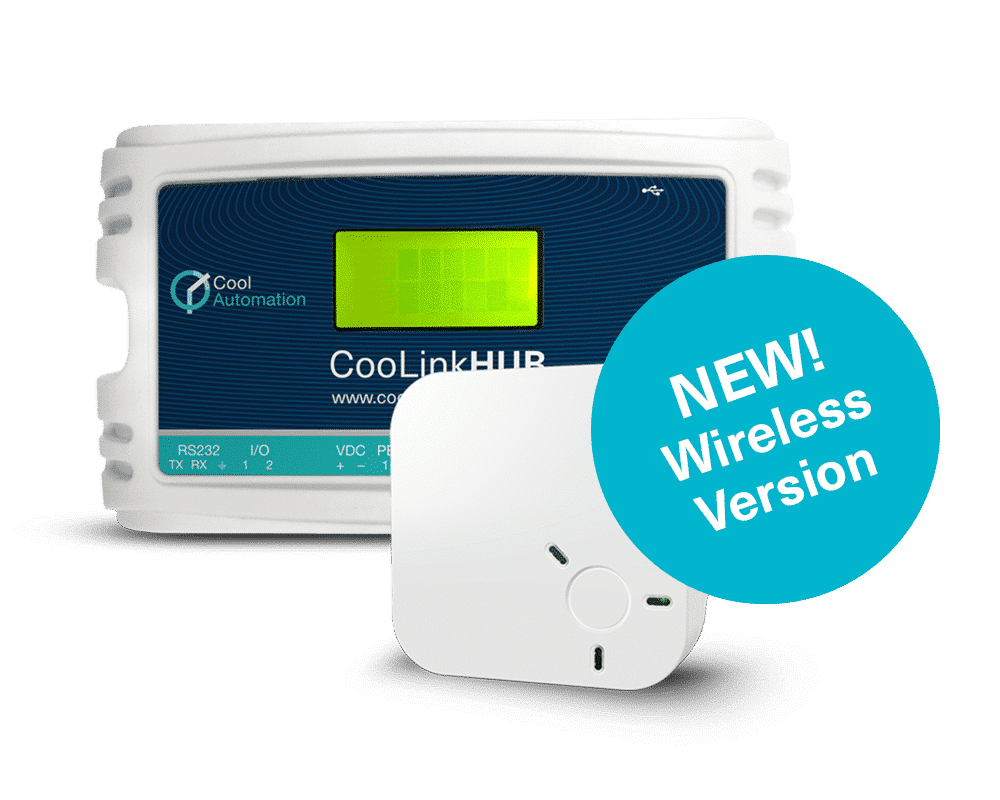

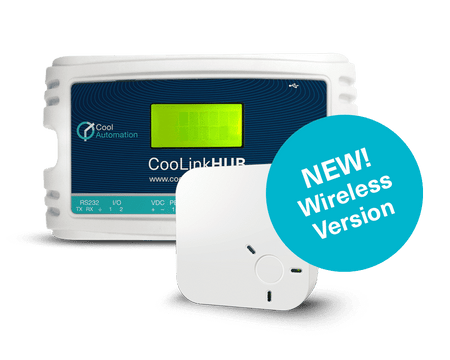

CoolAutomation CooLinkHub wireless with CoolPlug

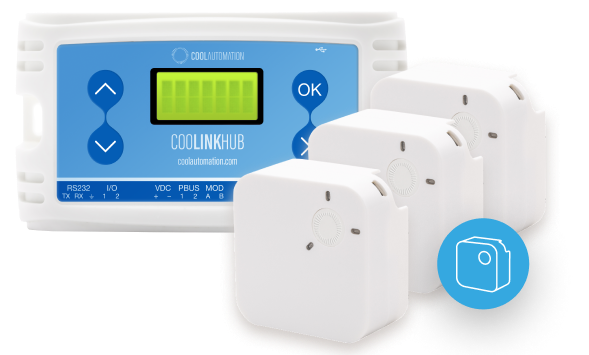

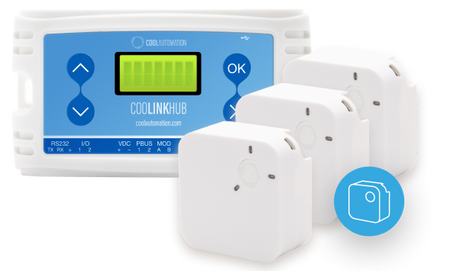

CoolAutomation CooLinkHub with CoolPlugs

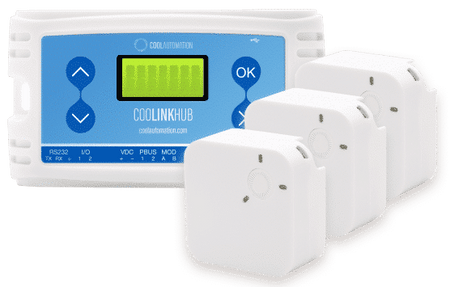

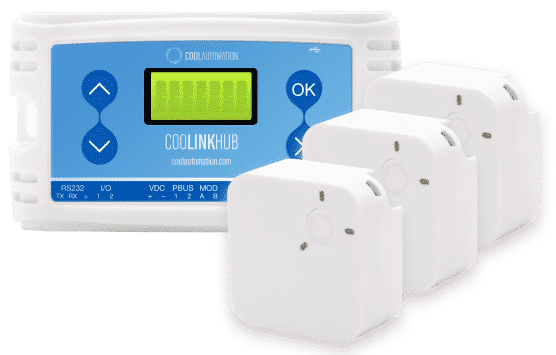

CoolAutomation CooLinkHub with CoolPlug split unit interfaces

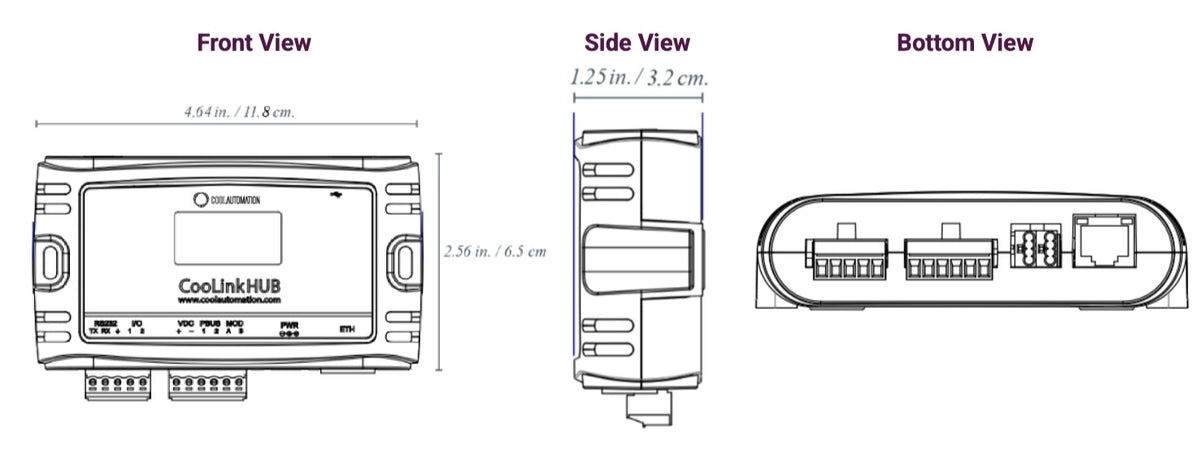

CoolAutomation CooLinkHub dimensional drawing, front, side and bottom view

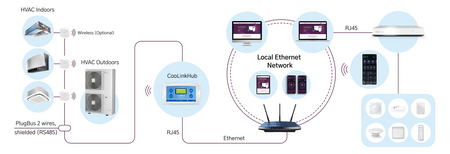

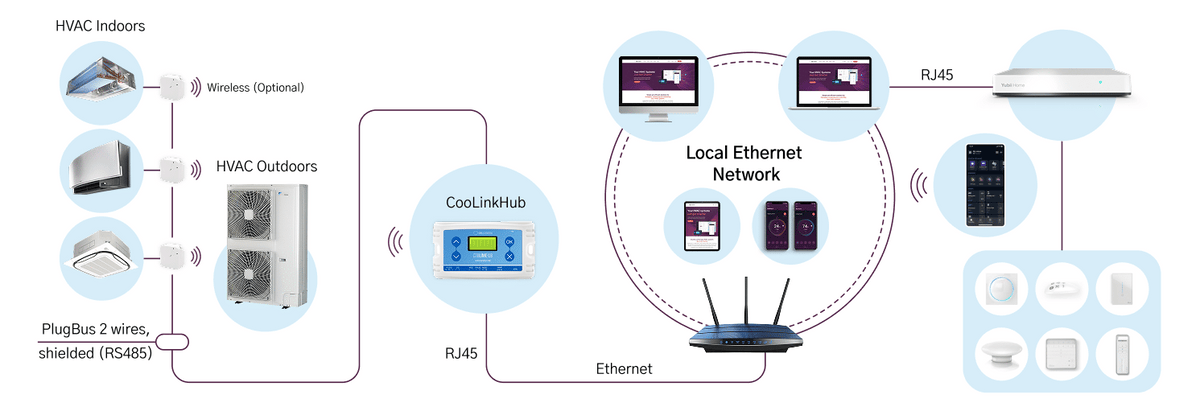

CoolPlug and CooLinkHub system architecture for split HVAC integration

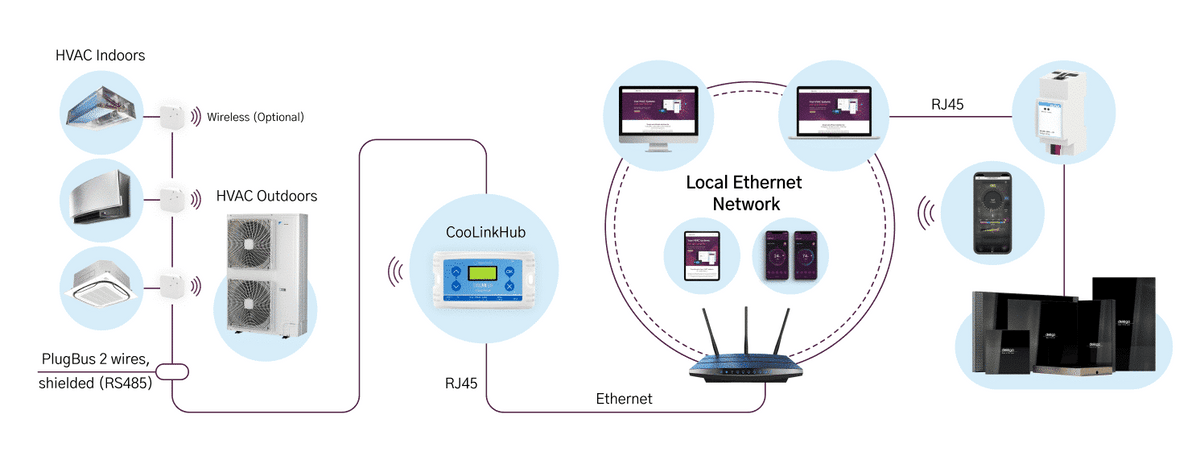

CoolPlug and CooLinkHub split AC integration with KNX home automation
CoolAutomation CooLinkHub wireless with CoolPlug
CoolAutomation CooLinkHub with CoolPlugs
CoolAutomation CooLinkHub with CoolPlug split unit interfaces
CoolAutomation CooLinkHub dimensional drawing, front, side and bottom view
CoolPlug and CooLinkHub system architecture for split HVAC integration
CoolPlug and CooLinkHub split AC integration with KNX home automation

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CoolAutomation

CoolAutomation CooLinkHub Wireless gateway for CoolPlug split units, up to 10 CoolPlugs

SKU: COOLINKHUB-WRLS
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$306.00 USD
-10% $340.00 USD $306.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The CoolAutomation CooLinkHub aggregates up to 10 CoolPlugs, the small interfaces that connect individual split, multi-split and mini-split indoor units, and presents them to home automation and building management systems as one integration point. CoolPlugs link to the hub over a 2.4 GHz wireless mesh or a wired PBUS (shielded twisted pair), so retrofit projects can be done without opening walls or ceilings.

The hub offers RS232 (ASCII), RS485 (Modbus RTU, BACnet MS/TP) and Ethernet (ASCII, Modbus IP, BACnet IP) interfaces, configurable I/Os and an LCD screen to set up and monitor connected CoolPlugs. Web and mobile apps add remote control. One hub per group of up to 10 indoor units; add hubs to grow the system.

Key Features

  • Up to 10 CoolPlugs per hub, wired (PBUS) or wireless (2.4 GHz 802.15.4 mesh)
  • Wireless mesh: each device repeats the signal; about 20 m (65 ft) between devices, line of sight
  • RS232 (ASCII), RS485 (Modbus RTU, BACnet MS/TP), Ethernet (ASCII, Modbus IP, BACnet IP)
  • Native drivers for leading home automation platforms
  • LCD screen to set up, monitor and configure connected CoolPlugs
  • Configurable I/Os
  • Web and mobile app for remote control and monitoring

Typical Applications

Hotel rooms and apartments with ductless splits, homes with multi-split systems, small offices and retrofits where Daikin, Mitsubishi Electric, Fujitsu, LG, Samsung or other mini-splits must join a BMS or home automation system.

Technical Specifications

Power supply 9–24 V DC external adapter (included)
Power consumption 1 W
Max CoolPlugs 10 (wired and wireless)
Wired link to CoolPlug PBUS, 2-wire shielded polarized twisted pair, 20–24 AWG; max 1000 m (3280 ft)
Wireless link to CoolPlug 2.4 GHz spread spectrum, IEEE 802.15.4 mesh; range 20 m (65 ft)
Max RS232 cable 25 m (82 ft)
Max Ethernet cable 137 m (450 ft)
Dimensions (H × W × D) 65 × 118 × 32 mm (2.56 × 4.64 × 1.25 in)
Weight 0.12 kg (0.26 lb)
Operating temperature -10 °C to +60 °C (14 °F to 140 °F), 0–96 % RH non-condensing
In the box CooLinkHub, power adapter, USB cable, RJ45 Ethernet cable
Certifications Not UL/NRTL listed

Related Products

CoolPlug Wireless (one per indoor unit, brand specific). External temperature sensor and CN105 splitter accessories. For VRF/VRV systems: CoolMaster or CoolMaster KNX.

Not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Installation guide (PDF) · Available to order.
