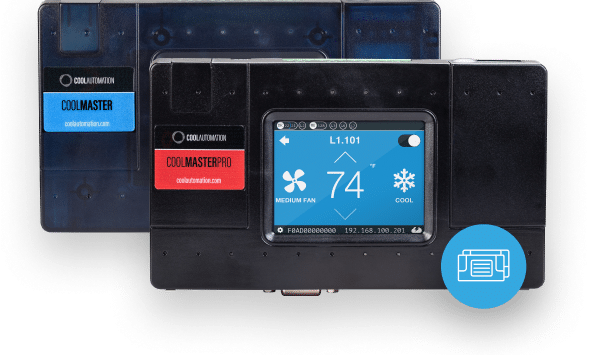

CoolAutomation CoolMasterPro VRF gateway
CoolAutomation CoolMasterPro touch screen

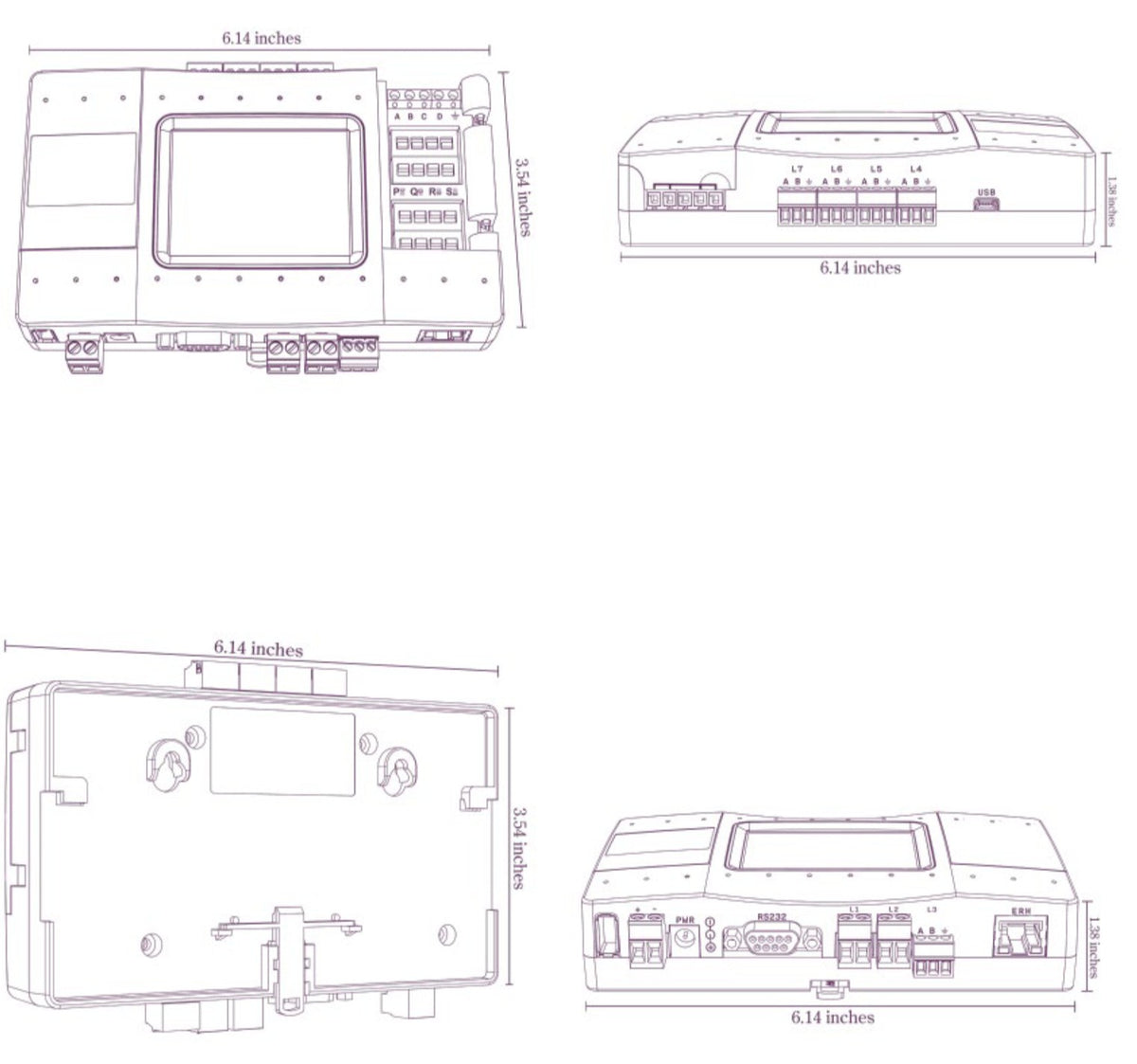

CoolAutomation CoolMasterPro CMPDK000 dimensional drawing, DIN rail and wall mounting
CoolAutomation CoolMasterPro VRF gateway
CoolAutomation CoolMasterPro touch screen
CoolAutomation CoolMasterPro CMPDK000 dimensional drawing, DIN rail and wall mounting

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

CoolAutomation

CoolAutomation CMPDK000 CoolMasterPro VRF/VRV gateway for BMS, up to 255 indoor units with service data

SKU: CMPDK000
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$3,955.50 USD
-10% $4,395.00 USD $3,955.50 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The CoolAutomation CoolMasterPro (CMPDK000) is the large-site gateway of the CoolMaster line. It connects VRF/VRV systems from all major manufacturers to building management and home automation systems, handling up to 255 connected units across several HVAC lines and brands on a single device.

What sets the Pro apart is local access to VRF service data: outdoor and indoor operating values (pressures, temperatures, compressor and valve data on supported brands) are published over Modbus and BACnet, so the BMS can monitor system performance, not just on/off and setpoints. For direct KNX TP connection, choose the CoolMasterPro KNX.

Key Features

  • Up to 255 connected units (indoor units, CoolPlugs, sensors, fan coils); limits vary by HVAC brand
  • Local access to VRF/VRV service data points over Modbus and BACnet (brand specific)
  • Modbus RTU, Modbus IP, BACnet MS/TP, BACnet IP, ASCII and REST API on one device
  • Universal interface to all major VRF/VRV brands, several lines and brands on one gateway
  • RS232, RS485 and Ethernet interfaces with automatic driver detection for home automation systems
  • Built-in color touch screen for setup, unit discovery and local control
  • Dry-contact GPIO for central all-on/all-off triggering (e.g. fire alarm)
  • Optional CoolAutomation professional cloud apps for remote diagnostics (subscription)

Compatible HVAC Systems

VRF/VRV systems from Daikin, Mitsubishi Electric (City Multi), Fujitsu, Toshiba, Panasonic, Hitachi, Samsung, LG, Gree (GMV5/6), Midea, Haier, Mitsubishi Heavy, TICA, Blue Star, AUX and Chigo. Service data availability is brand specific. Send us your equipment list and we will confirm compatibility before you order.

Typical Applications

Hotels, offices, schools, healthcare and large residences where a BMS needs full VRF control plus performance and fault data for maintenance teams.

Technical Specifications

Power supply 12–24 V DC; 100–240 V AC 50/60 Hz adapter included (12 V DC output)
Power consumption 1.5 W
Max connected units 255 indoor units; 10–40 outdoor units (varies by HVAC brand)
Interfaces RS232 (DB9), RS485, Ethernet 100 Mbps, USB (configuration), HVAC lines, GPIO (dry contact)
Protocols Modbus RTU, Modbus IP, BACnet MS/TP, BACnet IP, ASCII, REST API
HVAC bus wiring 2–3 wire shielded cable (brand dependent)
Max cable length to BMS RS232 25 m (82 ft); RS485 1000 m (3300 ft); Ethernet 137 m (450 ft)
Display 2.8 in color LCD touch screen, 240 × 320
Mounting DIN rail or wall
Dimensions (H × W × D) 90 × 156 × 35 mm (3.54 × 6.14 × 1.37 in)
Weight 265 g (0.58 lb)
Operating temperature -10 °C to +60 °C (14 °F to 140 °F), 0–96 % RH non-condensing
Storage temperature -20 °C to +70 °C (-4 °F to 158 °F)
In the box Device, power adapter, Ethernet cable, USB cable
Certifications FCC; CE (EN 60335-1, EN 60335-2-40). Not UL/NRTL listed
Manufacturer part no. CMPDK000

Related Products

CoolMasterPro KNX for direct KNX TP. CoolMaster for sites up to 32 units. CoolMaster EDGE for edge processing and local logic. GS-SMT-HOA underfloor heating controller (up to 10 per CoolMasterPro, 80 zones).

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
