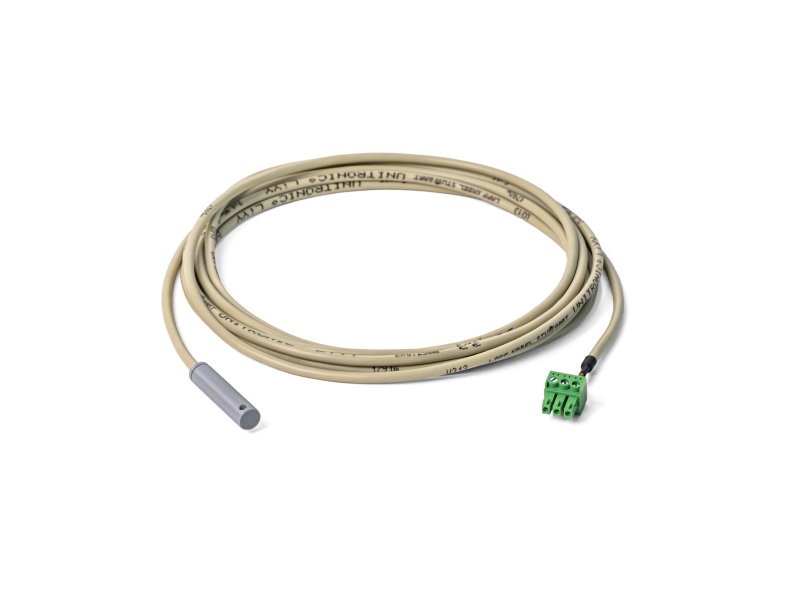

NETIO TH1 temperature and humidity sensor with 3 m cable

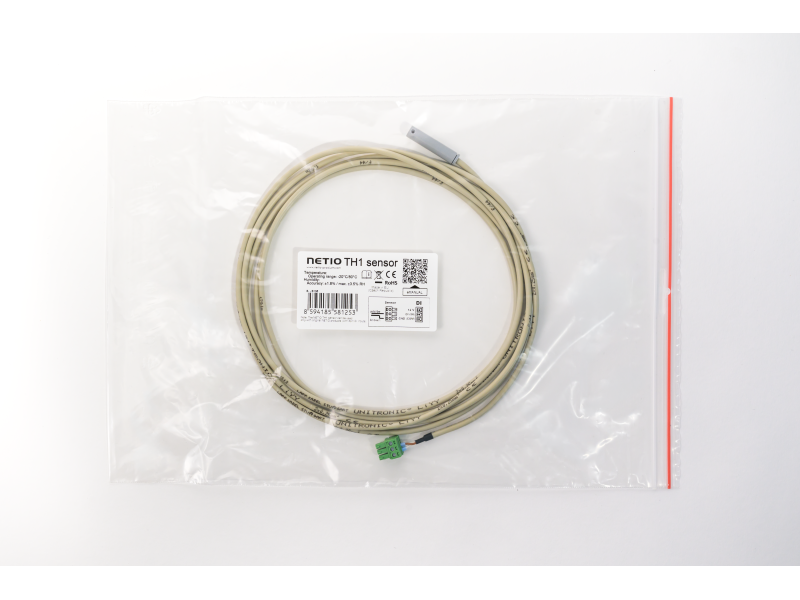

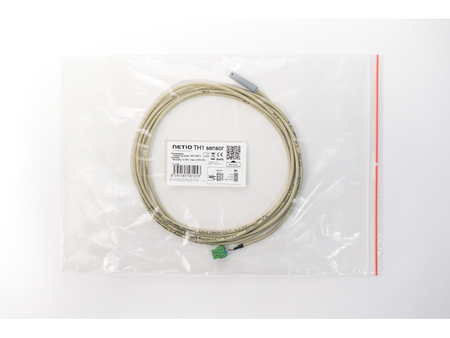

NETIO TH1 sensor package
NETIO TH1 temperature and humidity sensor with 3 m cable
NETIO TH1 sensor package

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NETIO

NETIO TH1 Temperature & Humidity Sensor for NETIO PDUs – 3 m (9.8 ft) Cable

SKU: NETIO TH1 sensor
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$151.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The NETIO TH1 adds temperature and humidity monitoring to any NETIO device with a digital input. Plug it in and use the readings to switch fans, dehumidifiers or heaters automatically, trigger alerts or log rack and room conditions — without an extra controller.

Key Features

  • Measures temperature (−20 to +80 °C / −4 to +176 °F) and relative humidity (0–99 %RH)
  • Plug-and-play on the NETIO digital input (DI)
  • 3 m (9.8 ft) cable, extendable up to 20 m (65.6 ft)
  • Devices with two digital inputs accept two sensors
  • Values available in Conditions & Rules, the Open API and NETIO Cloud

Technical Specifications

Model NETIO TH1 sensor
Temperature range −20 to +80 °C (−4 to +176 °F)
Humidity range 0–99 %RH
Probe Polyamide, 40 mm (1.6 in) long, Ø 8 mm (0.31 in), vented humidity chamber
Cable PVC, 3 m (9.8 ft); extendable to 20 m (65.6 ft)
Interface NETIO digital input (DI)
Environment Indoor use only
Firmware NETIO device firmware 5.2.4 or later

Compatibility

NETIO devices with a digital input, including the PowerPDU 4K/8Q/8K series, PowerCable 2K series and the PowerDIN 4PZ, ZP3 and ZK3.

Typical Applications

  • Rack and server-room climate monitoring
  • Automatic fan or dehumidifier control by temperature or humidity
  • Climate alerts for AV closets, studios and archives
  • Indoor warehouse and production monitoring

FAQ

Can it be used outdoors?
No. The TH1 is for indoor use only. For a sealed temperature-only probe, see the NETIO T1 (IP67).

Which firmware do I need?
The NETIO device must run firmware 5.2.4 or later.
