NETIO PowerDIN ZP3 – 3-Channel DIN-Rail Power Controller, 3-Phase, LAN & WiFi
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$490.00 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

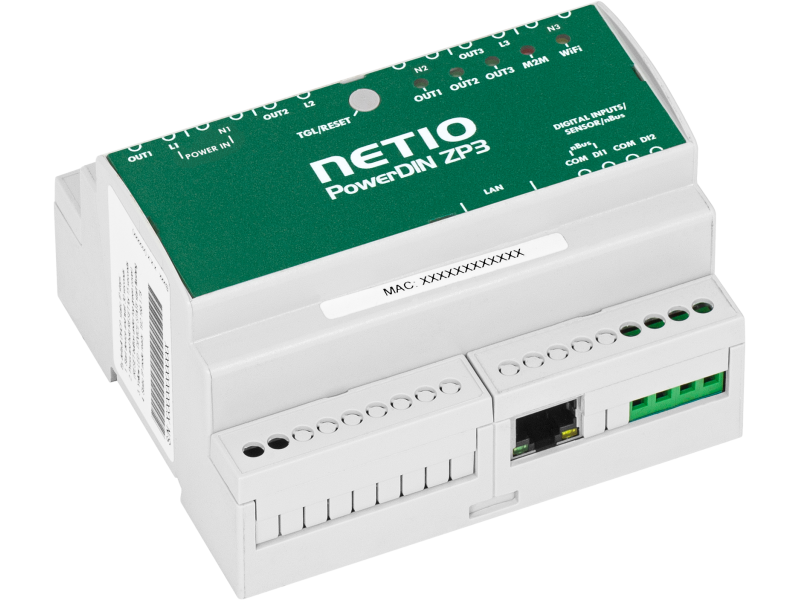

The NETIO PowerDIN ZP3 is a networked DIN-rail power controller with three switched 16 A outputs. Use it to switch a 3-phase load or three independent single-phase circuits from the distribution board, with LAN or WiFi connectivity and open protocols that plug straight into KNX, BMS and SCADA systems.
Key Features
- 3 switched relay outputs, max 16 A each, with Zero Voltage Switching (ZVS)
- Works as a 3-phase 400 V (3 × 16 A) switch or as 3 independent 230 V / 16 A channels
- 2 digital inputs (dry contact) with S0 counters and 12 V supply; up to 2 NETIO TH1 sensors
- LAN (RJ45) and 2.4 GHz WiFi
- Scheduler, Ping & Power WatchDog and Conditions & Rules
- Outputs hold their state during firmware updates; power-up state On, Off or Last
- Open API: JSON, XML, MQTT-flex, SNMP v1/v3, Modbus/TCP, Telnet, URL API, HTTP(S) Push
- 6-module DIN-rail housing
Technical Specifications
| Model | PowerDIN ZP3 |
|---|---|
| Outputs | 3 × SPST-NO relay with ZVS, max 16 A each, 2.5 mm² (14 AWG) terminals |
| Modes | 3-phase 400 V, 3 × 16 A, or 3 independent 230 V / 16 A channels |
| Supply | 100–240 V AC, 50/60 Hz |
| Internal consumption | Max 2 W |
| Energy metering | No (see PowerDIN ZK3 for the metered version) |
| Digital inputs | 2 × dry contact with S0 counter, 12 V supply |
| Network | RJ45 Ethernet + WiFi 2.4 GHz |
| Operating temperature | −20 to +50 °C (−4 to +122 °F) |
| Dimensions | 108 × 91 × 62 mm (4.3 × 3.6 × 2.4 in), 6 DIN modules |
| Protection | IP20; Type 3 surge protection |
| Mounting | 35 mm DIN rail |
Integration & Control
Control outputs from the built-in HTTPS web interface, the NETIO Mobile 2 app (iOS/Android) or the optional NETIO Cloud service (subscription). Over Modbus/TCP or MQTT it works alongside KNX IP gateways, logic servers and BMS platforms.
Typical Applications
- Remote switching of 3-phase heaters, pumps and machinery
- Three independently controlled circuits from one DIN device
- Temperature- and humidity-based control with NETIO TH1 sensors
- Adding networked load control to KNX and BMS panels
Certifications
No UL/NRTL listing stated by NETIO — verify local code requirements before specifying in US installations. Installation by a qualified electrician only.
FAQ
Does the ZP3 measure energy?
No. Choose the PowerDIN ZK3 for 3-channel metering with better than 1% accuracy.
Can I use the three outputs for separate circuits?
Yes. In single-phase mode each output is an independent 230 V / 16 A channel.
