NETIO PowerPDU VK6 – 6-Outlet Metered & Switched 3-Phase 1U Rack PDU, powerCON, LAN
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$1,260.00 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

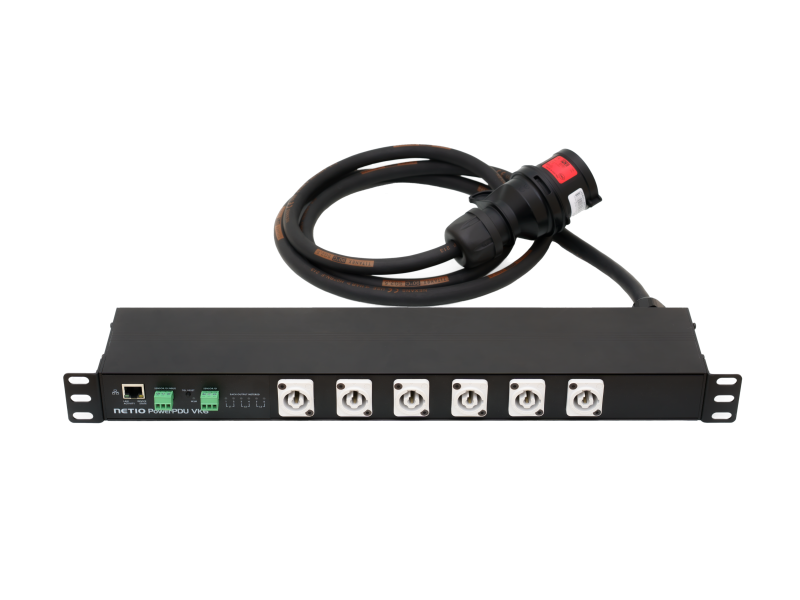

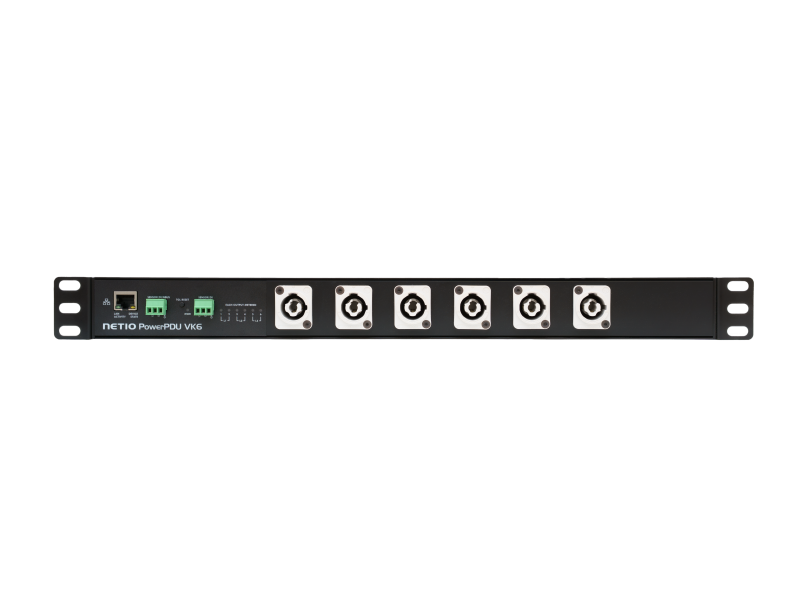

The NETIO PowerPDU VK6 is a 3-phase smart rack PDU for live events and large AV systems: a CEE 16 A 3-phase input feeds six powerCON outlets, each switched and metered individually. Balance load across phases, see what every device draws and sequence the whole rack from a single 1U unit.
Key Features
- 6 switched and individually metered powerCON outlets, distributed across 3 phases (16 A per outlet pair)

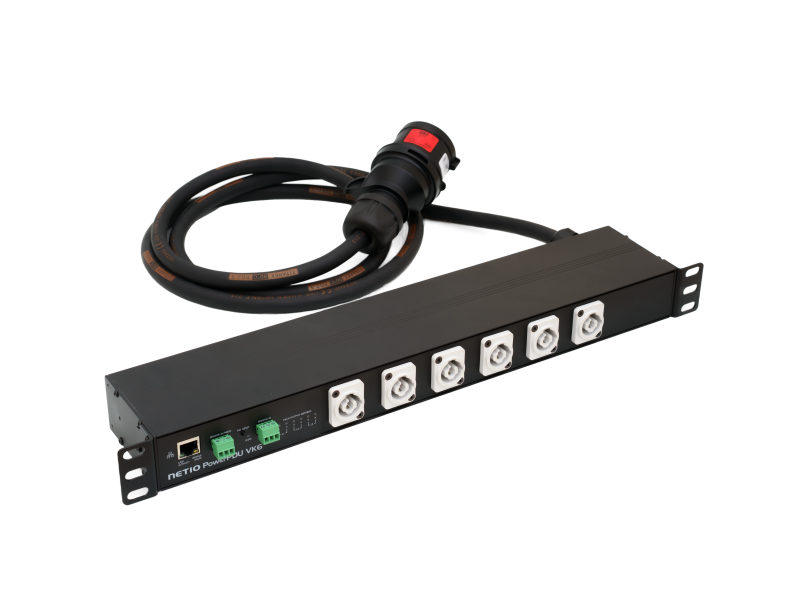

- 3-phase 400 V input via CEE 5-pin 16 A connector (IEC 60309, 3P+N+E)
- Per-outlet metering: A, W, Wh, True PF, phase shift, energy in/out and reverse energy
- 2 digital inputs with S0 counters and 12 V supply; NETIO T1/TH1 sensors supported
- Zero Current Switching (ZCS); power-up state On, Off or Last with per-outlet delay
- Scheduler, WatchDog and Conditions & Rules
- Open API: JSON, XML, MQTT-flex, SNMP v1/v3, Modbus/TCP, Telnet, URL API, HTTP(S) Push
- Ready-made drivers for Crestron, Q-SYS, Control4, RTI, Savant, Kramer, Aurora Multimedia and more
Technical Specifications
| Model | PowerPDU VK6 |
|---|---|
| Outlets | 6 × powerCON, individually switched and metered |
| Input | 3-phase 400 V, CEE 16 A 5-pin (IEC 60309, 3P+N+E) |
| Current | 16 A per outlet pair (one pair per phase) |
| Energy metering | 6 channels: A, W, Wh, True PF, phase shift, energy in/out, reverse energy |
| Digital inputs | 2 × dry contact with S0 counter, 12 V supply |
| Switching | Relays with ZCS |
| Network | RJ45 Ethernet 10/100 Mbps |
| Mounting | 19-inch 1U |
Integration & Control
Control outlets and read per-outlet energy data from the built-in HTTPS web interface, the NETIO Mobile 2 app (iOS/Android) or the optional NETIO Cloud service (subscription). Integrate with AV control, KNX and BMS platforms over Modbus/TCP, MQTT, SNMP or HTTP/JSON.
Typical Applications
- Stage and event power distribution from a 3-phase CEE supply
- Phase-load balancing with per-outlet energy data
- Sequenced power-up of amplifier and LED-wall racks
- International projects on 230/400 V 3-phase systems
Certifications
No UL/NRTL listing stated by NETIO. Designed for 230/400 V 3-phase supplies — verify local code requirements before specifying in US installations.
FAQ
Can I use it on a US 120/208 V supply?
The VK6 is designed for a 400 V 3-phase CEE input. Check voltage, connector and local code before specifying it for a US project; for US single-phase racks see the PowerPDU 8QV or 8KB US.
Is every outlet metered?
Yes. All six powerCON outlets are switched and metered individually.
