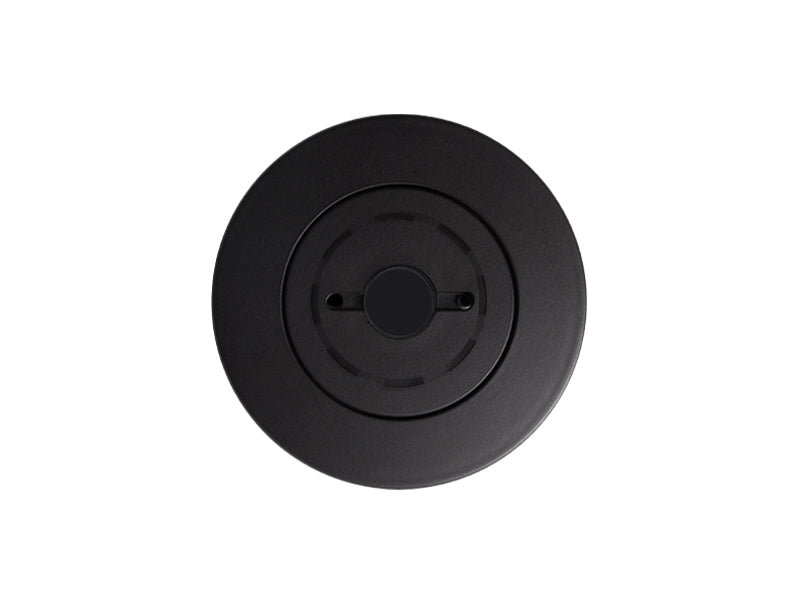

Eelectron SM03E02ACC-3 PlugIn Sensor for PD00ExxKNX eCO2, VOC, temperature – black
Eelectron SM03E02ACC-3 PlugIn Sensor for PD00ExxKNX eCO2, VOC, temperature – black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron SM03E02ACC-3 PlugIn Sensor for PD00ExxKNX eCO2, VOC, temperature – black

SKU: SM03E02ACC-3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$112.90 USD
-26% $153.44 USD $112.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron SM03E02ACC-3 is a plug-in indoor-air-quality sensor in black for the Eelectron presence detector range. It adds a VOC sensor with CO2-equivalent (eCO2) estimation and a −5…+50 °C temperature sensor to a PD00E02KNX Multi, PD00E03KNX Space, PD00E20KNX Wide Range or PD00E21KNX Corridor detector, or to a PD00A02DL2 DALI-2 Multisensor, so demand-controlled ventilation and IAQ monitoring can be added to a room without a second bus device or a separate wall sensor.

The module is powered and read through the host sensor’s smart-sensor input, and its front LED can be set to one of 4 modes to show TVOC concentration bands (off below approx. 1 mg/m³, slow blink to 3 mg/m³, fast blink to 10 mg/m³, steady above). TVOC is measured directly; eCO2 is an algorithmic estimate of CO2 trend from the VOC reading, bounded between 400 and 5000 ppm, and the sensor needs roughly 96 hours of operation to stabilise. Mount the sensor-plus-plug-in pair with the PD00E07ACC double squared ring. The white version is SM03E02ACC; for a true NDIR-style CO2 reading choose SM03E03ACC.

Key Features

  • Plug-in for Eelectron presence detectors: PD00E02KNX (Multi), PD00E03KNX (Space), PD00E20KNX (Wide Range), PD00E21KNX (Corridor) and DALI-2 PD00A02DL2
  • VOC sensor for Indoor Air Quality (IAQ) with CO2-equivalent (eCO2) estimation, 400–5000 ppm
  • Temperature sensor, −5…+50 °C (23…122 °F)
  • Front LED with 4 selectable modes indicating TVOC bands (approx. 1 / 3 / 10 mg/m³ thresholds) or disabled; mode set by button
  • Powered via the host sensor’s smart-sensor input: 12–24 V AC / 12–30 V DC, 6 mA, 25 mA peak
  • Also usable on the first input of the TC28A01KNX fan-coil controller
  • Approx. 96 h stabilisation time before readings are reliable
  • Mounts with the detector via PD00E07ACC-1 / PD00E07ACC-3 double squared ring; surface enclosure PD00E00ACC or box frame PD00E01ACC
  • Finish: black

Technical Specifications

Function Plug-in sensor VOC + eCO2 + temperature
Power supply 12–24 V AC / 12–30 V DC via the host sensor smart-sensor input
Current consumption 6 mA; max. peak 25 mA
VOC / eCO2 TVOC measurement (IAQ); eCO2 estimate 400–5000 ppm derived from TVOC
Temperature sensor −5…+50 °C (23…122 °F)
Front LED 4 modes: TVOC-band indication (off / slow / fast / steady), very-slow heartbeat, or always off
Compatible hosts PD00E02KNX(-3), PD00E03KNX(-3), PD00E20KNX(-3), PD00E21KNX(-3), PD00A02DL2-x, TC28A01KNX
Stabilisation time Approx. 96 h
Installation Indoor, dry locations; keep ≥ 4 mm from non-SELV (230 V) conductors
Finish Black
Weight 0.11 kg (0.24 lb)
Manufacturer part no. / GTIN SM03E02ACC-3 / 8054144521893

Related Products

SM03E02ACC (same plug-in in white). CO2 + VOC + temperature version: SM03E03ACC / SM03E03ACC-3. Host detectors: PD00E02KNX / PD00E02KNX-3, PD00E03KNX / PD00E03KNX-3, PD00E20KNX, PD00E21KNX, PD00A02DL2-1 / -3. Mounting: PD00E07ACC-1 / PD00E07ACC-3 double squared ring, PD00E00ACC / PD00E00ACC-3 surface enclosure, PD00E01ACC box frame.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
