Compact bus powered interface between LAN/Ethernet and KNX bus.
Application area
The KNX IP Interface 731 is a compact interface used to connect a PC to the KNX network.
The connection is made through LAN (IP).
Power is supplied via the KNX bus.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management and the tunneling part.
The buttons are for diagnostic purposes.
The LEDs indicate the operating status and communication errors on the bus.
Compact bus powered interface between LAN/Ethernet and KNX bus.
Application area
The KNX IP Interface 732 secure with its compact design has a width of only 1 module (18 mm) and is powered by the KNX bus.
The device is an interface between IP and KNX and can be used as programming interface for ETS®
Software.
You can access the KNX Bus from every point of your LAN.
Furthermore, the KNX IP Interface 732 secure allows you to program the KNX bus over the Internet.
The device supports KNX Security which can be enabled in ETS.
With its interface functionality (tunneling) KNX security prevents from unauthorized access.
The buttons and LEDs on the device allow a local diagnosis including the operating status and communication errors.
Wireless KNX IP interface.
Application area
The KNX IP Interface 740.1 wireless serves as a wireless interface to the KNX bus based on WLAN.
The device can be used as a programming interface for the ETS® and is a wireless alternative to USB or wired IP interfaces.
The bus access via WIFI allows the installer to move freely in the building with his laptop to a large extent.
The KNX IP Interface 740.1 wireless has an integrated WIFI access point to which the laptop can connect.
Alternatively, the device can be connected to an existing WIFI in client mode, the connection can be made via WPS (WIFI Protected Setup).
The device supports the security standard WPA2.
Power is supplied via the KNX bus.
The device works according to the KNXnet/IP specification.
It can be used with the ETS® from version 5.
The IP Interface enables the communication between the PC and the KNX / EIB system via LAN.
The KNX IP Interface allows to programm the KNX bus via TCP / IP, 4 simultaneous connections possible.
KNX power supply 640 mA with KNX IP router.
Application area
The KNX IP LineMaster 762.1 secure combines the essential functions of a KNX bus line: KNX power supply with choke, KNX IP router and KNX IP interface.
In addition to the bus voltage the power supply offers an auxiliary voltage.
The KNX IP router in the KNX IP LineMaster 762.1 secure allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.
Using the embedded KNX IP interface, the KNX line can be connected directly to a PC (e.g. by ETS).
The device supports KNX Security which can be enabled in ETS.
As secure router the device allows coupling of not secured communication on KNX TP to a secured IP
backbone.
Also for the interface functionality (tunneling) KNX Security prevents from unauthorized access.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
Compact bus powered Router between LAN/Ethernet and KNX bus.
Application area
The compact KNX IP Router 751 allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.
In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part.
The KNX IP Router 751 has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams.
Power is supplied via the KNX bus.
Compact bus powered Router between LAN/Ethernet and KNX bus.
Application area
The compact KNX IP Router 752 secure allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.
In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming.
The device supports KNX Security which can be enabled in ETS.
As secure router the device allows coupling of not secured communication on KNX TP to a secured IP
backbone.
Also for the interface functionality (tunneling) KNX security prevents from unauthorized access.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part.
The KNX IP Router 752 secure has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams.
Power is supplied via the KNX bus.
KNX IP Router: This Interface offers the same functions as the IP interface, but the device routes telegrams as a line coupler using the the LAN.
Experience versatile control with the KNX Push Button Sensor, featuring 4/6/8 configurable buttons.
This multifunctional device supports essential functions including Switching, Dimming, RGB/RGBW
Lighting, Color Temperature Control, Blinds, Scene Activation, Value Sending, Shift Register, Multiple Operations, Delay Mode, RTC (Real-Time Clock) Operation, and String Sending.
Additionally, it comes equipped with a built-in temperature sensor to monitor the ambient temperature and offers RGB indication for intuitive feedback.
Elevate your smart home or office with this all-in-one solution.
Leakage sensor for detecting water leakage, with integrated Bus coupler unit.
The dimmer with LED constant voltage drive can drive LED directly, has four channels, each channel is independent.
The output can connect with some big power dimmable LED lights. These LEDs can be switched, dimmed, recall scene or other operations via the bus.
The devices adopt PUSH terminals to achieve electrical connection; the connection to the EIB/KNX bus is established via a bus connecting terminal. The input need connect a 12V-36V DC operation voltage.

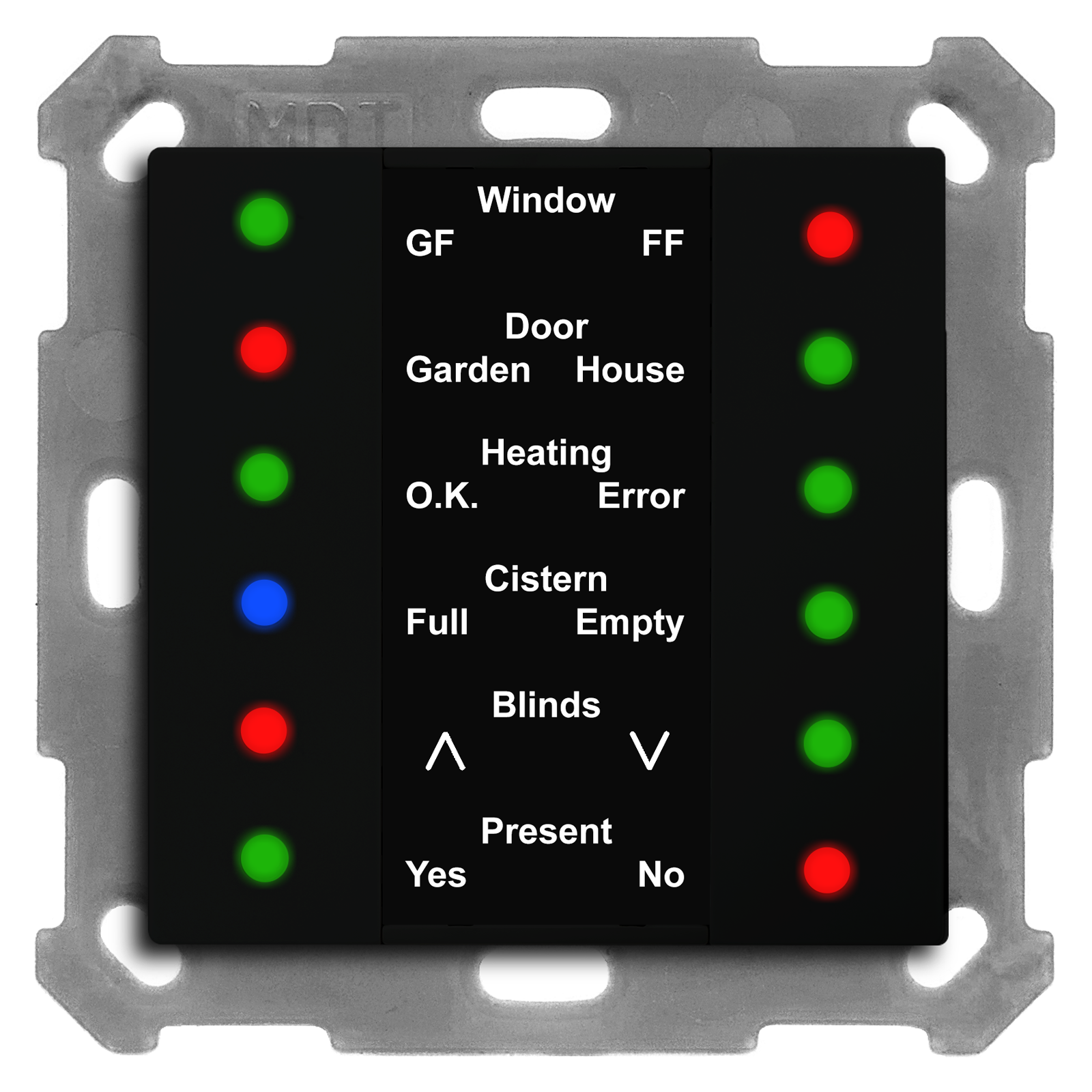

The MDT LED Indicator 55 with its 12 LEDs is ideal for visualising status messages of all kinds.
Three states can be displayed (red, green, blue) for visualising the window status: closed / tilted / open, for example.
Integrated logics enable, among other things, the combination of several window contacts.
The MDT LED Indicator 55 with its 12 LEDs is ideal for visualising status messages of all kinds.
Three states can be displayed (red, green, blue) for visualising the window status: closed / tilted / open, for example.
Integrated logics enable, among other things, the combination of several window contacts.
KNX Line Coupler: This Interface connects two KNX lines to each other.
Electrical isolation between the lines and reduction of the busload by using the filter function.
The MDT Logic Module is used for fast and easy compilation of logic functions to control building automation systems.
All the functions are parametrized directly in the ETS without additionally software tools.
There are 24 independent function blocks with arbitrary functions available.
For each function a description can be stored in the ETS.
Version for hollow wall mounting.
Integrated Bus coupler.
KNX Secure.
Version for hollow wall mounting.
Integrated Bus coupler.
KNX Secure.
Micro Presence Detector with Temperature sensor.
For installation in suspended ceilings.
Micro Presence Detector with Temperature sensor.
For installation in suspended ceilings.
The MDT Mini Presence Detector with 1 pyro sensor and a high-resolution lens detect even the smallest movements.
For ceiling installation in 35 mm Kaiser installation box.
