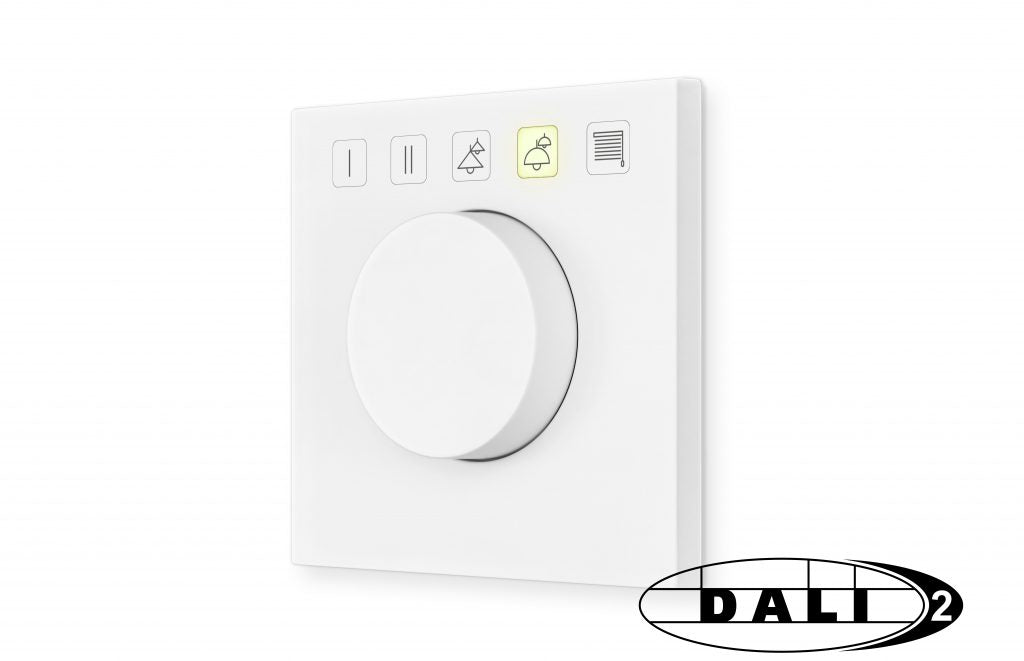

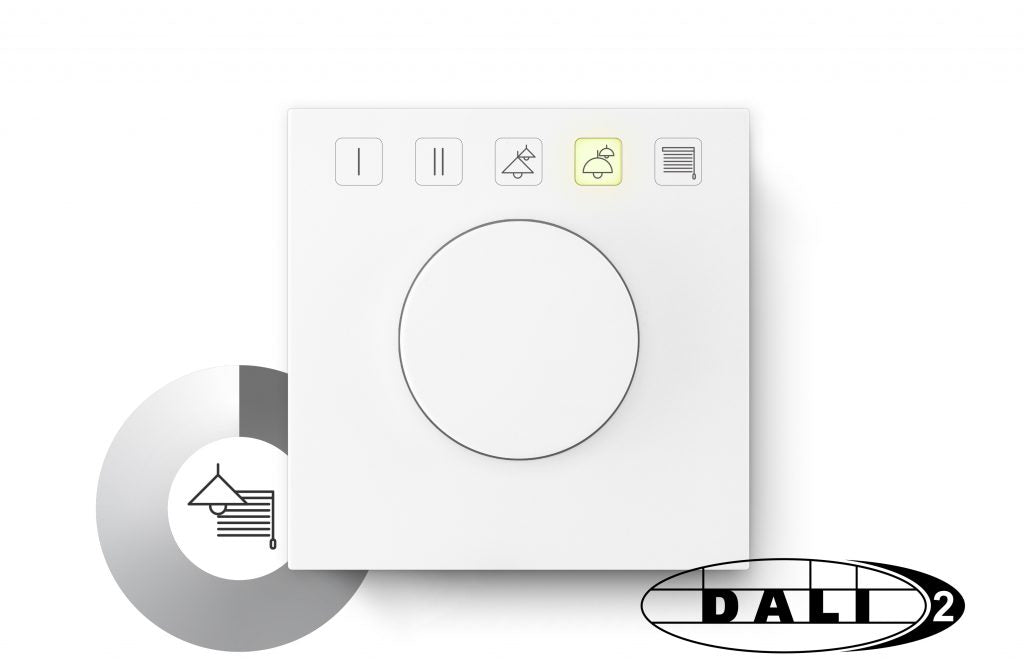

DALI-2 ROT Touch L2 – Groups, Scenes & Blinds

The Lunatone DALI-2 ROT Touch L2 puts lighting and shading on a single rotary control — layout L2: groups, scenes and blinds. The illuminated capacitive keys select scenes, groups or the blind mode; the knob then dims the selected group or drives the blinds. One elegant control point instead of two wall plates.

Key features

• Rotary dimming + push switching, 3 or 5 backlit capacitive keys including blind control
• Keys switch the knob's effective range or send individual DALI commands (scene recall, blind up/down)
• NFC smartphone adjustment via the Lunatone NFC app; full configuration in DALI Cockpit
• Custom key symbols possible via design template
• Programmable power-on behaviour, multimaster, DALI-2 certified
• Bus powered (4.5mA typ.); -PS versions add an integrated mains-connected 70mA DALI bus supply

Choose your version

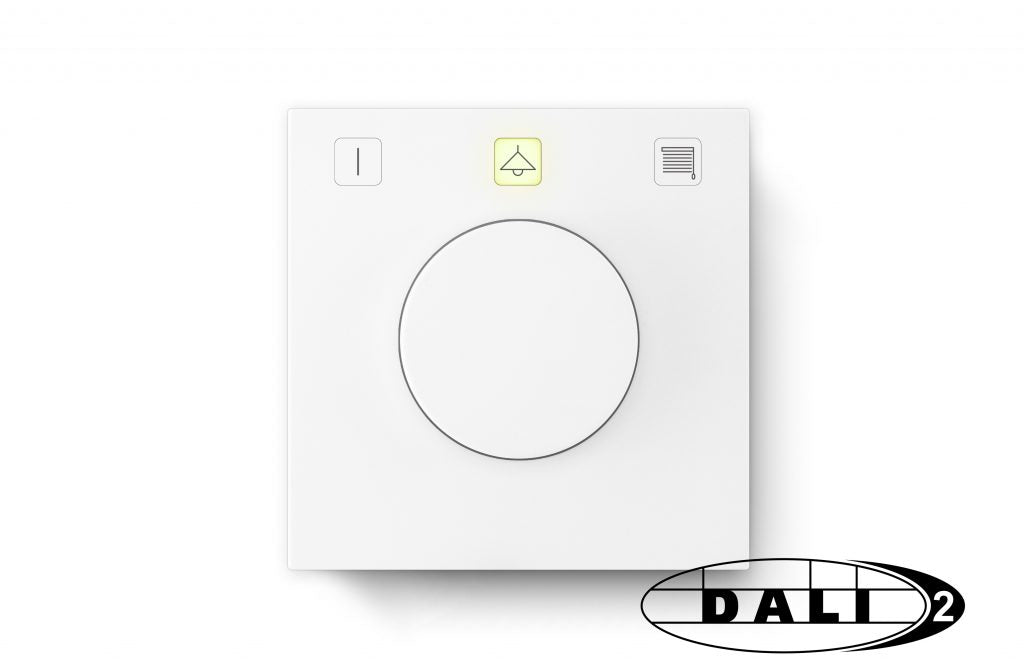

3 or 5 touch keys × App Controller or Integration (instance mode for WAGO / Beckhoff / KNX gateways) × with or without 70mA bus power supply.

Technical specifications

Pair it with the Lunatone DALI-2 Jalousie actuator for complete light-plus-blind rooms. Other layouts: L1 groups & scenes, L3 Tunable White, L4 colour.
