LTECH

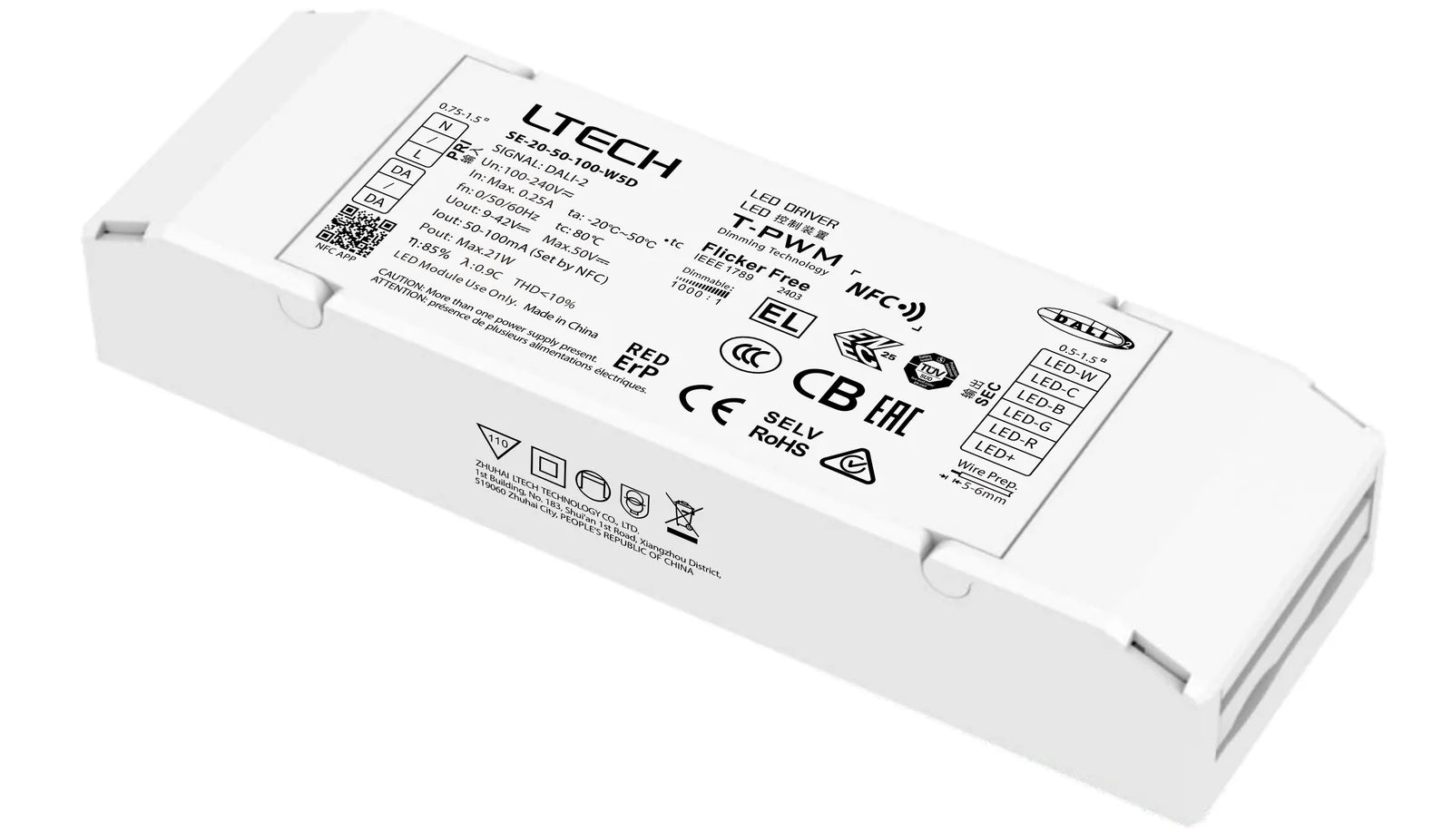

DALI-2 RGBCW 5-Channel CC LED Driver 20W 50-100mA, NFC

SKU: SE-20-50-100-W5D
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$36.40 USD
-33% $54.60 USD $36.40 USD
In stock
On backorder
Model
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

LTECH DALI NFC CC Driver — intelligent LED driver family for professional lighting control installations.

  • NFC programmable — set output current, addresses, dimming curve and advanced parameters via the NFC programmer or app
  • Built with Rubycon capacitors — 5-year warranty
  • T-PWM™ super-depth dimming technology, flicker-free (IEEE 1789 high-frequency exemption)

Models

Model Output Power Output Current Output Voltage
SE-20-50-100-W5D 0.45-21W 50-100mA 9-42V

Specifications

  • Dimming interface: DALI-2 / DT8/DT6 / Anti-misconnection high voltage protection / (300VAC)
  • Dimming range: 1：1000 （0.1%）
  • Input voltage: 100-240V
  • Power factor: >0.95/115Vac >0.9C/230Vac (Full Load)
  • Output channels: 5CH
  • Certifications: 5 year, CCC,CE,RED,EU ERP,ROHS,CB,TUV,ENEC,RCM,EAC,EL,DALI-2
  • Warranty: 5 years
