DALI-2 ROT Touch L1 – Groups & Scenes

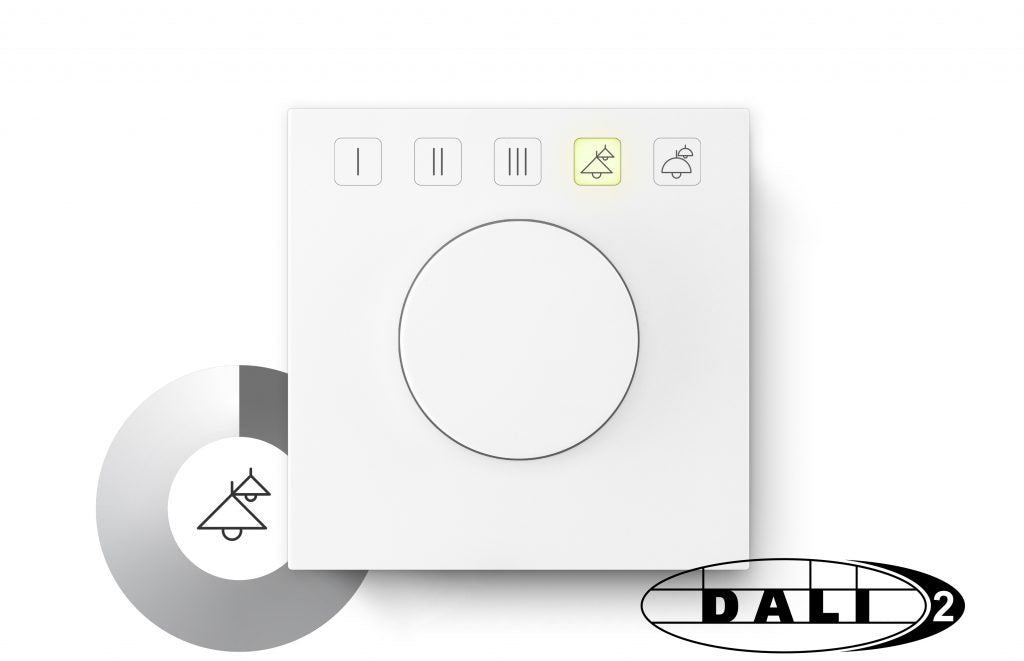

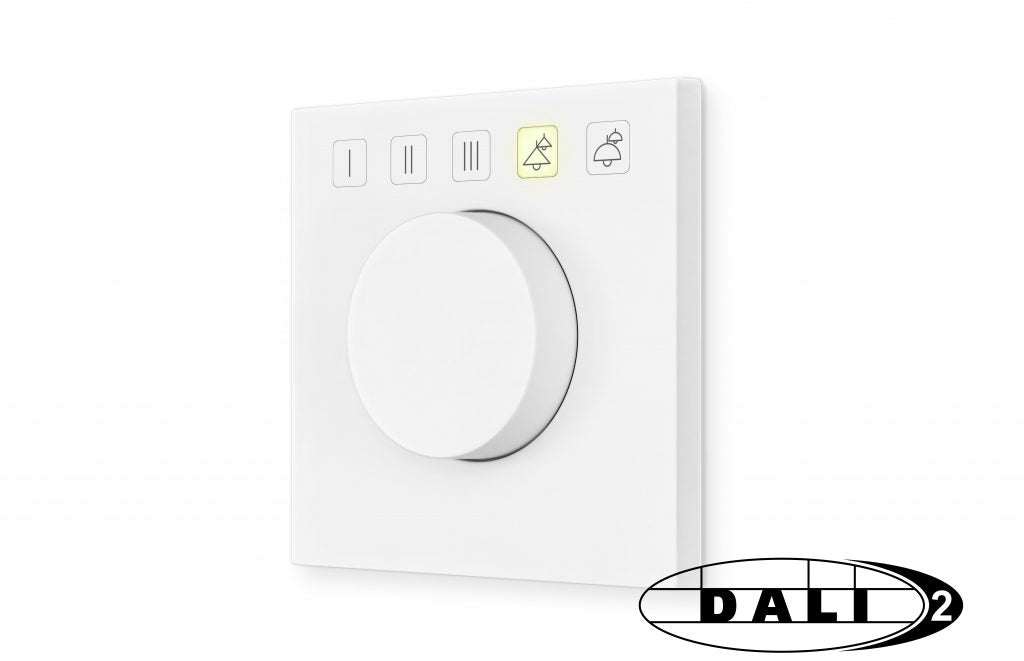

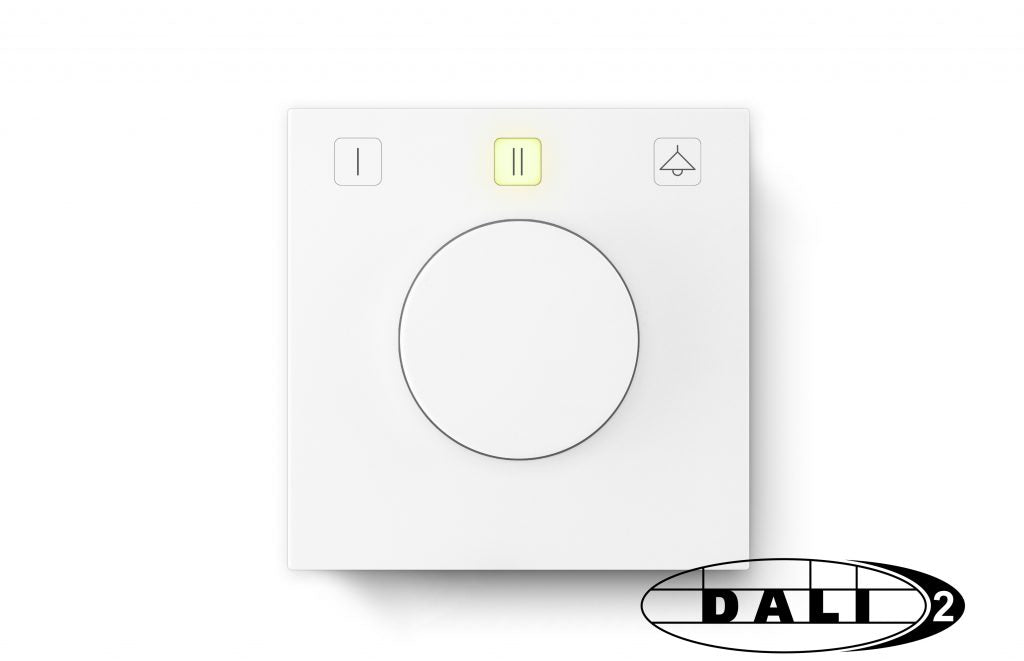

The Lunatone DALI-2 ROT Touch L1 combines a rotary push-dimmer with 3 or 5 illuminated capacitive touch keys — layout L1: groups and scenes. Tap a key to pick the group or recall a scene, and the knob instantly controls that selection's brightness. The pressed key lights up to confirm the active mode, giving a hotel-grade control feel on a standard flush box.

Key features

• Rotary dimming + push switching, plus 3 or 5 capacitive sensor keys with backlight feedback
• Keys switch the knob's effective range (groups) or send individual DALI commands (scenes)
• NFC: adjust selected settings from a smartphone with the Lunatone NFC app; full configuration via DALI Cockpit
• Custom key symbols possible — design guide and template available
• Programmable power-on behaviour, multimaster, DALI-2 certified
• Bus powered (4.5mA typ.); -PS versions add an integrated mains-connected 70mA DALI bus supply

Choose your version

3 or 5 touch keys × App Controller (direct DALI control) or Integration (instance mode for WAGO / Beckhoff / KNX gateways) × with or without 70mA bus power supply.

Technical specifications

Other layouts: L2 blinds, L3 Tunable White, L4 colour — same hardware, different key set.
