DALI-2 ROT Touch L4 – Colour & Scenes
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$270.72 USD
Regular price
-20%
$338.40 USD
Sale price
$270.72 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

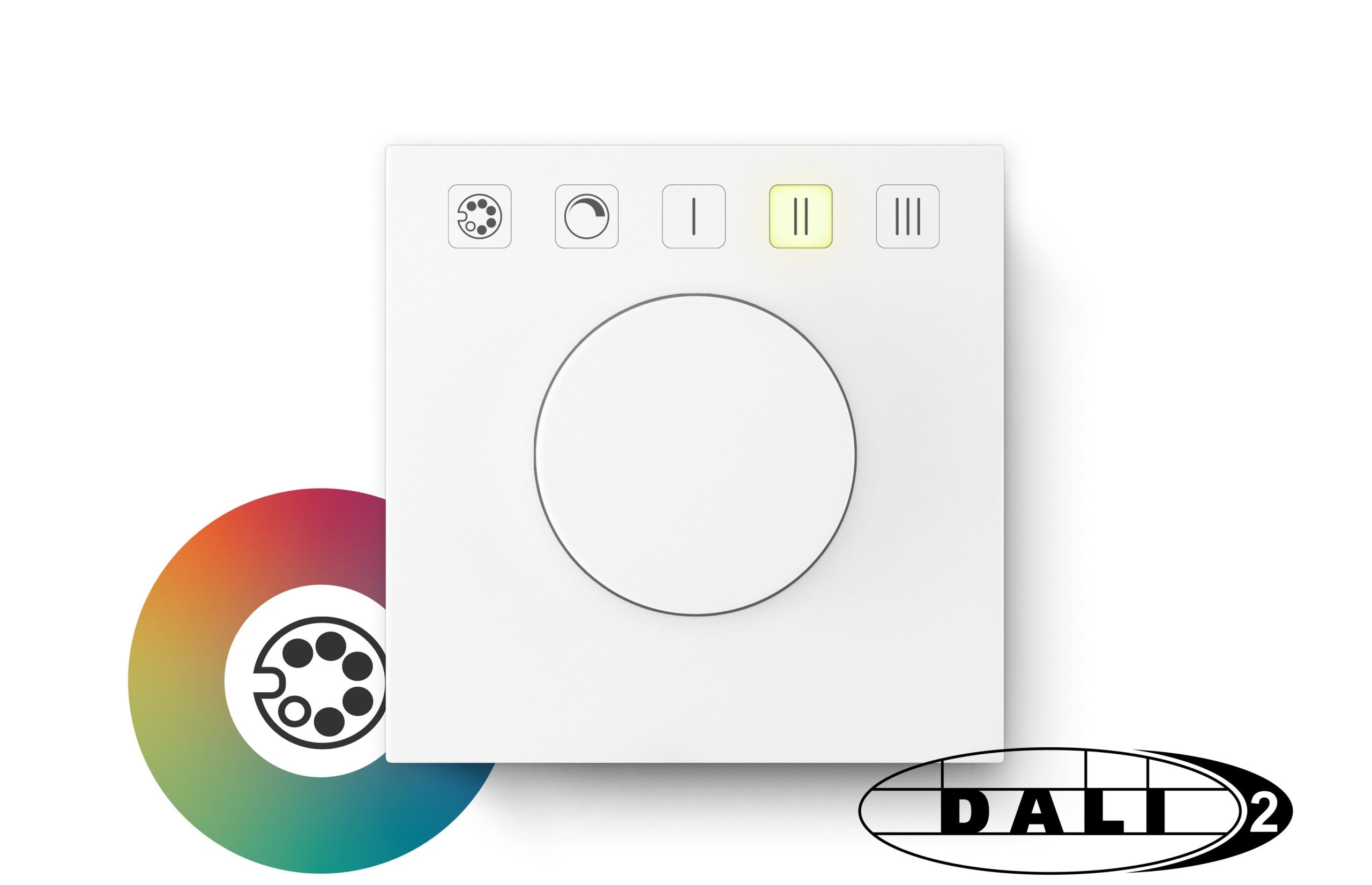

The Lunatone DALI-2 ROT Touch L4 brings full colour to the rotary format — layout L4: colour (RGB) and scenes. The backlit capacitive keys switch the knob between brightness and colour mode or recall scenes; in colour mode, turning the knob sweeps through the RGB spectrum of DT8 luminaires. Intuitive colour selection without a touchscreen.
Key features
- Rotary control of brightness and RGB(W) colour (DT8), mode-switched by 3 or 5 backlit capacitive keys
- Scene recall via individual DALI commands on the keys
- NFC smartphone adjustment via the Lunatone NFC app; full configuration in DALI Cockpit
- Custom key symbols possible via design template
- Programmable power-on behaviour, multimaster, DALI-2 certified
- Bus powered (4.5mA typ.); -PS versions add an integrated mains-connected 70mA DALI bus supply
Choose your version
3 or 5 touch keys × App Controller or Integration (instance mode for WAGO / Beckhoff / KNX gateways) × with or without 70mA bus power supply.
Technical specifications
| Supply | DALI bus, 4.5mA typ. (PS versions: mains + 70mA DALI PS) |
| Mounting | back box, ~17mm built-in height |
| Dimensions | 82.4 × 82.4 × 42 mm |
| Ambient temperature | -20°C to +60°C · IP20 |
For hospitality, retail and residential RGB installations that deserve better than a wall-mounted tablet. Other layouts: L1 groups & scenes, L2 blinds, L3 Tunable White.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
3 Touch Keys / App Controller / Standard
86459338-3T-APP-L4
|
|
||
|
3 Touch Keys / Integration / Standard
86459338-3T-INT-L4
|
|
||
|
3 Touch Keys / App Controller / PS 70mA
86459338-3T-APP-PS-L4
|
|
||
|
3 Touch Keys / Integration / PS 70mA
86459338-3T-INT-PS-L4
|
|
||
|
5 Touch Keys / App Controller / Standard
86459338-5T-APP-L4
|
|
||
|
5 Touch Keys / Integration / Standard
86459338-5T-INT-L4
|
|
||
|
5 Touch Keys / App Controller / PS 70mA
86459338-5T-APP-PS-L4
|
|
||
|
5 Touch Keys / Integration / PS 70mA
86459338-5T-INT-PS-L4
|
|
