DALI-2 MC4L POTI
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$197.28 USD
Regular price
-20%
$246.60 USD
Sale price
$197.28 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

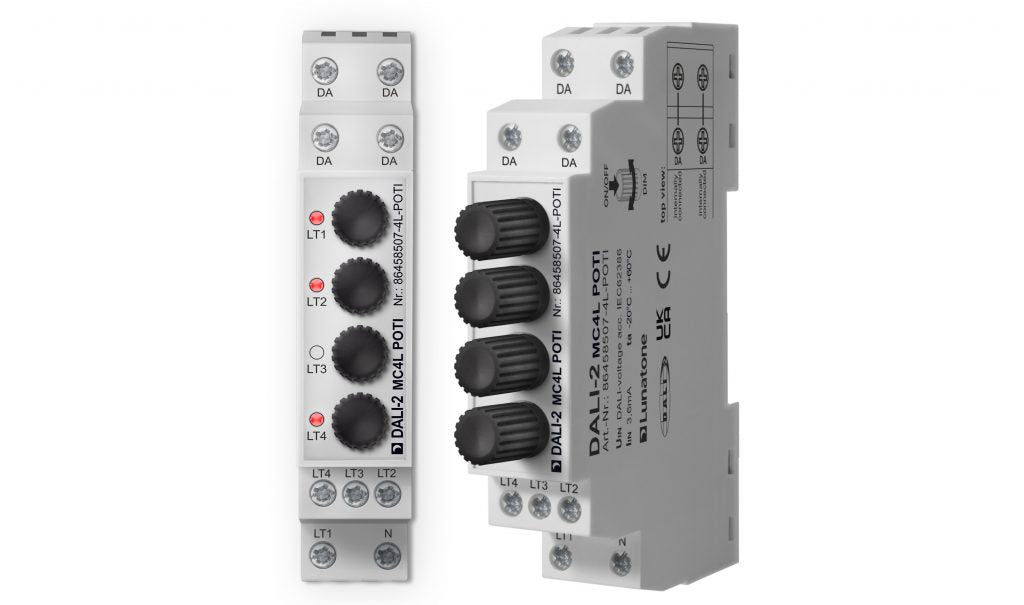

The Lunatone DALI-2 MC4L POTI is a DIN-rail push button coupler with a practical twist: alongside its 4 galvanically isolated mains-voltage inputs, it carries 4 front-panel potentiometers so the light level for each input can be adjusted on site — no laptop, no software, just a screwdriver. LEDs on the front indicate which inputs are active.
Key features
- 4 × 230V switching inputs, galvanically isolated from the DALI bus
- 4 potentiometers for direct on-site light-level adjustment per input
- Status LEDs for active inputs
- Per-input configuration of target address, button behaviour and DALI commands via DALI Cockpit
- Macros: colour temperature, dynamic scenes, sequences, custom command lists; DT8 TC and RGB(W) supported
- Application controller active from the factory; switchable to instance mode for BMS integration (WAGO, Beckhoff)
- Bus powered (3.6mA), DALI-2 certified, multimaster capable
Technical specifications
| Supply | DALI bus, 3.6mA |
| Inputs | 4 × switching inputs for mains voltage, cable max. 10m (50m interference-free) |
| Mounting | DIN rail |
| Dimensions | 98 × 18 × 68 mm |
| Connection | max. 2.5 mm² |
| Ambient temperature | -20°C to +60°C · IP20 |
A favourite for maintenance-friendly installations — corridors, warehouses, back-of-house areas — where the facility team should be able to trim light levels without touching the commissioning software.
