DALI-2 ROT

The Lunatone DALI-2 ROT brings the most intuitive control gesture there is — turn to dim, press to switch — to DALI lighting. It is a rotary knob base with integrated push function that mounts on a standard back box and is powered entirely from the DALI bus. Designed to accept the rotary covers and knobs of most major switch ranges (4mm axis, 6mm adapter available), it disappears into any switch series the project already uses.

Key features

• Rotary dimming plus push-button switching in one control
• Programmable power-on behaviour and DALI Cockpit configuration
• Also operates Tunable White (DT8 Tc) and RGB/RGBW luminaires depending on configuration
• Fits third-party rotary covers — Jung, RAL9016 white and black Lunatone covers available as accessories
• Multimaster capable, DALI-2 certified (standard and CH version)
• Bus powered, only 3.5mA consumption

Choose your version

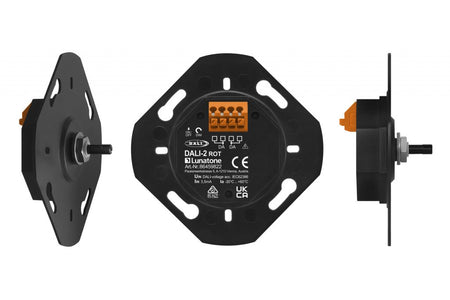

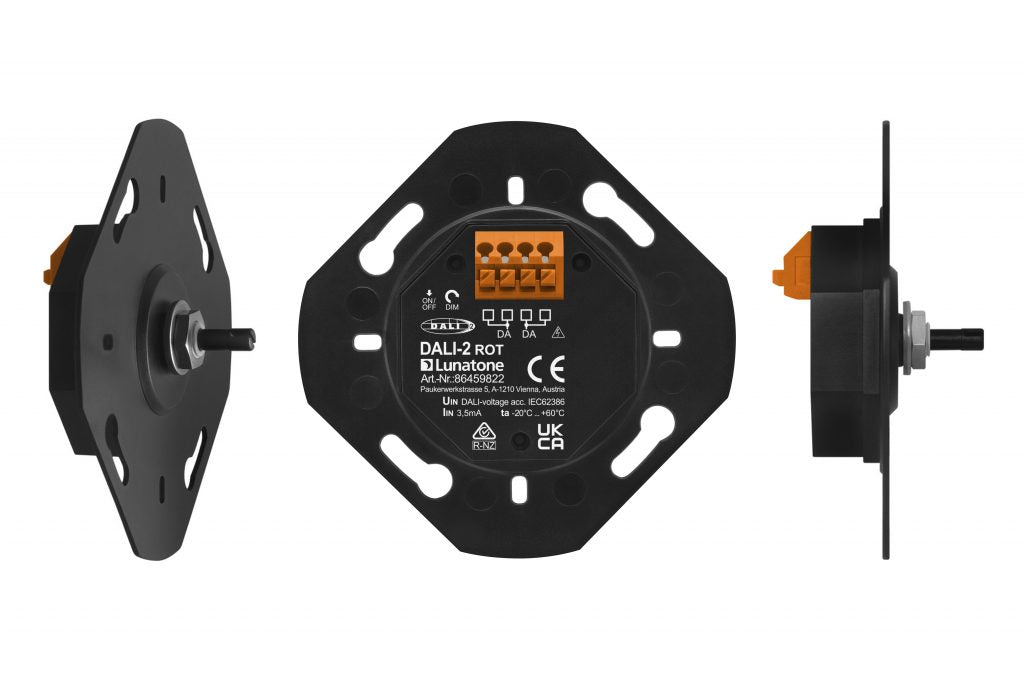

• Standard (86459822) — bus powered rotary base

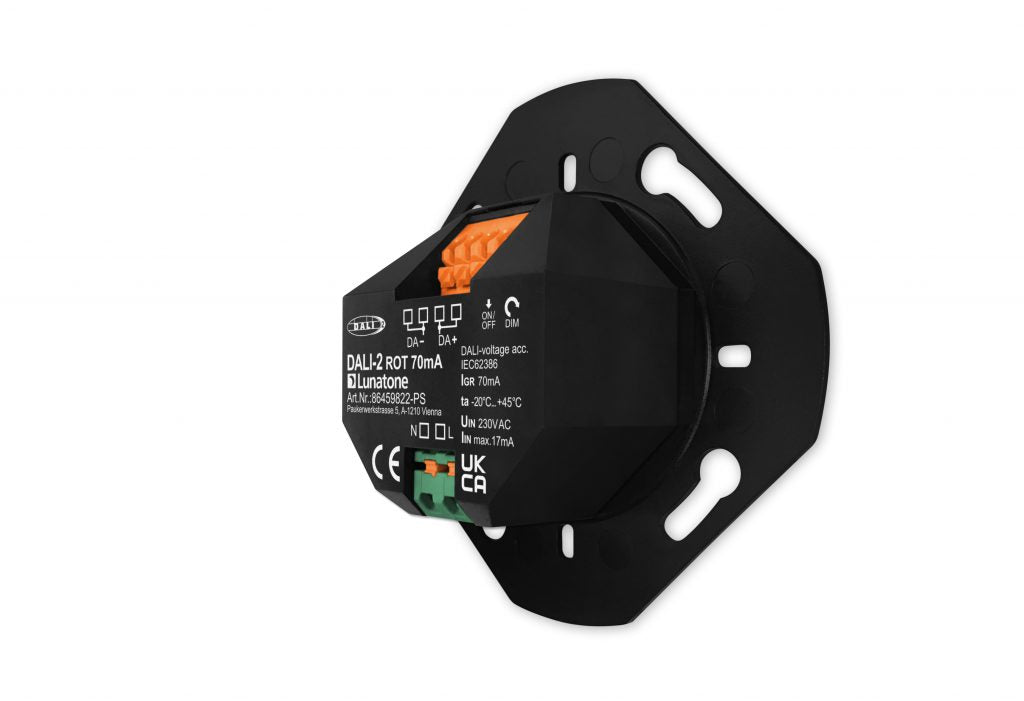

• PS 70mA (86459822-PS) — with integrated DALI bus power supply (mains connected): knob and bus supply in one point

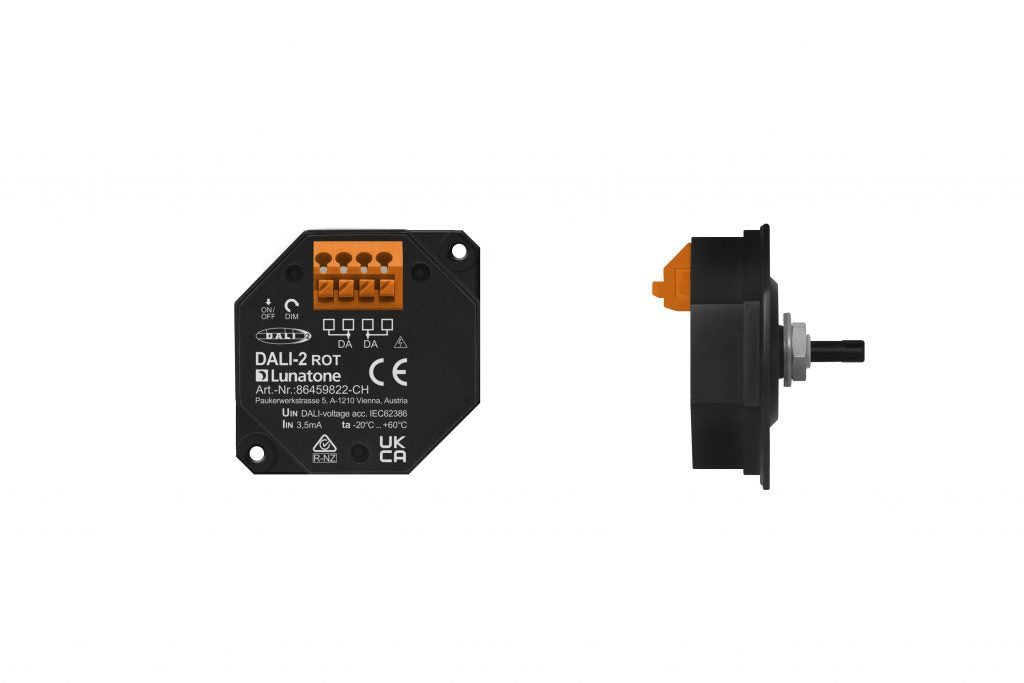

• CH (86459822-CH) — Swiss installation format

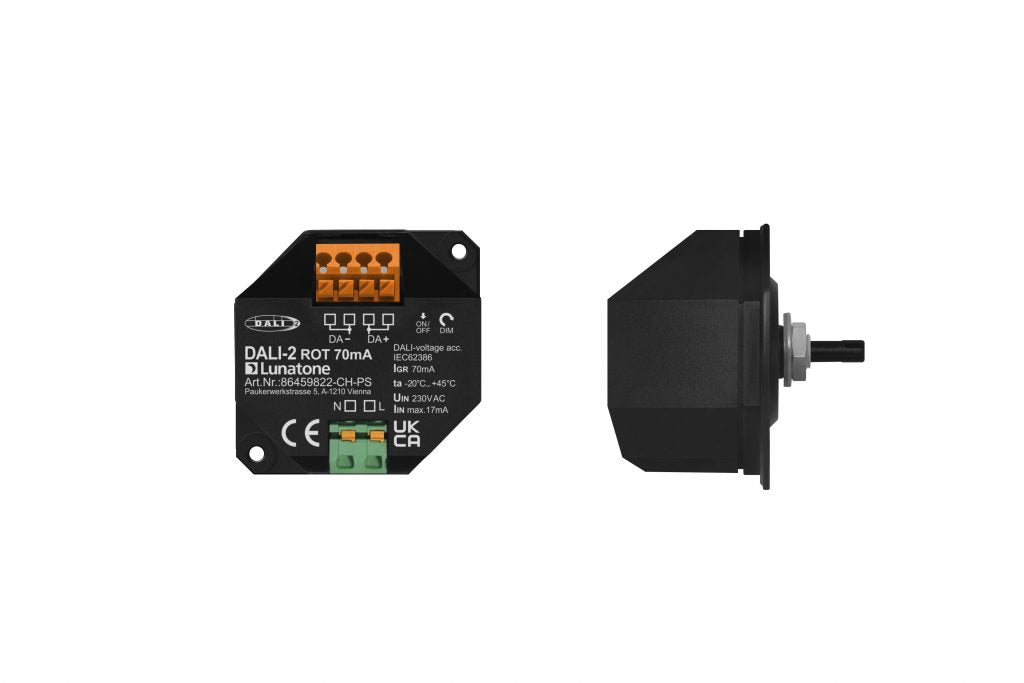

• CH PS 70mA (86459822-CH-PS) — Swiss format with 70mA bus supply

Technical specifications

The natural choice for hotel rooms, residences and offices where clients want tactile dimming without learning anything new.
