DALI-2 ROT NFC
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$116.64 USD
Regular price
-20%
$145.80 USD
Sale price
$116.64 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Lunatone DALI-2 ROT NFC is the smartphone-configurable version of Lunatone's rotary dimmer. Same intuitive control — turn to dim, press to switch — with an NFC interface that lets the integrator adjust addressing, behaviour and operating mode contactlessly from the Lunatone NFC app, even before the device is powered. DALI Cockpit configuration over the bus remains fully available.
Key features
- Rotary dimming with integrated push-button function
- NFC configuration via smartphone — pre-configure devices in the box, clone settings between units
- Operating modes for dimming, Tunable White (DT8 Tc) and RGB(W) colour control
- Fits rotary covers and knobs of most switch ranges (4mm axis, 6mm adapter); white and black Lunatone covers available
- Programmable power-on behaviour, multimaster capable, DALI-2 certified
- Bus powered, 3.5mA consumption
Choose your version

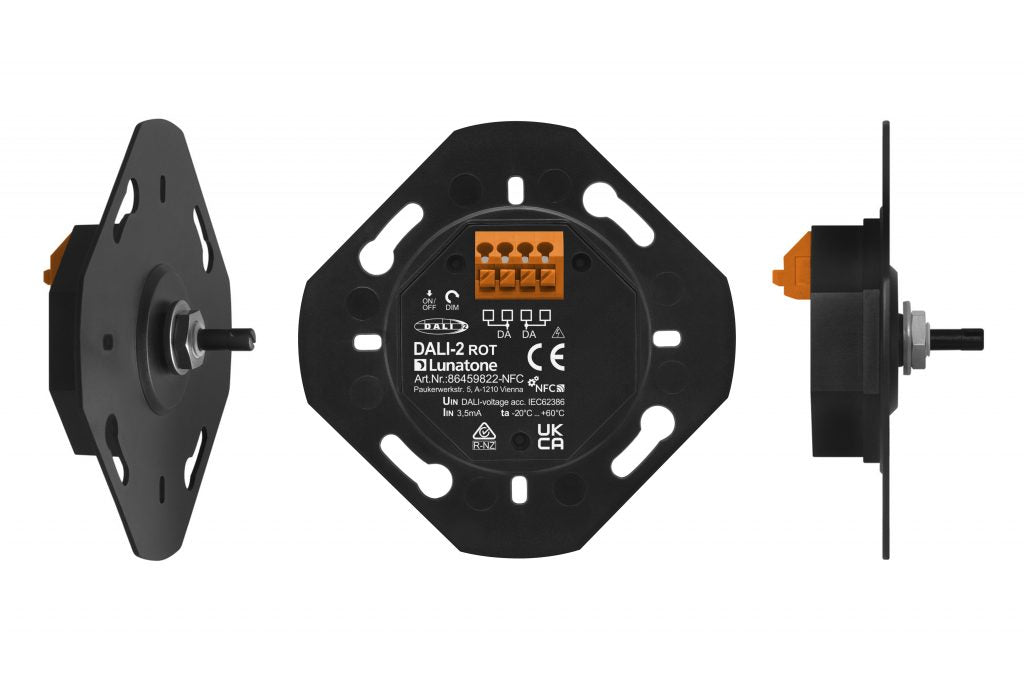

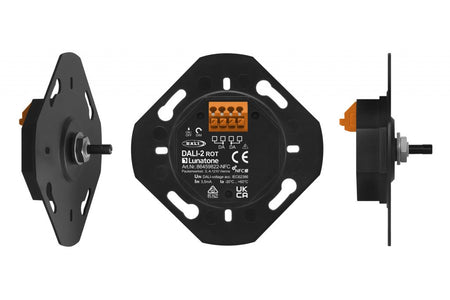

- Standard (86459822-NFC)

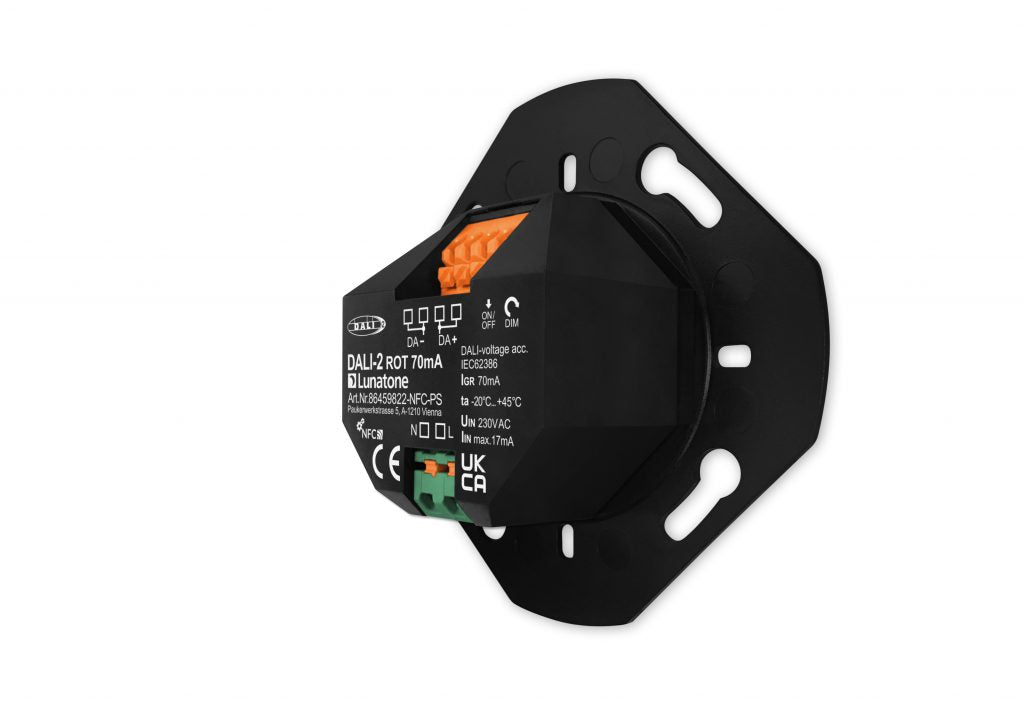

- PS 70mA (86459822-NFC-PS) — with integrated mains-connected DALI bus power supply

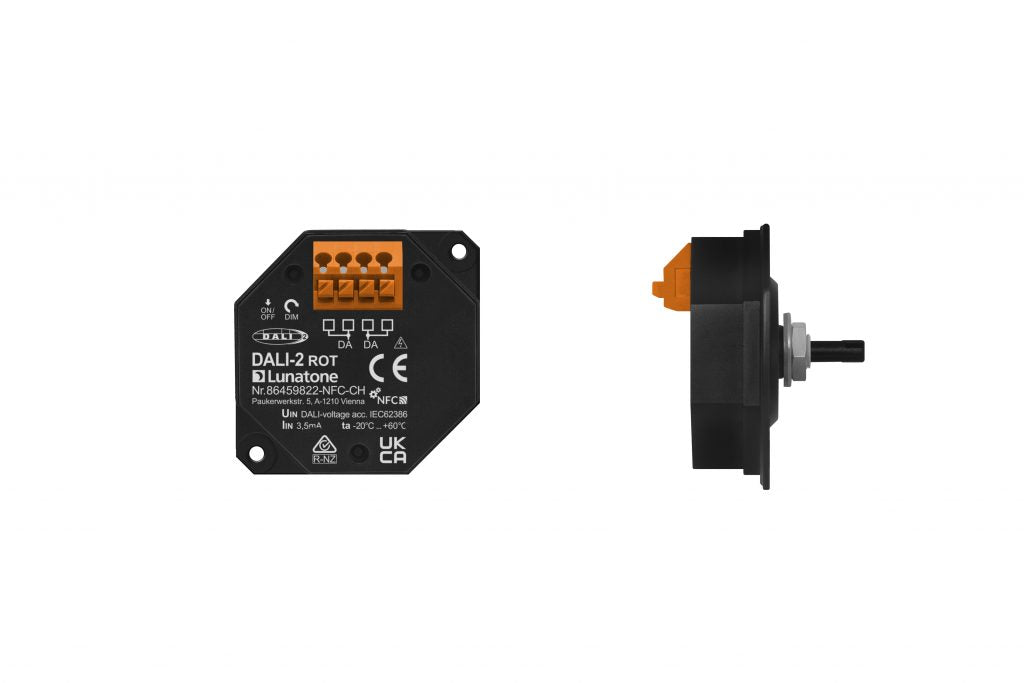

- CH (86459822-NFC-CH) — Swiss installation format

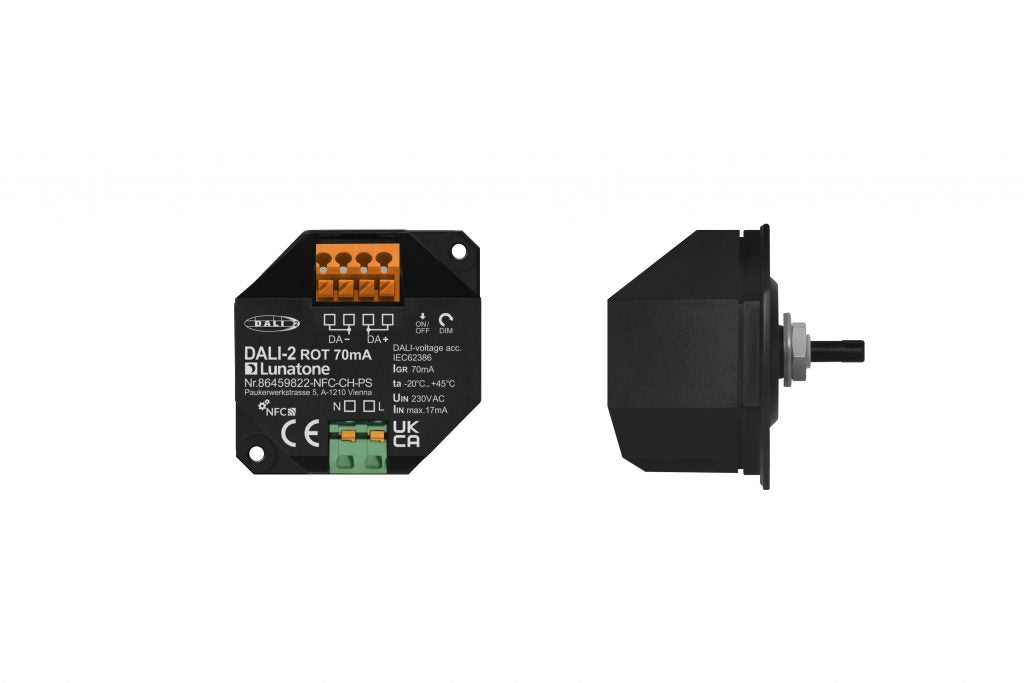

- CH PS 70mA (86459822-NFC-CH-PS)
Technical specifications
| Supply | DALI bus, 3.5mA (PS versions: mains + 70mA DALI PS) |
| Mounting | back box |
| Dimensions | 70 × 70 × 45 mm |
| Ambient temperature | -20°C to +60°C · IP20 |
For integrators who commission by app: batch-configure a hotel floor of rotary dimmers before a single one is wired.
