DALI-2 ROT Touch L3 – Tunable White & Scenes
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$270.72 USD
Regular price
-20%
$338.40 USD
Sale price
$270.72 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

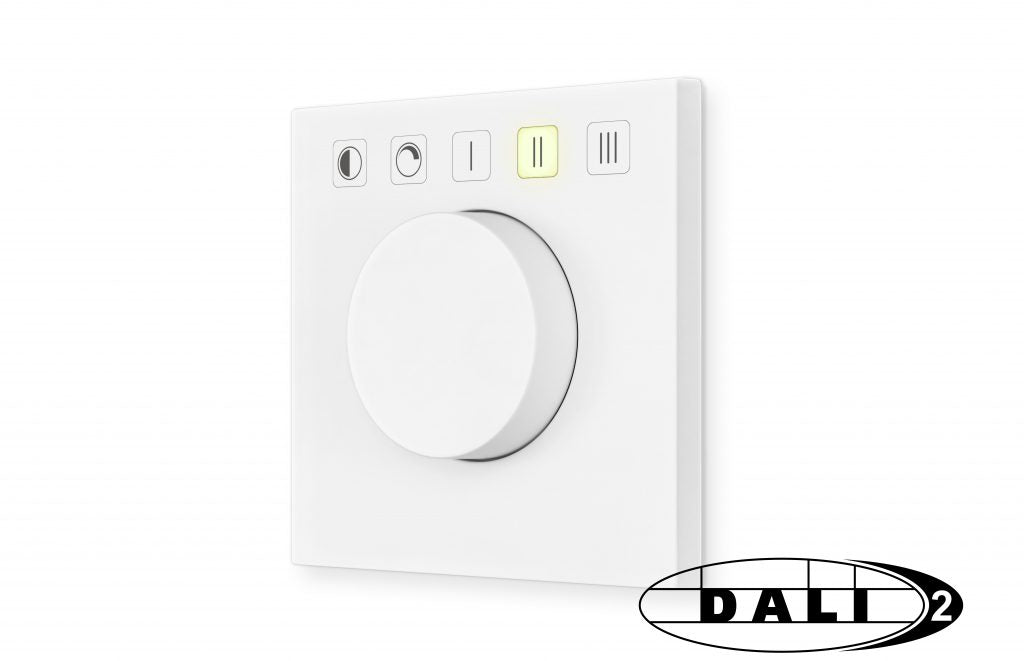

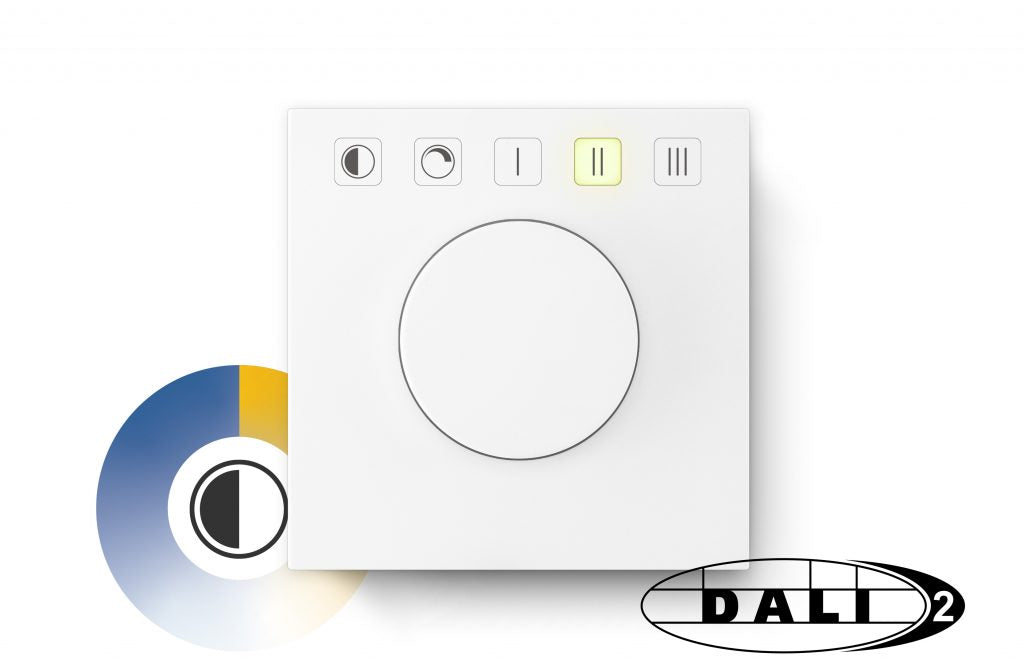

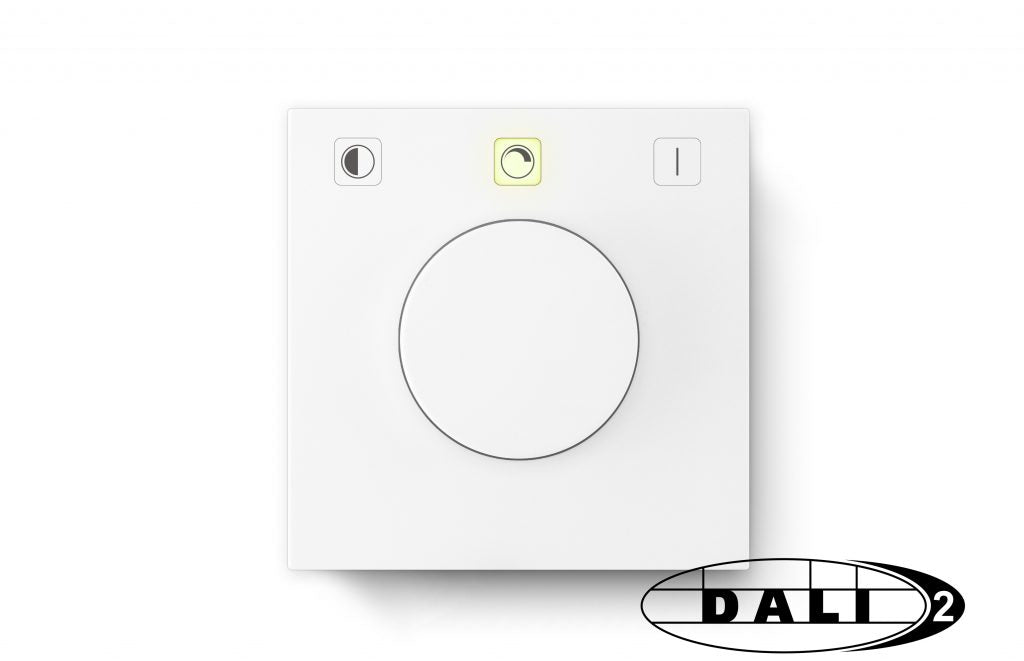

The Lunatone DALI-2 ROT Touch L3 is the Tunable White specialist — layout L3: Tunable White and scenes. The illuminated capacitive keys toggle the knob between brightness and colour temperature (CW–WW) modes or recall scenes, so one rotary control handles the full human-centric lighting workflow: warm up the evening, cool down the workday, all DT8 Tc via DALI.
Key features
- Rotary control of brightness and colour temperature (DT8 Tc), mode-switched by 3 or 5 backlit capacitive keys
- Scene recall via individual DALI commands on the keys
- NFC smartphone adjustment via the Lunatone NFC app; full configuration in DALI Cockpit
- Custom key symbols possible via design template
- Programmable power-on behaviour, multimaster, DALI-2 certified
- Bus powered (4.5mA typ.); -PS versions add an integrated mains-connected 70mA DALI bus supply
Choose your version
3 or 5 touch keys × App Controller or Integration (instance mode for WAGO / Beckhoff / KNX gateways) × with or without 70mA bus power supply.
Technical specifications
| Supply | DALI bus, 4.5mA typ. (PS versions: mains + 70mA DALI PS) |
| Mounting | back box, ~17mm built-in height |
| Dimensions | 82.4 × 82.4 × 42 mm |
| Ambient temperature | -20°C to +60°C · IP20 |
The natural wall control for tunable-white offices, healthcare and residential HCL projects. Other layouts: L1 groups & scenes, L2 blinds, L4 colour.
