Sunricher

High-performance DALI-2 DT8 4-channel constant-voltage dimmer with built-in DALI master and OLED display.

Supports:

• 12–36 V DC input

• 4 × 5 A outputs (240-720 W)

• DT8 colour types (Tc, XY, RGBWA)

• Manual config via OLED screen

Compact DALI-2 and Push dimmer for constant-voltage LED systems.

Supports:

•⁠ 12–24 V DC input

•⁠ 10 A single-channel output

•⁠ DALI-2 digital interface

•⁠ AC push-switch control for easy operation

Multifunction constant-voltage LED dimmer with four input interfaces (DALI, Push, Phase-Cut, 0/1-10 V).

Supports:

• 12-48 V DC input

• Single channel up to 20 A

• Interface selection via DIP switch

• CE & UL approved

Compact DALI and Push AC phase-cut dimmer for dimmable LED or incandescent loads.

Supports:

•⁠ Trailing-edge control

•⁠ 100–240 VAC input

•⁠ 400 W output

•⁠ Manual or DALI operation for flexible lighting control

DALI-2 DT8 dual-color LED dimmer (CCT) for 12-24 V DC systems.

Supports:

• Two channels (max 5 A each)

• Warm & cool white control via single DALI address

• Built-in DALI-2 interface

• 145 × 46.5 × 16 mm compact design

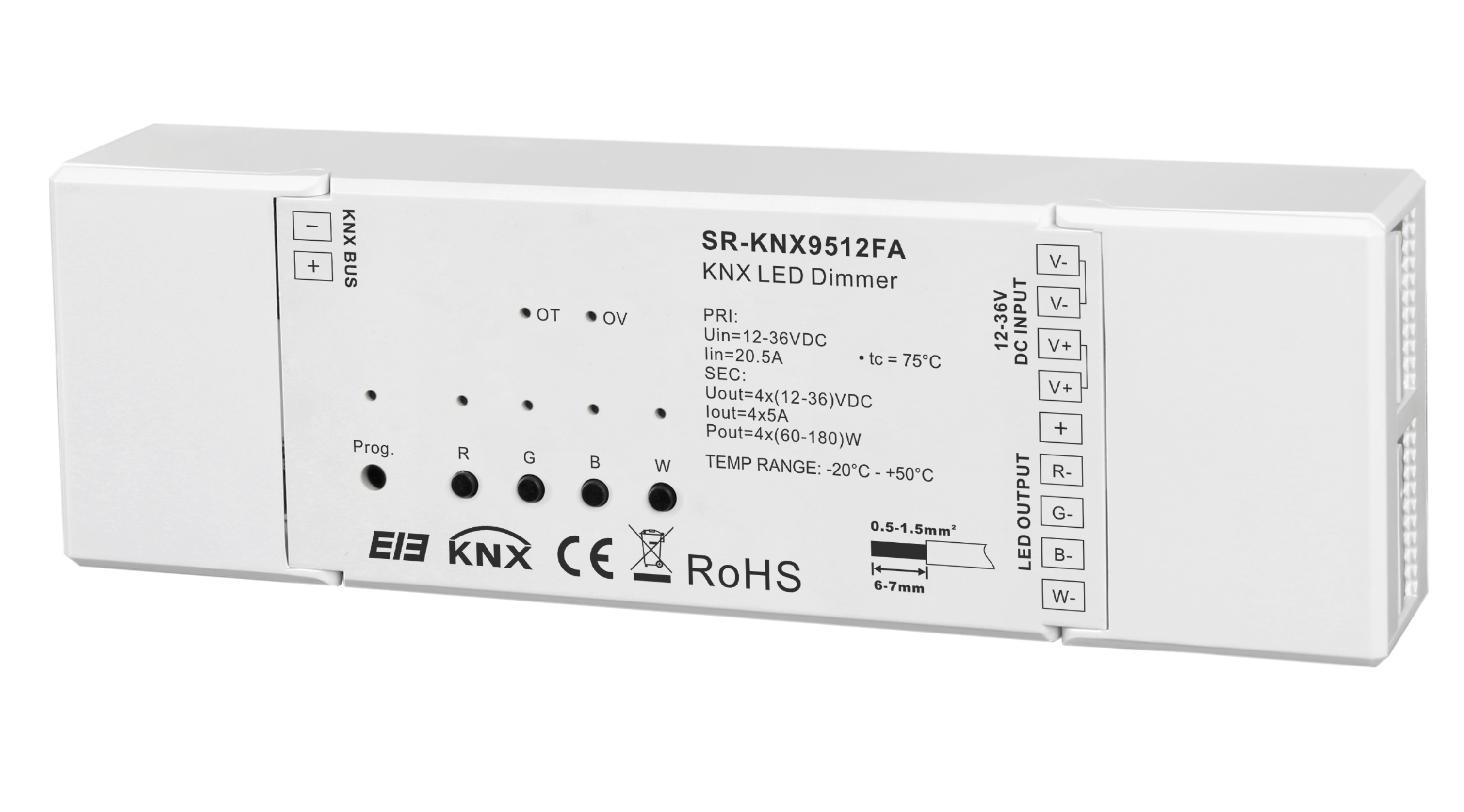

The dimmer with LED constant voltage drive can drive LED directly, has four channels, each channel is independent.

The output can connect with some big power dimmable LED lights. These LEDs can be switched, dimmed, recall scene or other operations via the bus.

The devices adopt PUSH terminals to achieve electrical connection; the connection to the EIB/KNX bus is established via a bus connecting terminal. The input need connect a 12V-36V DC operation voltage.

5-channel, constant-voltage DALI-2 DT8 LED controller designed for versatile LED strip systems.

Supports:

• Built-in DALI-2 interface

• 12–36 V DC input

• 5 × 5 A outputs (240–720 W total)

• Multi-device modes: Tc, RGBWAF, XY, RGB+Tc

Professional 4-channel DALI-2 DT8 LED controller for constant voltage systems.

Supports:

• Built-in DALI-2 interface

• 12–48 V DC input

• 4 × 5 A outputs (4×60–180 W @12-36 V)

• Configurable modes: Tc, RGBW, XY, multi-address

Four-channel constant-voltage DALI dimmer for LED systems.

Supports:

• Built-in DALI-2 interface

• 12–36 V DC input

• Up to 5 A per channel (4 channels)

• Smooth 0.1–100% dimming

Universal 4-channel DALI-2 dimmer for 12-36 V DC loads.

Supports:

• 4 channels (5 A each)

• Manual/automatic DALI addressing (1–4 addresses)

• Push-dimmer or DALI interface

• Compact design (166 × 53.4 × 23 mm)

4-channel constant-voltage DALI-2 dimmer for LED loads.

Supports:

• Built-in DALI-2 (DT6) interface

• 12–36 V DC input

• 4 × 8 A channels

• Smooth 0.1–100% dimming

DIN-rail mounted 4-channel constant-voltage DALI dimmer for LED systems.

Supports:

• Built-in DALI-2 protocol support

• Compatible with 12–36 V DC input

• 4 × 5 A channels (240-720 W output)

• Push-switch & DALI-controlled hybrid operation

Waterproof 4-channel constant-voltage DALI dimmer for professional LED systems.

Supports:

• Built-in DALI-2 interface

• IP67-rated enclosure

• 12–36 V DC input

• 4 × 5 A outputs (240–720 W total)

• Smooth 0.1–100 % dimming
