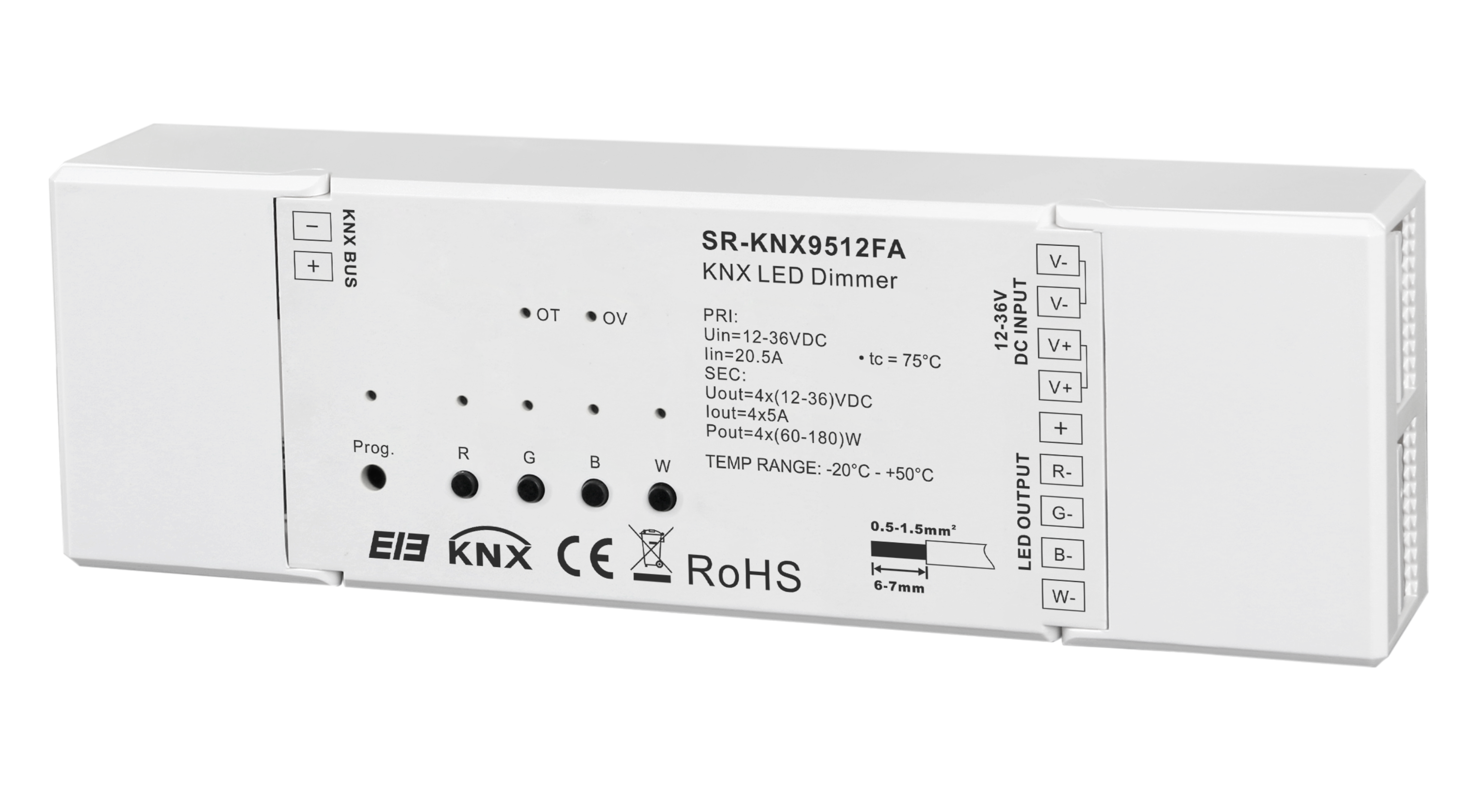

KNX LED Controller, 4CH, 5A
?
US Listing status unknown
US certification status for this product has not been verified yet.
Contact us if you need this information before specifying.
Regular price
$280.00 USD
Regular price
-20%
$350.00 USD
Sale price
$280.00 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
Technical Characteristics
Technical Data
| Power supply | |
|---|---|
| Bus Operating voltage | 21–30V DC, via the KNX/EIB bus |
| Input voltage | 12–36V DC |
| Output | |
| 4 channels | Yes |
| Rated current | 5A × 4CH |
| Load voltage | 12–36V DC (constant voltage) |
| Safety | Short-circuit, over voltage and over temperature protection |
| Connections | |
| EIB/KNX | EIB bus connection terminal |
| Inputs/outputs | Using screwless connection terminal |
Operation and Display
| Button and red LED | For assigning the physical address |
| Green LED flashing | Indicates the application layer running normally |
| LEDs for Output | Indicate output status per channel: LED on = output active, LED off = no output |
| Manual buttons | Short press = switch, long press = relative dimming |
| OT. LED | Indicates over-temperature, >70°C |
| OV. LED | Indicates over-voltage, >40V DC |
Protection and Environment
| Type of protection | IP20, EN 60 529 |
| Operating temperature | -5°C...+45°C |
| Storage temperature | -25°C...+55°C |
| Transport temperature | -25°C...+70°C |
| Humidity | <93%, except dewing |
