Gateways

Total up to 32 KNX channels and 32 CASAMBI scenes can be registered in the gateway, which to implement:

• Unidirectional KNX -> CASAMBI, up to 16
• Unidirectional CASAMBI -> KNX, up to 16
• Bidirectional CASAMBI <-> KNX, up to 16
• It also can control scene on/off and dimming in KNX -> CASAMBI direction.

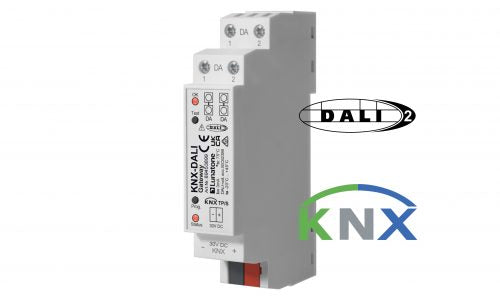

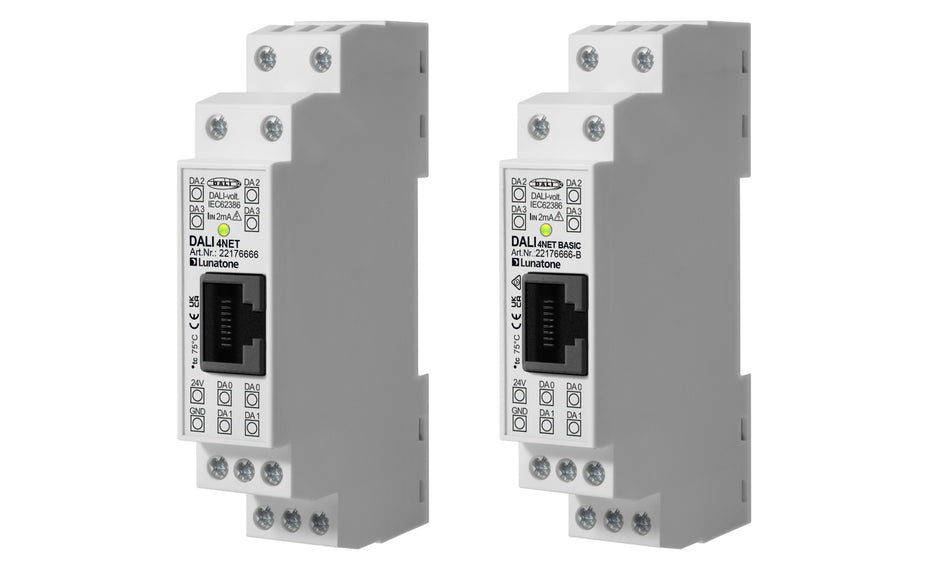

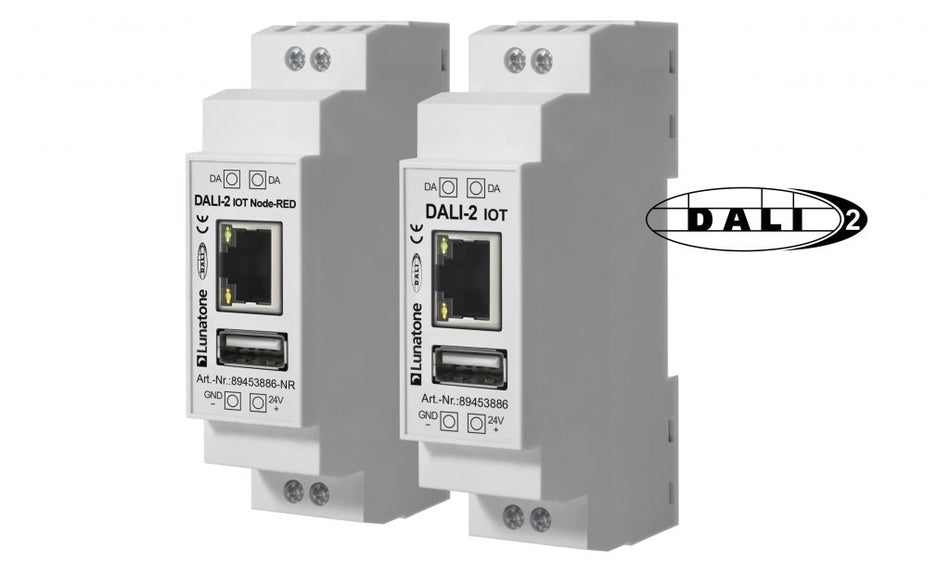

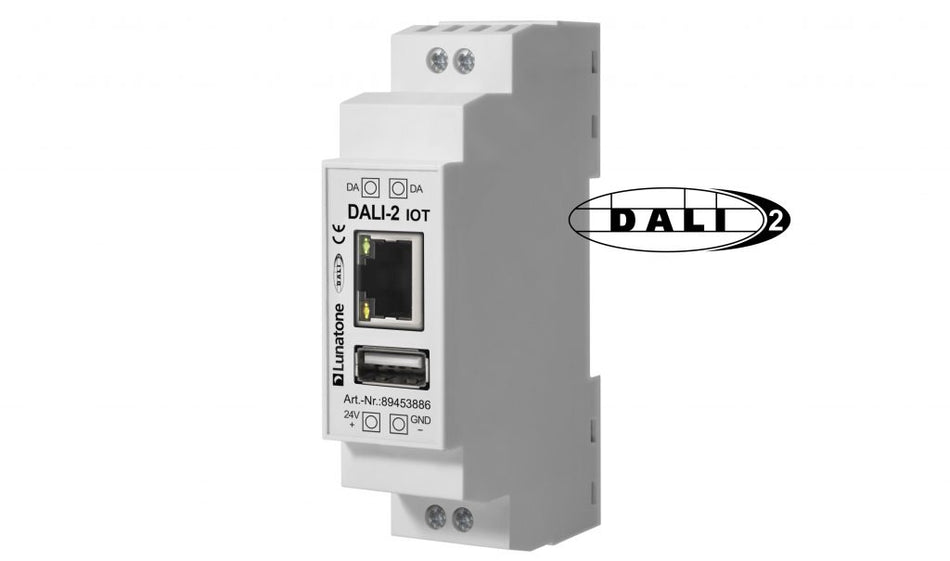

• The KNX/DALI Gateway communicates with up to 64
• DALI actuators per channel. These can be connected and dimmed in up to 16 groups per channel.
• The gateway also supports selected sensors with DALI interface.
• It also records and transfers DALI status and error messages.
• An individual name, a group, parameter and scenes are assigned to individual DALI ECG´s during commissioning with the ETS (Engineering Tool Software).
• DALI sensors and their functionality are also assigned in the ETS.
• All DALI subscribers and functions are independent and can be linked via group addresses.
• The device can only be operated in DALI segments with connected ECGs and sensors and not with further DALI controllers within the segment (no multi-master mode).
• The power needed for ECGs and sensors is supplied directly through the gateway. An additional DALI power supply is not required, neither is it permitted.

KNX Modbus Gateway with 250 data points.

Application area

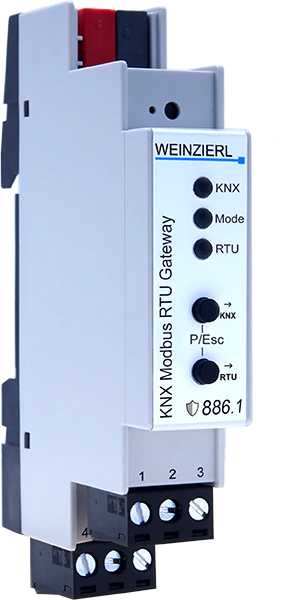

The KNX Modbus RTU Gateway 886 is a compact Gateway between KNX TP and Modbus RTU with 250

freely configurable channels.

The device enables easy integration of Modbus devices that support the RTU protocol via RS-485 and can act as a Modbus master or slave.

As Master the device can address up to 25 slave devices.

The assignment between KNX objects and Modbus registers can be configured via parameters in the ETS

without an additional tool.

The gateway provides a galvanic isolation between KNX bus and Modbus.

Two buttons and three LEDs allow local operation and visualization of the device status.

Gateway between KNX DMX512.

Application area

The KNX DMX Gateway 544 is a compact gateway between KNX and DMX512 (protocol for lighting control) with up to 64 freely configurable channels.

In master mode, the device allows convenient control of DMX luminaires, for example with KNX push-buttons.

Up to 64 dimming channels or up to 8 RGB/RGBW channels are available.

Several subsets of DMX512 addresses can be assigned to each channel.

The dimming channels enable dimming of one or more DMX devices via KNX.

In addition, 4 sequencers are available in the gateway to carry out more complex tasks.

In slave mode KNX actuators can be controlled by DMX.

For example, the room lighting, which is part of the KNX installation, can be controlled via a DMX lighting control panel.

Allorado is the next-generation LoRa gateway that allows users to easily complement their existing building installations with data from LoRa sensors by carefully decoding bits and bytes sent from the LoRa network to telegrams that other installations - KNX, BACnet, Modbus and more - can understand.

Add-ons:

• Additional forwarder license
• 20 additional devices
• 100 additional devices
• Additional protocol
• Basic antenna
• Power Supply

Information

Building automation and security technology combined flawlessly:

The world's first KNX connection (plug-in) for networking products from the Axis Communications company.

Note:

The plug-in can only be used on network devices from Axis Communications with ACAP support.

Features:

• Support of Axis network cameras

• Support of Axis WLAN cameras *

• Support of Axis D2050 -VE Network Radar Detector

• Support of Axis door stations

• Support of Axis network loudspeakers

• 30 group objects for sending from KNX to the Axis camera (1 bit)

• 30 group objects for sending from the Axis camera to KNX (variable bit length)

• Control of actions on the camera

Information

Integrate the innovative single-room control Fonterra Smart Control by viega via the gateway SMART CONNECT KNX viega into the KNX system.

Features:

• Support of 5 base stations each with up to 8 room temperature controllers and 12 outlets

• Room temperature control

• Switching between heating and cooling mode

• Power level control

• Absence control

• System information such as error messages, actual temperature or updates from viega

• Simple integration in KNX (can be completely configured via ETS)

• Extensions via firmware updates

If you wish to use the SMART CONNECT KNX viega, you must use Fonterra Smart Control for Fonterra surface temperature

regulating systems in Version 3 or higher with firmware version 2.8-4.43 or higher, supplied by Viega GmbH & Co. KG.

Information

Features:

• Separate control of up to four televisions

• Television on/off

• "Wake up" the TV device via Wake on LAN and then switch it on

• Volume control (switch sound on/off, increase or lower the volume or set the volume to the transferred value)

• Program control (change to the next or the previous program channel or change to a particular program channel)

• Transfer camera images, e.g. from an external camera

• Bookmark up to ten links

• Showing notices on the TV device: Use up to ten self-defined texts or dynamically display texts from other devices on the TV device, e.g. "Movement detected in garden" from an outside camera, display message as text

• Source selection (Flexibility of choice between the sources of the TV device, e.g. switch conveniently between HDMI input and receivers)

Information

From electricity meter to heating. With the SMART CONNECT KNX Programmable, third-party devices can be connected to the KNX bus in a simple and reliable way.

This enables individualised connection logic to be developed in just a few days.

The barrier to the world of building automation has never been this low.

Features:

• Programming of the application in C# or VB.Net

• Up to 64 KNX communication objects (variable bit length)

• Version 1-0004-005: 1x IP and 1x USB connection

• Version 1-0005-006: 2x IP connection

• Ready-certified KNX device (can be completely configured via ETS) *

• Extensions via firmware updates

The KNX certification for the SMART CONNECT KNX Programmable is limited to the interworking ability with KNX products from other manufacturers.

With the ise smart connect KNX Remote Access, KNX can be conveniently and safely accessed from anywhere around the world.

Whether via computer, tablet, or smart phone – you get safe communication completely without configuration! And installation is child’s play.

Simply connect ise smart connect KNX Remote Access to the KNX and you are done! Access is only possible via smart phone, tablet, or laptop.

Just start the ETS Secure Access Client that accesses the installation’s KNX IP interfaces.

Or the web browser, that let’s you access the local HTML pages. And further configuration? Unnecessary! That’s it.

Features:

• Secure data transmission of HTML and ETS communication, encrypted from the first packet
• Optimized KNX / IP communication also via mobile data connections usable
• Integrated IP interface with up to 3 tunnel connections (ETS bus- or group monitoring)
• Also maintain non-KNX systems remotely thanks to the integrated VPN
• Datalogger and timer functionality
• Configuration-free when using DHCP
• Access management with users and groups
• Supporting web based visualization applications
• Access to cameras and other web sites in the LAN
• For the latest version of ETS4 or ETS5

Information

Up to two Loewe televisions can be integrated via the gateway SMART CONNECT KNX Loewe into the KNX and adapted completely to meet your own requirements.

Features:

• Separate control of up to two televisions

• Television on/off

• Sound on/off

• Volume control

• Programme control

• PIP on/off

• Source selection

• Child protection on/off or age-dependently

• OSD text with pre-defined text (ETS) or from KNX (14 bytes)

• Simple integration into KNX (can be completely configured via ETS)

Information

Operate the Philips Hue lighting system via KNX. Colour value, temperature and brightness can be defined for every light, making each completely customisable.

Features:

• Separate control of up to 25 Philips Hue lights

• Support of up to five Philips Hue Bridges per device

• Switching and dimming

• Individual control of RGB colour values

• Individual control of the colour temperature

• Configuration of switch-on brightness per lamp via ETS or device website

• Configuration of dimming behaviour per lamp via ETS or device website

• Calling up Philips Hue scenes

• Signal flashing of Philips Hue scenes (specific duration, return to original state)

• Alert flash per lamp

• Colour gradient function per lamp

• Connection status of Bridge or lamps on KNX

• ETS product database entry with channel structure

• Simple integration into KNX

• Extensions via firmware updates

Philips and Hue are registered trade marks of Koninklijke Philips Electronics NV.

Information

Via the SMART CONNECT KNX e-charge II, up to five compatible charging points can be integrated into

the KNX system.

You can find a list of compatible models on our product page.

Features:

• Integration of five charging points per device (completely configurable in ETS)

• Prioritisation of one charging point

• Dynamic load management (DLM)

• Static load management (SLM)

• Mixed operation with various manufacturers

• Support for external electricity meters (ISKRA, PHOENIX CONTACT, generic) at charging points which are not equipped with an integrated electricity meter.

• Grid-supporting control

• Integrated RS485 adapter

• Charging status values: Charging point status (status), Connected (status), Charging (status), Charging complete (status), Interrupt (set/status), Start/Stop (set/status), Unlock (set)

• Charging current status values: Target (status/set), Actual L1 - L3, Actual (status)

• Power status values: Actual L1 - L3, Actual (status)

• Energy status values: Actual L1 - L3, Actual (status)

• Energy consumption status values: Last charge (status), Total (status)

• Fault status values: Fault, Last fault

• Status values: Communication ID (EVCCID) (status), Charging point internal temperature (status), Temperature warning, RFID tag (status), Serial number, Charging point firmware version

• KNX Secure

• Expandable via firmware updates

Perfect integration of Axis network devices into application scenarios.

Stronger combination of both systems. Motion detector (KNX) starts the action or Cross Line Detection (camera) switches on the light.

Private sphere (masking) can be controlled via KNX, for instance, through presence and absence Camera responds directly to KNX/IP after successful installation.

Third-party applications on the camera can also communicate with KNX.

In addition to network cameras, all Axis network devices with ACAP are also supported

Perfect integration of Axis network devices into application scenarios.

Stronger combination of both systems. Motion detector (KNX) starts the action or Cross Line Detection (camera) switches on the light.

Private sphere (masking) can be controlled via KNX, for instance, through presence and absence Camera responds directly to KNX/IP after successful installation.

Third-party applications on the camera can also communicate with KNX.

In addition to network cameras, all Axis network devices with ACAP are also supported

Perfect integration of Axis network devices into application scenarios.

Stronger combination of both systems. Motion detector (KNX) starts the action or Cross Line Detection (camera) switches on the light.

Private sphere (masking) can be controlled via KNX, for instance, through presence and absence Camera responds directly to KNX/IP after successful installation.

Third-party applications on the camera can also communicate with KNX.

In addition to network cameras, all Axis network devices with ACAP are also supported.

Information

Access to a Vaillant geoTHERM/3 heat pump as well as to three Vaillant VR60 mixer modules and up to six Vaillant VR90

remote control devices via the SMART CONNECT Mod bus Vaillant as a Mod bus TCP/IP gateway.

The established Mod bus TCP/IP standard (e. g. Schneider SmartStruxure, Fidelix) enables the convenient integration of Vaillant heat pumps into the building technology.

Features:

• Control of operating mode and temperature set point values for the heating circuits

• Control of operating mode for the heat pump

• Control of operation mode for up to three mixer modules

• Control of operation mode and temperature set point value for hot water supply

• Control of the operation mode of an auxiliary heater

• Access to status information such as temperature and pressure sensor values for integration into the building technology

• Easy configuration of system dimensioning using the device web page

• Extensions via firmware updates

Compatible with Vaillant geoTHERM/3 V WS220/3 - 460/3 heat pumps.

Information

From electricity meter to heating.

With the SMART CONNECT KNX Programmable, third-party devices can be connected to the KNX bus in a simple and reliable way.

This enables individualised connection logic to be developed in just a few days.

The barrier to the world of building automation has never been this low.

Features:

• Programming of the application in C# or VB.Net

• Up to 64 KNX communication objects (variable bit length)

• Version 1-0004-005: 1x IP and 1x USB connection

• Version 1-0005-006: 2x IP connection

• Ready-certified KNX device (can be completely configured via ETS) *

• Extensions via firmware updates

* The KNX certification for the SMART CONNECT KNX Programmable is limited to the interworking ability with KNX products from other manufacturers.

Information

Intelligent heating control via KNX: Together with the MiPro Sense system control, the SMART CONNECT KNX Saunier Duval offers eBUS and KNX integration.

Features:

• Control of operation mode and temperature set point values for up to three heating zones

• Control of operation mode and temperature set point value for hot water supply

• System information like service mode, error messages, date and time, outside temperature and system status

• Heating circuit status values: Pump status, flow set point temperature, flow temperature, minimum flow set point temperature for cooling mode, heating curve for each heating circuit

• Hot water status values: Circulation pump status, charging pump/3-way valve status, hot water temperature

• Display of temperature and error status for up to eight heat generators

• Yield values of solar systems and heat pumps

• Consumption values for hot water supply and heating (electricity and gas)

Information

From electricity meter to heating. With the SMART CONNECT KNX Programmable, third-party devices can be connected to the KNX bus in a simple and reliable way.

This enables individualised connection logic to be developed in just a few days.

The barrier to the world of building automation has never been this low.

Features:

• Programming of the application in C# or VB.Net

• Up to 64 KNX communication objects (variable bit length)

• Version 1-0004-005: 1x IP and 1x USB connection

• Version 1-0005-006: 2x IP connection

• Ready-certified KNX device (can be completely configured via ETS) *

• Extensions via firmware updates

The KNX certification for the SMART CONNECT KNX Programmable is limited to the interworking ability with KNX products from other manufacturers.
