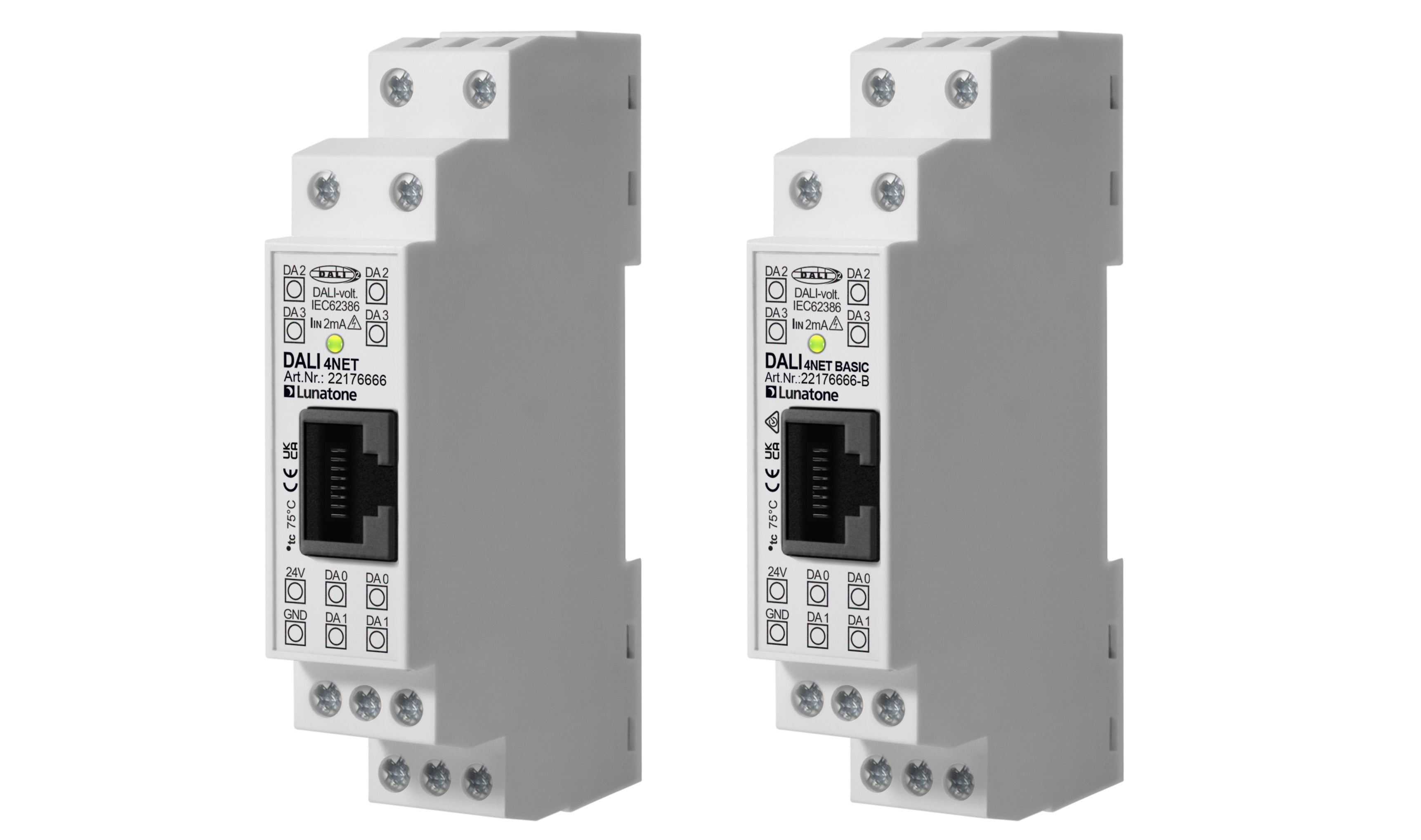

DALI 4Net

DALI interface and controller for 4 DALI lines with Ethernet for Cockpit SW and Modbus access, Real Time Clock_x000B_Central Scheduling Crossline functions, Circadian daylight schedule, Emergency function

• Supply voltage 24VDC (typ. current consumption 90mA)

• 4 DALI-outputs (DA0 … DA3) for connecting 4 DALI circuits

• For the supply of the DALI-lines proper DALI power supplies (e.g. DALI PS) are required
  Network Settings, Date & Time
• After Starting the Cockpit, the interface can be selected via the bus server menu (Menu: “DALI-Bus” -> “Bus Interface…”).

• Select Ethernet -> Lunatone TCP and enter IP of the device.

• Alternatively, the network can be scanned for devices (search-function).

• The DALI4Net is delivered with the following default network settings
