KNX IP BAOS 774.1 secure
KNX IP BAOS 774.1 secure

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

WEINZIERL

KNX IP BAOS 774.1 secure

SKU: 774.1
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$412.90 USD
-11% $462.90 USD $412.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

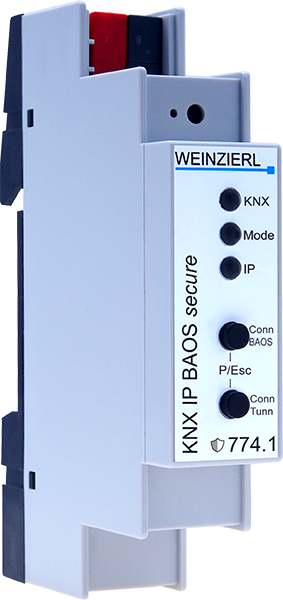

The KNX IP BAOS 774.1 secure is a KNX IP interface to the KNX bus, both at telegram level (KNXnet/IP tunnelling) and at data point level (KNX application layer) with 1000 data points. Clients can access group objects directly via TCP/IP using a binary protocol. The device supports KNX Security and BAOS Security with BAOS Binary Protocol V2. KNXnet/IP tunnelling with 8 tunnel connections and 10 BAOS connections. Status displays via 3 LEDs. Power supply via KNX bus. Connections: KNX, LAN RJ-45. For DIN rail, width 1 unit (18 mm). Art. no. 5475.
