KNX 4 DALI Gateway
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$119.52 USD
Regular price
-20%
$149.40 USD
Sale price
$119.52 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

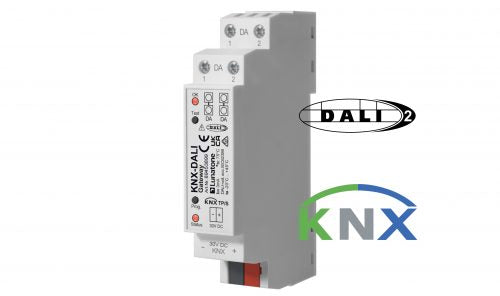

The Lunatone KNX 4 DALI Gateway is the compact KNX-to-DALI bridge for small projects: broadcast control of 4 DALI lines, each with up to 4 DALI operating devices (expandable with a DALI Expander), and the gateway powers all 4 DALI lines itself. Configuration via the supplied ETS5 product database — colour temperature (DT8 CW-WW), colour (RGB/RGBW) and standard device types (DT0, DT2, DT3, DT4, DT6) supported, plus DALI scene recall from KNX scene objects. DALI-2 and KNX certified.
Key features
- 4 DALI broadcast lines, powered by the gateway — no separate bus PSUs
- ETS5 database; DT6 and DT8 (CW-WW, RGB, RGBW) support; KNX scene objects
- Expandable per line with DALI Expander
- DALI-2 and KNX certified
For full multi-master bidirectional integration with individual addressing, see the KNX DALI-2 Gateway.
