KNX BAOS Module TP 838 kBerry

The Weinzierl KNX BAOS Modules are a powerful solution for KNX connectivity on a compact circuit board at low costs. They are targeted at manufacturers who want to integrate existing or new products into the KNX system as full compliant devices with complete support of the ETS software.

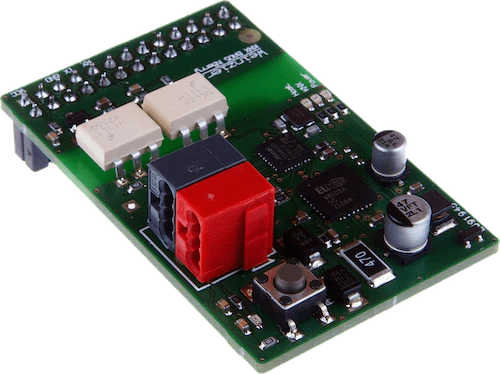

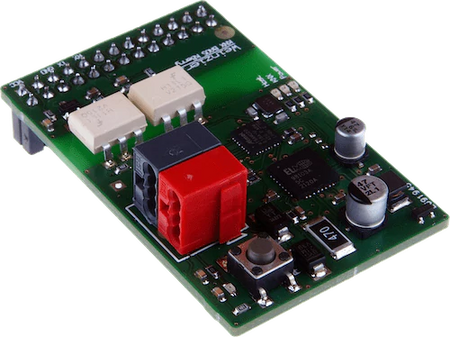

The KNX BAOS Module 838 kBerry is an adaptation of the proven KNX BAOS modules specifically made for the Raspberry Pi. It can be attached directly to the pins of the Raspberry Pi and communicates via a serial port galvanically isolated. The module includes a certified KNX stack and can be configured with the ETS. A generic ETS database provides up to 1,000 data points. Individual ETS entries can be created with the KNX Manufacturer Tool (KNX MT).

The KNX part of the kBerry Module is supplied by the bus voltage. To implement your software for the BAOS object server the BAOS SDK is available as a free download. For using the kBerry as telegram interface the kdriveExpress SDK for the Raspberry Pi can be used. For the kDrive-Express a free version is available, too.
