DALI-2 IoT Gateway
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$720.00 USD
Regular price
-20%
$900.00 USD
Sale price
$720.00 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

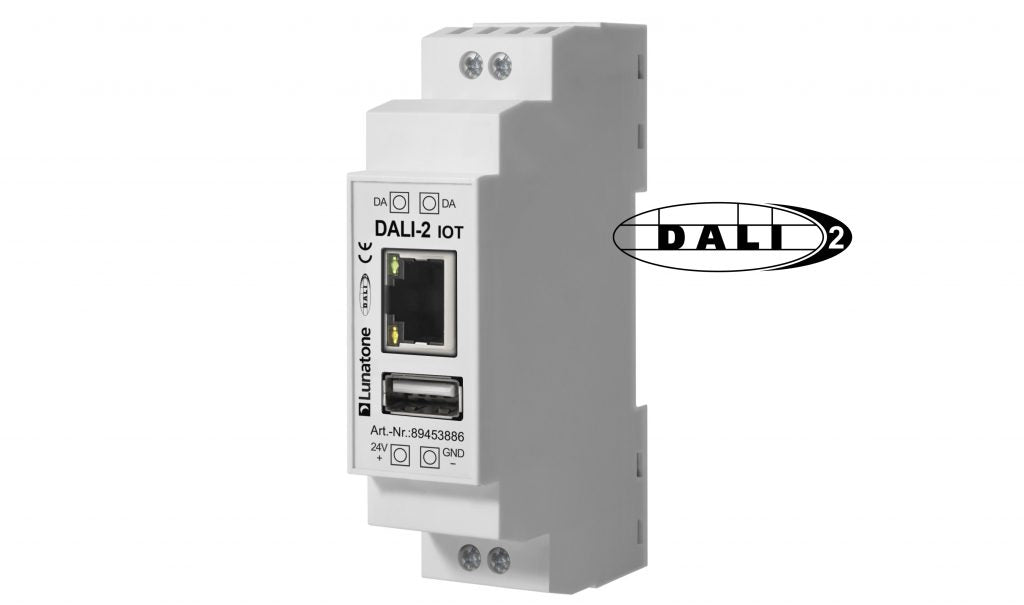

The Lunatone DALI-2 IoT Gateway is the bridge between a DALI lighting line and the IP world. Mounted on the DIN rail and connected over Ethernet, it lets smartphones, PCs and building software control and monitor every device on the DALI bus — with a fully documented open API instead of a closed ecosystem.
Key features
- Central control device and interface between DALI-2 and LAN
- Open RESTful API endpoints and WebSocket with JSON syntax — encrypted or plain — for custom integrations
- Energy monitoring, remote support, dashboards and scheduling built on the documented API
- Multiple gateways can link several DALI lines across the network

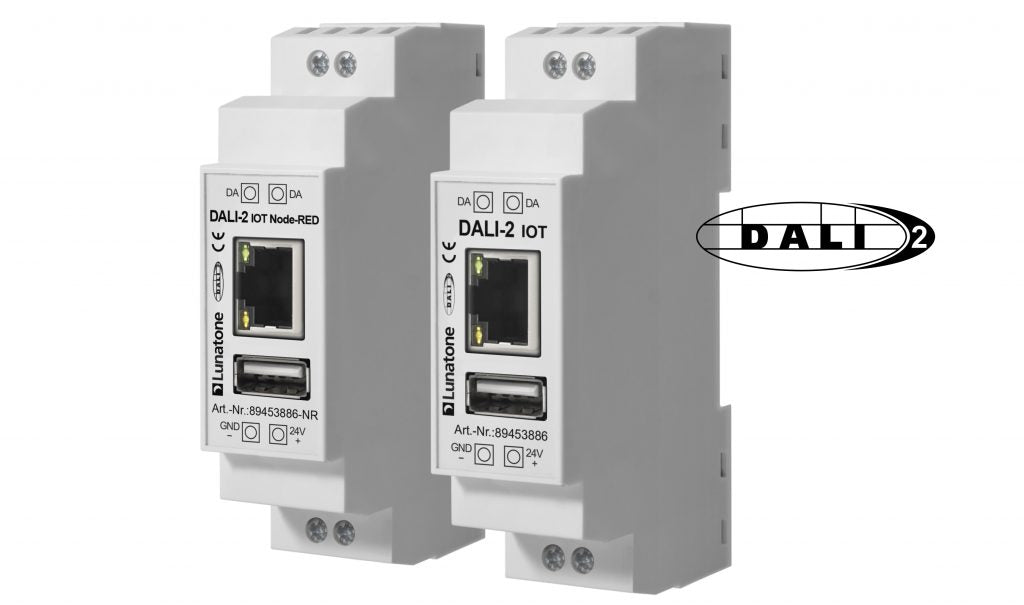

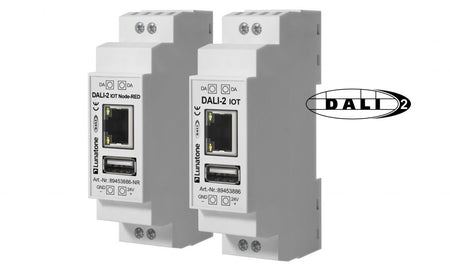

- Node-RED version (89453886-NR) ships with Node-RED preinstalled for drag-and-drop automation flows
- DALI-2 certified by the DiiA
Technical specifications
| Supply | 24V DC (SELV), typ. 90mA — recommended PSU: PS 24V 300mA |
| Ethernet | 1 × 10/100Base-T, RJ45, galvanically separated, isolation 1500V AC |
| DALI | 1 × DALI, galvanically isolated |
| Mounting | DIN rail, 1DU (98 × 22.5 × 56 mm) |
| Ambient temperature | -20°C to +60°C · IP20 |
The single-line entry point to IP-controlled DALI lighting — offices, retail, showrooms, education. When the project grows beyond one line, the DALI-2 IoT4 Gateway extends the same concept to 4 DALI lines and up to 256 devices.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
