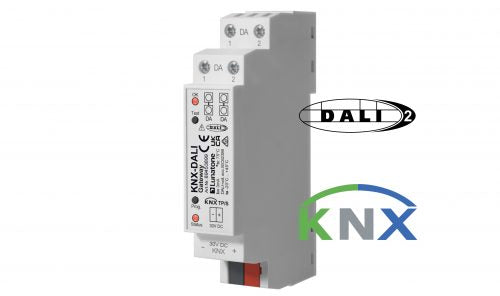

Lunatone KNX DALI-2 Gateway
Lunatone KNX DALI-2 Gateway

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

LUNATONE

KNX DALI-2 Gateway

SKU: 89453899
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$540.00 USD
-20% $675.00 USD $540.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Lunatone KNX DALI-2 Gateway is the certified bridge between both worlds: DALI-2 and KNX certified, fully multi-master capable, with bidirectional communication — KNX commands drive the DALI line, and DALI states and events flow back into KNX. Configure the DALI side with DALI Cockpit; on the KNX side the supplied ETS product database maps DALI devices to data points and links them to KNX components.

Key features

  • Bidirectional KNX ↔ DALI: control, status objects and DALI-2 event conversion
  • All DALI device types supported: DT6, DT8 CW-WW, RGB, RGBW, RGBWAF, X-Y — with the KNX colour DPTs (3.007, 7.600, 232.600…)
  • Control via broadcast, groups or individual addresses; DALI scene recall from KNX scene objects; lamp failure detection
  • Powered entirely from the buses — DALI (3mA) and KNX (SELV, 150mW) — no mains connection
  • ETS database and KNX Certificate of Conformity available from Lunatone

Technical specifications

DALI input Bus supplied, 3mA · 10–22.5V
KNX input 21–32V DC SELV, max. 6mA / 150mW
Mounting DIN rail · 98 × 17.5 × 56 mm
Ambient temperature -20°C to +60°C · IP20

Pair it with a DALI bus power supply (e.g. DALI PS) — the gateway does not power the DALI line.
