Universal series DALI dimmer

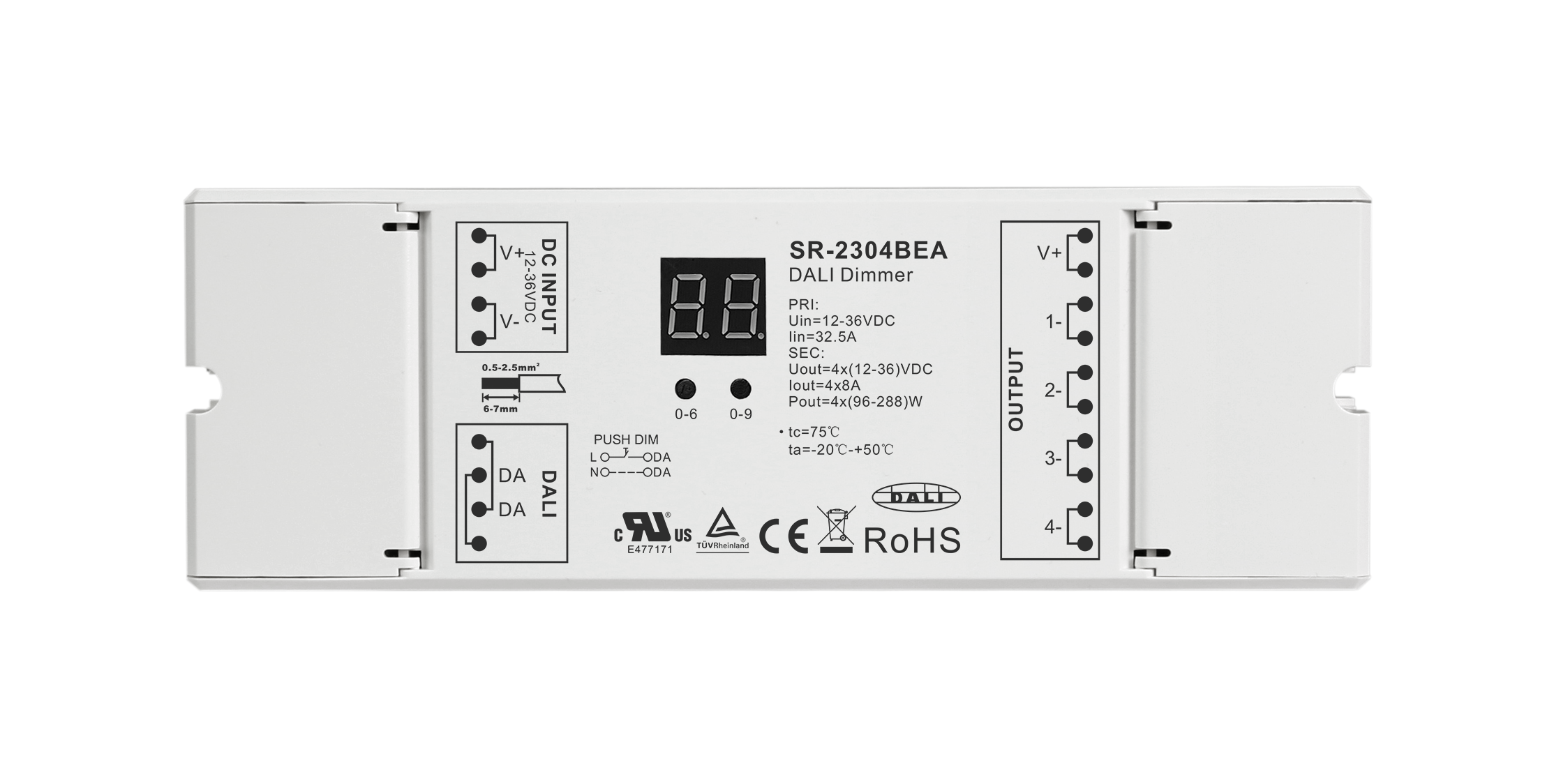

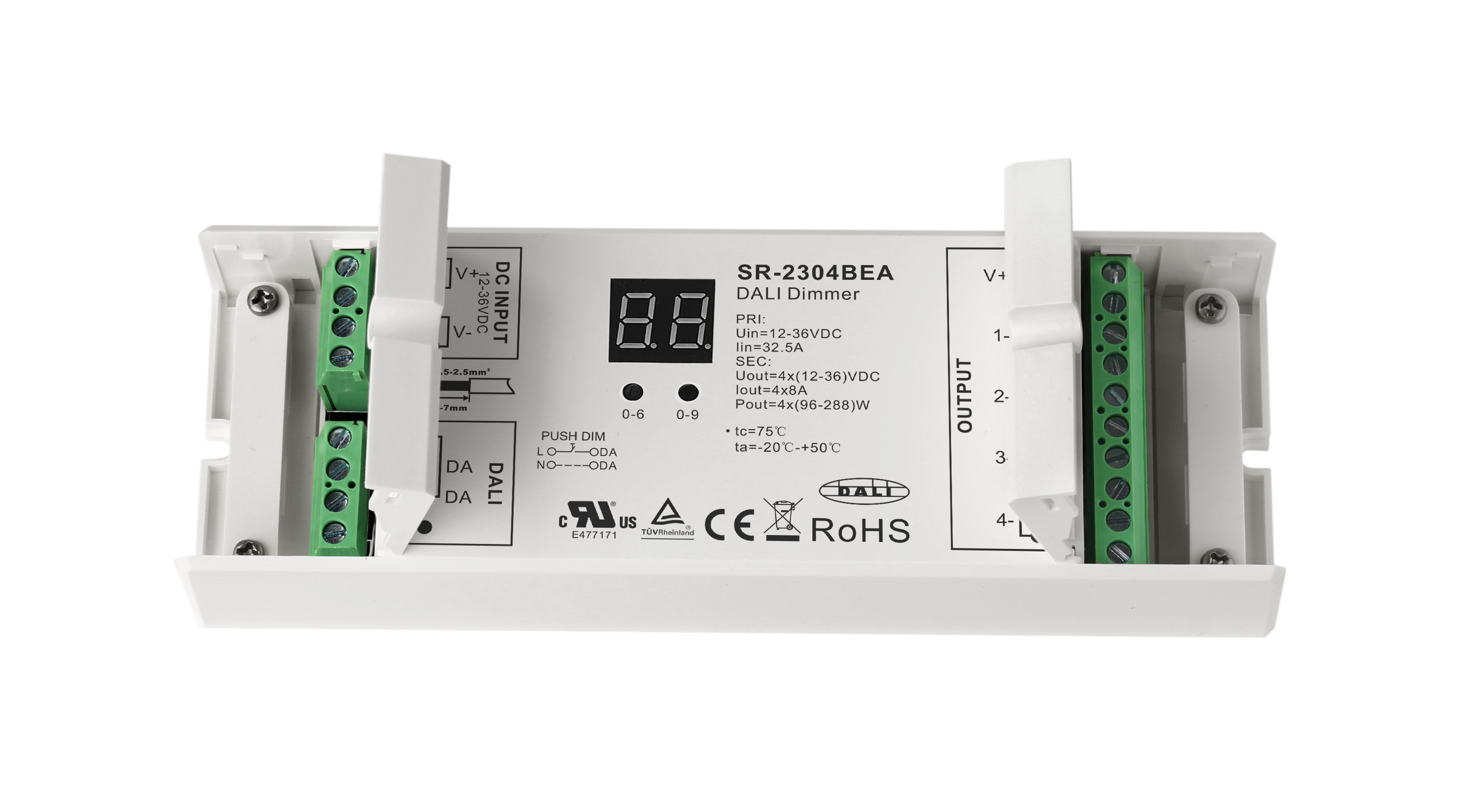

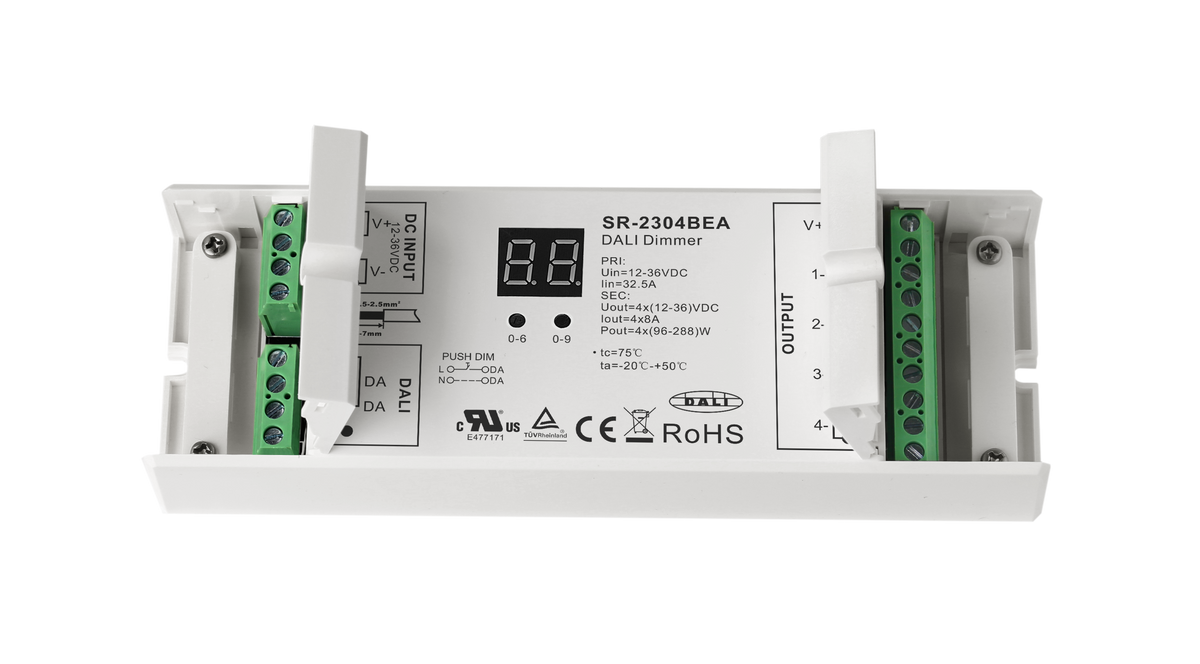

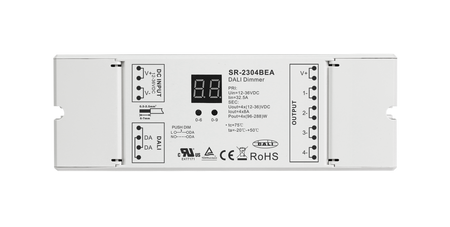

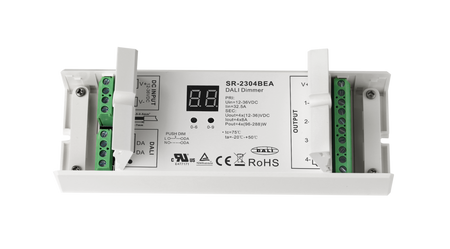

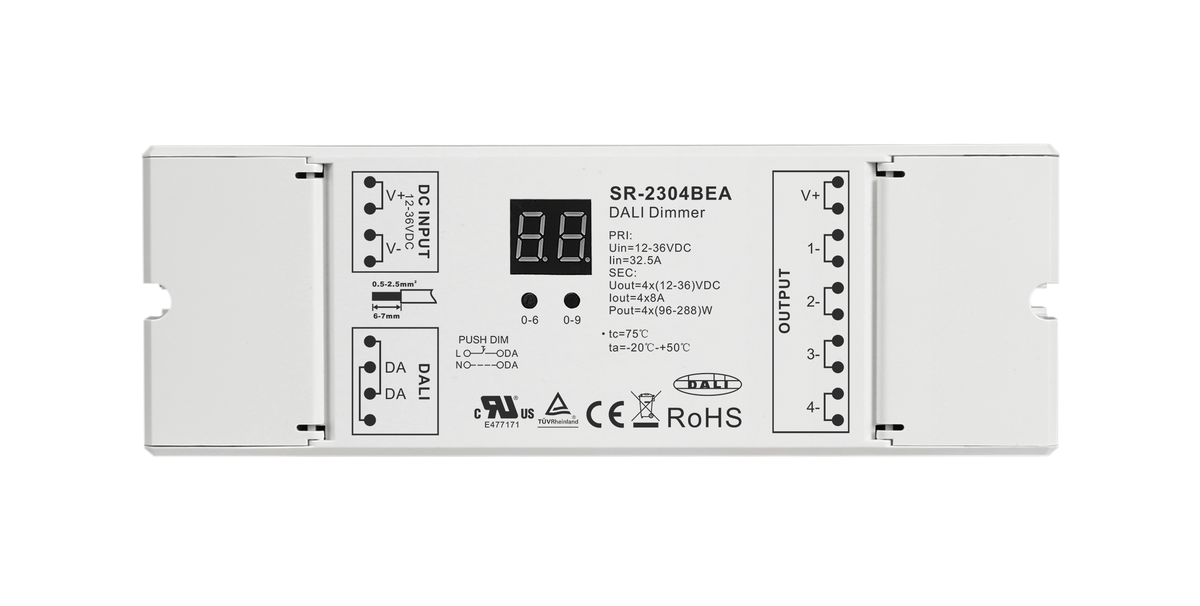

The Sunricher SR-2304BEA is a robust, high-performance 4-channel constant-voltage dimmer built for sophisticated LED lighting systems.

Featuring four independent channels each delivering up to 8 A, it supports total power from approximately 384 W up to 1152 W (12–36 V DC input) depending on load and voltage.
Equipped with a built-in DALI-2 (DT6) interface, it complies with the latest DALI standards to ensure compatibility across lighting control ecosystems.

Addressing is flexible: channels can be configured under one to four DALI addresses, enabling synchronous or individual control as required.

The unit also supports push-switch control for manual operation in absence of a DALI bus.
With dimming down to 0.1% in a smooth logarithmic curve, the SR-2304BEA delivers human-friendly transitions and dependable performance.

The compact footprint (approx. 168 × 58 × 28 mm) simplifies installation behind fixtures or in control panels.

Designed for architectural lighting, commercial installations or any project demanding high-quality dimming with both digital and manual interface options, this module brings flexibility, precision and reliability.
