Multi-addresses PRO DALI DT8 LED Controller

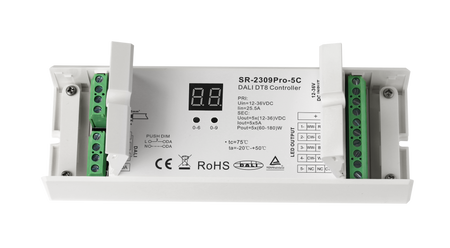

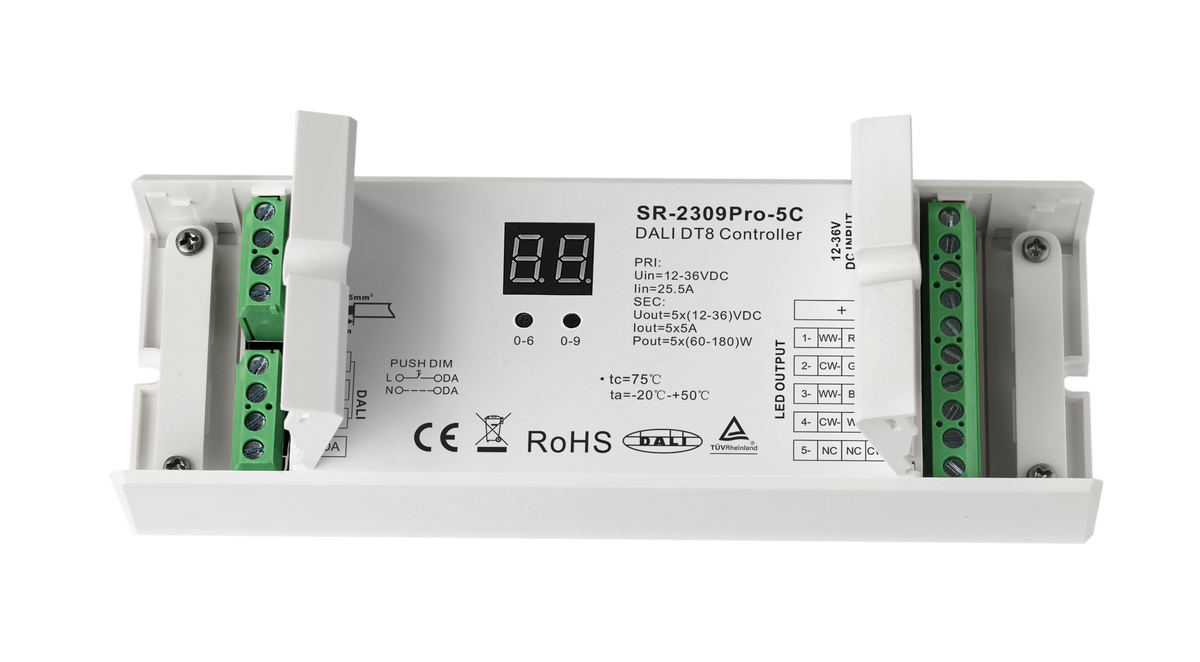

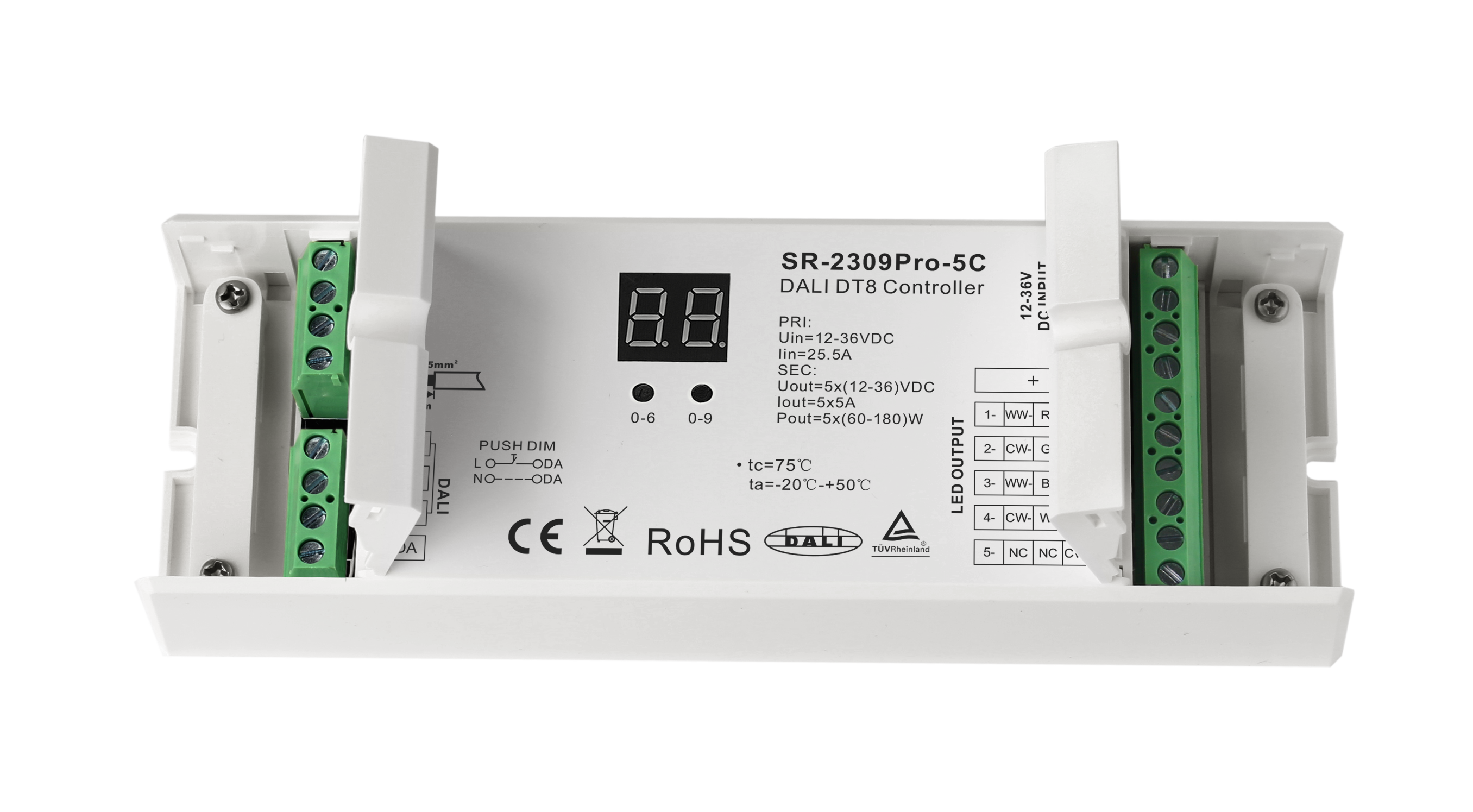

The SR-2309PRO-5C is a high-end, professional-grade LED controller engineered for modern constant-voltage LED strip installations.

It supports input voltages of 12–36 V DC, providing five independent PWM output channels, each rated at 5 A, which allows for a total output range of approximately 240 W to 720 W depending on system voltage and load.

This controller features an integrated DALI-2 (DT8 compliant) interface and is compatible with device types including Tc (tunable white), RGBWAF, XY colour coordinate, and various mixed device modes, all configurable through an intuitive button + display interface.

The “multi-addresses enabled” capability means you can operate it as a single DALI address or assign multiple addresses for different channels, giving you flexible control architecture.
In scenarios where a DALI bus is not available, the SR-2309PRO-5C also supports push-switch dimming, allowing manual control of brightness, colour temperature and RGB outputs via a conventional switch.

Its dimming range spans from 0.1% to 100%, ensuring smooth transitions and high visual comfort.
Compact yet powerful (approx. 170 × 53.4 × 28 mm), the SR-2309PRO-5C is ideal for professional lighting applications — architectural lighting, high-end LED installations, smart automations — where you require both flexibility and digital control.
