CREATROL SENSOR

Product size: out diameter φ80mm * opening φ 40mm

Installation method: embedded installation

Color:White

Ring Product Size: out diameter φ65mm * opening φ50mm

Installation method: ceiling installtion

Color: white

Accurate detection of presence and minor motion states

It is a mmWave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns.

It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light.

The detection range and sensitivity are independently and continuously adjustable.

Installation height: 2 ~ 4m

Detection angle: 11 °

Detection distance: 0.1 ~ 3.2m (adjustable)

Illumination sensor: 0 ~ 32000 Lux Product size: φ43mm * 35mm

Opening size: φ35mm

Power supply: KNX 30V(＜10mA)

Accurate detection of presence and minor motion states

It is a mmWave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns.

It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light.

The detection range and sensitivity are independently and continuously adjustable.

Designed Specifically for Smart Lighting Control Scenarios

It can accurately detect human presence and subtle movements, confirm human status by analyzing breathing patterns, and monitor ambient light intensity in real-time to automatically adjust lighting brightness.

The product supports integration with the DALI system, achieving single control of 64 lighting circuits, providing flexible lighting management solutions.

Product size: 63*32m

Installation method: wall or ceiling installtion

Color: white

Product size: height 42mm * outer diameter φ 46mm

Installation method: wall or ceiling installtion

Color: white

Product size: 86*86*25mm

Installation method: wall 86 bottom box installation

Color: white

Installation Height: 2~4 meters

Detection Angle: 11°

Detection Distance: 0~3.2 meters (adjustable)

Illuminance Sensor: 0~32000 Lux

Product Size: 43mm x 25mm

Cutout Size: 35mm x 25mm

Power Input: KNX-BUS with auxiliary power supply (12-24VDC)

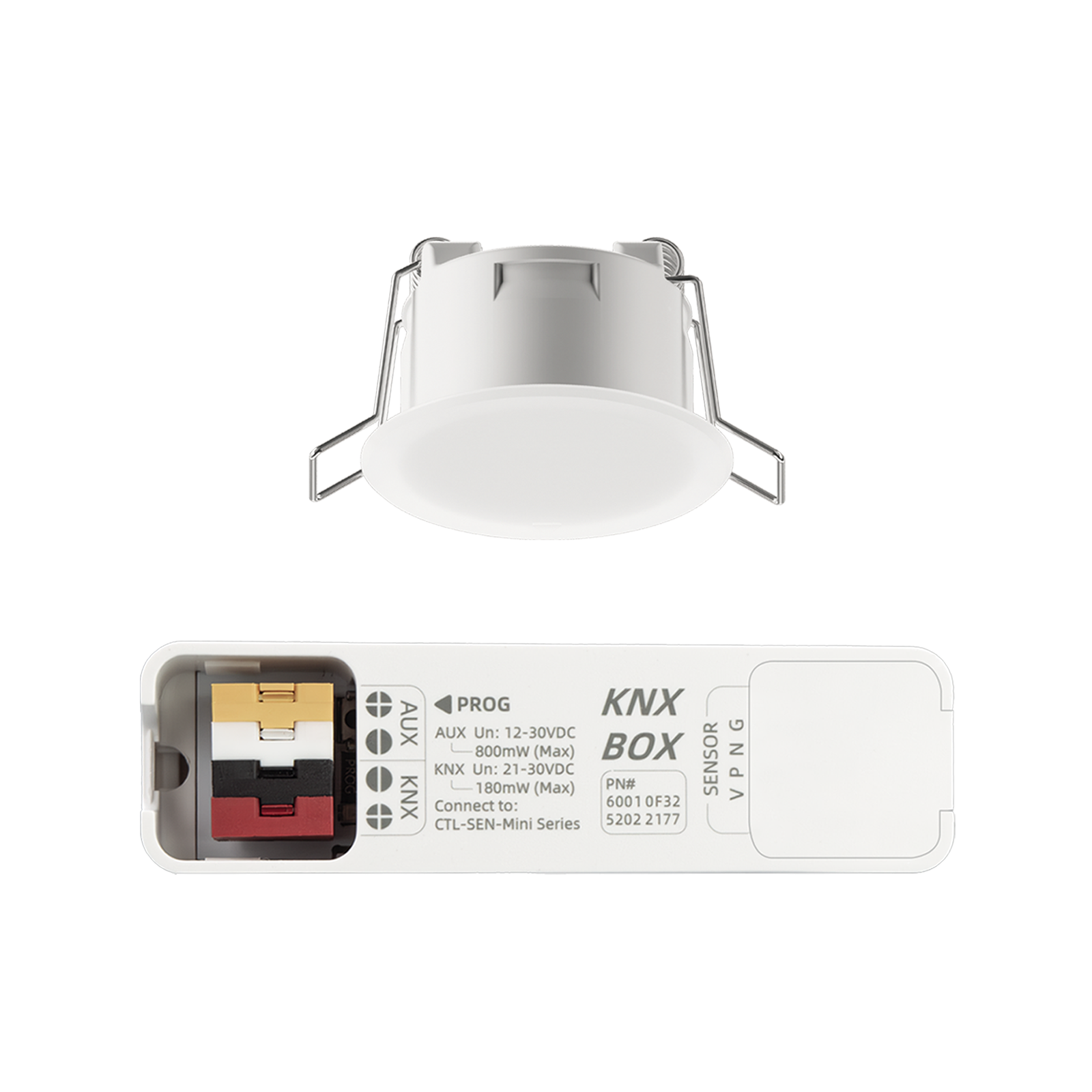

Installation Height: 4~12 M

Detection Angle: 360°

Detection Range: When installed at a height of 4.0~8.0 M

Diameter of micro/motion detection ≤φ12.0 M

Detection Sensitivity: 0~100%

Illuminance Sensor: 0~32000 Lux(Precision±1%)

Product Dimensions: 43mm x 25mm

Cut-out Size: 35mm x 25mm

Power Input: KNX-BUS with auxiliary power supply (12-24VDC)

Detects human movement status

The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion.

It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.

Installation height: 2 ~ 4m

Detection angle: 360 °

Detection distance: when the installation height is 4.0m

Detection diameter ≤ 8.0m

Illumination sensor: 0 ~ 32000 Lux

Product size: φ43mm * 35mm

Opening size: φ35mm

Power supply: KNX 30V(＜10mA)

 Seamlessly Interfacing with the KNX System

By integrating with the KNX protocol, this sensor can seamlessly integrate into the KNX system, enabling intelligent control of lighting devices, including smart switches, dimming, and full utilization of natural light.

The flexibility and intelligent control capabilities of the sensor, combined with the integration of the KNX protocol, make it an ideal choice for smart lighting control, bringing efficient and energy-saving lighting management to various KNX projects.

Accurate detect minor motion states

This product uses a high bay radar chip to transmit and receive microwave high-frequency signals.

Through algorithm processing, it can sensitively detect the minor-motion and moving state of the human body even at the height of 2 ~ 12 m.

It has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light.

Installation Height: 2~3.2 M

Detection Angle: 360° Detection Range: When installed at a height of 2.7M

Diameter of micro/motion detection ≤3.0 M*4.0 M

Detection Sensitivity: 0~100%

Illuminance Sensor: 0~32000 Lux Product Dimensions: 43mm x 25mm

Cut-out Size: 35mm x 25mm

Power Input: KNX-BUS with auxiliary power supply (12-24VDC)
