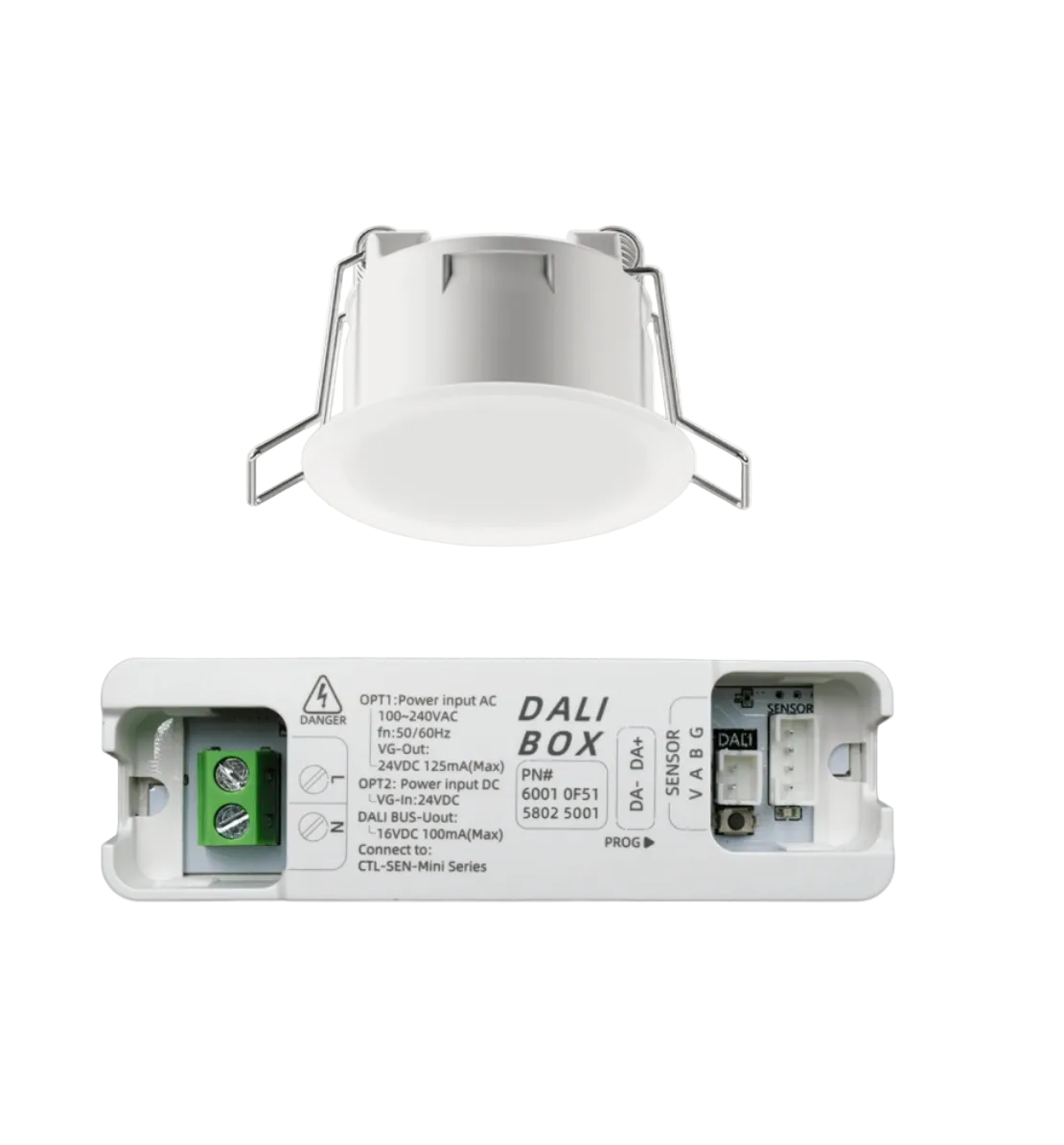

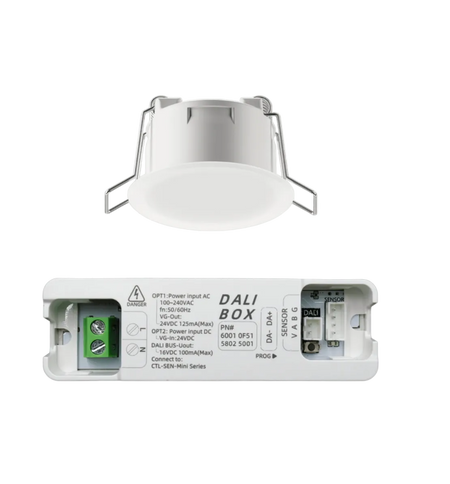

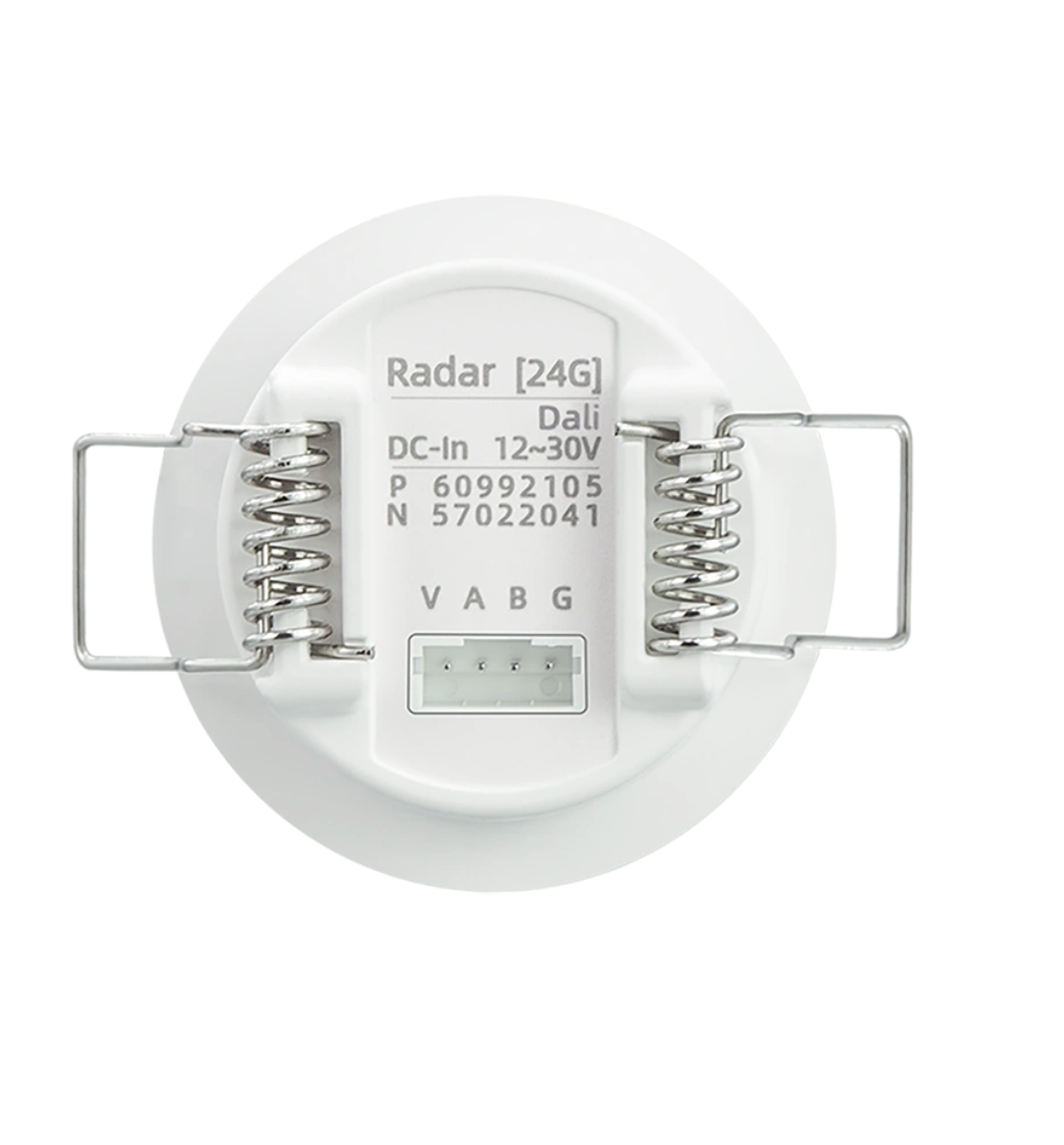

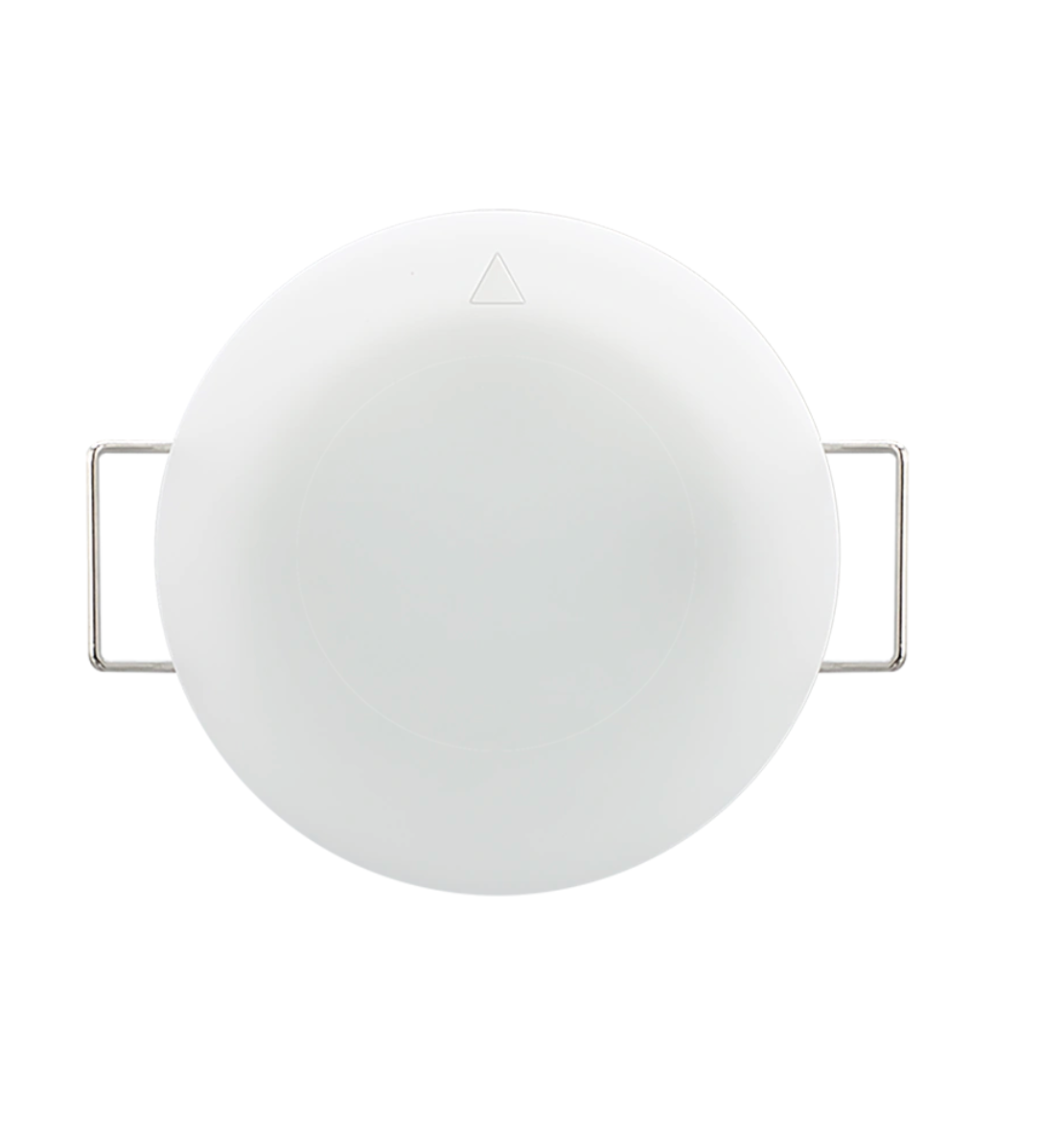

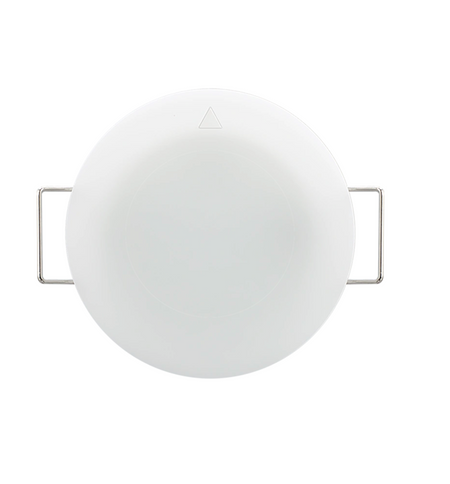

Mini 24G Radar Presence Sensor (DALI Light Control)
Accurate detection of presence and minor motion states
It is a mmWave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light.
The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ8m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V
Interface: DALI + 16V/100mA (Output)
