Best Selling Products
Get started with KNX technology with our KNX Starter KIT.
This all-in-one kit includes
- KNX power supply, 640mA
- USB interface
- Switching actuator, 8 fold
- Universal dimmer actuator, 2 fold
- Occupancy sensor
- KNX Controller Touch & Pad, Metal, Black IPS capacitive touch panel & mechanical button
- KNX cable, 30 ft.
- ETS program pre-configured
- Easily set up your home automation with our reliable and efficient KNX products.
All products are fully functional. Line products are UL listed.

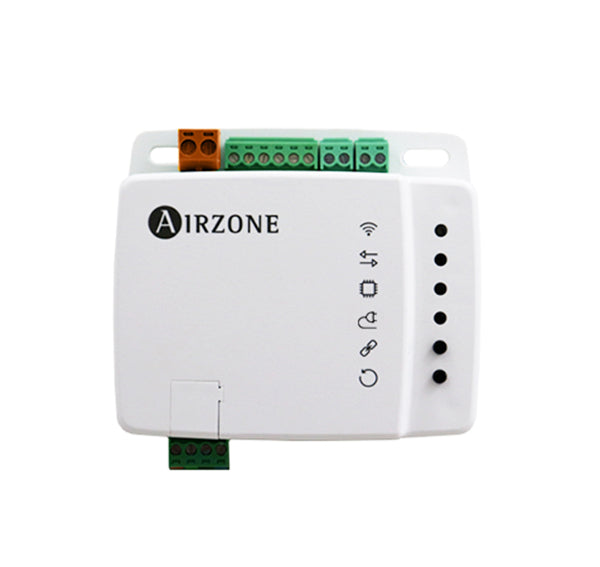

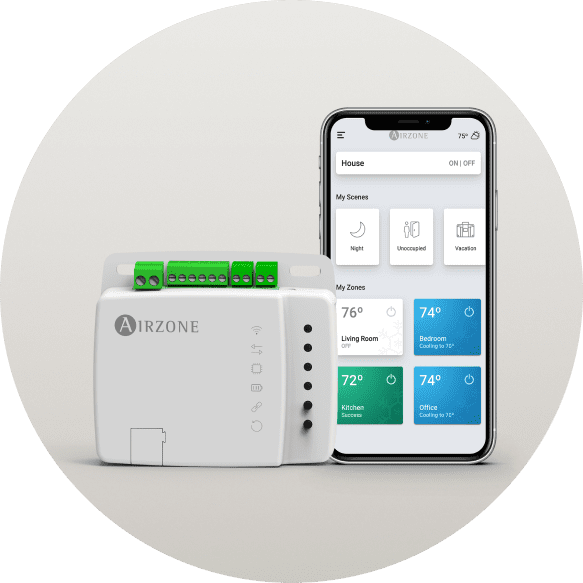

This device allows for remote management and integration of units via the Cloud, controlled through the “Airzone Cloud” App for iOS and Android.
It features a dual Wi-Fi connection (2.4/5 GHz) and is powered by an external supply.
Key features include:
Unit Control and Error Detection: Monitor unit performance and identify issues.
Configurable Digital Input: For open window detection, occupancy presence, or ECO function.
Auxiliary Heat Control: Manage heating sources and lock settings.
Automatic Mode Changes: Adjusts operation mode based on two set-point temperatures.
Temperature Limitations: Set limits for cooling and heating modes.
Scheduling: Manage status, temperature, mode, and fan speed through time schedules.
Integration with Third-Party Thermostats: Supports Cloud and wired integration with smart thermostats (3PI).
Protocol Compatibility: Integrates via Modbus RTU/TCP, BACnet MS-TP/IP, and other devices like the Lutron Palladiom thermostat and AirQ Sensor.
API Services: Offers local and Cloud API integration, plus mDNS multicast for efficient communication.
This provides a comprehensive solution for effective climate control management.

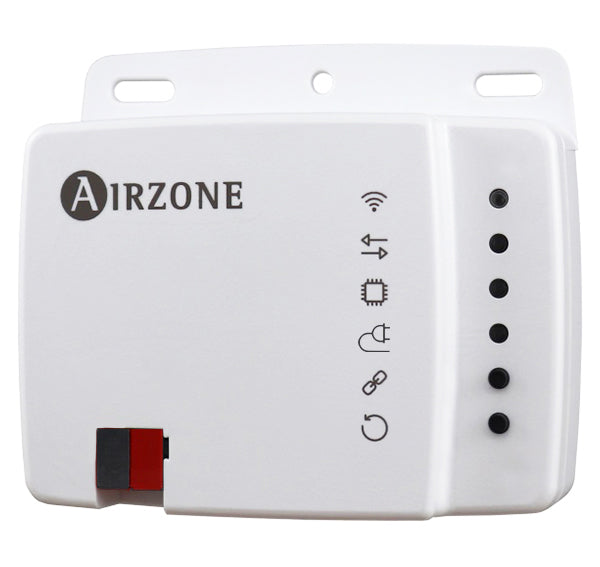

Device to manage and integrate AC units in KNX TP-1 control systems.
Externally powered by the indoor unit.
Features:
• Control of the parameters of the unit.
• KNX Control.
• KNX standard data.
• 3 digital configurable inputs.
• Easily configurable from ETS.
• Communication errors detection.
Device to manage and integrate AC units in KNX TP-1 control systems.
Externally powered by the indoor unit.
Features:
• Control of the parameters of the unit.
• KNX Control.
• KNX standard data.
• 3 digital configurable inputs.
• Easily configurable from ETS.
• Communication errors detection.
- The sunblind actuator N 523/04 only works together with the application program 25 A4 Venetian blind actuator 981201.
- The Engineering Tool Software (ETS) up from ETS2 V1.3 is required for the parameterisation and for loading the application program.
- This is structured so that there is sufficient basic functionality available in the supplied state for simple applications in combination with 11 basic communication ob-jects: the always available object "Status Direct mode", an alarm object that influences all channels, an object "Blockade" that also influences all channels and the two 1-bit command objects per channel enabling a blind to be moved into the upper or lower final position, to stop the drive and to open or close the slats stepwise.
- When commissioning the sunblind actuator the following objects can be added per channel, if needed, via the parameter tab "Functions, Objects":
- Device Type: The switching actuator sub-module N 513/21 is a DIN-rail mounted device in N-system dimensions.
- Relay Outputs: It can switch three groups of electrical consumers independently via its three relay contact outputs.
- Load Monitoring: Each relay output features load current measurement and monitoring (load-check).
- Standalone Operation: The sub-module cannot operate independently and must be connected to a main module.
- Connection Method: It connects via a 6-pole bridging connector to a main module (N 513/11, N 512/11, or N 562/11) or to another sub-module already connected to a main module.
- Power Supply: The sub-module’s electronics are powered by bus voltage through the 6-pole bridging connector.
- Modular Extension: Up to 4 sub-modules can be connected in series to a main module, extending it from 3-fold to 15-fold switching capability.
- Direct Mode Pushbutton: The button with an integrated yellow LED toggles between bus mode and direct mode.
- Brief Press Functionality: Pressing the button briefly activates the green LED for 30 seconds, indicating the last selected module (A to E) and the switching state of the outputs (red LEDs on buttons 1 to 3).
- Switching State Indication: The red LEDs in buttons 1 to 3 show the relay contact status: LED ON = contact closed, LED OFF = contact open.
- Activating Direct Mode: Holding the button for at least 3 seconds turns on the yellow LED, indicating that direct mode is now active.
- Output Control in Direct Mode: In direct mode, each output of the currently selected module can be switched on or off via a pushbutton on the top of the main module, using a toggle function.
- Pushbutton Behavior: Pressing the pushbutton once turns the output on if it's off, and pressing it again turns it off. The red LED on the pushbutton shows the current state.
- Unused Buttons: Pushbuttons 4 to 6 and their LEDs are not utilized in the N 513/11 model.
- Module Selection: To change the output state of a different module, the desired module must be selected by pressing the direct mode pushbutton multiple times.
Compact bus powered Router between LAN/Ethernet and KNX bus.
Application area
The compact KNX IP Router 752 secure allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.
In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming.
The device supports KNX Security which can be enabled in ETS.
As secure router the device allows coupling of not secured communication on KNX TP to a secured IP
backbone.
Also for the interface functionality (tunneling) KNX security prevents from unauthorized access.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part.
The KNX IP Router 752 secure has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams.
Power is supplied via the KNX bus.
Gateway between KNX DMX512.
Application area
The KNX DMX Gateway 544 is a compact gateway between KNX and DMX512 (protocol for lighting control) with up to 64 freely configurable channels.
In master mode, the device allows convenient control of DMX luminaires, for example with KNX push-buttons.
Up to 64 dimming channels or up to 8 RGB/RGBW channels are available.
Several subsets of DMX512 addresses can be assigned to each channel.
The dimming channels enable dimming of one or more DMX devices via KNX.
In addition, 4 sequencers are available in the gateway to carry out more complex tasks.
In slave mode KNX actuators can be controlled by DMX.
For example, the room lighting, which is part of the KNX installation, can be controlled via a DMX lighting control panel.
Overview
- Small interface module for the conversion of 0-10V control signals to DALI dim levels
- Devices with 1, 2 and 3 channels available
- The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
- A change on the 0-10V input voltage (<1%) is used as event trigger
- Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
- Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface
Overview
- Compact interface module for the conversion of 0-10V control signals to DALI dim levels
- The interface module provides a 30mA DALI power supply for up to 10 standard DALI ballasts, up to 64 ballasts controllable with the help of a DALI-Expander
- Passive and active 0-10V input
- The converted value is sent broadcast on the DALI subnet
- A change in the 0-10V input voltage signal (>1%) is used as trigger event.
Overview
- DALI Touchpanel with Bluetooth 4.0 interface
- DALI-System control via Panel or via Android or IOS mobile device
- App for IOS and Android available
- All bluetooth moduls within the reception area will be listed for selection
- Up to 32 layouts configurable
- 5 preset designs available for color and colortemperature control as well as for switching and dimming with free configurable buttons
- Pin-code protection
- Configuration of the DALI Touch BT with DALI-Cockpit software tool und DALI-USB Interface
- Individual layout configuration: button arrangement and configuration of functions
Overview
- DALI bus power supply unit
- Guaranteed Supply Current 200mA
- Maximum Supply Current 250mA
- Suitable to power an entire DALI-line with 64 standard DALI ballasts
- Independent electronic device for remote ceiling and integration in protection class II devices
- Power supply range 110Vac … 240Vac for worldwide use
- Surge immunity up to 400V
- 4 fold inputs. Can be individually configured per input
- 4 fold LED. Can be individually configured per LED
- LED output current: max. 2.5mA, limited via series resistor of 2K Ohm
- Input/Output wires: 2*5-pin wires, approx. 30cm. long. Can be extended up to 10 meters maximum
- Size: 1.81 x 1.81 x 0.46 inches. Fits in a 1-gang US wall box
- Standard KNX device with database & certificate
- 5" color capacitive IPS touch screen, resolution 480*854
- 16 time functions, 8 event group functions, 8 logic functions
- Password protection and customized screensaver
- Support switching, dimming, shutter control, HVAC control and
- other main KNX functions, built-in temperature sensor
- Supporting ring included for installation, fits 60mm/86mm wallbox
- The UI can be adjusted to accommodate both vertical and horizontal installation methods
- Fits in 1-gang US Standard wall box
- Outputs: Eight outputs (latching relays, potential-free contacts)
- Electrical rating per output:ac/
- 347 Vac, 50/60 Hz, 15A , cos phi = 1
- 277 Vac, 50/60 Hz, 20A , cos phi = 1
- 1.5 HP @ 120 Vac
- 3 HP @ 277 Vac
- Control voltage: 1 to 10V (provided by ECG Dynamic ballast)
- Dimmable electronic ballast: Maximum 60 units
- Signal amplifier: Maximum 12 units
