MDT

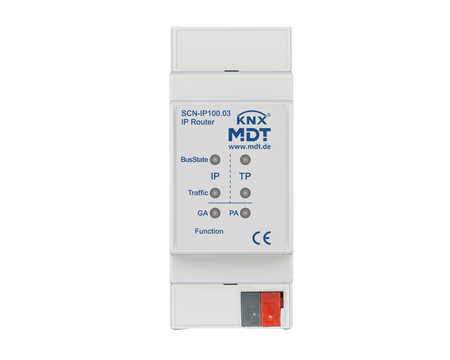

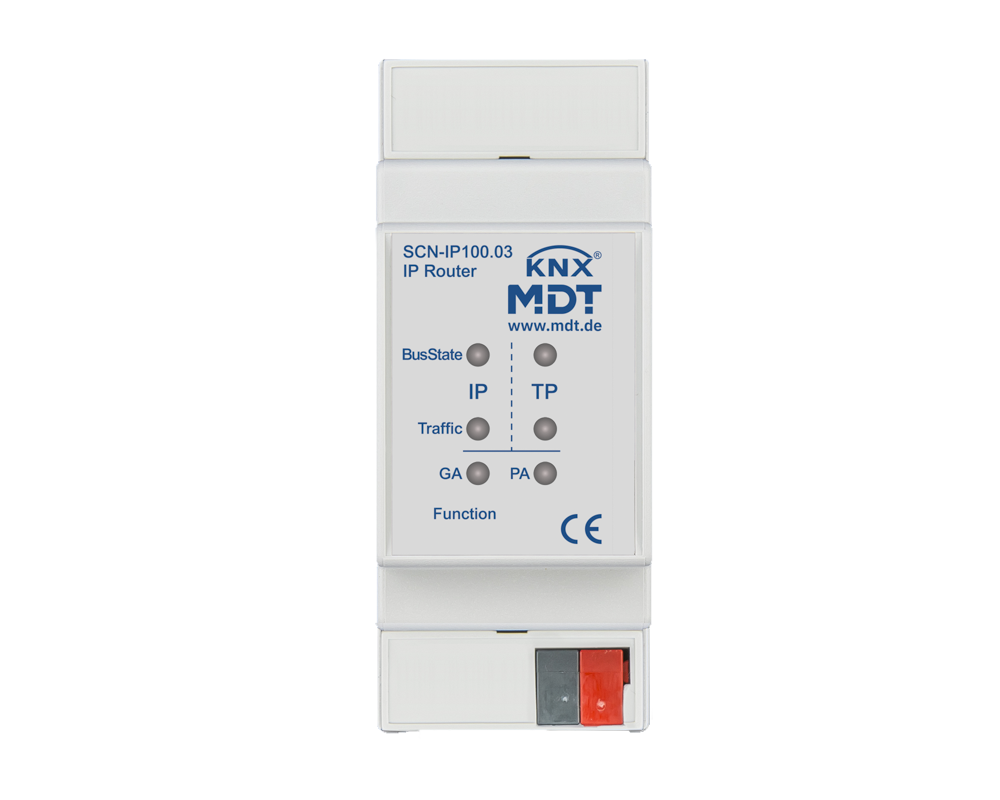

KNX IP Router with IP Secure and Data Secure, 2 SU MDRC

SKU: USA-SCN-IP100.03
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$462.56 USD
-21% $588.00 USD $462.56 USD
In stock
Usually ships within 24 hours
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

Product features

  • KNX IP Router with IP Secure and Data Secure, 2 SU MDRC.
  • With email and time server function.
  • For bidirectional connection between PC and KNX via TCP/IP.
  • KNX IP Secure and KNX Data Secure (as of from ETS 5.7.2).
  • Secured access to KNX Bus through IP Secure with security key.
  • With line coupler functionality.
  • Supports extended group addresses.
  • Enables bus programming via TCP/IP.
  • 4 simultaneous connections possible.
  • Prepared for segment coupler functionality (revision R4.0).
  • Power supply via KNX bus, no external power supply required.
  • Encrypted email transmission.
  • Time server to send date and time to the KNX bus.
  • Updateable firmware.
  • Fast application download (long frame support as of ETS 5).
  • 3 year warranty.
