WAGO

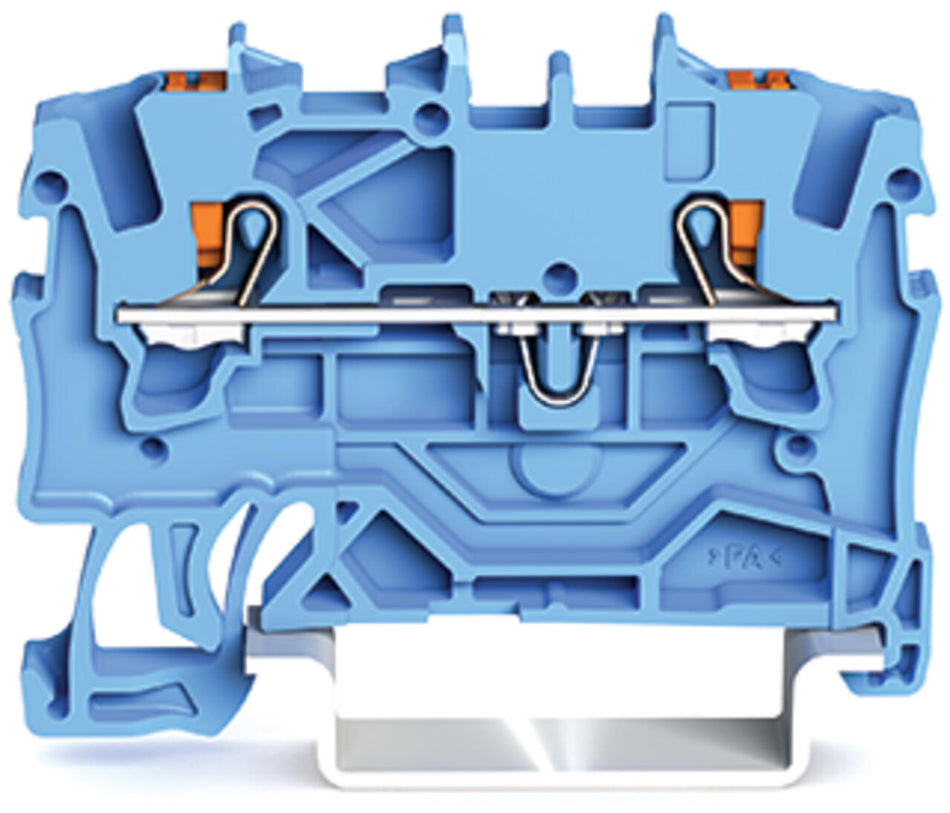

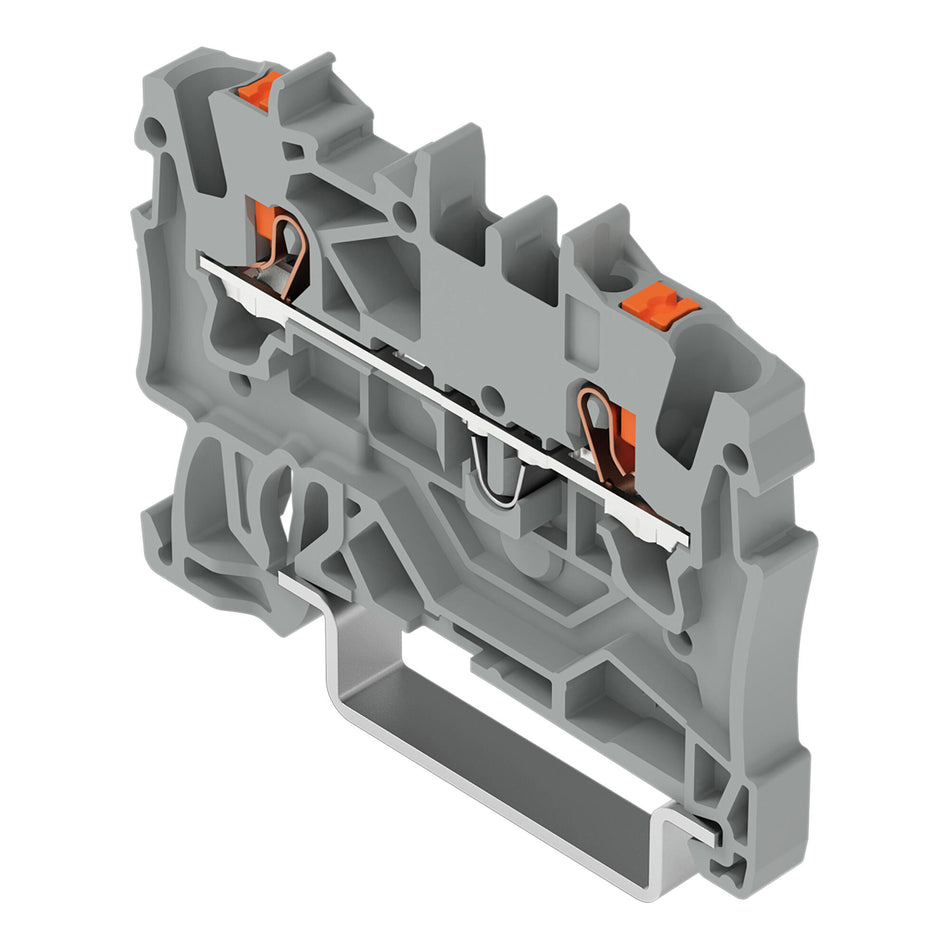

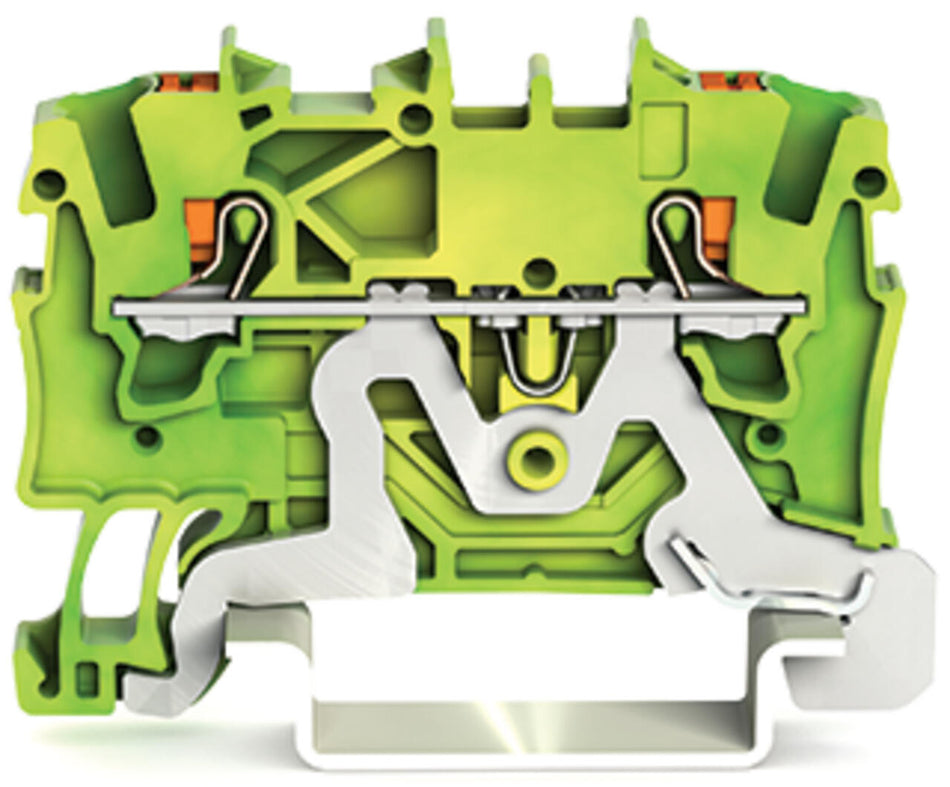

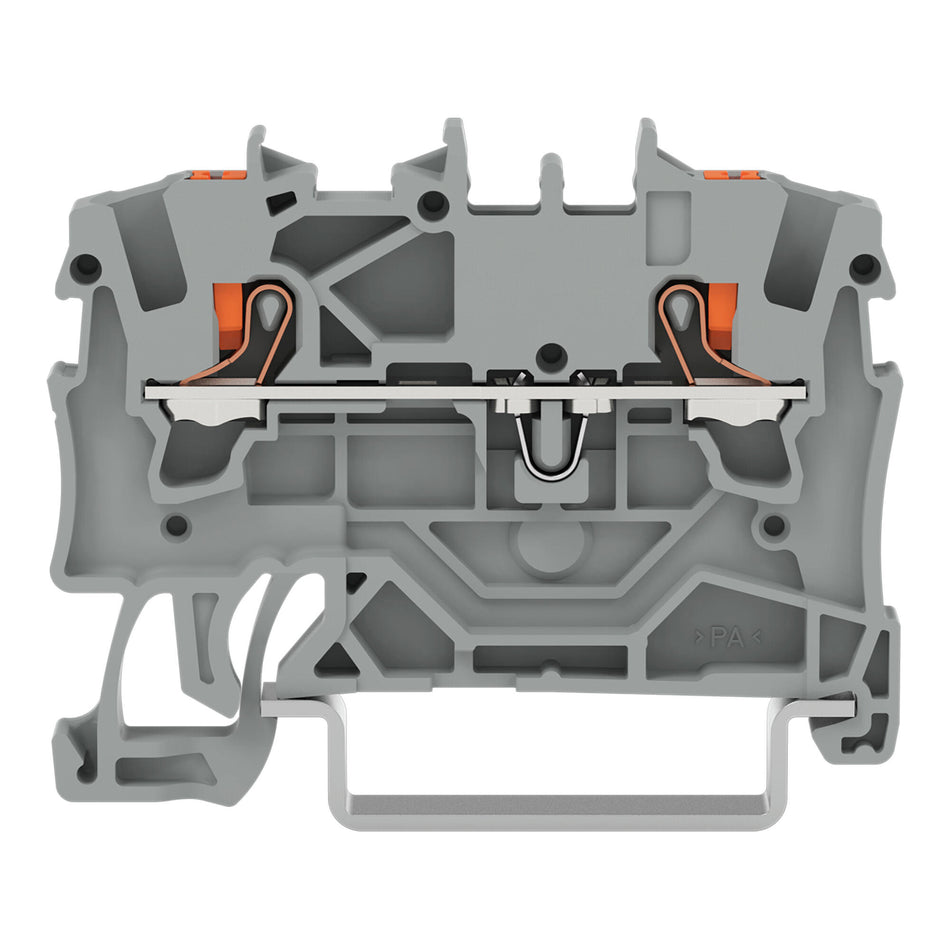

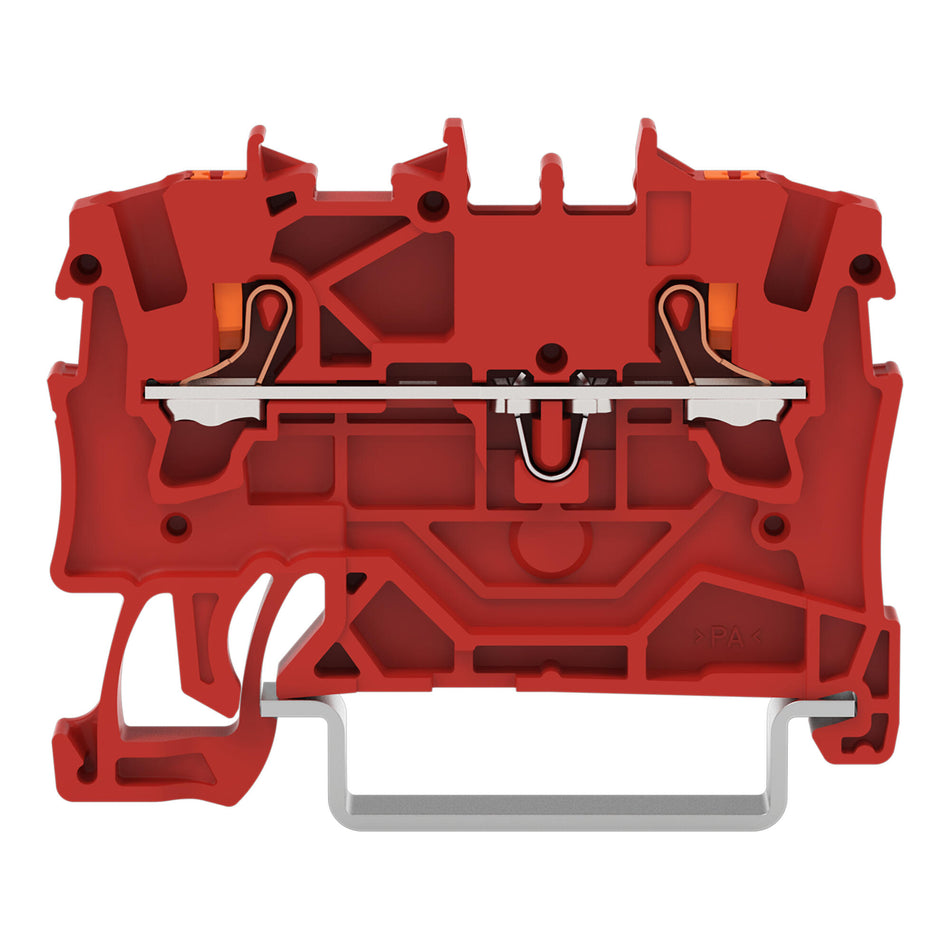

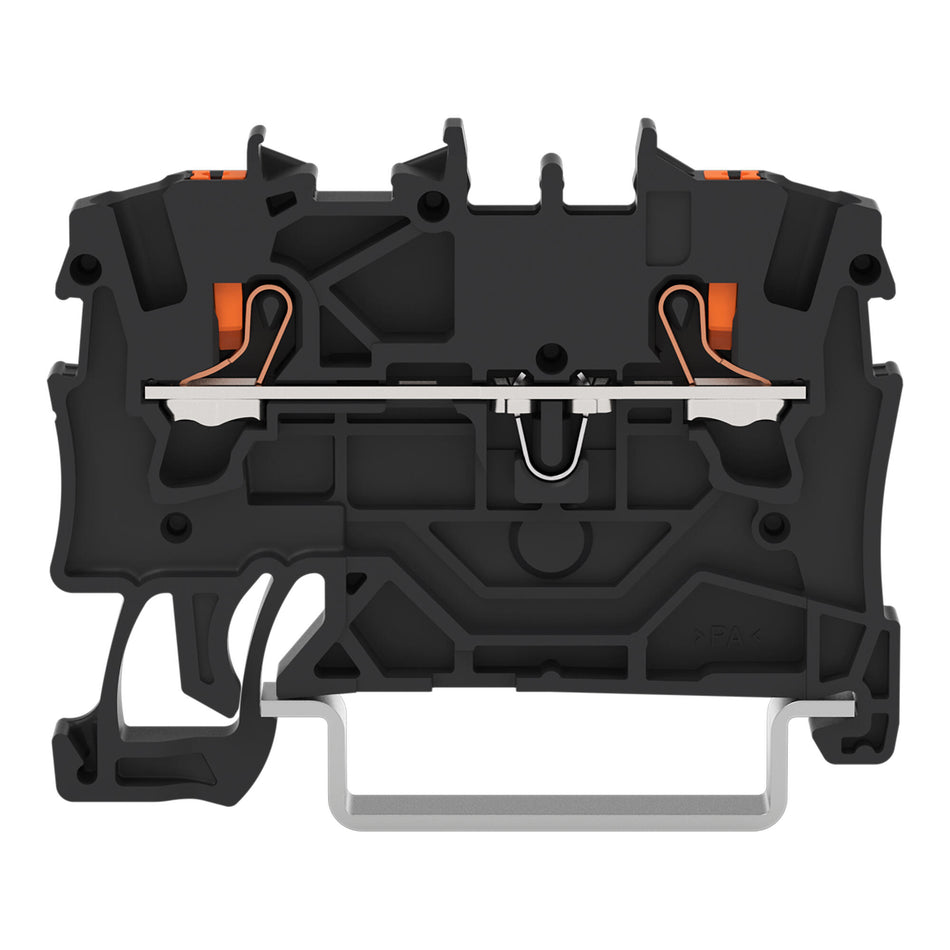

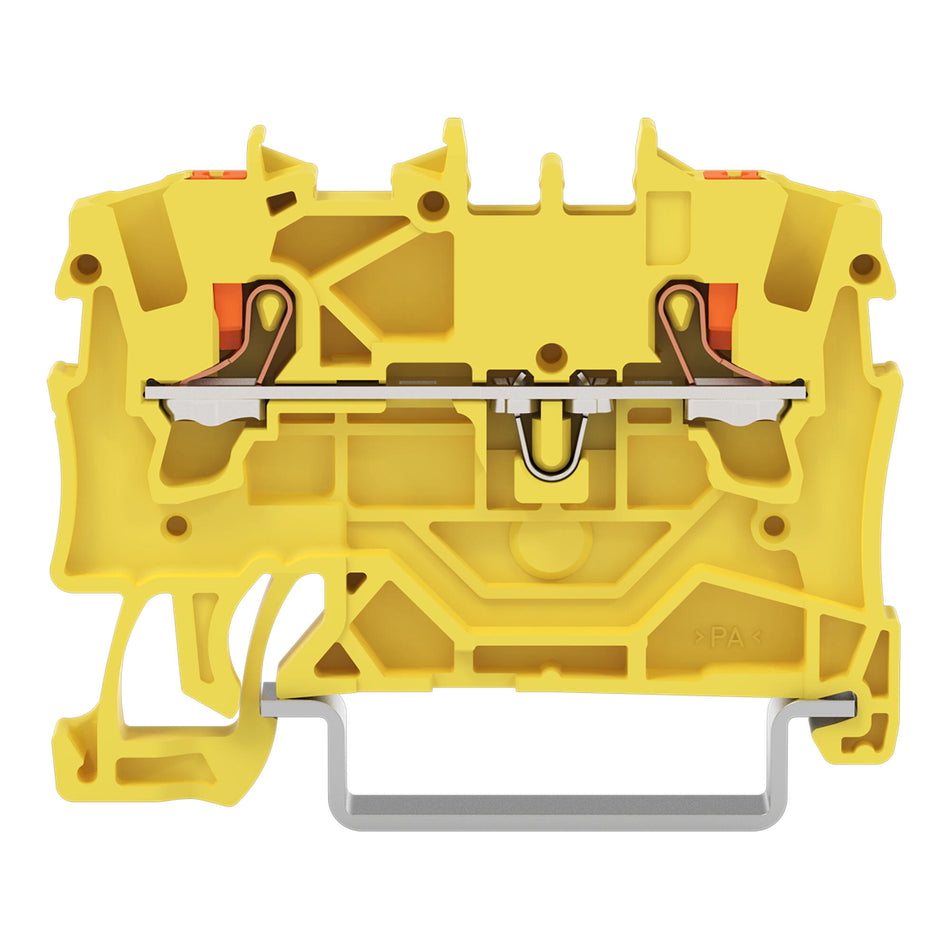

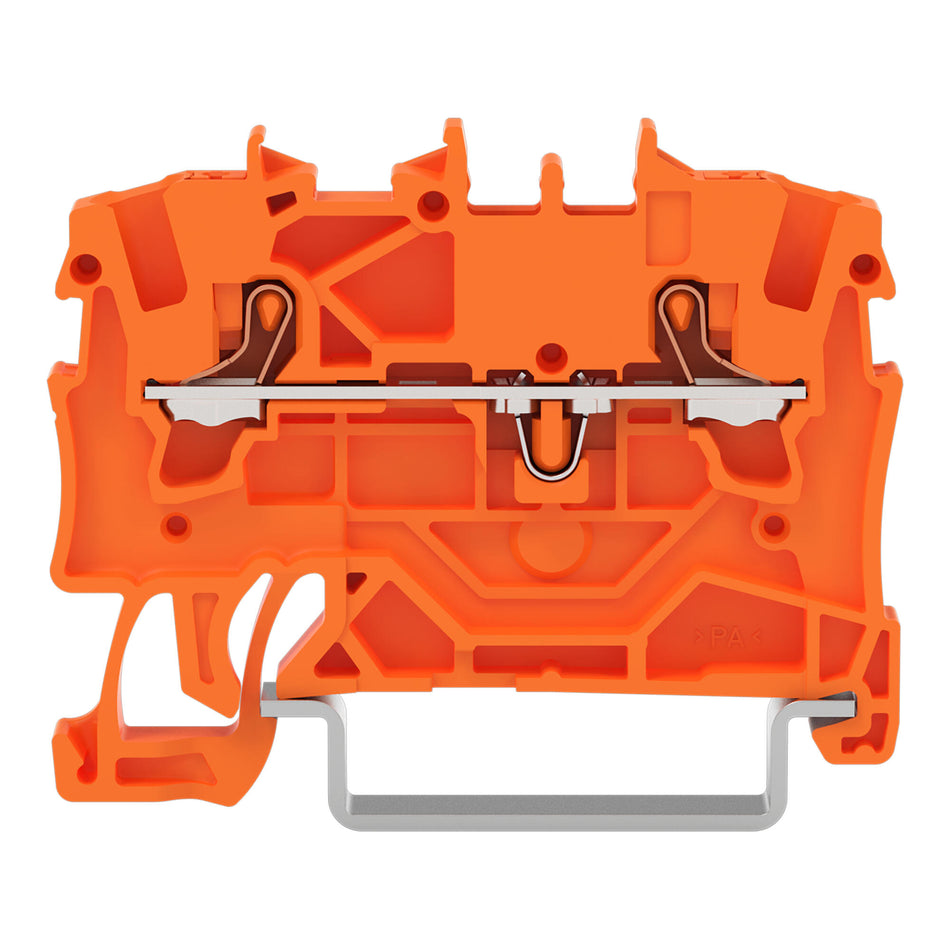

• Push-in terminal connector with CAGE CLAMP® technology

• Fast, tool-free wiring installation

• Supports 22–14 AWG copper conductors

• Rated up to 600 V / 15 A

• UL 1059 and CSA 22.2 No.158 certified

• High-temperature resistant polyamide housing

• Operating temperature –60 °C to +105 °C

• Ideal for professional electrical installations

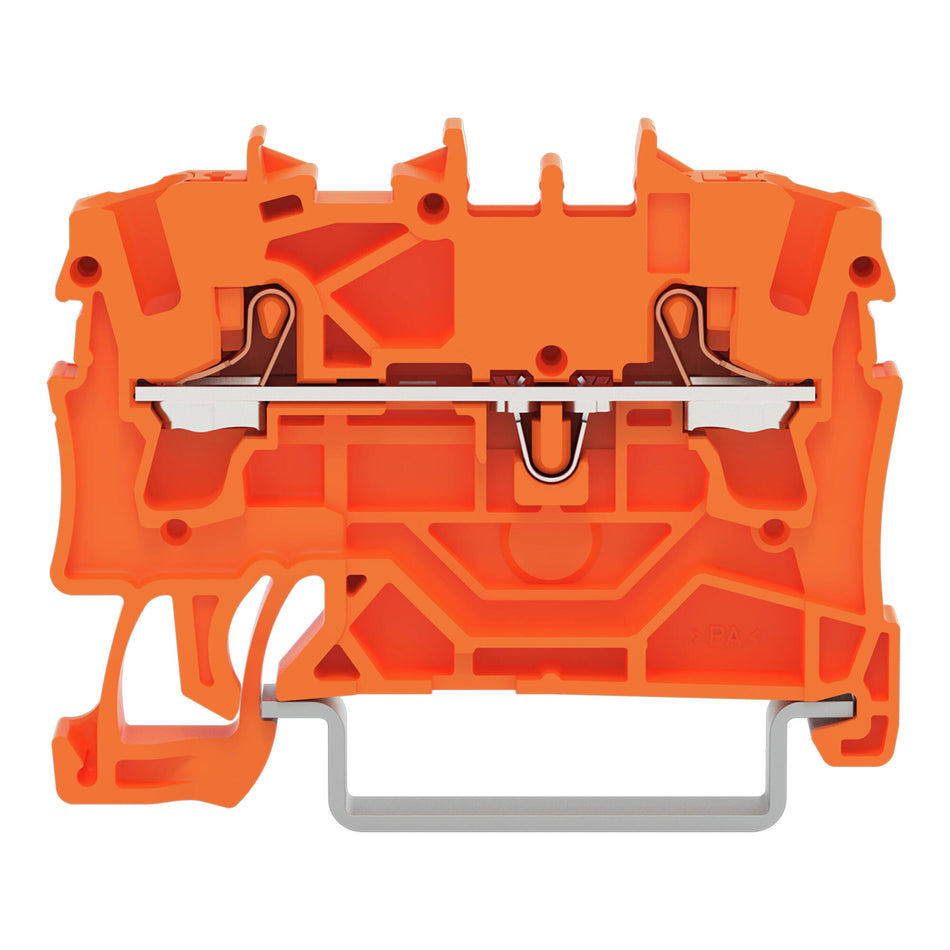

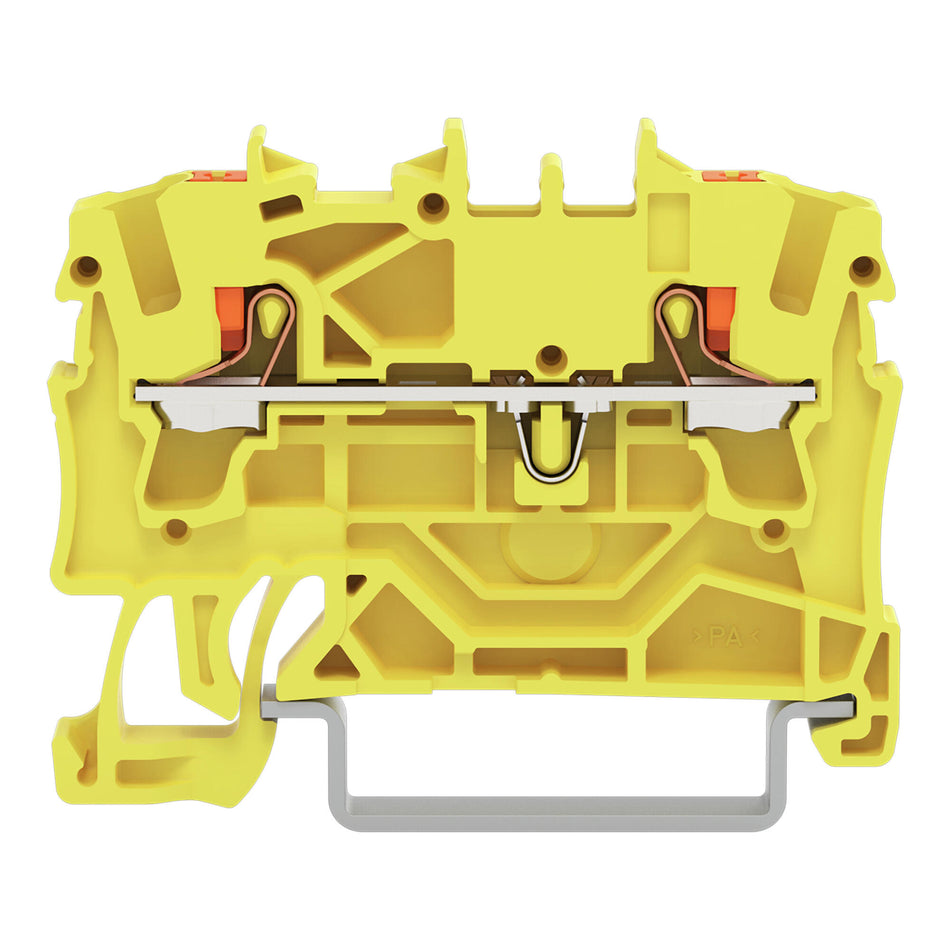

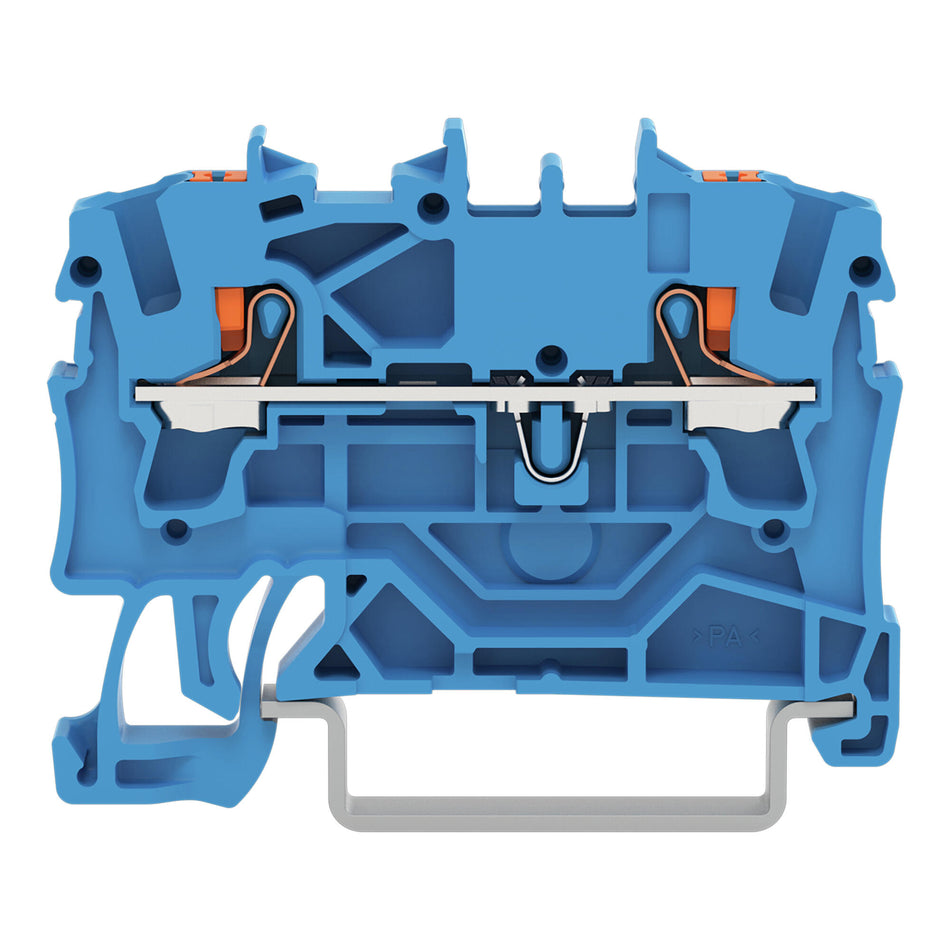

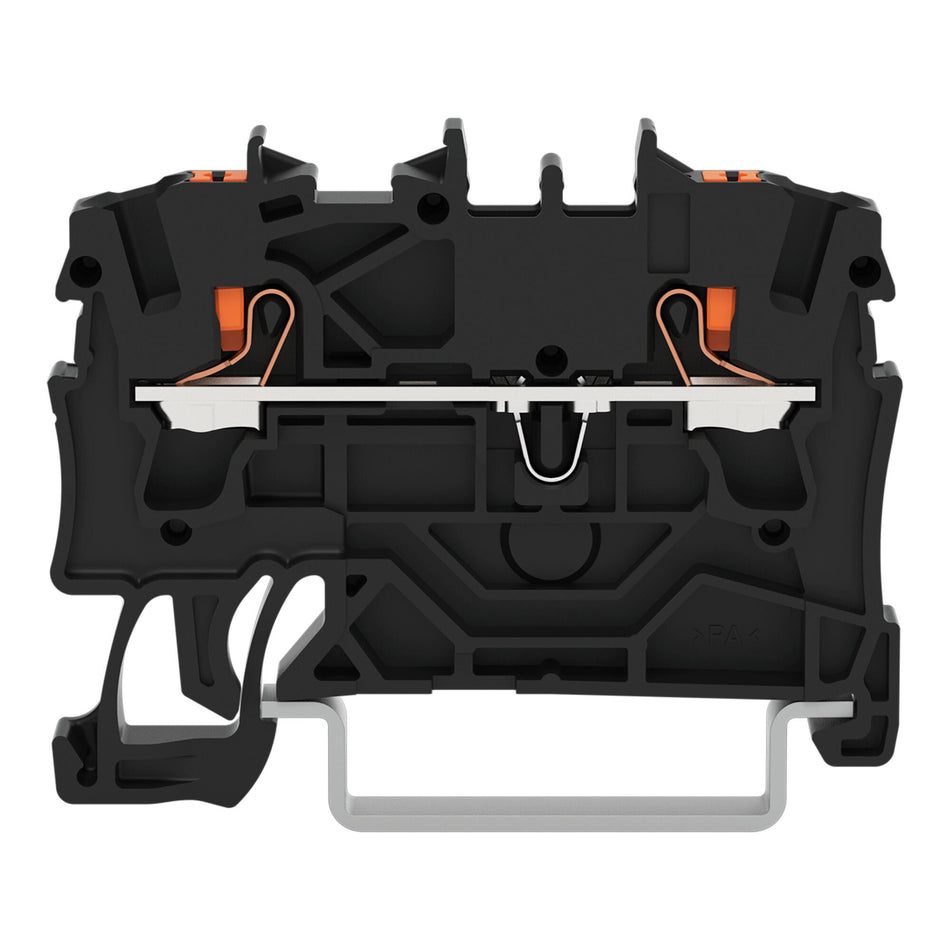

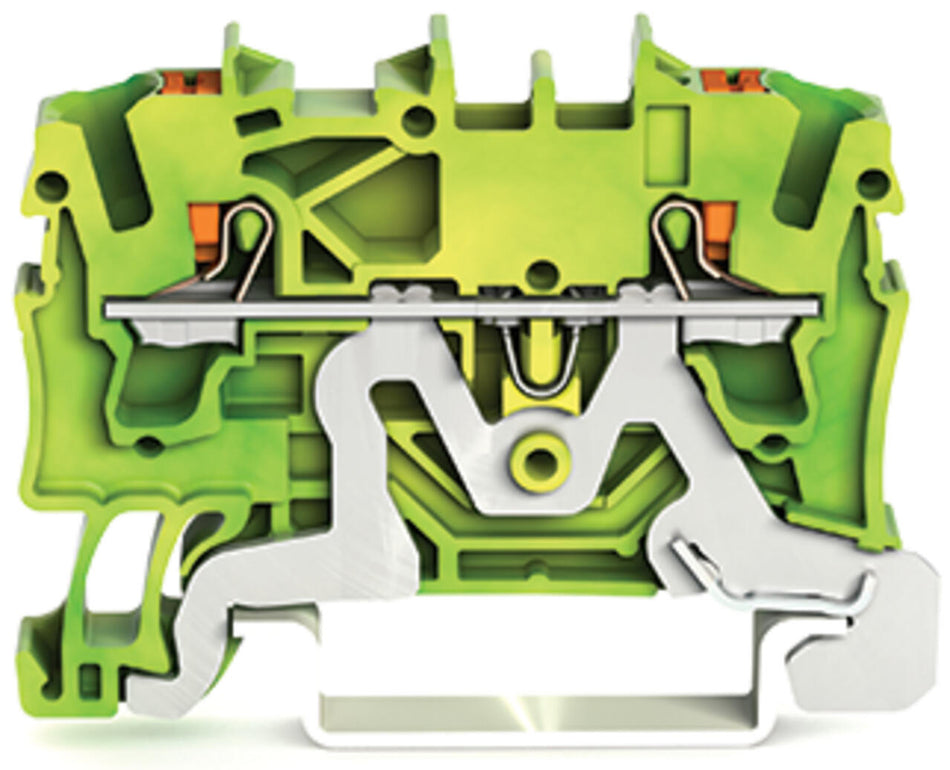

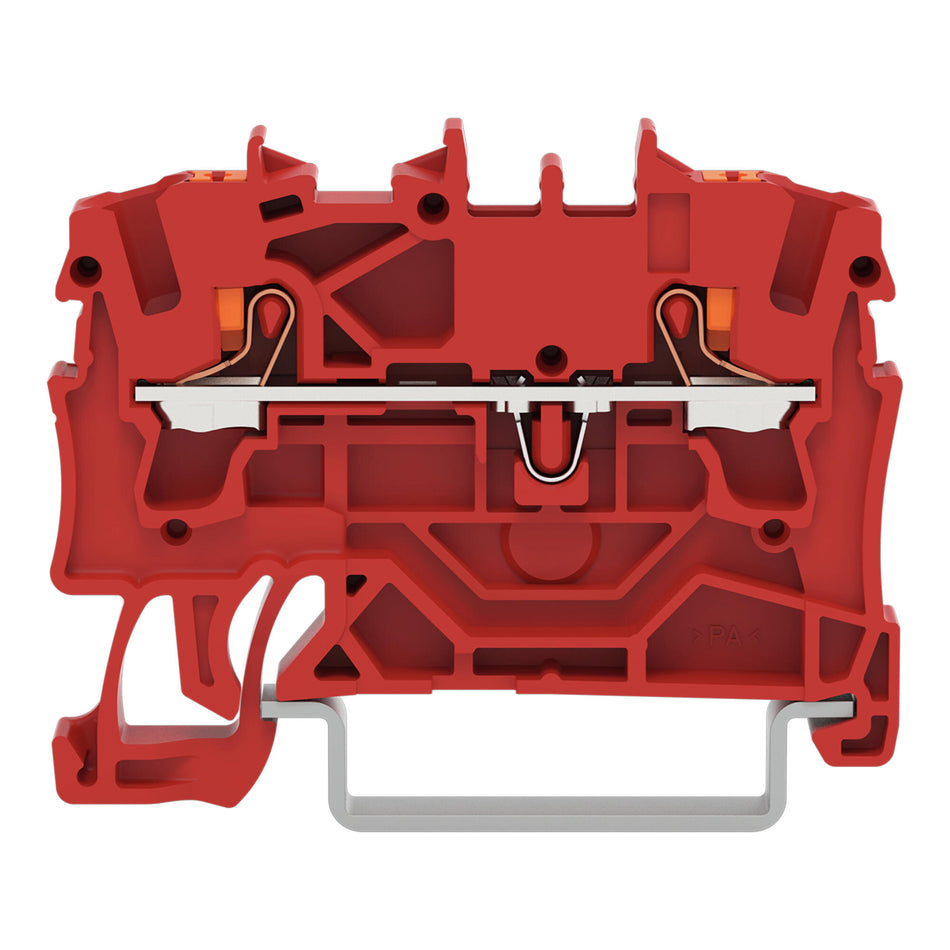

• Push-in connector with CAGE CLAMP® technology
• Fast, tool-free wiring installation
• Supports 22–12 AWG copper conductors
• Rated up to 600 V / 20 A
• UL 1059 and CSA 22.2 No.158 certified
• High-strength polyamide (PA66) housing
• UL94 V0 flame resistance rating
• Operating temperature –60 °C to +105 °C

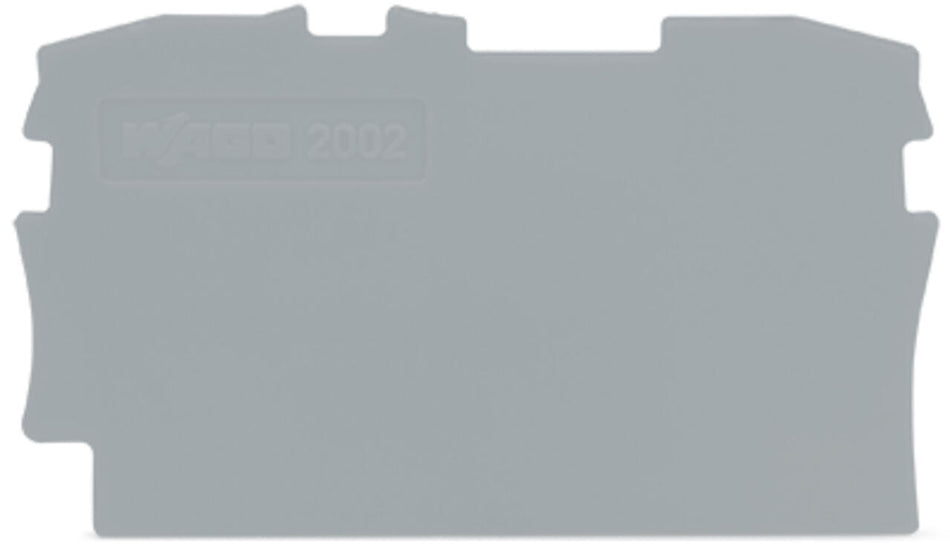

• End and intermediate plate for terminal blocks
• 0.8 mm thickness
• Durable gray insulating material
• Designed for WAGO terminal systems
• Provides electrical isolation and terminal separation

Finding that the MICRO PUSH WIRE® Connectors for Junction Boxes are ideal for DIN-rail-mount panel applications, electrical installers have requested the ability to use them in distribution panels.

These connectors provide easy connections for smaller conductors used in low-current applications.

They are well-suited to terminating telephone-style conductors for connecting alarms, bells, door sensors, communication systems and more.

Simple and fast: The PUSH WIRE® plug-in terminal connection is the uncomplicated and fast way to connect a kink-resistant conductor.

The dimensions are (10 x 11.5 x 10) mm in width x height x depth.

The surface of the contacts is made of tin.

Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing you to clamp the conductor in place more quickly and easily.

Dimensions: 18.4 x 6.8 x 10 mm (width x height x depth).

• Push-in jumper bar for WAGO terminal blocks
• Quick and secure tool-free bridging
• Light gray finish
• Enables fast electrical connection between adjacent terminals
• Ideal for compact and organized panel wiring
