WOLF BMS Platform for KNX, BACNET, DALI, MODBUS and more

Integration of different subsystems and technologies in an all-in-one solution

Building Management Platform for all types of buildings for system integration.

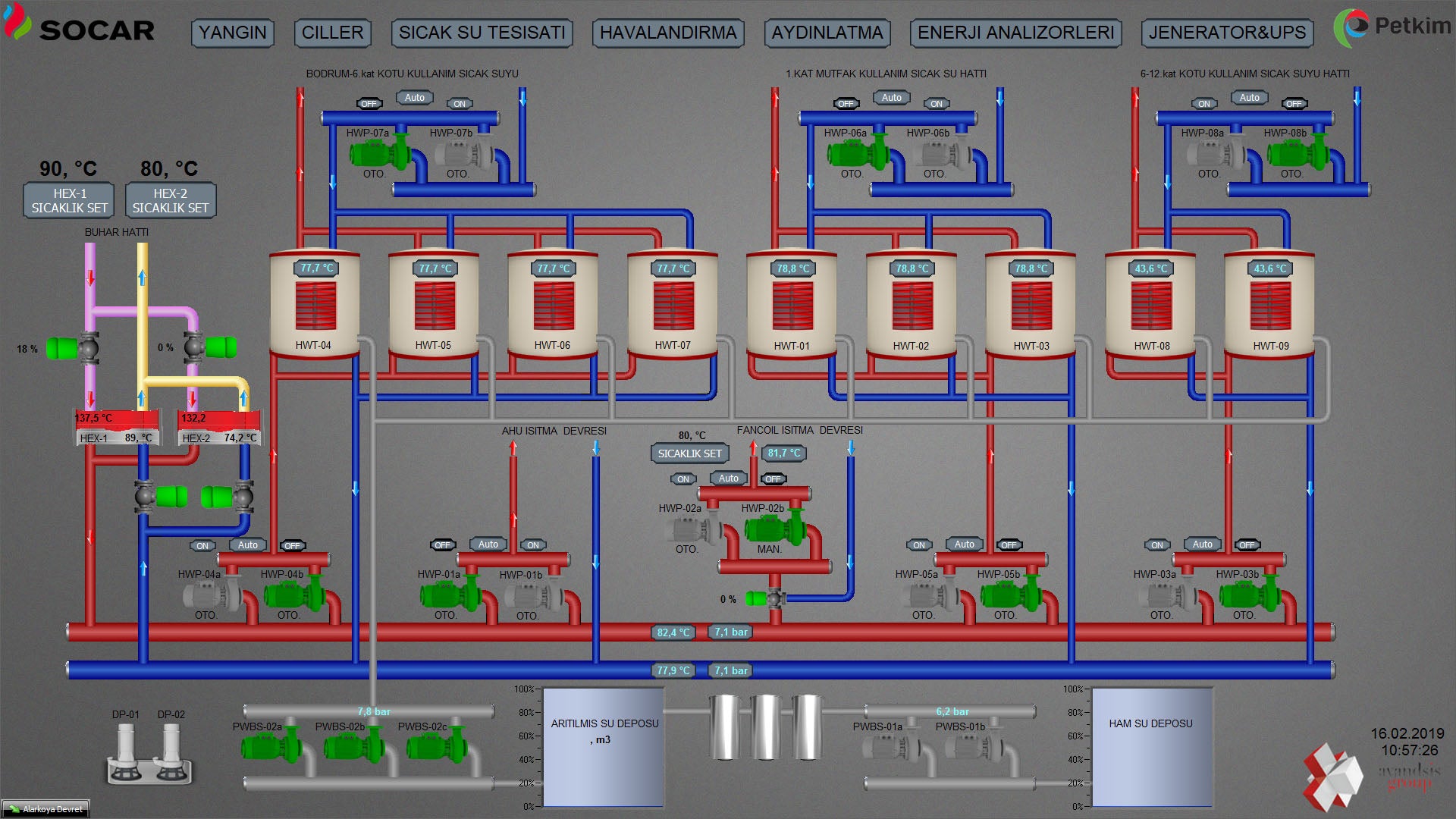

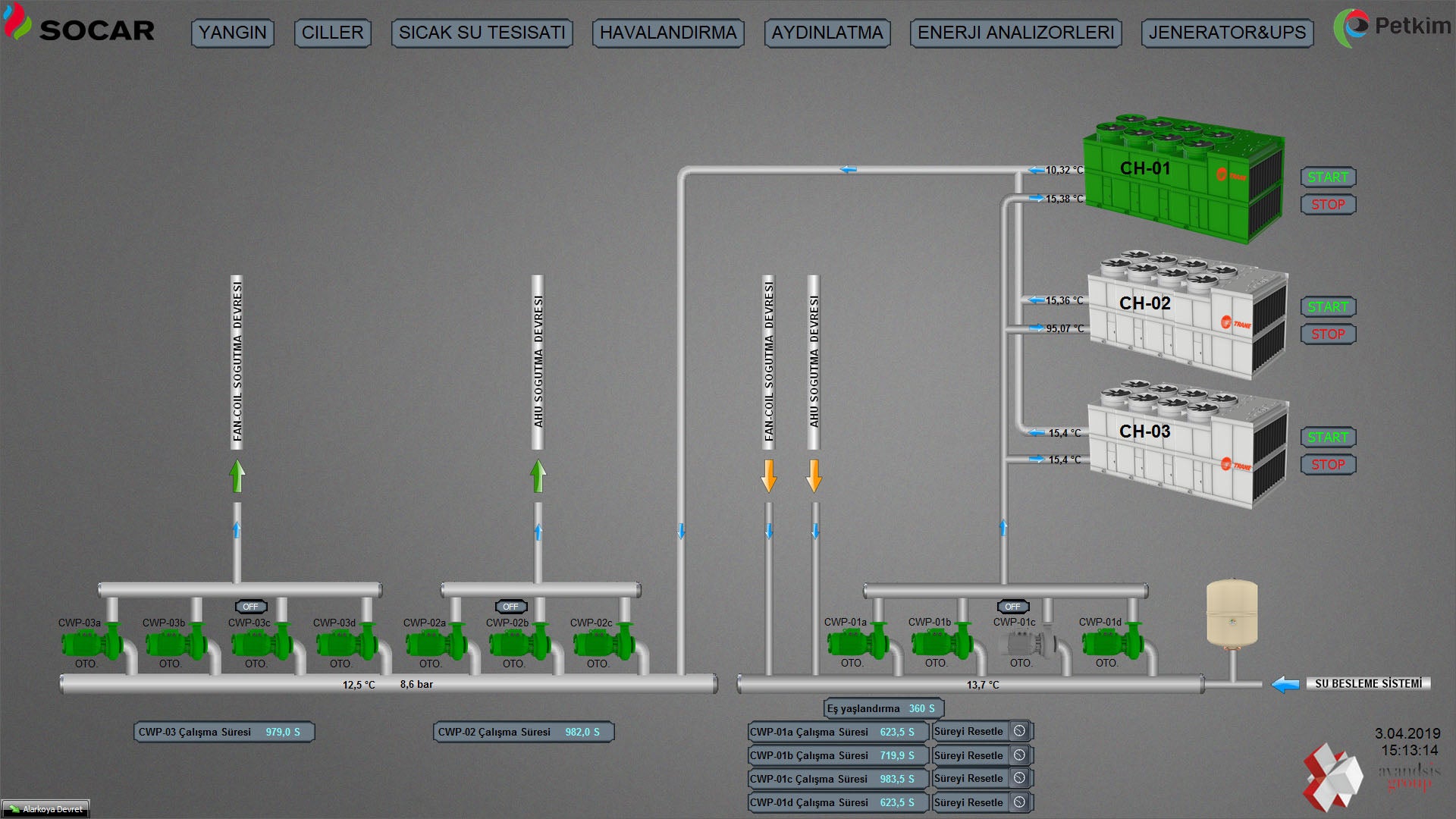

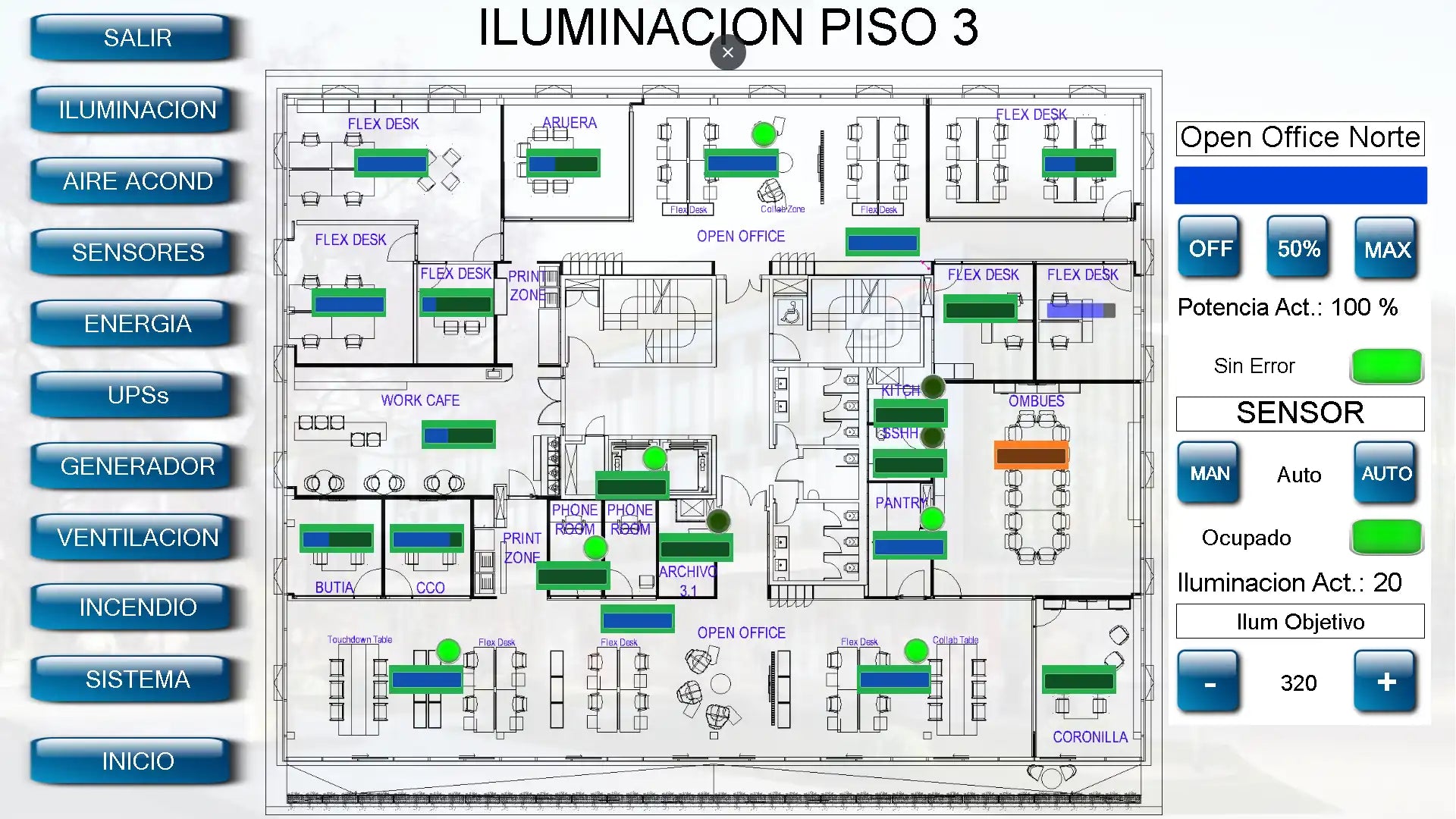

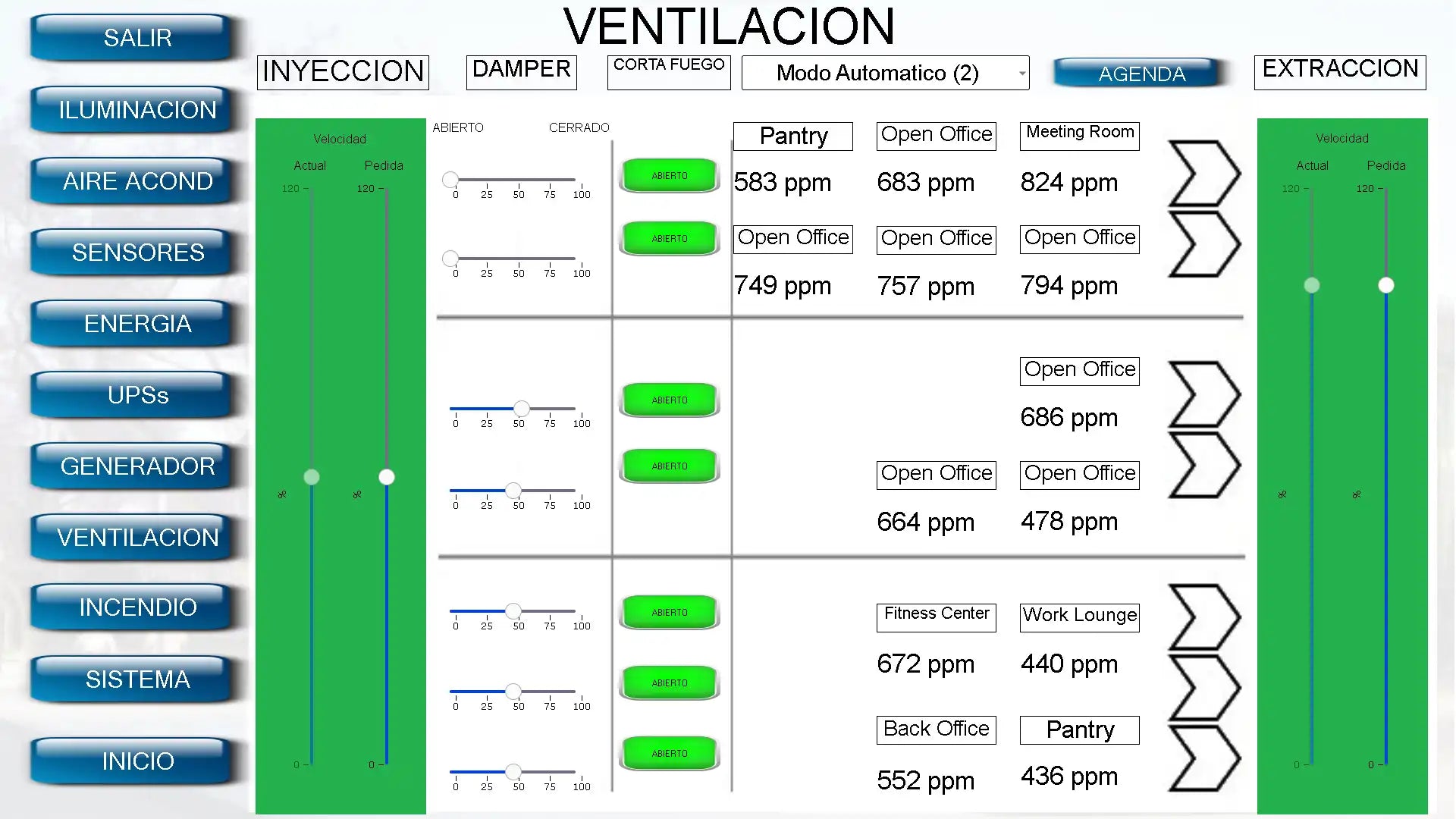

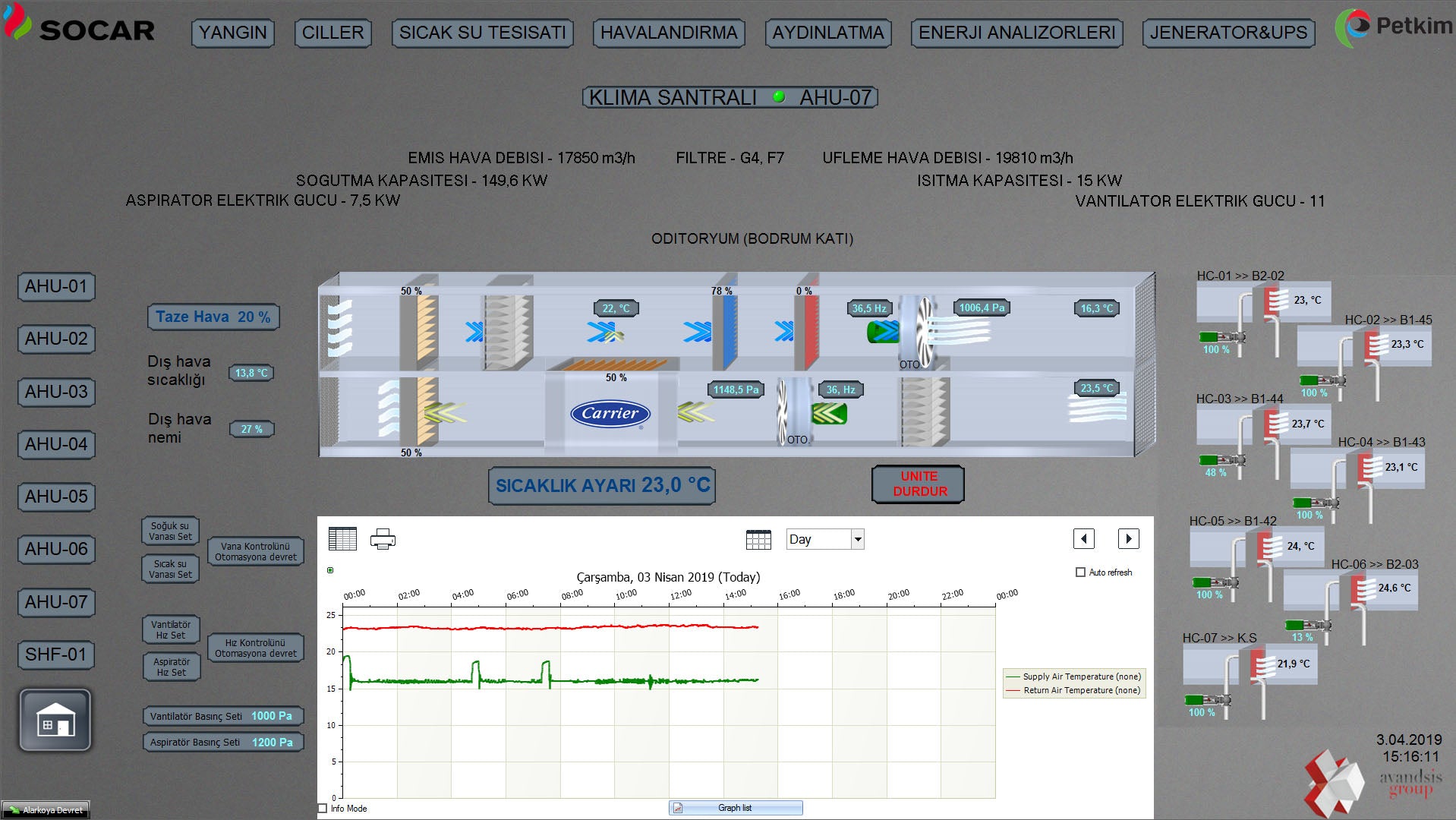

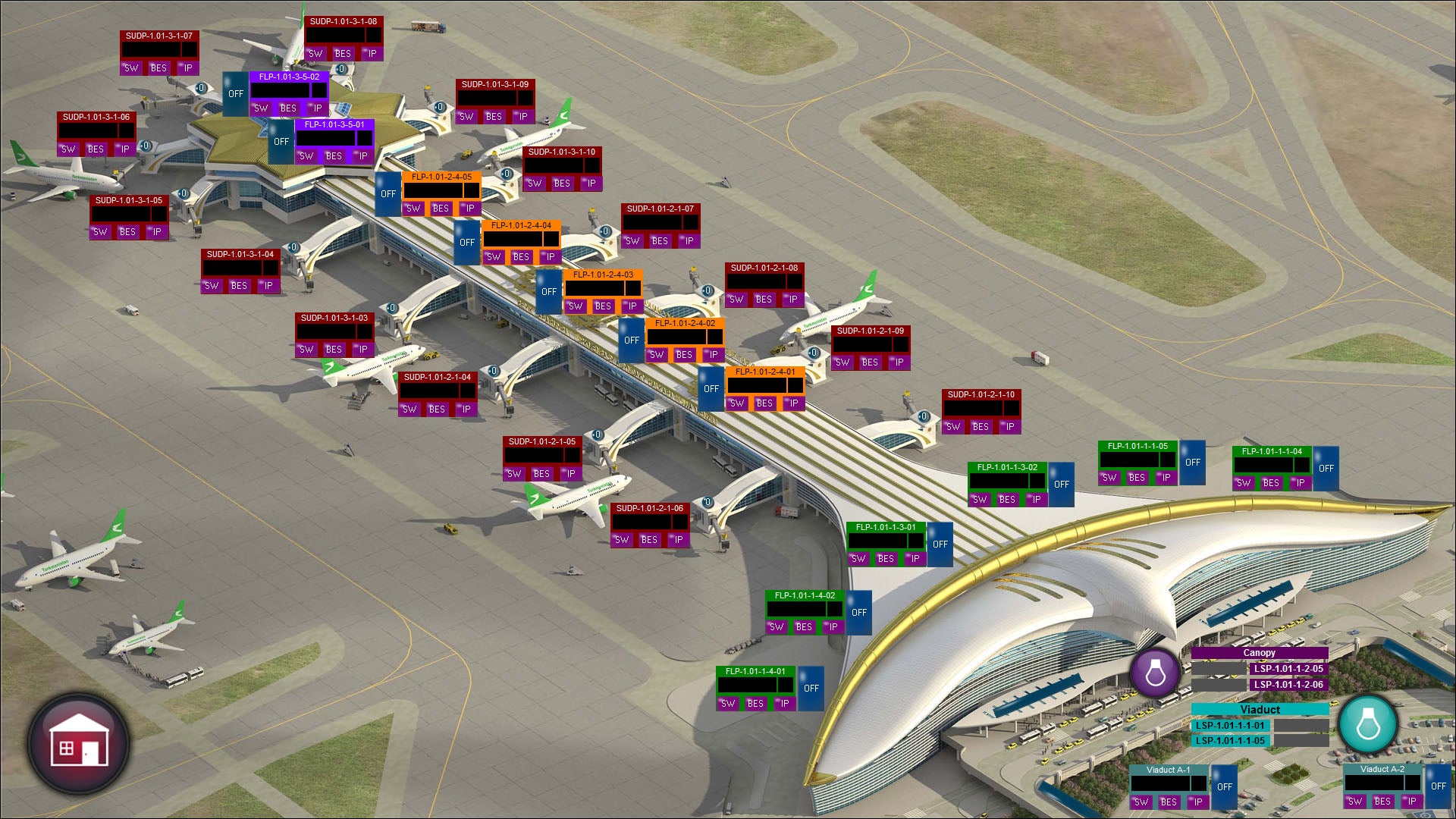

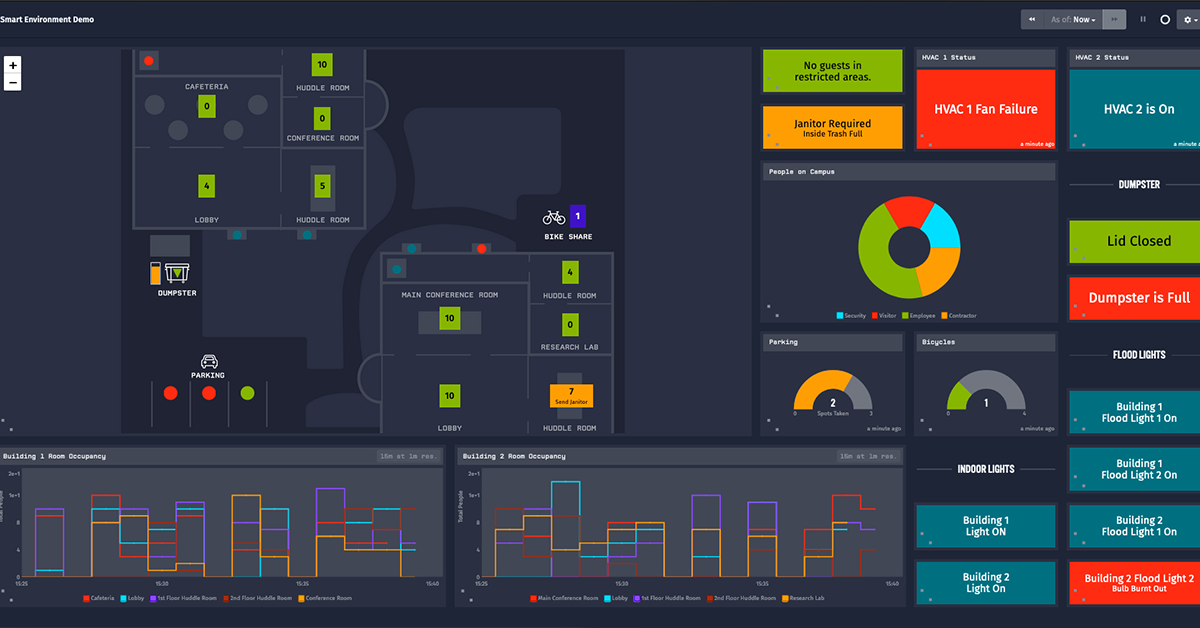

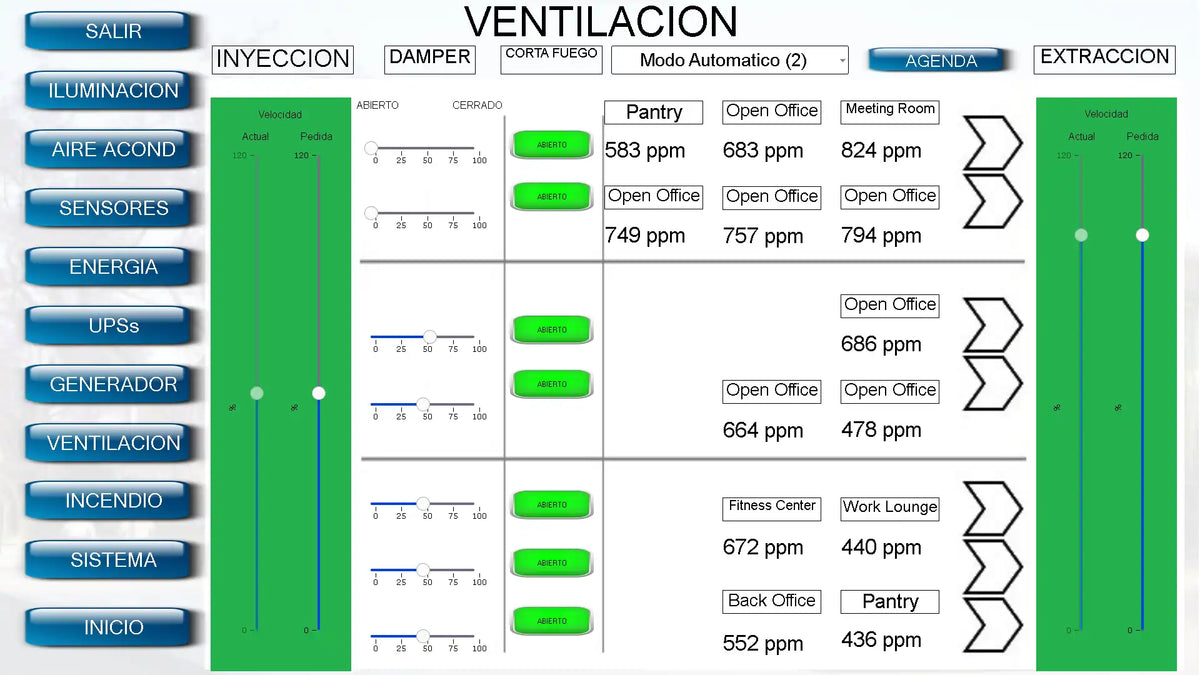

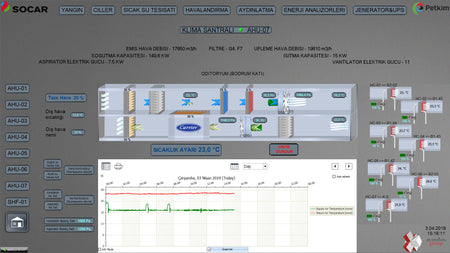

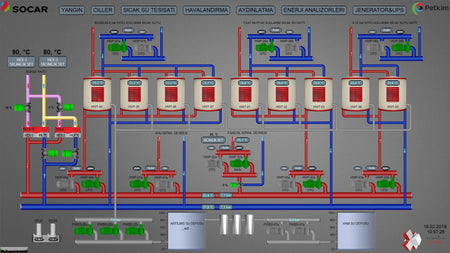

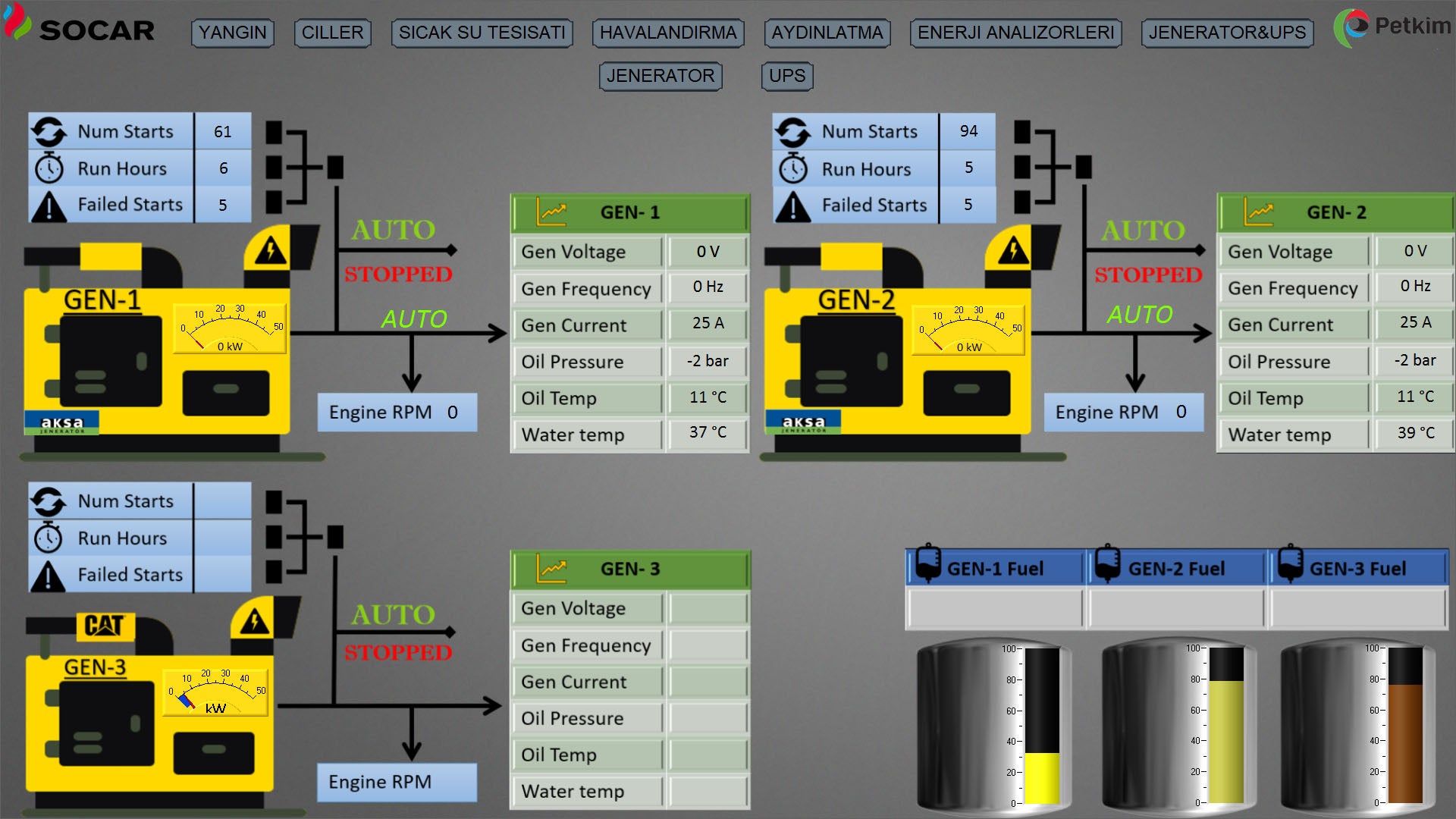

NETx Visualization Clients for different operating systems (Windows, iOS, Android and Web) are included.

The number of graphical elements and pages for visualization clients is not limited by the license.

Provides OPC DA, OPC UA, BACnet IP Server functionality to management platforms or SCADA systems for all available interfaces and extensions (e.g. KNX, BACnet, Modbus, SNMP including optional interfaces and project specific modules / extension for Hotel PMS, lighting/DALI management, energy management or automatic shading control).

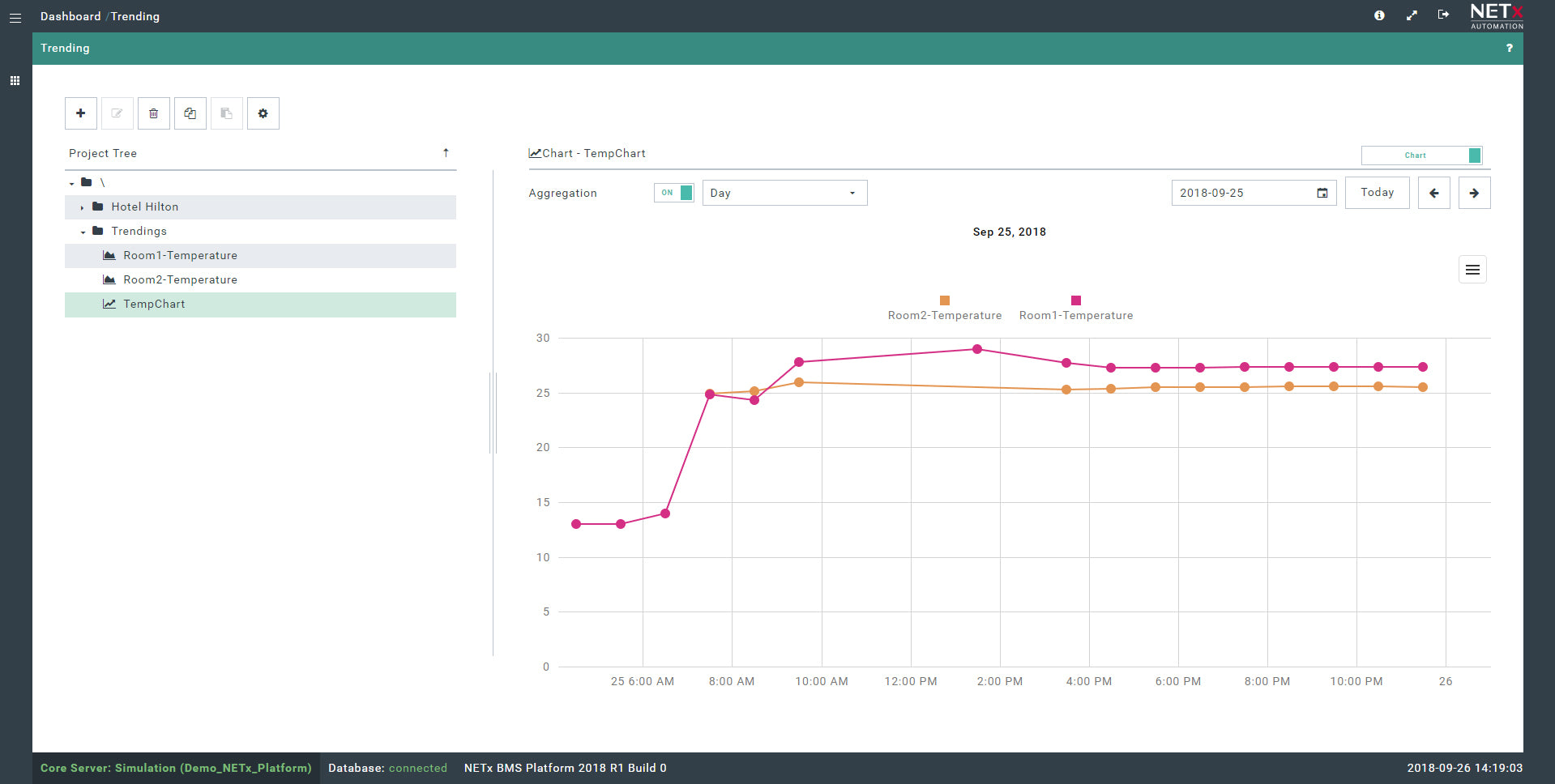

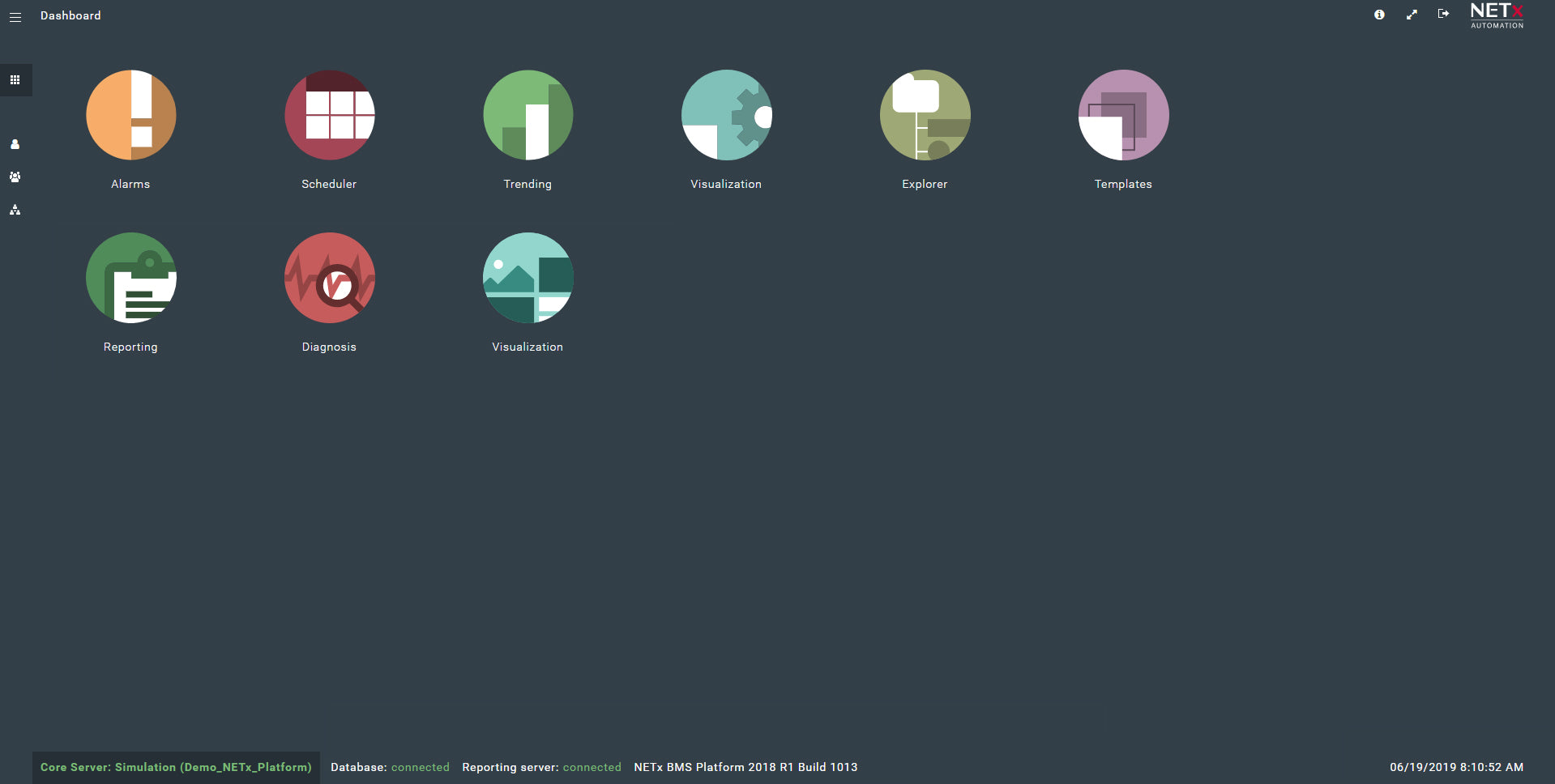

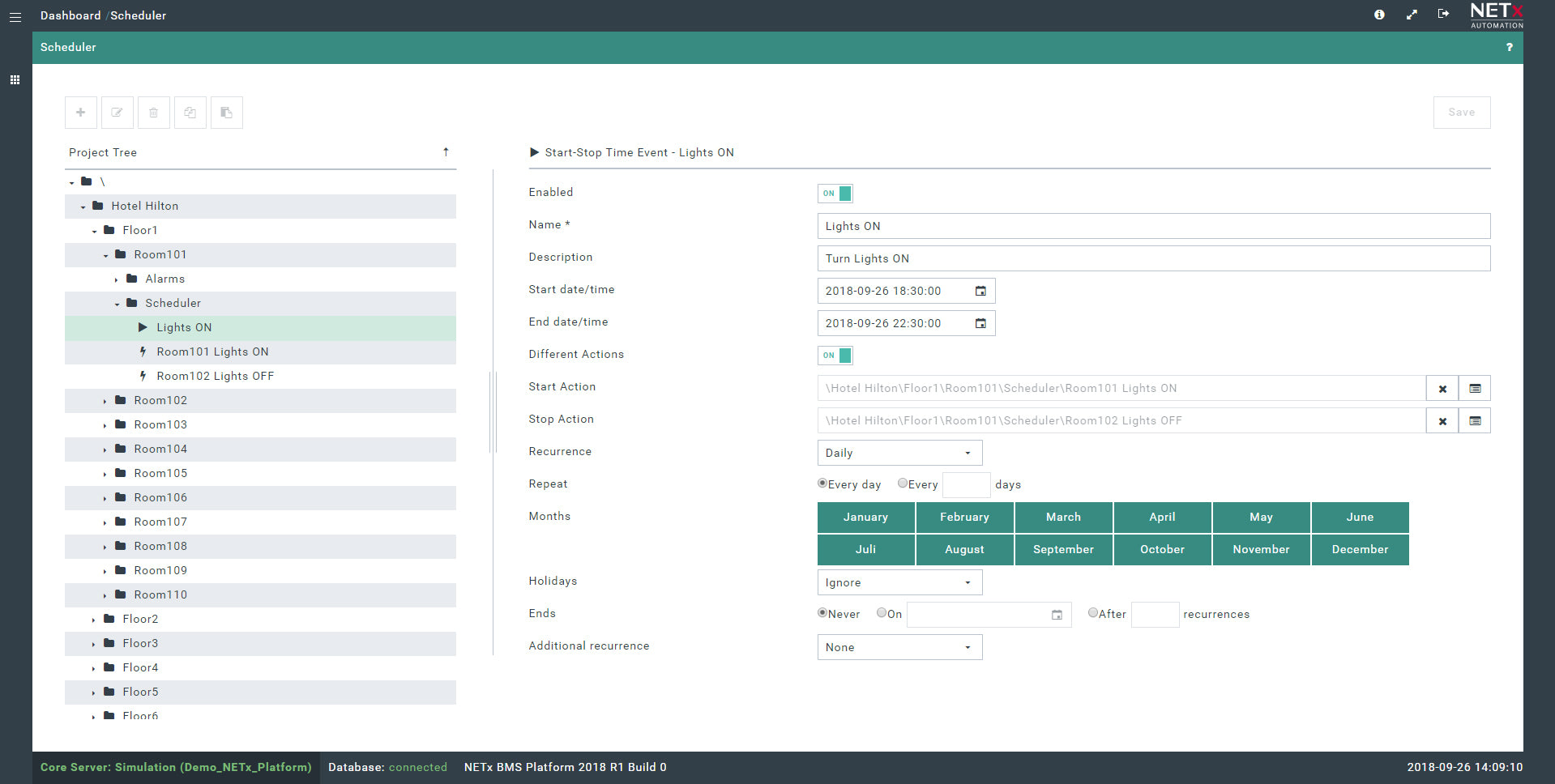

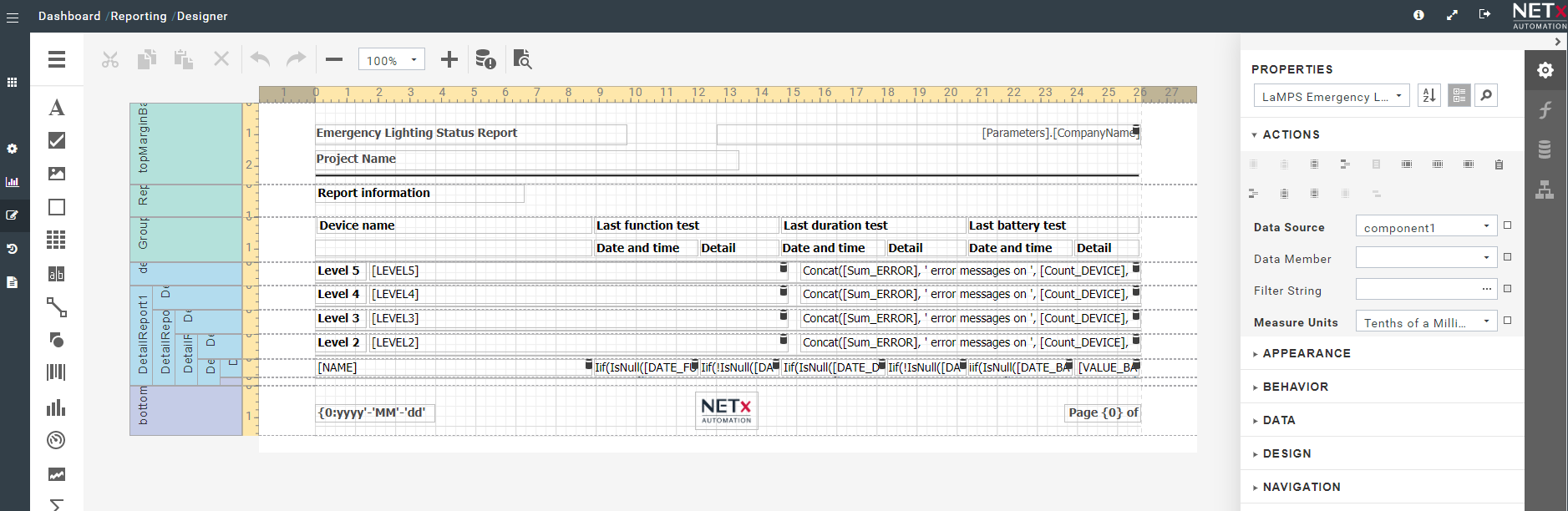

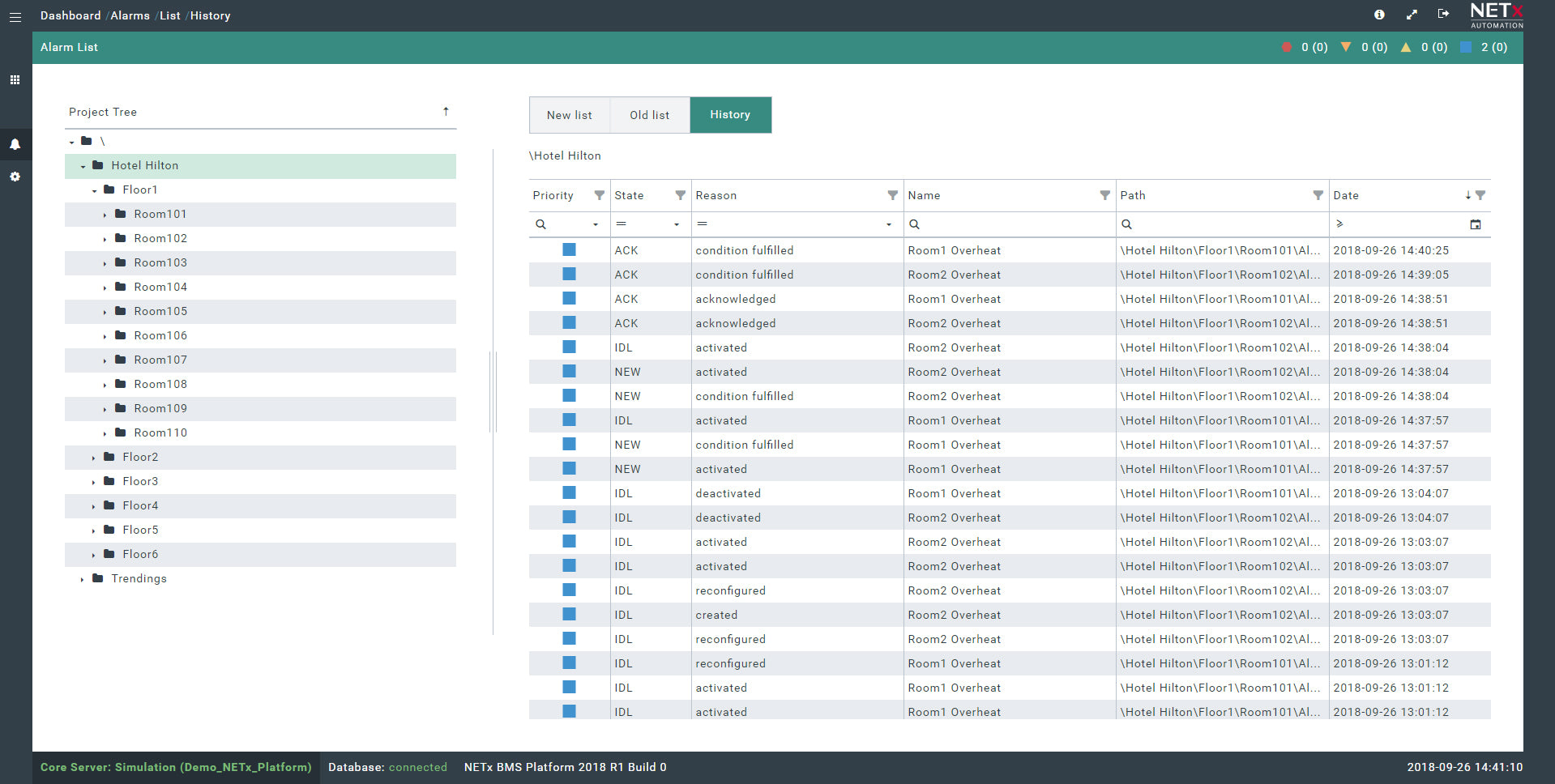

Logic engine (LUA, XLogic Editor) for complex control functions and web interface for alarm management, trending, reporting, scheduling and database for historical values included.

Main/backup (hot-stand-by) configuration for creating redundant systems available.

Licensed data points are:

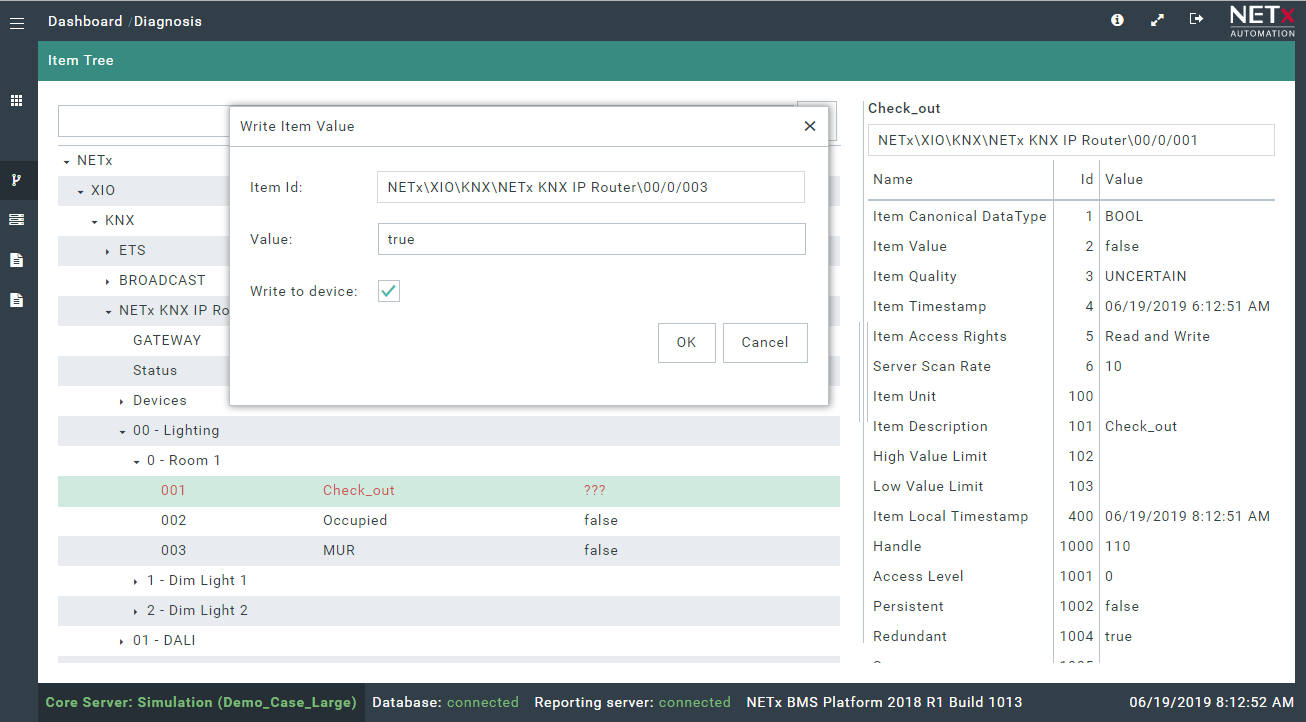

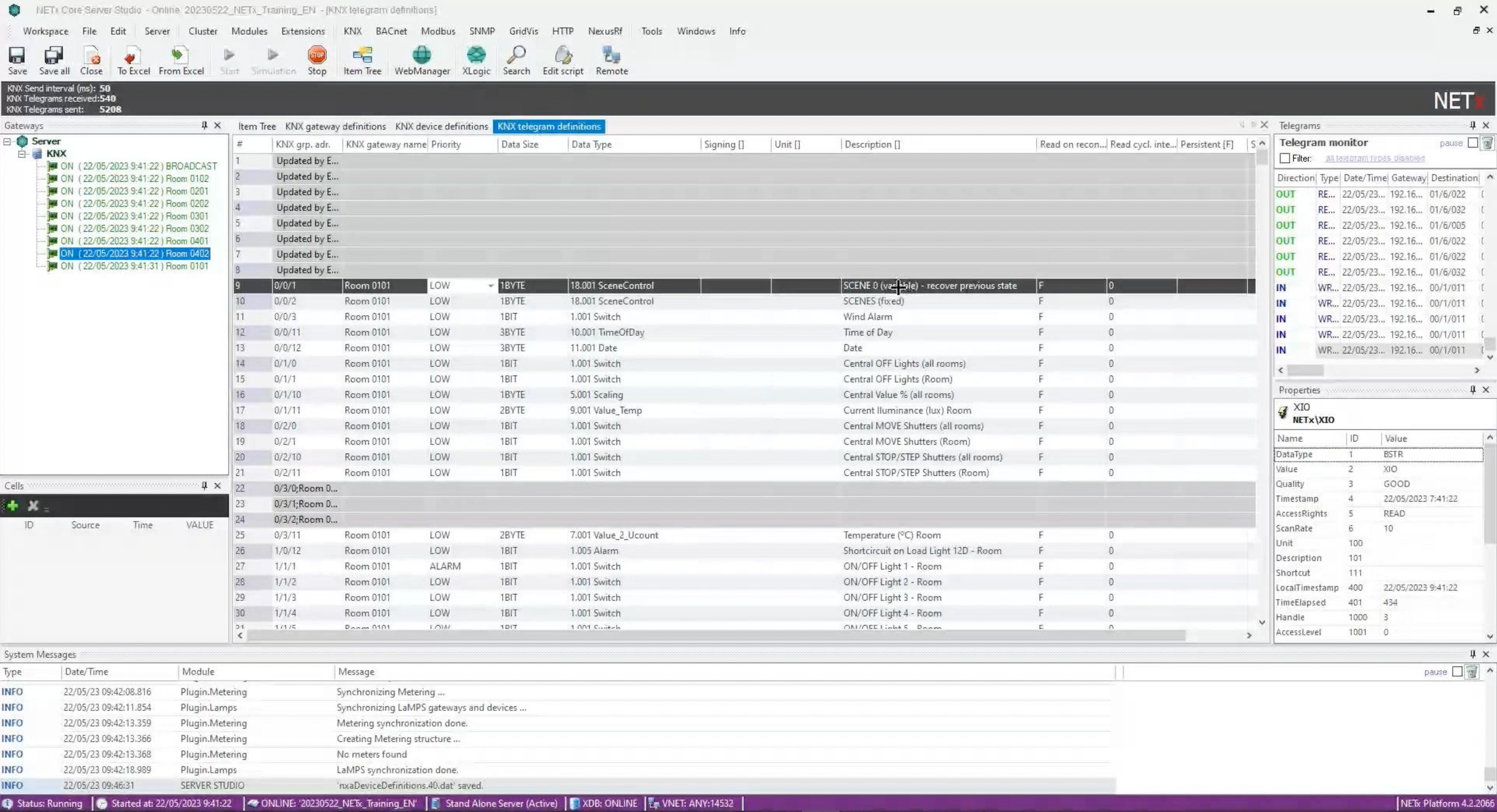

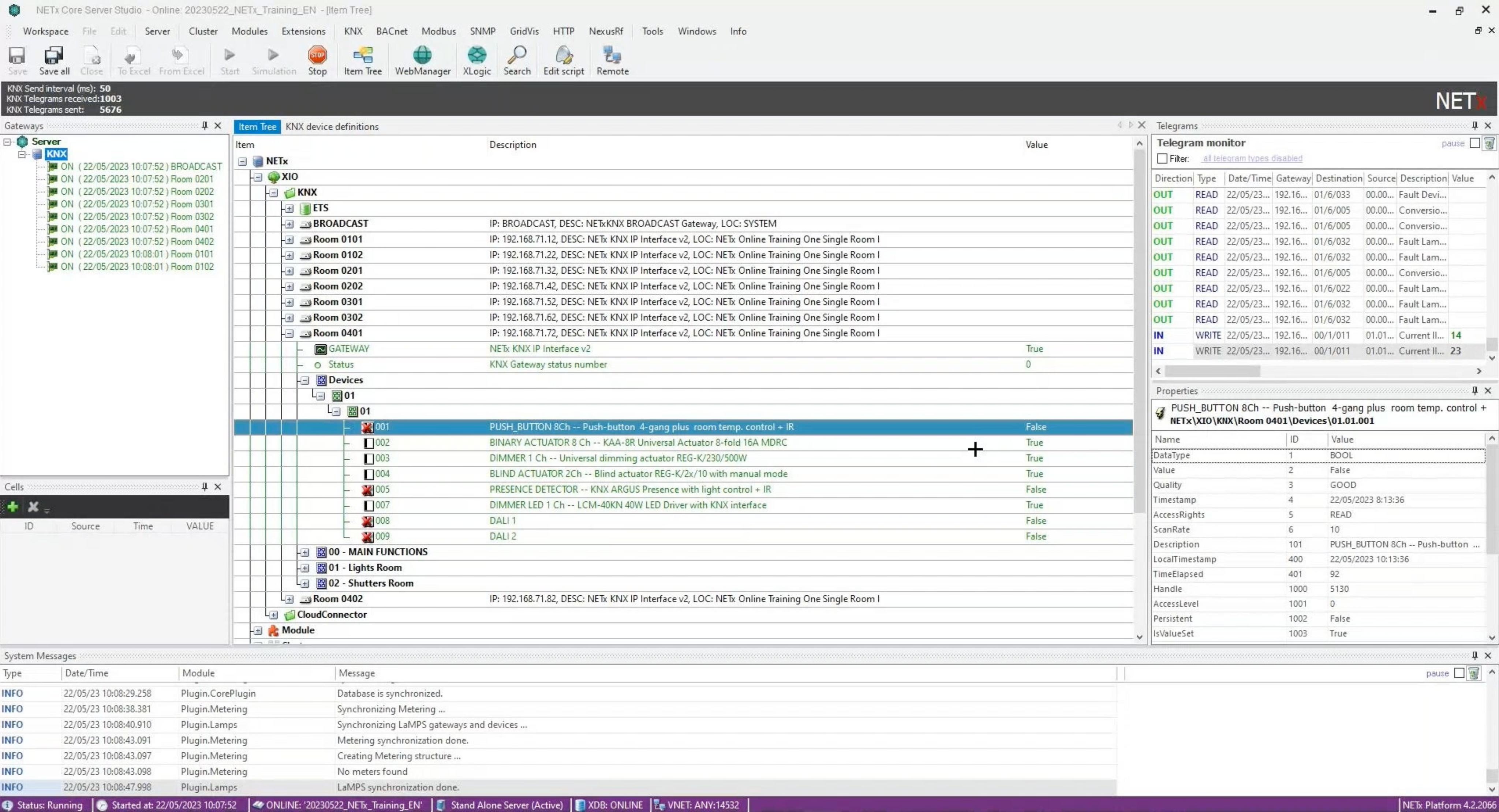

• KNX group addresses, KNXnet/IP routers/interfaces, monitored KNX device definitions

• BACnet objects, BACnet devices

• Modbus data points (Input / Holding registers, Coils, Discrete Inputs), Modbus devices

• Cluster data points (foreign OPC items, integrated data points from other NETx servers)

• data points for additional interfaces, extensions

Double amount of virtual data points (Virtual Items, Custom Items) is included.

Other definitions (virtual links, aliases, BACnet mappings, ...) are for free.

From version BASIC an individual adaption of data points and clients is possible.

System requirements

• Can be installed and executed on any device with a Windows system (from Windows embedded boxes to large Windows server systems, VMWARE, VirtualBox, Hyper-V, ...) or cloud-based environment (Microsoft Azure, ...)
• Hardware requirements depend on: number of data points and the implemented building management functions (visualization clients, number of defined alarms, logic definitions, ...)
• Minimum requirement (without SQL usage): 1.8 GHz Quad-Core, 16GB RAM, 100 GB disk space, at least Windows 10 or Windows Server 2016 (Windows 11 or Windows Server 2022 recommended)
• Minimum requirement (with SQL usage): 1.8 GHz Quad-Core, 16GB RAM, 100 GB disk space + additional SQL disk space, high-performance SSD hard disk, at least Windows 10 or Windows Server 2016 (Windows 11 or Windows Server 2022 recommended)
• NETx Vision: iOS 12.1 or later / Android 5.1 or later
