Best Selling Products

KNX IP Router: This Interface offers the same functions as the IP interface, but the device routes telegrams as a line coupler using the the LAN.

The MDT Binary Input BE, for example, makes conventional push-buttons, switches, window and auxiliary contacts “smart” for KNX.

The comprehensive application provides the suitable parameters for various applications.

Versions for floating contacts, 24 V AC/DC and 230 V AC are available.

The MDT Push-button Lite 55 is a neutral KNX push-button with vertically arranged 2 button operation and colour-adjustable status LEDs.

The buttons can be set as 2 button operation (two-surface) or 1 button operation.

Each push-button surface has 2 RGBW status LEDs.

Get started with KNX technology with our KNX Starter KIT.

This all-in-one kit includes

• KNX power supply, 640mA
• USB interface
• Switching actuator, 8 fold
• Universal dimmer actuator, 2 fold
• Occupancy sensor
• KNX Controller Touch & Pad, Metal, Black IPS capacitive touch panel & mechanical button
• KNX cable, 30 ft.
• ETS program pre-configured
• Easily set up your home automation with our reliable and efficient KNX products.

All products are fully functional. Line products are UL listed.

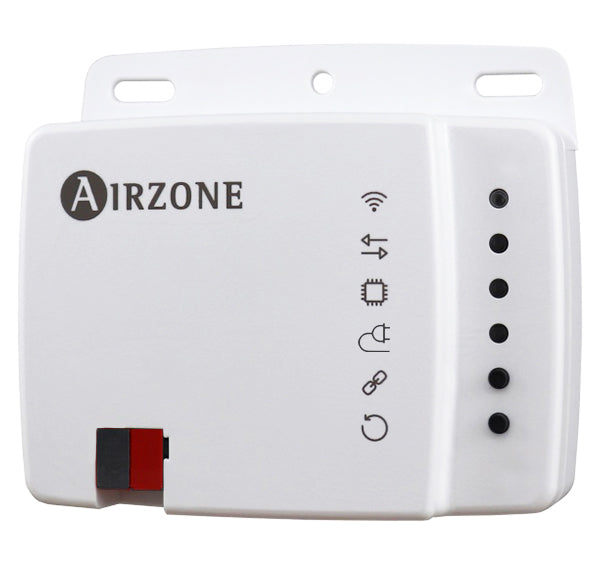

This device allows for remote management and integration of units via the Cloud, controlled through the “Airzone Cloud” App for iOS and Android.

It features a dual Wi-Fi connection (2.4/5 GHz) and is powered by an external supply.

Key features include:

Unit Control and Error Detection: Monitor unit performance and identify issues.

Configurable Digital Input: For open window detection, occupancy presence, or ECO function.

Auxiliary Heat Control: Manage heating sources and lock settings.

Automatic Mode Changes: Adjusts operation mode based on two set-point temperatures.

Temperature Limitations: Set limits for cooling and heating modes.

Scheduling: Manage status, temperature, mode, and fan speed through time schedules.

Integration with Third-Party Thermostats: Supports Cloud and wired integration with smart thermostats (3PI).

Protocol Compatibility: Integrates via Modbus RTU/TCP, BACnet MS-TP/IP, and other devices like the Lutron Palladiom thermostat and AirQ Sensor.

API Services: Offers local and Cloud API integration, plus mDNS multicast for efficient communication.

This provides a comprehensive solution for effective climate control management.

Set the operating temperature using the Hisense thermostat probe measurement.

Access the function selection and set value 1 in parameter C8 (refer to the installation manual).

Disconnect the indoor unit and follow the assembly steps:Screw attachment or double-sided adhesive attachment.

Connect the Aidoo to the KNX bus and the indoor unit terminals using the supplied cable.

Power the indoor unit and check the LED indicators (refer to the self-diagnosis section).

Configure the device in ETS using the provided database.

(Optional) Configuration to impose temperature:

An external device with a temperature probe (e.g., KNX thermostat) is required.

Autonomous mode: Aidoo operates as the master and can impose the room temperature from the external probe without specific configuration.

Master-slave mode: The unit’s thermostat must be configured as a slave (parameter F2 set to “Sub”).

This summary highlights the key points for installing and configuring the device.

• Device Type: The switching actuator sub-module N 513/21 is a DIN-rail mounted device in N-system dimensions.
• Relay Outputs: It can switch three groups of electrical consumers independently via its three relay contact outputs.
• Load Monitoring: Each relay output features load current measurement and monitoring (load-check).
• Standalone Operation: The sub-module cannot operate independently and must be connected to a main module.
• Connection Method: It connects via a 6-pole bridging connector to a main module (N 513/11, N 512/11, or N 562/11) or to another sub-module already connected to a main module.
• Power Supply: The sub-module’s electronics are powered by bus voltage through the 6-pole bridging connector.
• Modular Extension: Up to 4 sub-modules can be connected in series to a main module, extending it from 3-fold to 15-fold switching capability.

KNX Module for Raspberry Pi.

Application area

The KNX BAOS Module 838 kBerry is an extension board for the Raspberry PI® single-board computer.

It can be plugged directly on the Raspberry board and serves as a serial interface to KNX.

BAOS stands for “Bus Access and Object Server”.

So the module allows the access to the KNX bus on telegram level (KNX Link Layer) as well as on data point level (KNX Application Layer).

The connection between application and KNX BAOS Module is established via a UART connection (FT1.2 framing).

For a quick start a generic ETS® entry with 1000 group objects is available.

Individual ETS entries can be created as well.

The KNX BAOS Module 838 is powered via the bus and provides galvanic isolation.

The firmware of the KNX BAOS Module 838 is fully compatible with the KNX BAOS Module 830.

Compact bus powered Router between LAN/Ethernet and KNX bus.

Application area

The compact KNX IP Router 752 secure allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.

In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming.

The device supports KNX Security which can be enabled in ETS.

As secure router the device allows coupling of not secured communication on KNX TP to a secured IP

backbone.

Also for the interface functionality (tunneling) KNX security prevents from unauthorized access.

The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.

This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part.

The KNX IP Router 752 secure has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams.

Power is supplied via the KNX bus.

Compact bus powered interface between LAN/Ethernet and KNX bus.

Application area

The KNX IP Interface 731 is a compact interface used to connect a PC to the KNX network.

The connection is made through LAN (IP).

Power is supplied via the KNX bus.

The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.

This device works according to the KNXnet/IP specification using the core, the device management and the tunneling part.

The buttons are for diagnostic purposes.

The LEDs indicate the operating status and communication errors on the bus.

Gateway between KNX DMX512.

Application area

The KNX DMX Gateway 544 is a compact gateway between KNX and DMX512 (protocol for lighting control) with up to 64 freely configurable channels.

In master mode, the device allows convenient control of DMX luminaires, for example with KNX push-buttons.

Up to 64 dimming channels or up to 8 RGB/RGBW channels are available.

Several subsets of DMX512 addresses can be assigned to each channel.

The dimming channels enable dimming of one or more DMX devices via KNX.

In addition, 4 sequencers are available in the gateway to carry out more complex tasks.

In slave mode KNX actuators can be controlled by DMX.

For example, the room lighting, which is part of the KNX installation, can be controlled via a DMX lighting control panel.

Overview

• Module converting DALI dimming commands into analogue 0-10V signal (DALI DT5)
• The module is especially designed to operate with drivers with 0-10V control input
• Transformation of DALI 8-Bit arc power level into analogue output signal from 0V to 10V
• Selection of linear or logarithmic dimming curve (DT5)
• Factory default are the default DT5 settings: output range 1-10V, logarithmic dimming curve
• Maximum output current of 1mA (current sink)
• The DALI 0-10V must not be connected to the mains. It is supplied directly by the DALI signal line.

Overview

• DALI bus power supply unit.
• Guaranteed supply current 100mA.
• Maximum supply current 130mA.
• Suitable to power a DALI-line with up to 50 standard DALI ballasts.
• Suitable for back box installation and integration in protection class II devices.
• Power supply range 24Vdc … 48Vdc.

Multifunction constant-voltage LED dimmer with four input interfaces (DALI, Push, Phase-Cut, 0/1-10 V).

Supports:

• 12-48 V DC input

• Single channel up to 20 A

• Interface selection via DIP switch

• CE & UL approved

Compact DALI and Push AC phase-cut dimmer for dimmable LED or incandescent loads.

Supports:

•⁠ Trailing-edge control

•⁠ 100–240 VAC input

•⁠ 400 W output

•⁠ Manual or DALI operation for flexible lighting control

Detection Angle:20°

Detection Distance: When installed at a height of 2.5M, the diameter for motion detection is ≤ 0.9M*5.0M

Illuminance Sensor: 0~32000 Lux Product

Dimensions: 43mm x 25mm

Cut-out Size: 35mm x 25mm

Power Input: KNX-BUS

Installation height: 2 ~ 4m

Detection angle: 11 °

Detection distance: 0.1 ~ 3.2m (adjustable)

Illumination sensor: 0 ~ 32000 Lux Product size: φ43mm * 35mm

Opening size: φ35mm

Power supply: KNX 30V(＜10mA)

Module with a serial interface to communicate with components in a DALI-line via RS232

• Easy connection of a PC or a PLC to a DALI system
• Bidirectional data traffic
• Addressing, configuration, status queries and monitoring
• Support for various proprietary DALI protocol extensions
• Galvanic isolation
• Supply via mains voltage
• Integrated bus supply
• Double DALI terminals for remote ceiling version (Art.Nr: 24166096-PS-DE and 24166096-LU-PS-DE)
• DALI-2 version with NEW protocol: LUBA (Lunatone Universal Building Module with serial interface to communicate with the DALI bus via RS232.

Wall mount box for DIVUS CIRCLE small and DIVUS CIRCLE small +

Finding that the MICRO PUSH WIRE® Connectors for Junction Boxes are ideal for DIN-rail-mount panel applications, electrical installers have requested the ability to use them in distribution panels.

These connectors provide easy connections for smaller conductors used in low-current applications.

They are well-suited to terminating telephone-style conductors for connecting alarms, bells, door sensors, communication systems and more.
