WEINZIERL

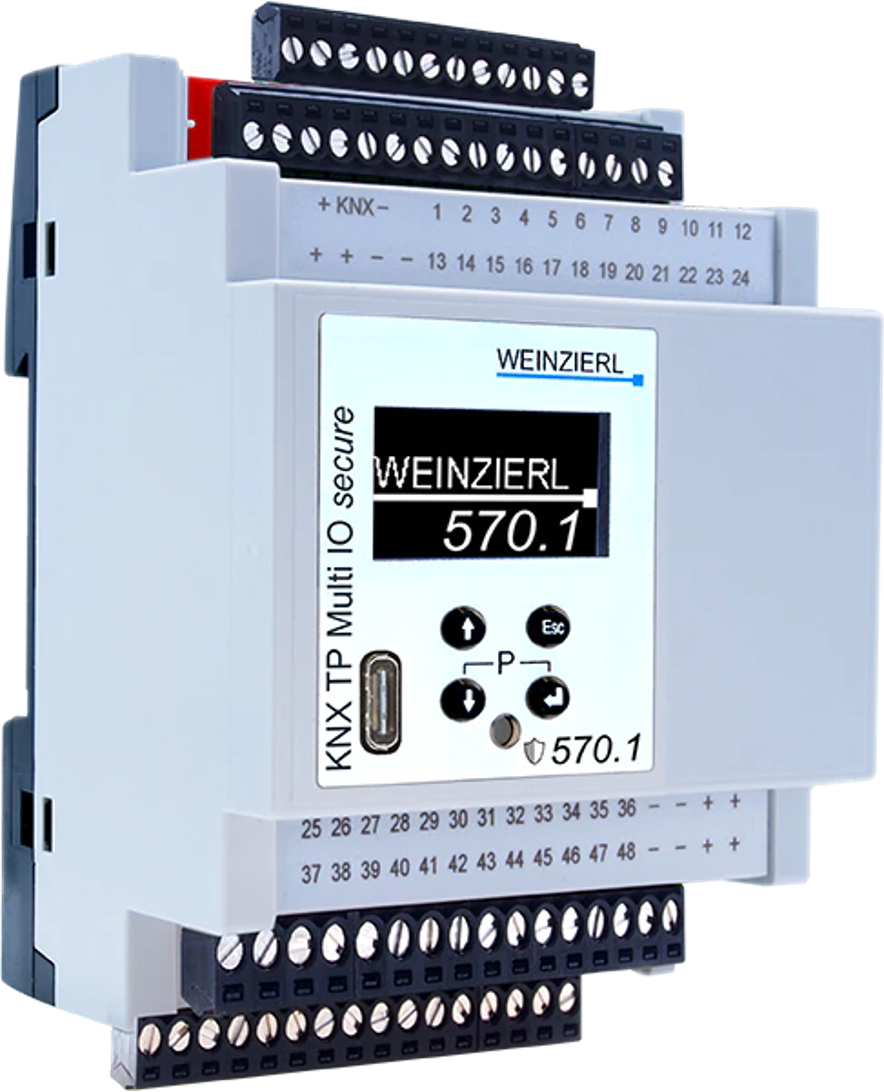

KNX TP Multi IO 570.1 secure

SKU: 570.1
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$489.90 USD
-11% $548.90 USD $489.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX TP Multi IO 570.1 secure is a universal binary interface for building control.

It provides 48 input / output chanels.

Each line can be used as binary input as well as binary output.

The peripherals can be fed by an external voltage of 24 V⎓. Channels which are configured as inputs can be used to control lights or blinds via the KNX network.

They also can be used to count impulses, e.g. as interface for energy meters.

Channels which are configured as outputs can directly drive signal LEDs, external coupling relays (Multi IO Extension Switch 590) or jalousie relays (Multi IO Extension Shutter 592).

The integrated USB interface allows establishing a bidirectional connection between a PC and the KNX bus.

The USB connector has a galvanic separation from the KNX bus.

Both ETS (Version 5.7 or later) and visualization tools support this interface.

The configuration of the device is done with ETS, a local download is possible.
An easy to read OLED display on the front panel enables a manual operation to test the installation.

The device supports KNX Data Security.
